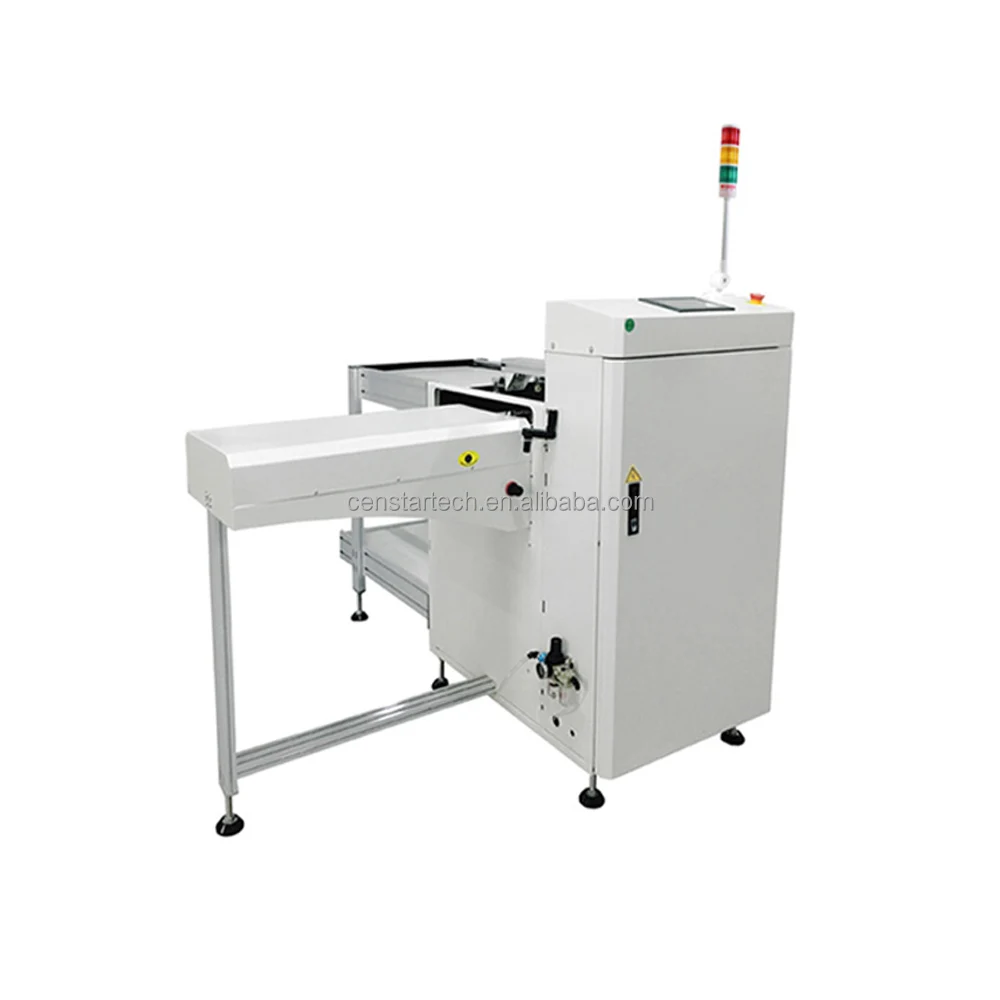

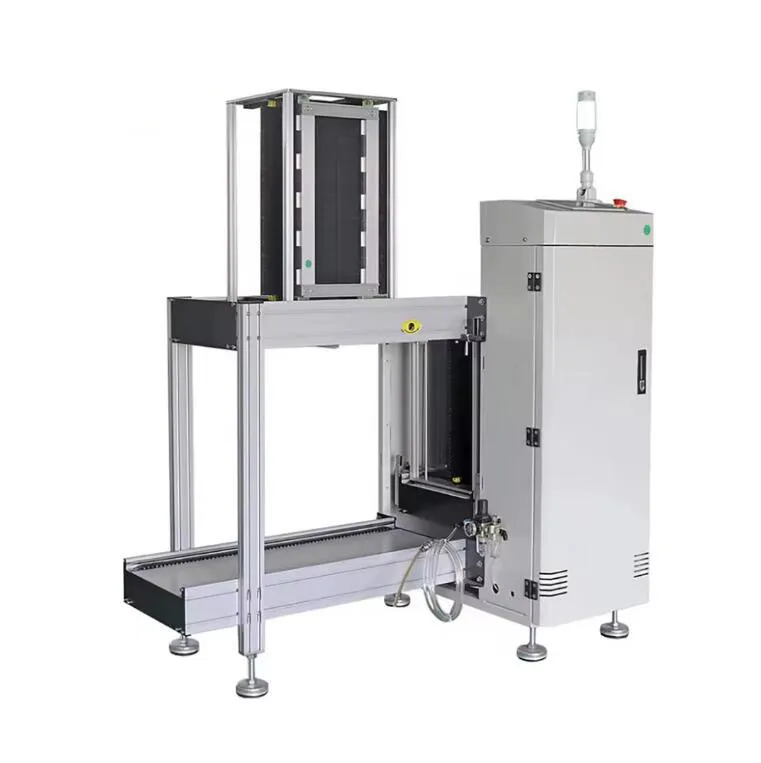

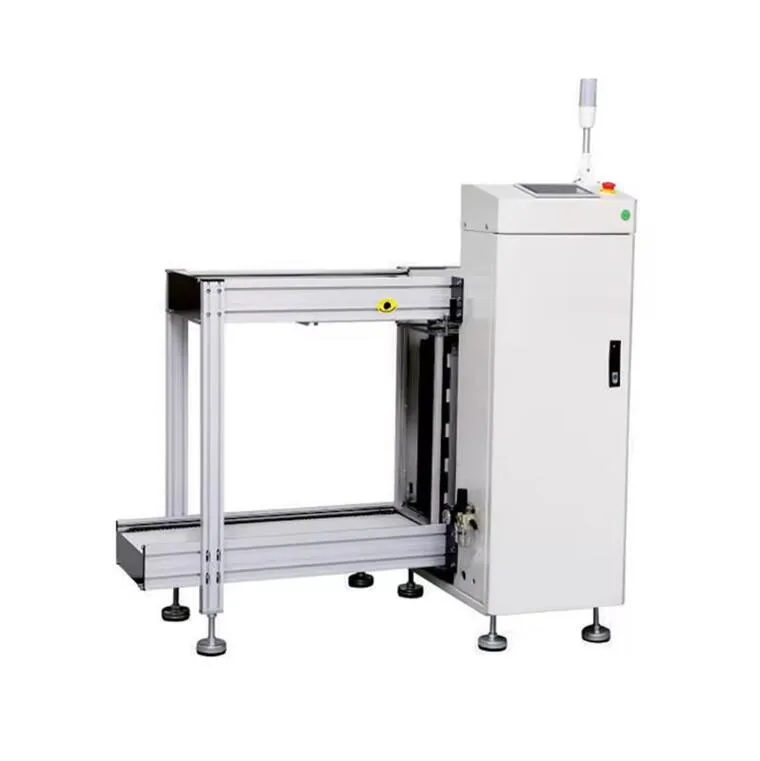

LED Touch Screen SMT Magazine Loader for PCB Handling for Processing Lines in SMT Producing Line
- Category: >>>
- Supplier: Shenzhen Censtar Technology Co. Ltd.
Share on (1601200323191):
Product Overview
Description
Product Description
Easy operation and LED touch screen panel SMT Magazine PCB Handling loader
Description
This equipment is used for PCB board loading operation in SMT production line
Features
1.Applies to the PLC+touch screen controller.
2.Strong ,firm and stable design.
3.Up&down pneumatic clamps to ensure the magazine rack position.
4.Special gas circuit design to ensure no PCB breakage.
5.With SMEMA signal.

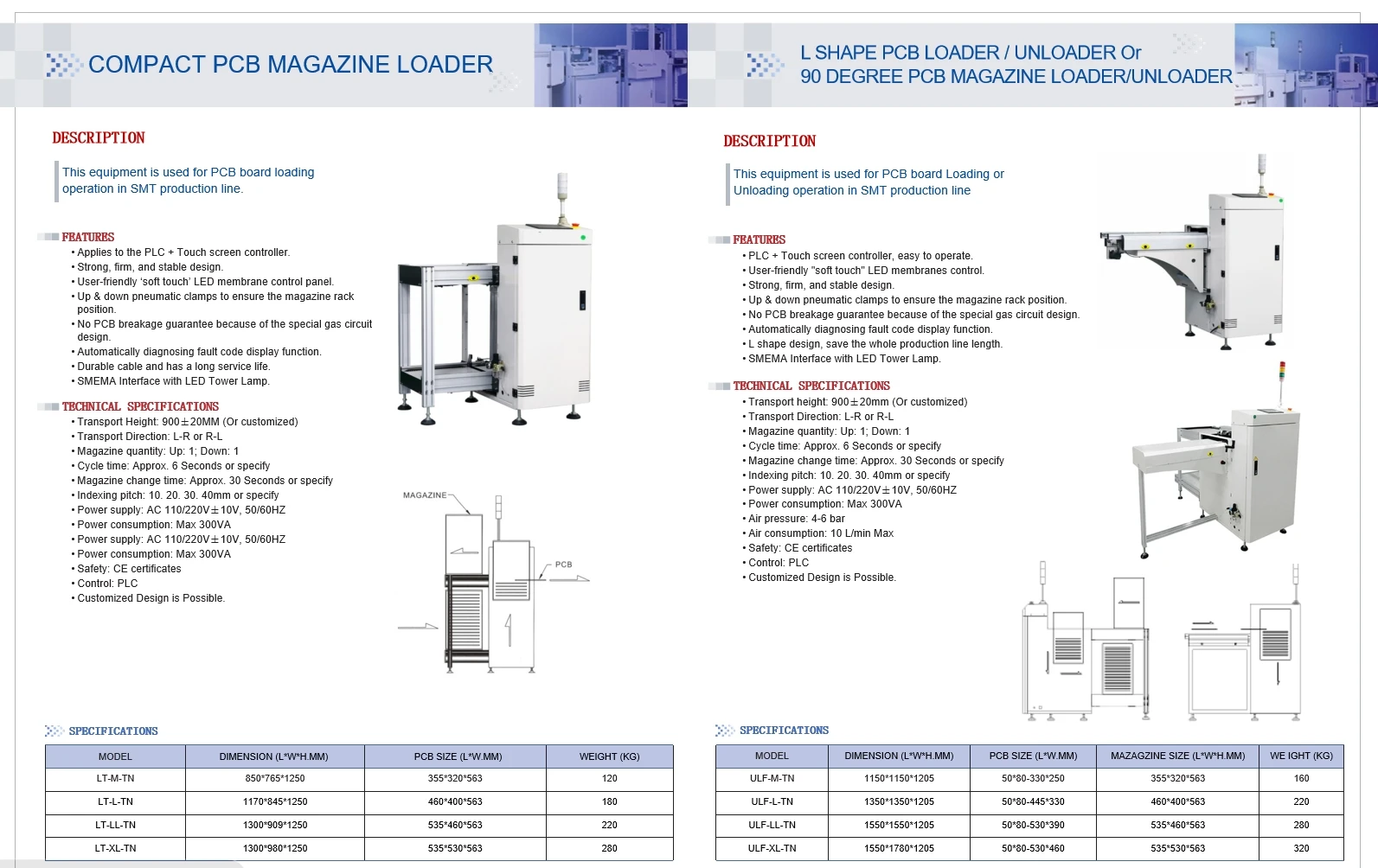

Technical Parameters | ||||||||

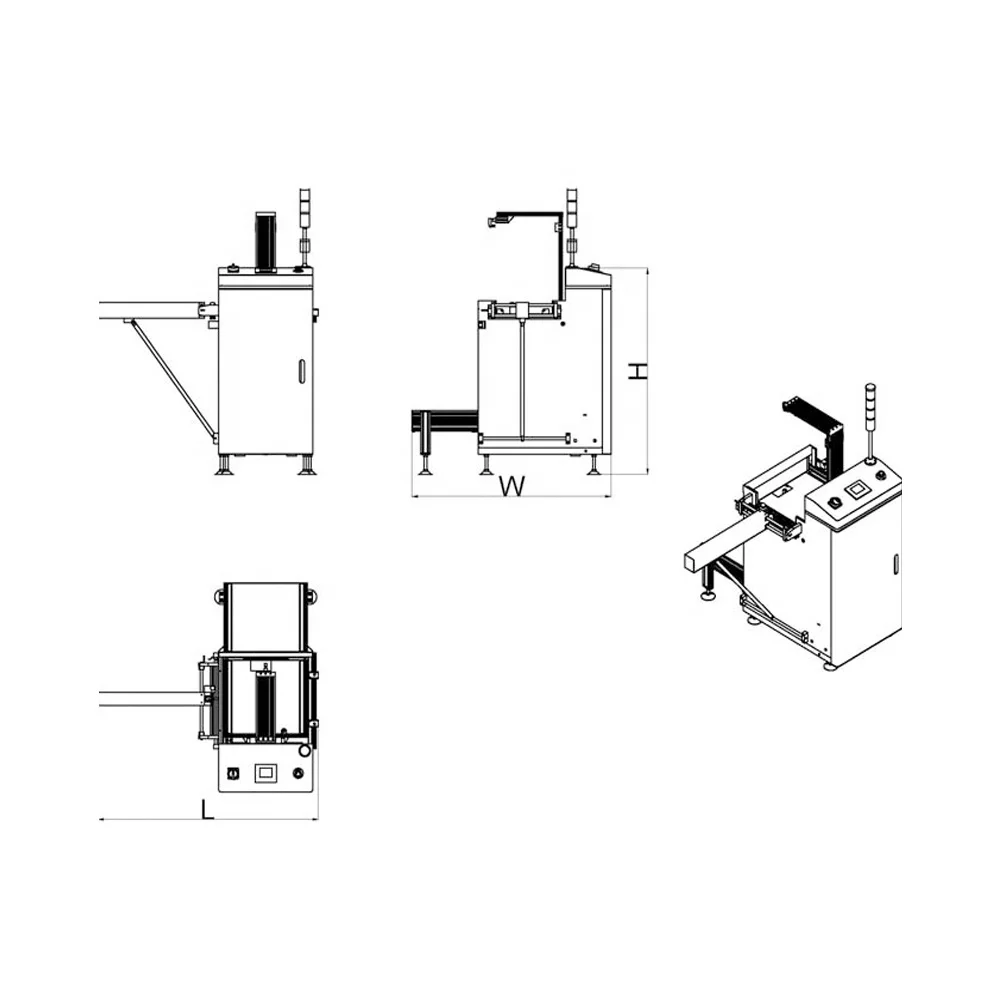

Dimension | 1150*1150*1205mm | 1350*1350*1205mm | 1550*1550*1205mm | 1550*1780*1205mm | ||||
PCB size | 50*50-330*250mm | 50*50-445-330mm | 50*50-530*390mm | 50*50-530*460mm | ||||
Magazine size | 355*320*563mm | 460*400*563mm | 535*460*563mm | 535*530*563mm | ||||
Magazine quantity | Up: 1: Down: 1 | |||||||
Time feed PCB | Approx. 6 Seconds or specity | |||||||
Mazagine change time | Approx. 30 Seconds or specity | |||||||
Indexing pitch | 10. 20. 30. 40mm selectable | |||||||
Power supply | AC 110/220V±10V, 50/60HZ | |||||||
Power consumption | Max 300VA | |||||||
Air prssure | 4-6bar | |||||||
Air consumption | 10itr/min max | |||||||
Transport height | 900±20mm(or customer specified)) | |||||||
Transport direction | L-R or R-L (optional) | |||||||
Board thickness | Min. 0.6mm thickness | |||||||
PCB weight | ≤2KG | |||||||
Weight | 160kg | 220kg | 280kg | 320kg | ||||
Related Product
Machine can be customized according to your pcb size.Such as length, width, with cooling fan, with touch screen, Auto width adjustment...
Packing & Delivery
Packing Details ：Plywood case, for export!
Port:：Shenzhen
Delivery Details :：10-15days
Port:：Shenzhen
Delivery Details :：10-15days
Our Company
Censtar
Shenzhen Censtar Technology Co., Ltd.Expert in making customized high quality PCB inspection Conveyor，PCB Loader，PCB Unloader，PCB Buffer，Wave Solder Infeed ，Wave Solder Outfeed，PCB Surface Cleaning Machine，PCB Transform Track Conveyor with more than 10 years experience! We help many customers to set up factories in led, tv, mobile phone, dvb, ems and other industries all over the world.
