High Capacity Automatic SMT PCB Mini Loader New Condition High Capacity PCB Conveying Equipment Standard PCB Loader
- Category: >>>
- Supplier: Shenzhen Censtar Technology Co. Ltd.
Share on (1601200431093):
Product Overview
Description
Product Description

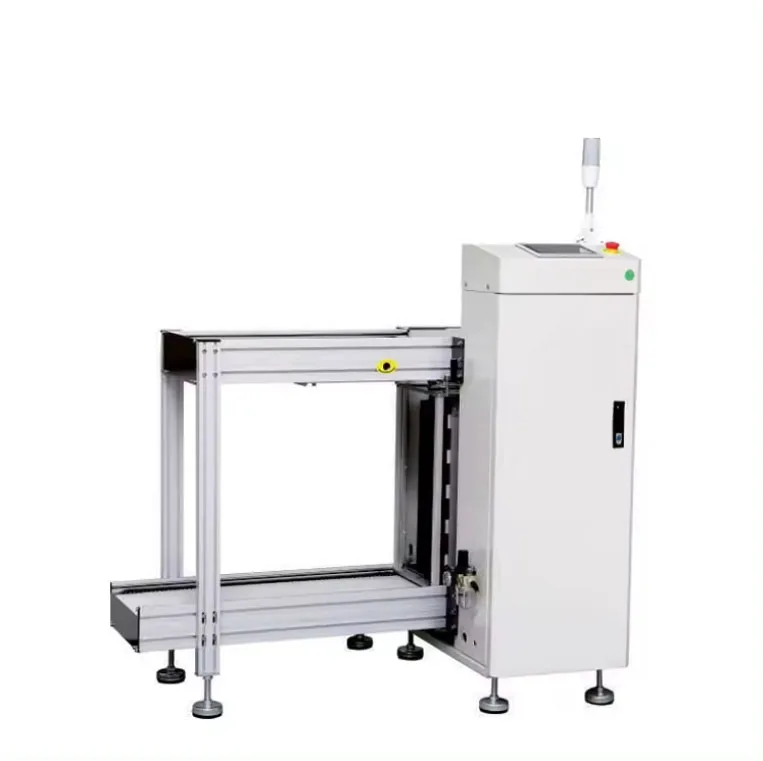

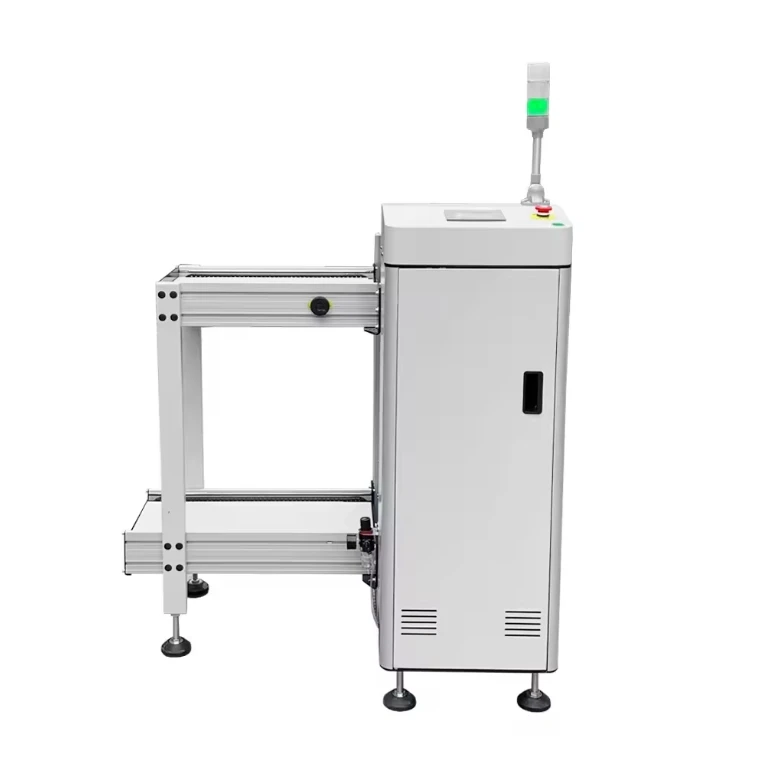

Automatically Loading PCB Handling Equipment Vacuum Bare Boards Loader For Pcba Assembly Line
Description
This equipment is used for PCB bare boards material operation on the production line
Features
1.Applies to the PLC + touch screen control, easy to operate.
2.Enclosed design ensures highest leavel of safety.
3.Adjust the position of the suction nozzle to ensure the clamping of PCB.
4.Smooth and parallel width adjustment (lead screw)
5.Smooth and accurate translation (stepping motor)
6.Minimize the transmission gap between conveyors.
2.Enclosed design ensures highest leavel of safety.
3.Adjust the position of the suction nozzle to ensure the clamping of PCB.
4.Smooth and parallel width adjustment (lead screw)
5.Smooth and accurate translation (stepping motor)
6.Minimize the transmission gap between conveyors.
7.With SMEMA signal.
Technical Parameters | ||||
Model | VL-330W-TN | VL-460W-TN | ||
Dimension(mm) | 600*1002*1300 | 800*1270*1300 | ||
PCB size(mm) | 50*50-445*330 | 50*50-445*330 | ||
Maximum PCBs | 400pcs(0.6mm thick PCB) | |||
Time feed PCB | Approx. 12 Seconds or specity | |||
Indexing pitch | 10. 20. 30. 40mm selectable | |||
Power supply | AC 110/220V±10V, 50/60HZ | |||
Power | Max 150VA | |||
Air prssure | 4-6bar | |||
Air consumption | 10itr/min max | |||
Transport height | 900±20mm(or customer specified)) | |||
PCB direction | L-R or R-L (optional) | |||
Weight | 310kg | 340kg | ||

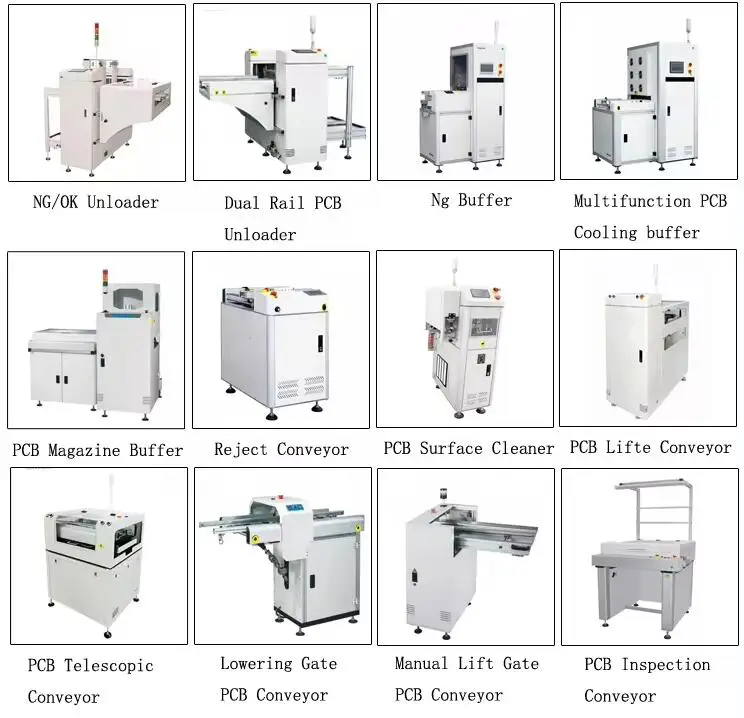

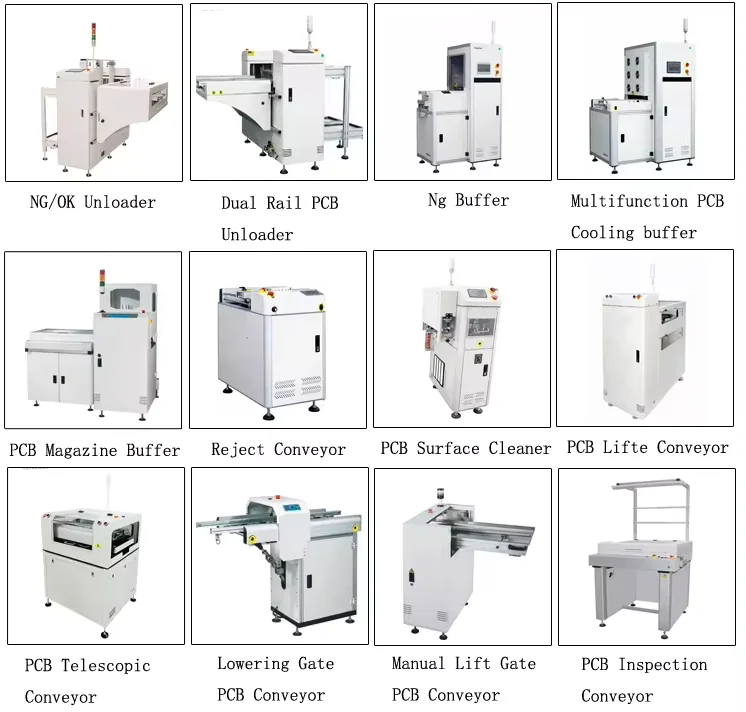

Related Product
Machine can be customized according to your pcb size.Such as length, width, with cooling fan, with touch screen, Auto width adjustment...
Packing & Delivery
Packing Details ：Plywood case, for export!
Port:：Shenzhen
Delivery Details :：10-15days
Port:：Shenzhen
Delivery Details :：10-15days

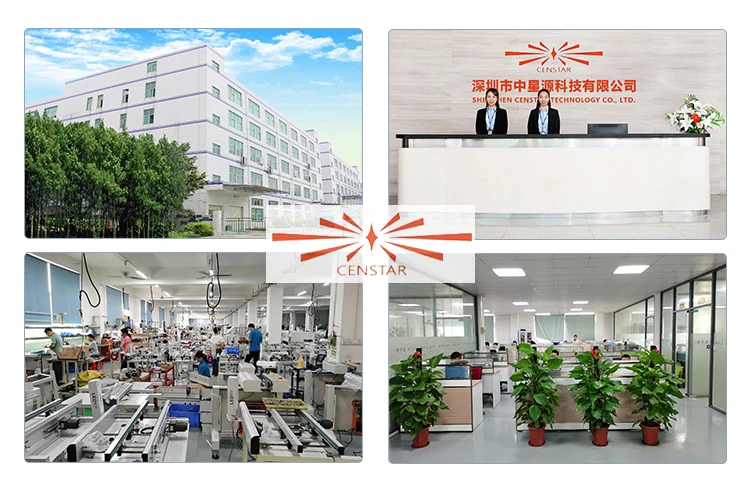

Our Company
Censtar
Shenzhen Censtar Technology Co., Ltd.Expert in making customized high quality PCB inspection Conveyor，PCB Loader，PCB Unloader，PCB Buffer，Wave Solder Infeed ，Wave Solder Outfeed，PCB Surface Cleaning Machine，PCB Transform Track Conveyor with more than 10 years experience! We help many customers to set up factories in led, tv, mobile phone, dvb, ems and other industries all over the world.
FAQ
Q: What can we do for you?
A: We can provide PCB inspection Conveyor，PCB Loader，PCB Unloader，PCB Buffer，Wave Solder Infeed ，Wave Solder Outfeed，PCB Surface Cleaning Machine，PCB Transform Track Conveyor , etc. Professional technical support and service.
Q:When is your delivery date?
A: The delivery date is about 5-7 working days after receipt of payment.
Q: What are your payment terms?
A: TT 100% advance payment.
Q: Is this machine easy to use? If I have no experience, can I operate it well?
A: Yes, our machine is easy to use. Usually you need 1 day to learn how to operate. If you are a technician, learning will be faster.
Q: Do you provide user manuals and operating videos to support us?
A: We will provide English user manual for free, and provide operation video. Our software is all in English.
Q: If we come to your factory, will you provide free training?
A: Yes, you are warmly welcome to visit our factory and we will arrange free training for you.
Q：What services can you provide?
A: We can invite our engineers to your company for guidance, but you are responsible for the air
tickets and accommodation, and we can also provide remote guidance
Q: What is the payment method?
A: We accept payment methods: T/T, WesterUnion.
A: We can provide PCB inspection Conveyor，PCB Loader，PCB Unloader，PCB Buffer，Wave Solder Infeed ，Wave Solder Outfeed，PCB Surface Cleaning Machine，PCB Transform Track Conveyor , etc. Professional technical support and service.
Q:When is your delivery date?
A: The delivery date is about 5-7 working days after receipt of payment.
Q: What are your payment terms?
A: TT 100% advance payment.
Q: Is this machine easy to use? If I have no experience, can I operate it well?
A: Yes, our machine is easy to use. Usually you need 1 day to learn how to operate. If you are a technician, learning will be faster.
Q: Do you provide user manuals and operating videos to support us?
A: We will provide English user manual for free, and provide operation video. Our software is all in English.
Q: If we come to your factory, will you provide free training?
A: Yes, you are warmly welcome to visit our factory and we will arrange free training for you.
Q：What services can you provide?
A: We can invite our engineers to your company for guidance, but you are responsible for the air
tickets and accommodation, and we can also provide remote guidance
Q: What is the payment method?
A: We accept payment methods: T/T, WesterUnion.
