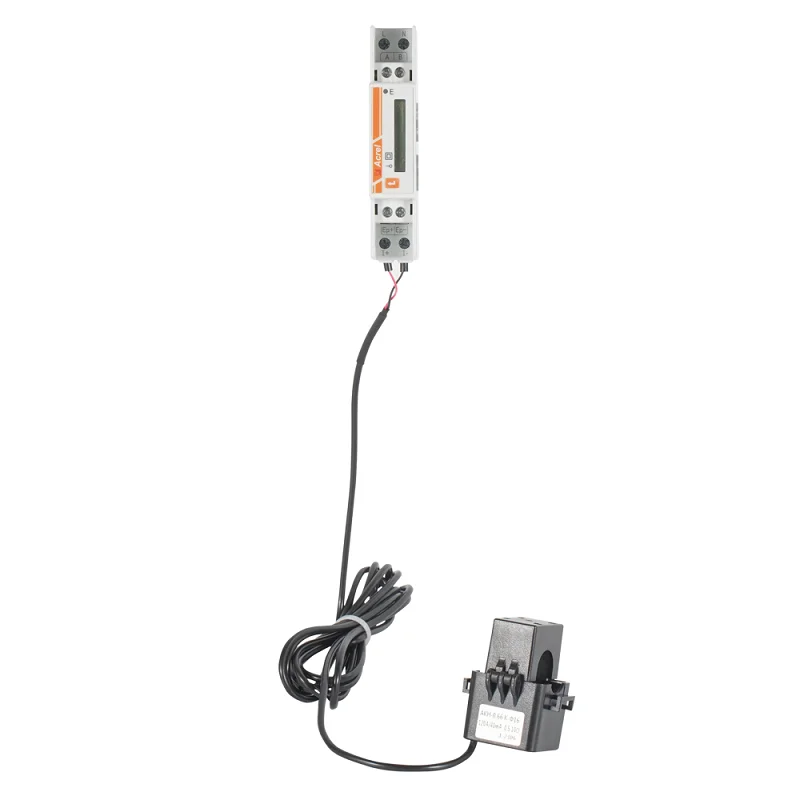

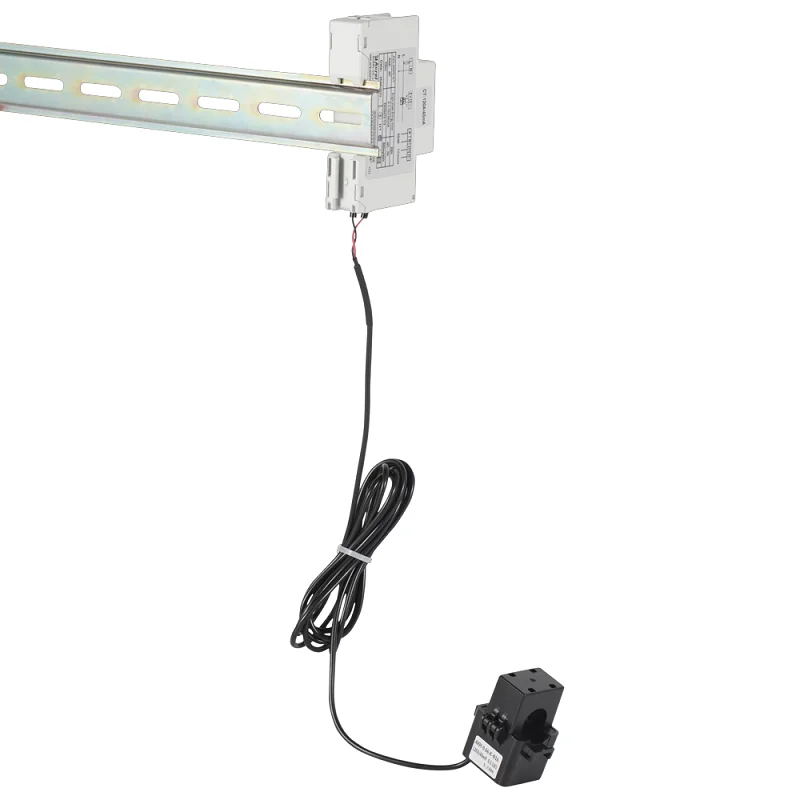

Acrel Single Phase ADL200N CT RS485 80A Max Bidirectional Monitor Single Phase Meter with Split CT

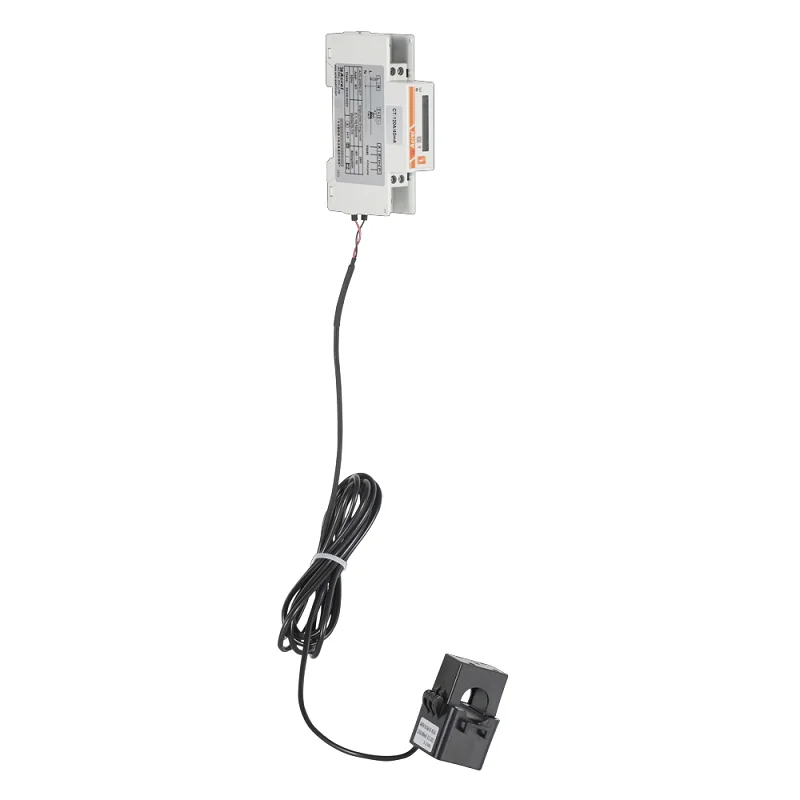

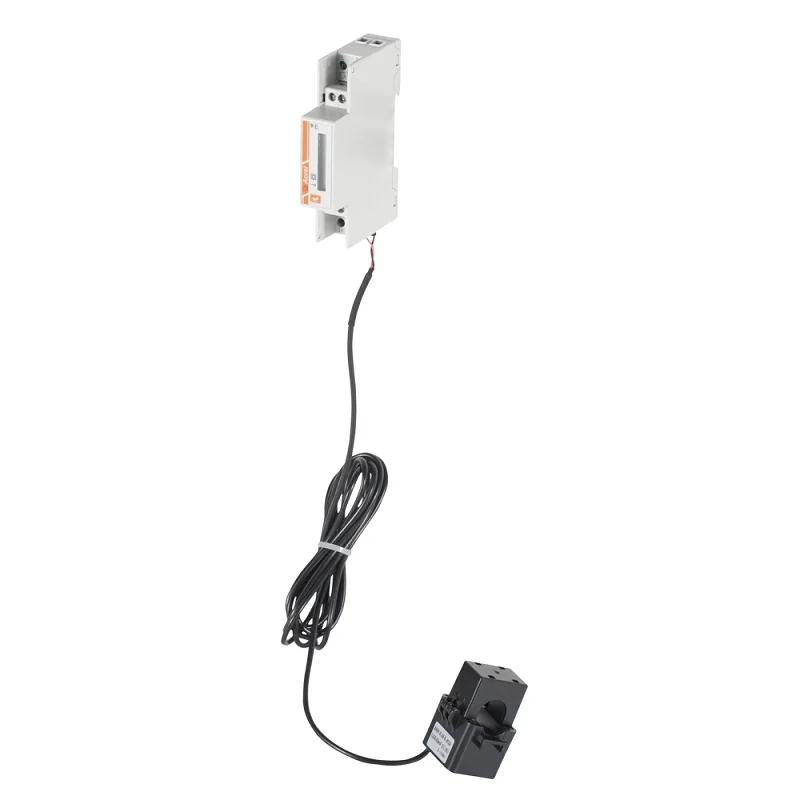

Acrel Single Phase ADL200N-CT RS485 80A Max Bidirectional Monitor Single Phase Meter with Split CT
Acrel Single Phase ADL200N-CT RS485 80A Max Bidirectional Monitor Single Phase Meter with Split CT
Acrel Single Phase ADL200N-CT RS485 80A Max Bidirectional Monitor Single Phase Meter with Split CT
Acrel Single Phase ADL200N-CT RS485 80A Max Bidirectional Monitor Single Phase Meter with Split CT
Acrel Single Phase ADL200N-CT RS485 80A Max Bidirectional Monitor Single Phase Meter with Split CT

Acrel Single Phase ADL200N CT RS485 80A Max Bidirectional Monitor Single Phase Meter with Split CT

Share on (1601201272853):


Price:

Quantity:


Product Overview

Description





ADL series DIN-rail mounted multi functional electric energy meter is an intelligent instrument mainly designed for new energy power generation systems such as photovoltaic grid-connected system, micro inverter system, energy storage system, AC coupling system, etc. The product has the advantages of high precision, small volume, high respondent speed and convenient installation. The product has the features of sampling, metering and monitoring power parameters,communicating with an inverter or an energy management system (EMS), realizing the functions of preventing reverse flow, regulating power generation, charging and discharging batteries according to real-time power and accumulated electric energy, and realizing bidirectional metering and household distributed photovoltaic energy management.






Technical Parameter

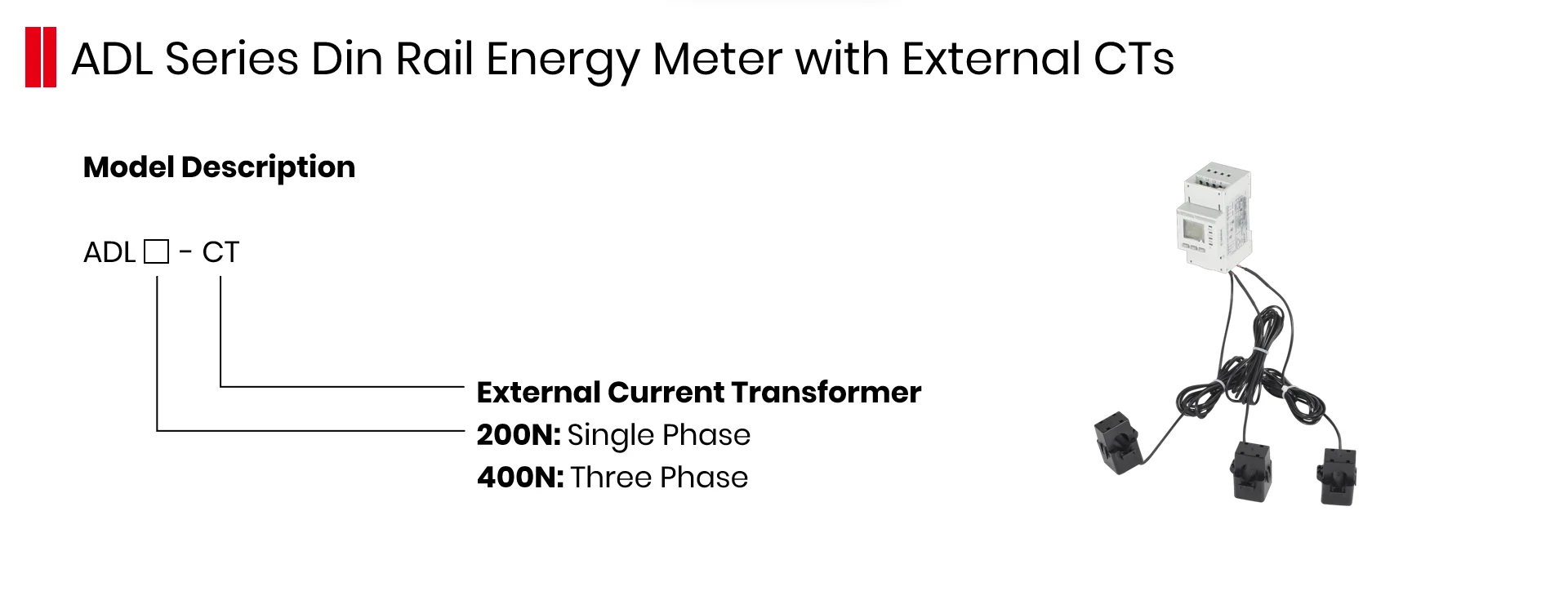

Model Series
ADL200N-CT
ADL400N-CT
Grid
Single Phase
Three Phase Four Wire, Three Phase Three Wire, Single Phase Three Wire
Rated Voltage
230V
Single Phase: 240/480V
Three Phase: 3*230/400V, 3*277/480V
Overload
1.2 times rating (continuous)2 times the rating for 1 second
Power Consumption
<0.2VA
Accuracy
Error ±0.5%
Input Current
80A, 120A, 200A, 300A
80A, 120A, 200A, 300A, 3×80A, 3× 120A, 3×200A, 3×300A
Power
Active, reactive, apparent power, error ±0.5℅
Grid Frequency
45~65Hz, error ±0.5%
Response Rate
≤100ms (voltage, current, power)≤1s (electrical energy)
Electric energy
 Active energy ：Class B (split current transformer) /Class C (closed current transformer) Reactive energy (Class 2 accuracy)
Electrostatic discharge immunity class III
Electrical fast transient burst immunity class IV
Surge (shock) immunity Class IV
Power frequency withstand voltage
Between communication and signal input, AC4kV 1min
Insulation resistance
Input and output terminals to casing >100MΩ
Input and output terminals to casing >100MΩ
RS485 interface and Modbus RTU protocol
Communication address range
Modbus RTU:1~ 247；
Baud rate
Support 1200bps-38400bps
Operating Environment
-40℃～+70℃
≤95℅ (without condensation)
Altitude ≤3000m


















Acrel Co., LTD. (Stock code: 300286.SZ), established in 2003, is a high-tech joint-stock enterprise integrating research and development, production, sales and service, providing energy efficiency systems and electricity safety solutions for enterprises. Our company's solutions cover power, environmental protection, new energy, fire protection, data center, smart building, smart campus, smart hospital, smart factory, smart transportation, municipal engineering and other fields.
At present, the company has more than 14,000 sets of system solutions operating around the world, for users to escort efficient and safe energy use, for enterprises to save energy consumption and realize the digital construction of energy to provide data services.
As of December 31, 2021, the company has 5 trademarks and 299 patents obtained certificates, including 22 invention patents, 127 utility model patents, 150 appearance design patents and 252 software Copyrights.










1. who are we?
We are based in Shanghai, China, start from 2004, sell to Domestic Market (80.00%), Overseas Market (20.00%). There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Current Transformer, Intelligent Electric Meters, Din Rail Energy Meter, Wireless Temperature Sensor, IOT Multi Circuit Power Meter
4. why should you buy from us not from other suppliers?
Jiangsu Acrel Electrical Manufacturing Co., LTD., the manufacturer base located in Jiangyin, Wuxi City. The annual capacity of the electrical meter is 2 million sets, 1.5 million power transformers and 10,000 sets of energy-saving cabinets.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Portuguese
