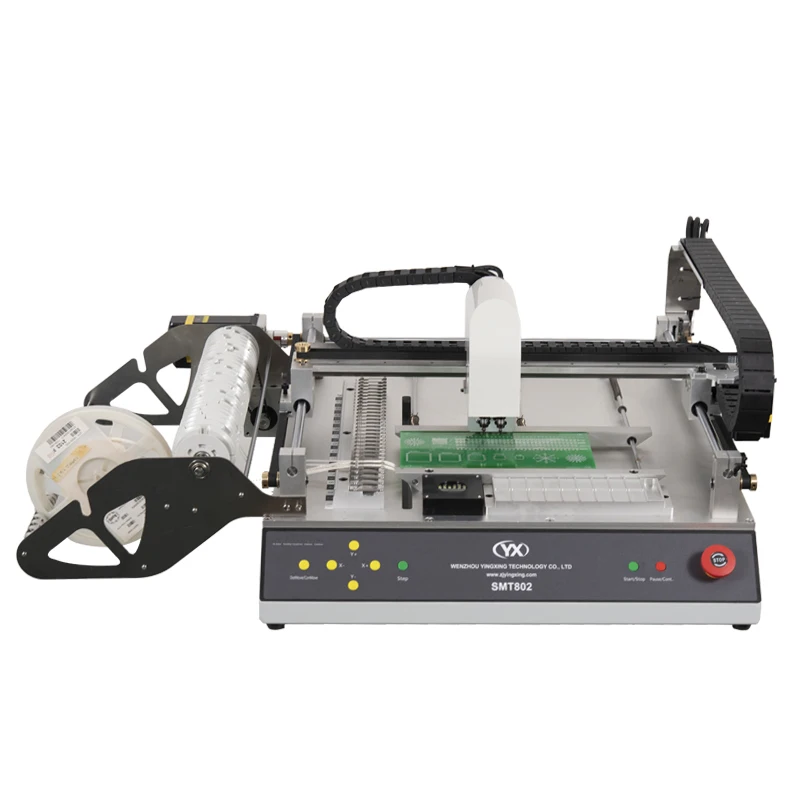

All Feeders Free Innovation Technology PCB Production Line Pick and Place Machine SMT802A S With Guide Rail Built in Computer
- Category: >>>
- Supplier: Wenzhou Yingxing Import&Export Co. Ltd.
Share on (1601205254771):
Product Overview
Description
Product Description
Introduction

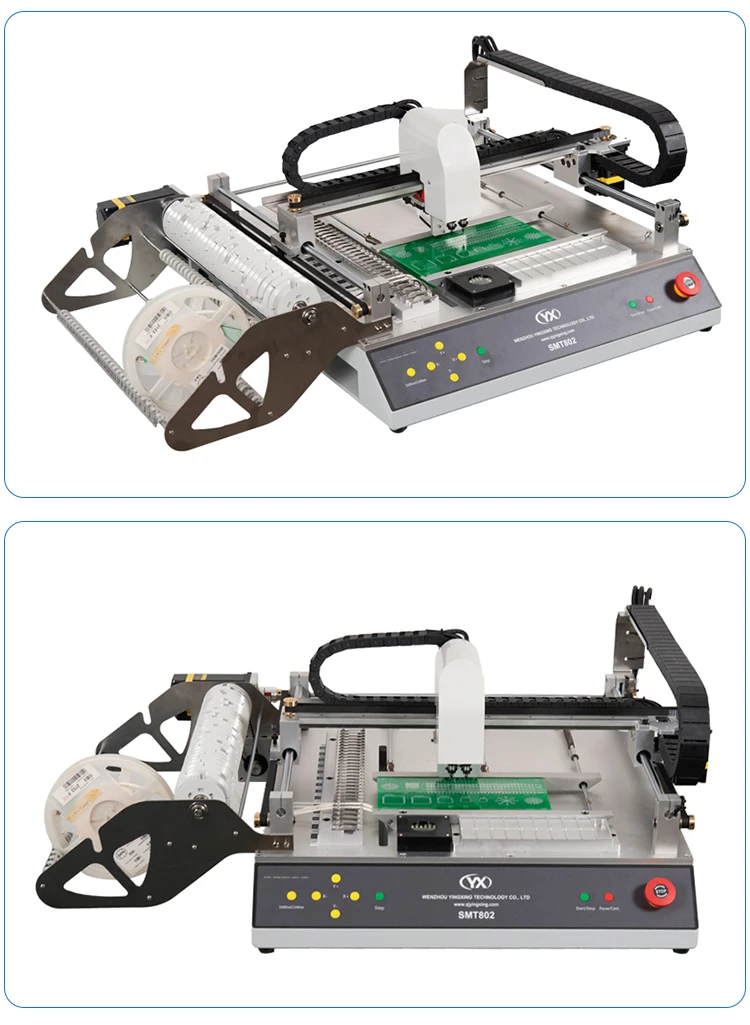

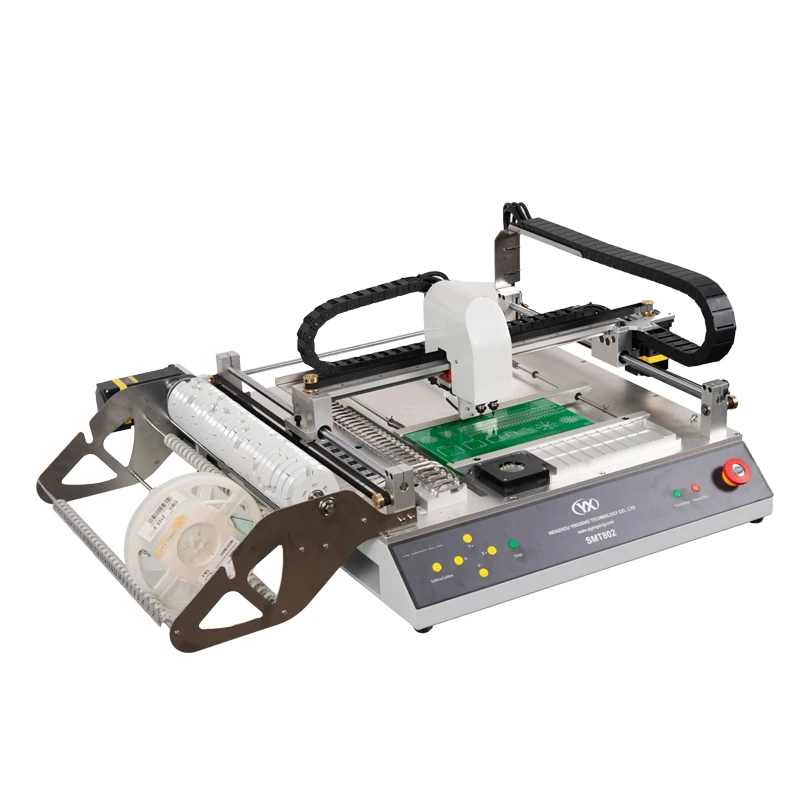

SMT802A-S automatic visual pick and place machine has upgrade some core parts such as upper and bottom visual system, patented roll feeder, built-in industrial computer, high voltage motor drive system,Flexible S-type acceleration. Has received the customer consistent high praise and the praise.

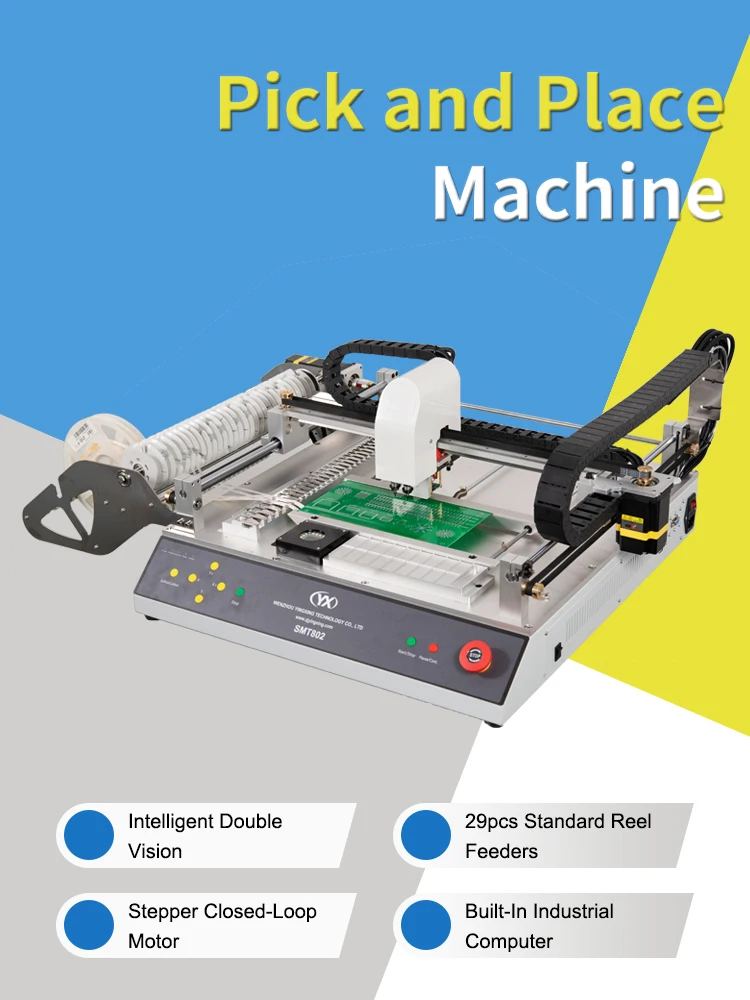

Feature
1. intelligent double vision.
2. 29pcs standard reel feeders.
3. StepperClosed-loop motor.
4. Built-in industrial computer.
3. StepperClosed-loop motor.
4. Built-in industrial computer.
Part List:
1.SMT802A-S pick and place machine: 1 Set
2.Computer:1 Set
3.User Manual:1 PCS
4.SD Card:1PCS
5.USB: 1 PCS
6.Power Line: 1PCS
7.Screw Driver:1 Set
8.5 kind nozzle:1 Set (Totally 7: XS-2, S-2, M-1, L-1, XL-1)
9.Spare Parts: 1 Set(Grease: 1 box, Wrench:1 PCS, Teasing needle:1 PCS, Rubbing ring:Several)
The SMT802A-S software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
3.User Manual:1 PCS
4.SD Card:1PCS
5.USB: 1 PCS
6.Power Line: 1PCS
7.Screw Driver:1 Set
8.5 kind nozzle:1 Set (Totally 7: XS-2, S-2, M-1, L-1, XL-1)
9.Spare Parts: 1 Set(Grease: 1 box, Wrench:1 PCS, Teasing needle:1 PCS, Rubbing ring:Several)
The SMT802A-S software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
The SMT802A-S machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands)
Model | SMT802A-S (Inside PC) |
Max Applicable PCB | 20*20mm-340*340mm |
Max XY Moving Rang | 395*450mm |

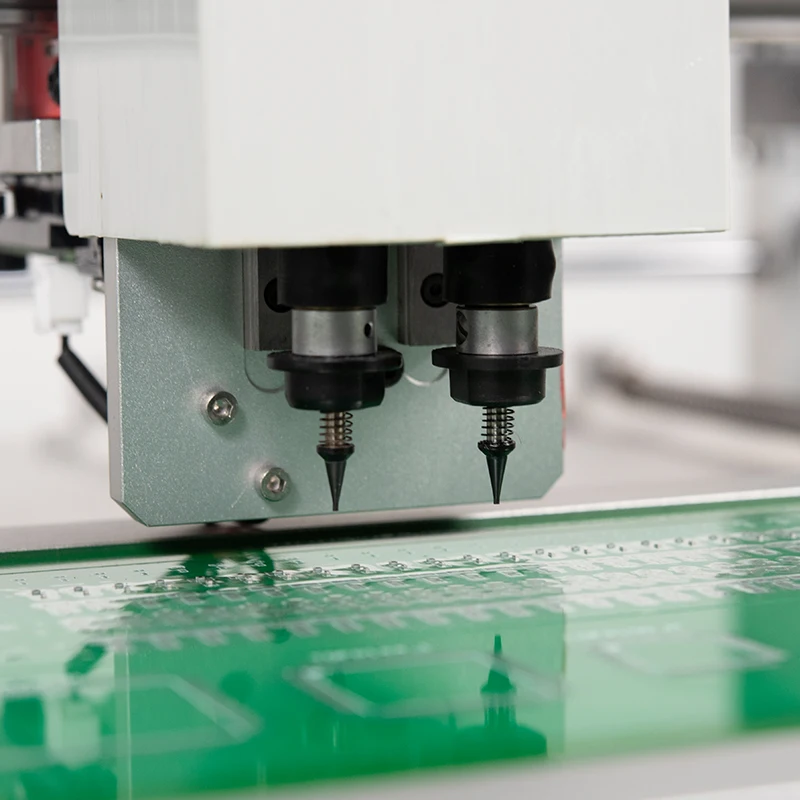

Placement head quantity | 2 |
Mounting speed without vision | 7000CPH |
Mounting speed with vision | 5500CPH |
Mounting accuracy | ±0.025mm |
Applicable component | 0402-5050 . SOP . TQFP . QFN BGA etc. |
Component supply | Tape reel , Bulk , Tubblar , Tray etc. |

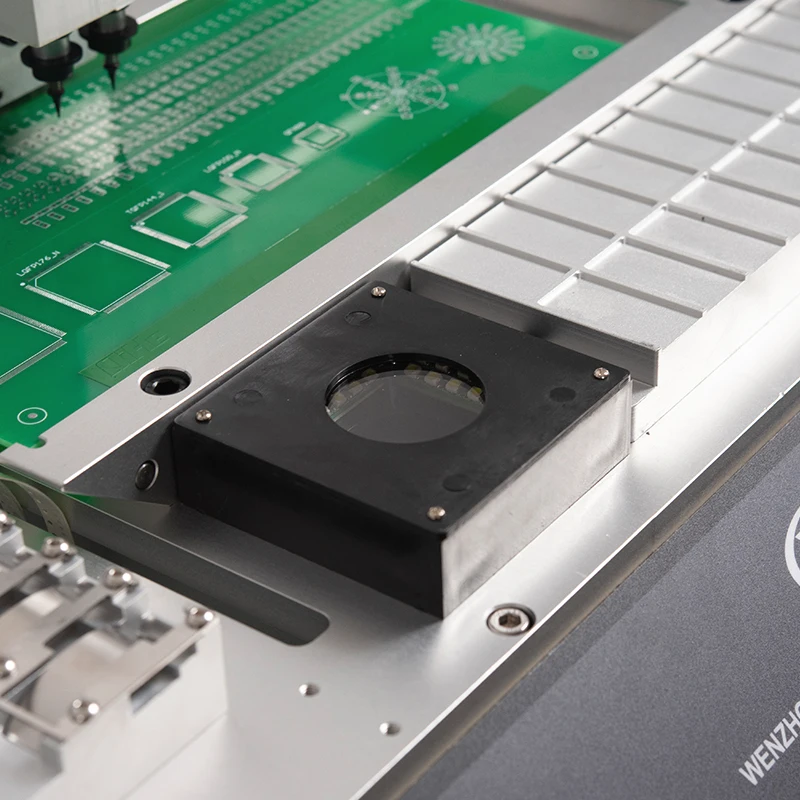

Vision system | 2 HDCCD camera |
UP visual system | Identify angle deviations and postition deviations |
Feeder count ＆ Tape width | Total=29PCS 8mm=25pcs , 12mm=3PCS 16mm=1PCS |
Pupm | 2 vacuum pupm , 1 blow pupm (built-in) |
Down visual system | Automatic identify mark |
Power | 125W (average power) |
Power supply | AC220V or AC110V |
Volume | 0.38CBM |
New weight | 60KG |
Gross weight | 35KG |
Support PCB desigh software | Proti99 / Altium Designer / Eagle / Pads / Allegre etc. |

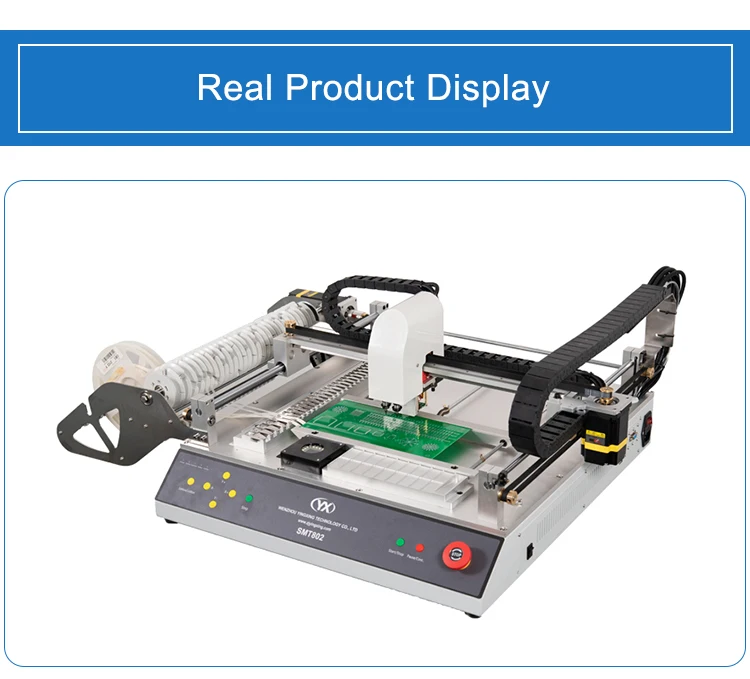

Product Details

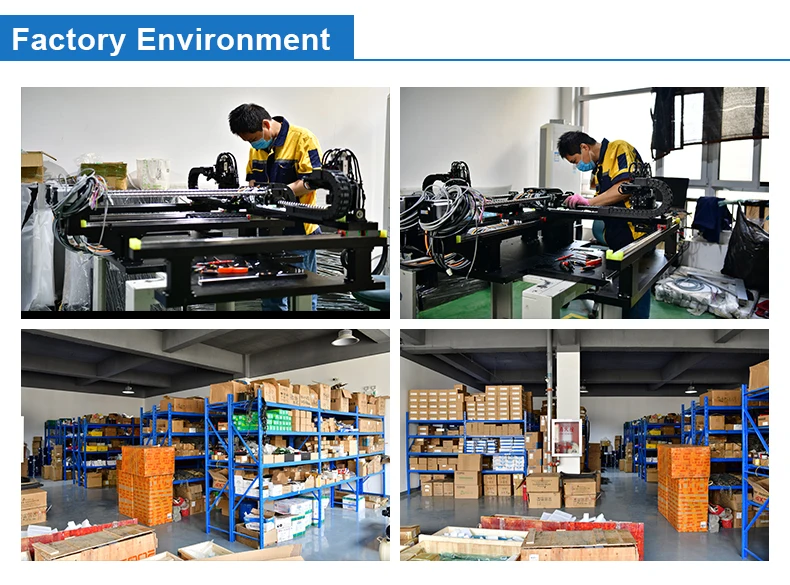

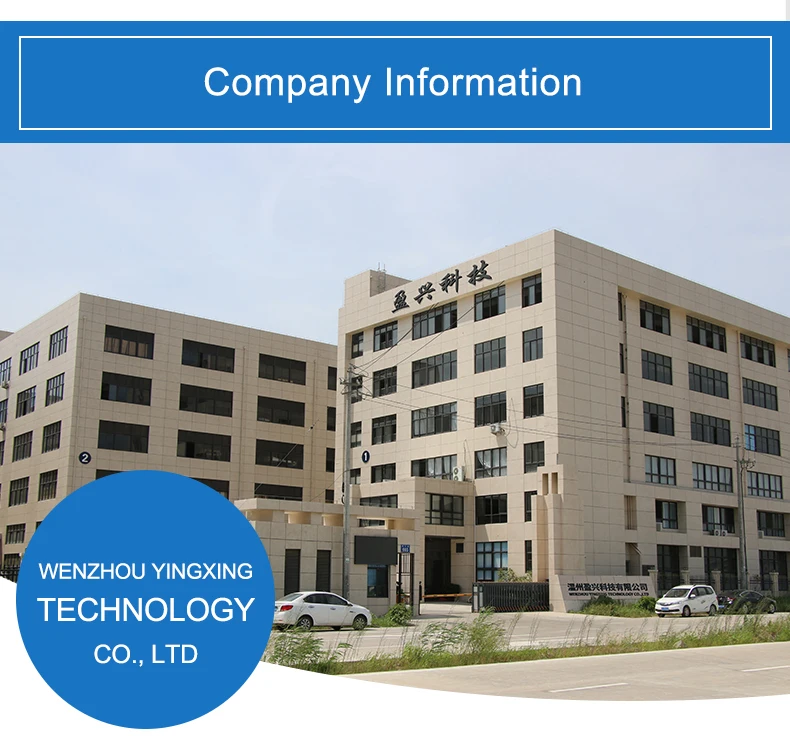

Company Information
Exhibition
Certifications

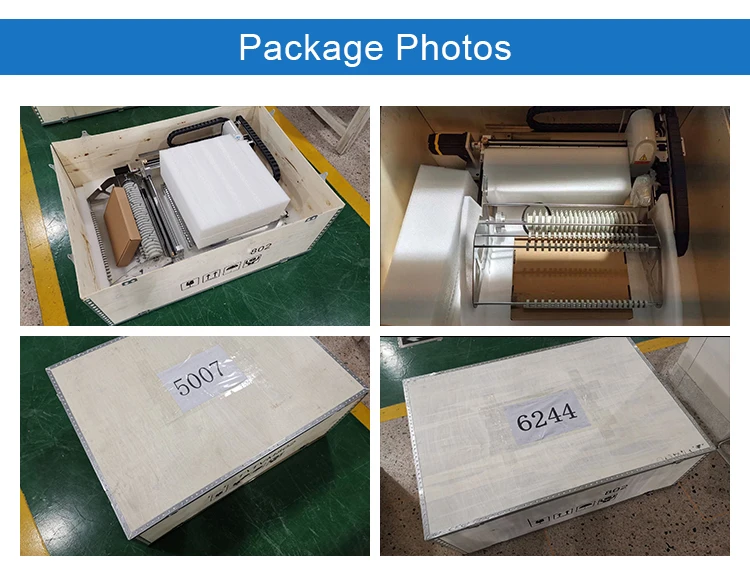

Product packaging
FAQ
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
