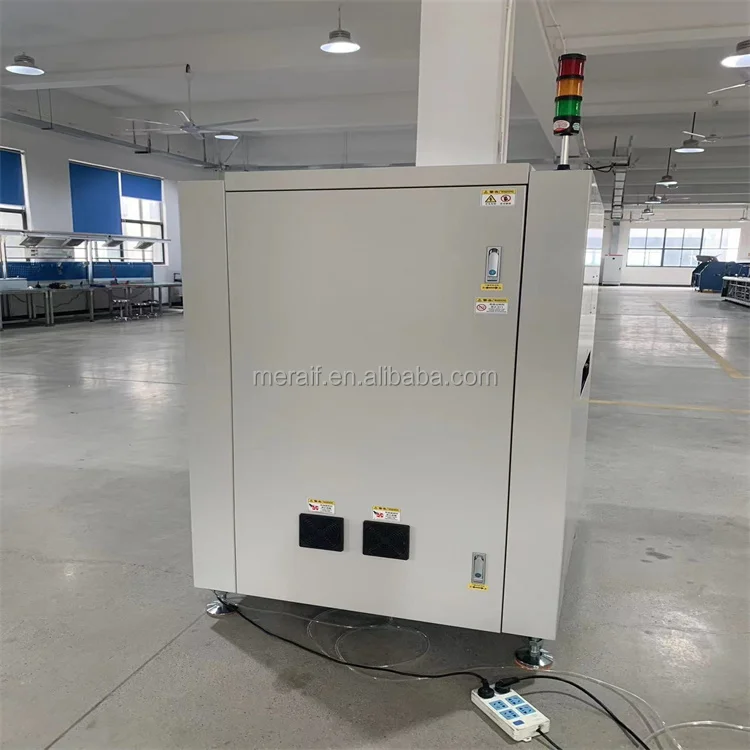

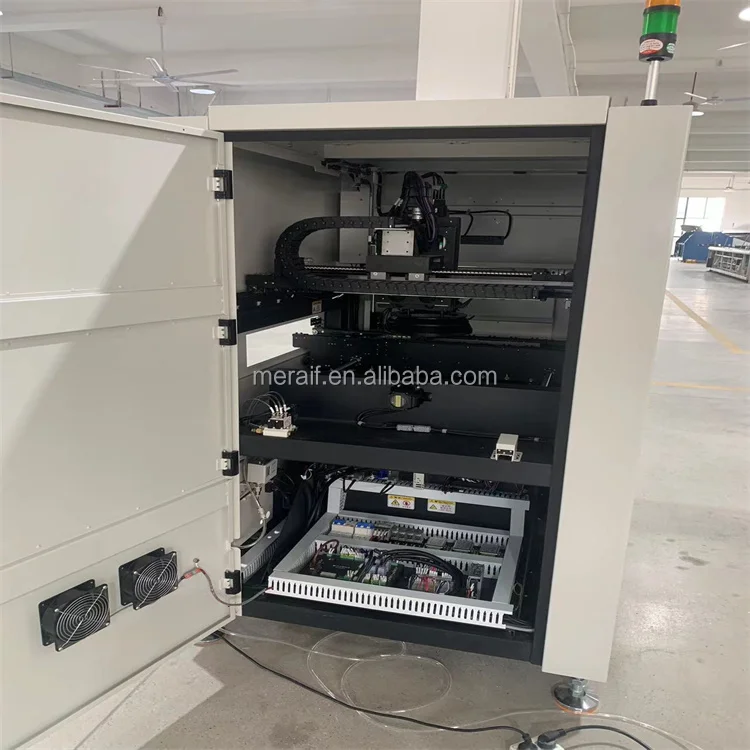

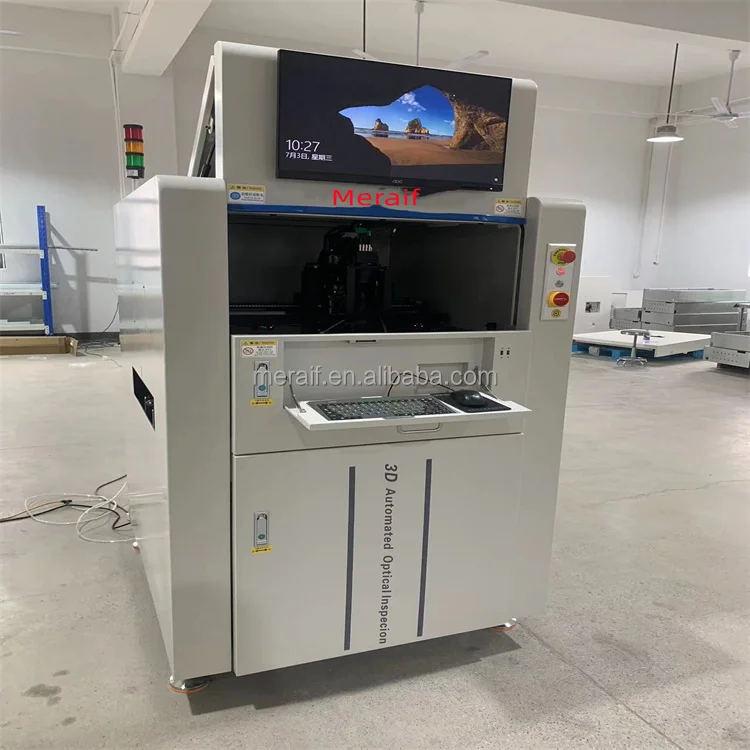

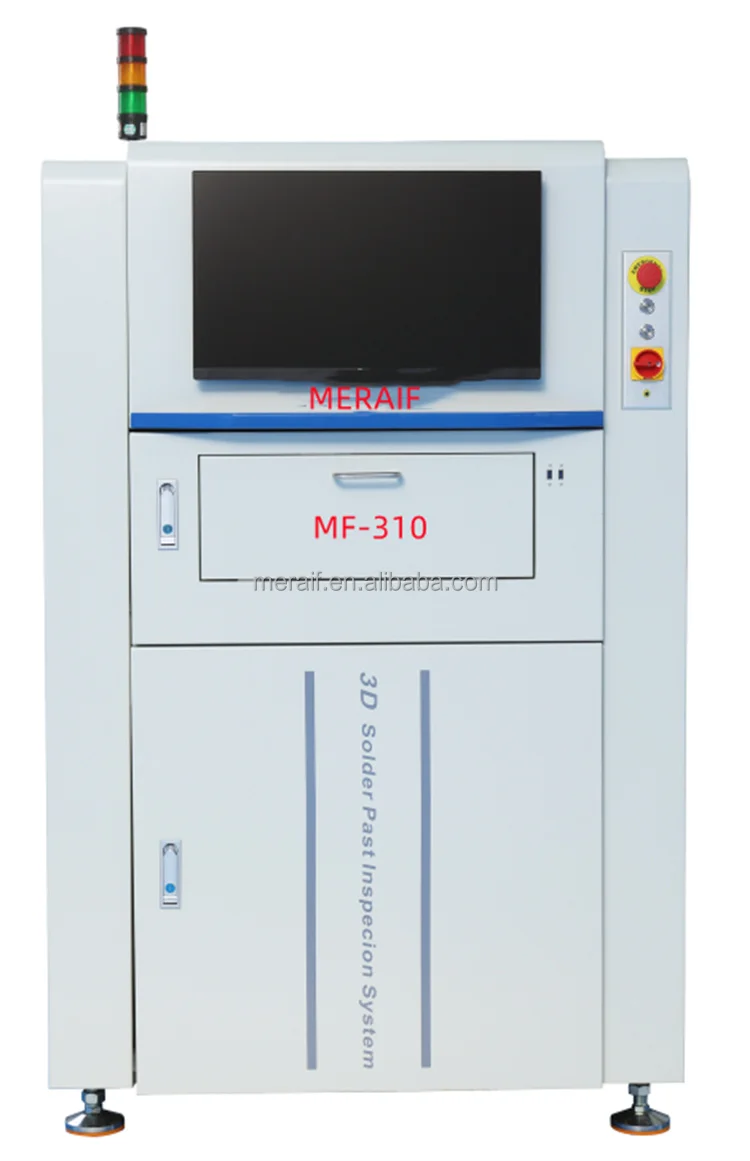

Meraif MF-310DH SMT SPI Machine Solder Paste Inspection Process online 3D SPI for pcb assembly line

whatsapp:+8613424013606, skype:sensenhenhao,wechat:JoyLY0322



We are smt solution provider more than 18yeras.

One-stop SMT solution provider .

All smt machine line and parts, PCBA cleaner machine line we can support you.

SMT AOI SPI series for smt machine line

AOI displays the 3D information of solder joints through 2D images.



Different shapes of solder joints reflect different colors of light information to the camera, and the defects of the inspected object are judged by extracting the image information of feature points and combining algorithms.



AOI inspection advantages



The human eye cannot see fast-moving targets, has a weak ability to distinguish tiny targets, and the missed detection rate increases after eye fatigue, all of which make manual inspection time-consuming and laborious.



The AOI intelligent defect inspection machine overcomes these difficulties. High-speed industrial cameras can greatly reduce the false alarm rate in dynamic inspection, and can also adjust the inspection accuracy and improve the inspection efficiency according to product inspection requirements.



3D SPI for pcb Technical  :

1.10um/15um high-resolution optics
2.5 million high-speed industrial camera Single or bidirectional programmable digital fringe grating
3. Telecentric lens
4.High-precision screw guide platform
5.Core algorithm GPU acceleration
6.Original online non-stop debugging mode
7.Color 2D/3D imaging
8.Real-time SPC information display, automatic report generation

3D SPI for pcb  Details:

PCB size: 50x60mm~470mmx460mm----MF-310

50x60mm~470mmx300mm----MF-310DH

(single track 470mmx570mm)

PCB thickness: 0.5mm-6mm

Image system: 5 megapixel high-speed camera (2560x2048 pixels) single or dual DLP light source and RGB-LED light source

Resolution: 10um, 15um

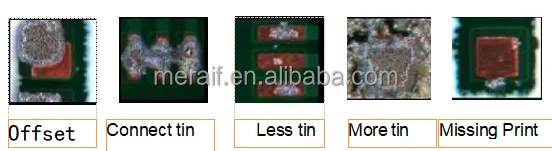

Inspection items: missing printing, too much tin, too little tin, bridging tin, pulling tip, bad shape, offset

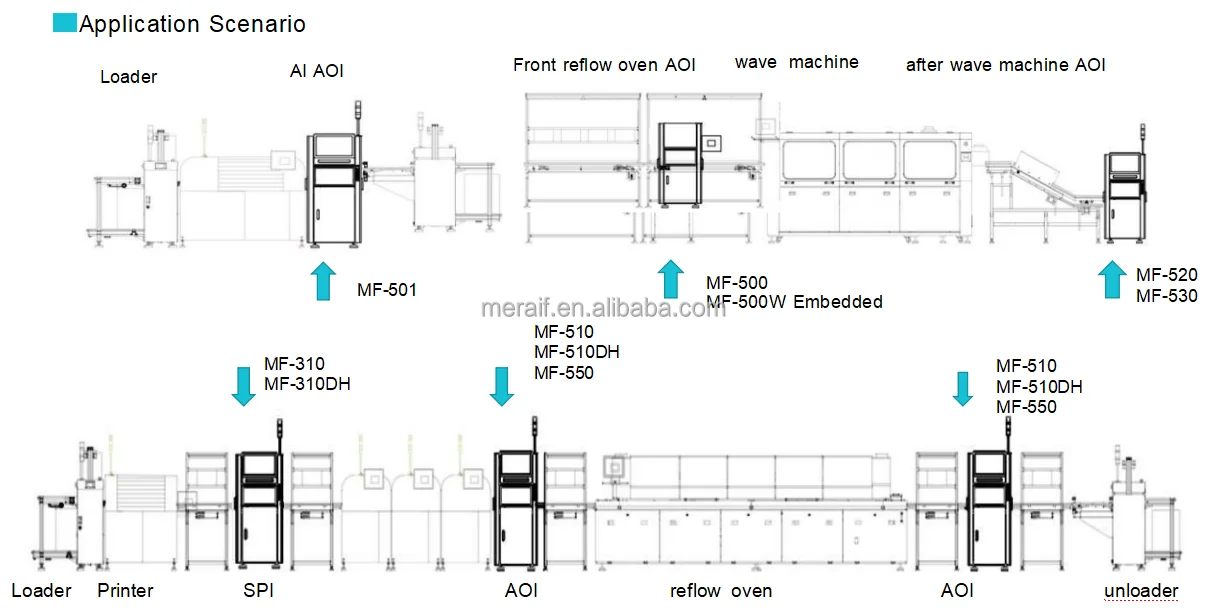

Application scenario: after printer machine
