YIHAO Paper pulp trays molding making machine egg dish machine automatic egg carton egg try making machine

Share on (1601270061875):


Price:$17,000.00 - $20,000.00

Quantity:


Product Overview

Description


YIHAO Paper pulp trays molding making machine egg dish machine automatic egg caton machine



Product Description


Product Type: YIHAO Paper pulp trays molding making machine egg dish machine automatic egg caton machine


Processing Type: Pulp Molding Machine
Place Of Origin: shandong, China
Approval: CE
Warranty: 12 Monthes


Rotary: 2 /4 /8 /12 Faces


Forming Platen Size: 1600 x 400 mm / 1950 x 420 mm / 2350 x 420 mm


Capacity: 400 – 28000 pcs/hr


Matches with 6-layer dryer, energy efficient and conserve energy


Full automatic egg box production line equipped with automatic hot pressing and intelligent conveying stacking technology.


Mainly applied for egg tray,  egg carton, fruit tray, cup carrier, bottle tray etc.

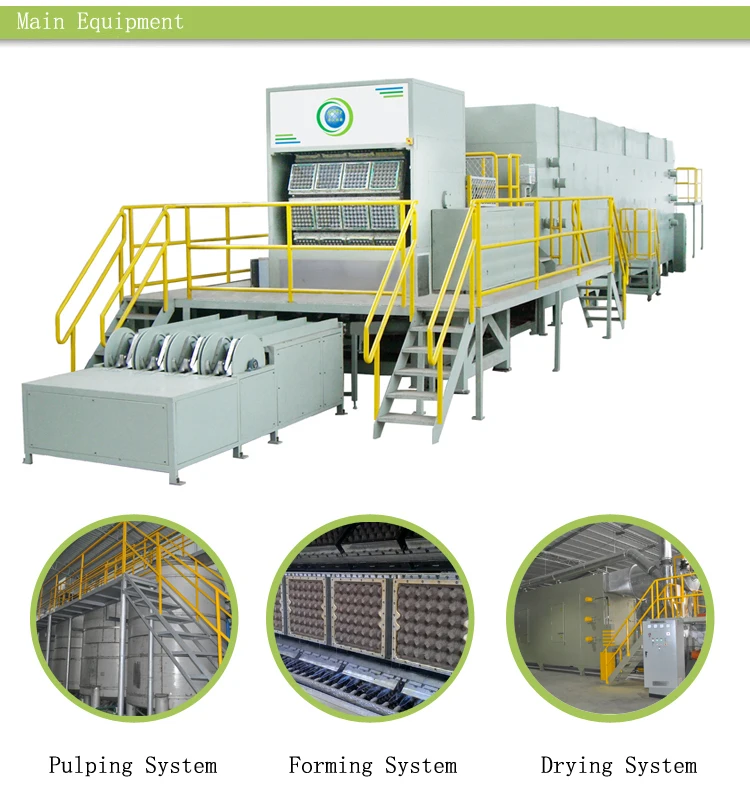

egg tray machine


-1(3)
 systerm compisition




























utomatic Rotarypaper egg tray making machine system composition automatic paper molding egg tray making machine
1 Pulp System   Pulper, 1.0M3,15kw;

vibration screen, 0.9M2,3kw;


 mixer; pulp pump;water pump,control cabinet for pulping system,etc


Forming system Consist of 1pc of forming platen and 1 pc of transfering platen.

Platen size:1100x470mm,4sets of 30-cell egg tray molds can be mounted on forming platen.


 Forming efficiency:5-6cycles/min;


 Equiped with vacuum auto draining system;auto cleaning system for the forming mold and auto control cabinet.


3 Drying SystemOutline dimension:20080x2650x3600mm;

Single layer conveying chain;heated by section;multi burners;


 Six layers drying line, energy saving and saving place


 The temperature of each section can be adjusted independently;burners with French or Italian brand;


 he energy for option: LPG,GAS,diesel oil,Equiped with auto control cabinet


4 Packaging Machine Egg tray stacker ,baling press  etc .







Advantages


(1)We focus on quality !


dantuoji 6


(2)We cooperate with world famous brands!


Motor


(3)Our machine equipped with patented technology (unique technology)!


detail show


(4)Our company have more than 38 years of experience in the filed and we are professional produce pulp molding machine .


company history





product show








Our Services


1 .24 hours online .Your inquiry will be quick reply  by email .


Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp,


Skype ,Viber ,QQ , TradeManager )


2.Professionally and patiently introduction,details pictures and working video to show machine


Service on sale :


♦Test every machine and inspect the machine seriously .


♦Send the machine picture which you order , then packing it with standard export wooden


box after you confirm the machine is ok .


3.Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival


time. Finally, send all original documents to you by Express For Free.


If delivery it by Express to your door(DHL, TNT,Fedex, etc) or by air to your airport, Or logistic


to the warehouse which you request . We will tell you the tracking number after delivery.


Service after sale


♦Free insurance for goods


♦24 hours online to solve any problem . Supply you English manual book and technical


support,maintain and install video to help you solve the problem, or dispatch worker to your factory.


All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.


1, Before sending the machine, we will test and adjust, so you can use directly when you get it.
2,Operation video & instruction will be sent to clients, to help them use the machines better.


Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.


a, Any problems occur while using, professional advice will be offered.
b, All kinds of frequently used parts are supplied all the year round.








Packaging & Shipping


-1





Company Information





LONGKOU YIHAO MACHINERY EQUIPMENT CO.,LTD specialized in manufacturing the pulp moulding machine, including Continuous Rotary type ,Intermittent Rotary  type ,Reciprocating type, Reciprocating Turnover Single Working Position ,Reciprocating Turnover Double Working Position and so on .Pulp moulding machine can be used for making all kinds of egg tray ,egg carton ,fruit tray ,cup carrier, Disposable Medical product ,all kinds of industrial packaging ect. Company has nearly 40 years experience in manufacture and has professional researching and designing level ,specialized in R&D of egg tray machine, there are more than 30 items reformation and improvements on the basis of defects and disadvantage in the old type egg tray machine ,gained more than 10 items patents and the patented certification issued by Nation Patent Bureau (Intellectual Property).


The top grade egg tray machine equipped with the patented subsidy devices can produce the first class egg tray ,machine running is more stable and reliable ,long service life and safe operation.


Company is located in beautiful port city ,LONGKOU City ,SHANDONG Province ,about 40 minutes far from the Yantai Penglai International Airport ,about one hour and thirty minutes far from Beijing airport and Shanghai airport.


The top grade egg tray machine produced by our company has exported to South Eastern Asia ,Middle East ,Africa ,Europe and South America ect, like Turkey, Jordan, India, Cote d’ Ivoire ,Nigeria ,Russia, Poland ,Yemen, Mexico ,Argentina ,Colombia ect.


Our company ‘s aim is quality is the first! Good reputation in the world ! Open up the international market and mutual benefit and double win .


YIHAO Company will supply the top grade egg tray machine all the time and try our best to give our good service to old and new customers.


Welcome you to visit our company ,wish you have a successful business and a happy family!
