All Feeders Free Dependably Pick and Place Machine SMT802B Automatic SMT Production Line for LED Lamp
- Category: >>>
- Supplier: Wenzhou Yingxing Import&Export Co. Ltd.
Share on (1601272187348):
Product Overview
Description
Product Description
Introduction
SMT802B improve on the basic of SMT802A, meet the need of more reel feeders.With high performance and high dependabillty.Have a good reputation in the market.

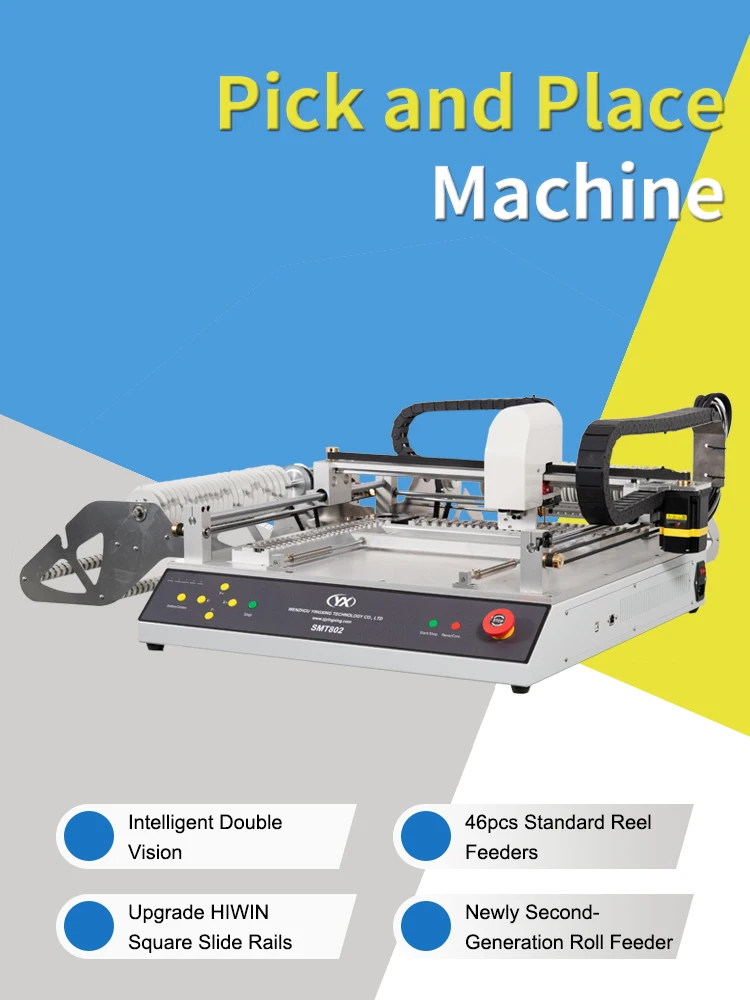

Feature
1. intelligent double vision.
2. 46pcs standard reel feeders.
3. upgrade HIWIN square slide rails.
4. newly second-generation roll feeder.
3. upgrade HIWIN square slide rails.
4. newly second-generation roll feeder.
Part list
1.Main feeder Standard configuration:8mm-22pcs,12,mm-3pcs,16mm-1pcs.
2.The second feeder (SMT802A have no second feeder) Standard equipment:8mm-18pcs,12mm-3pcs,16mm-1pcs(The feeder could be made on customer's requirement.)

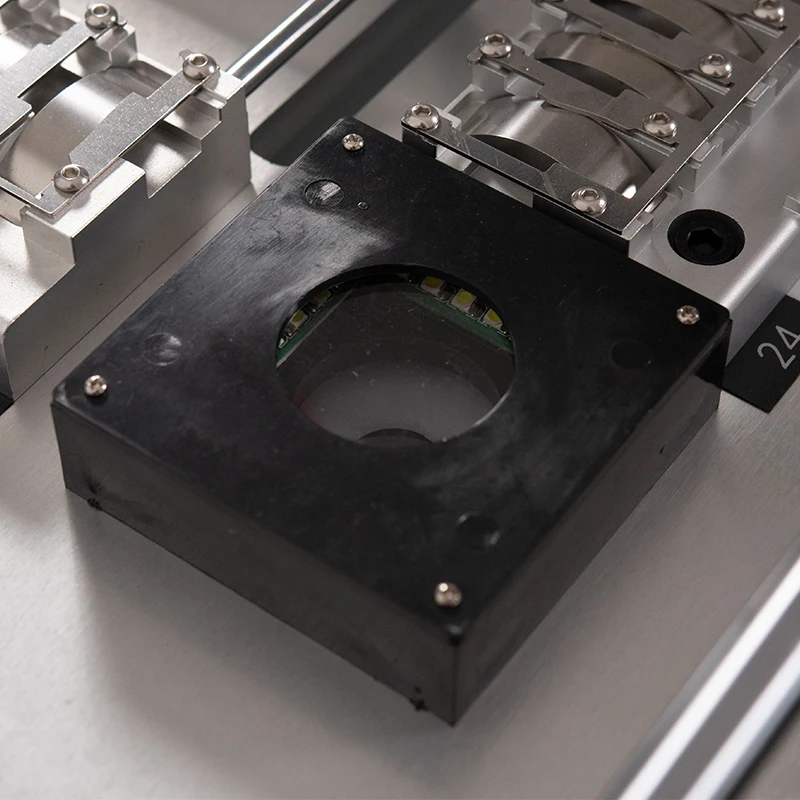

3.Industrial-strength up visual system With professional visual algorithms to determine the center of the components, calculate the position offset and angel offset so that we can pick and place efficiently.
4.Mute vacuum pump With 2 built-in imported mute vacuum pump and a blow air pump.
5.Manual man-machine interface.
6.Chip place zone Put the chips here, just need to set the corresponding coordinates.
7.PCB place zone Place the PCB here while the SMT processing.
8.Exclusive development of Ethernet Device interface Industrialstrength Ethernet interface connect conveniently to guarantee the machine reliable operation.
9. Industrial-strength under visual system.It's able to identify the Mark point and determine the coordinates of component by manual or automatic control.
10.Intelligent placement head The welldesigned placement head has realized that double suction,vacuum test,missing part check,automatic dialing materials.
The SMT802 software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
The SMT802 machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands)
Model | SMT802B |
Max Applicable PCB | 20*20mm-270*330mm |
Max XY Moving Area | 395*445mm |
Placement Head Quantity | 2 |
Postitioning Accuracy | ±0.025mm |
Max mounting Capability | 5000CPH (With camera) / 7000PCH (Without camera) |

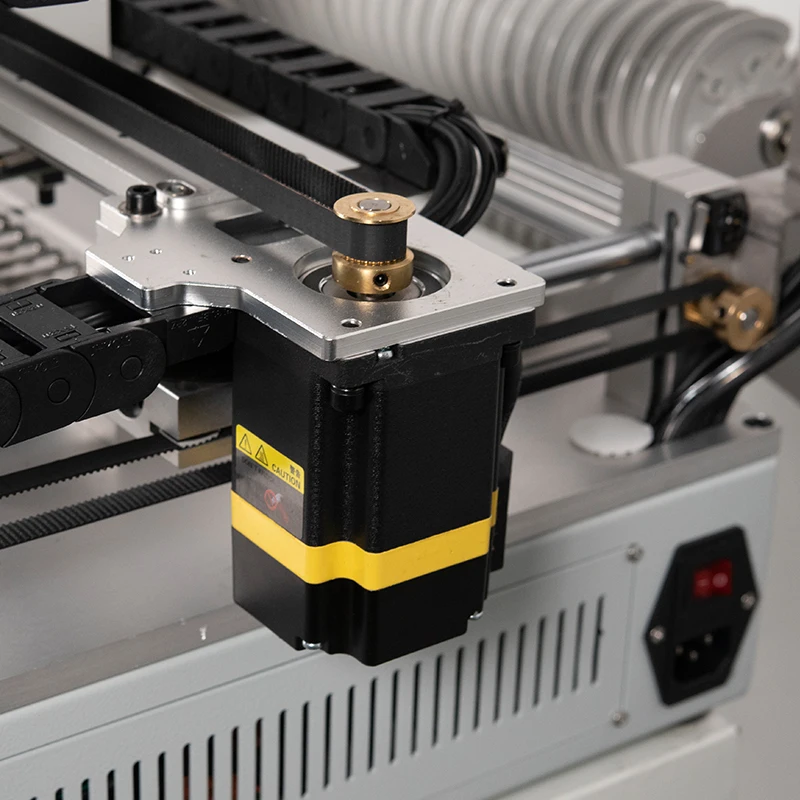

Motor | Closed-loop Motor |
Driver | Closed-loop Driver |
Applicable Component | 0402-5050 . SOP . TQFP . QFN BGA etc. |
Component Supply | Tape reel , bulk , Tray |
Tape Width ＆ Feeders Number | Total=46PCS 8mm=38pcs , 12mm=6PCS 16mm=2PCS |
UP Visual System | ldentify angle deviations and position deviations |
Down Visual System | Automatic identify mark point of PCB |
Pump | 1 vacuum pupm (-92KP) , 1 blow pupm |
Vacuum Popm | 2 -92KPA (mute type pupm) and 1 blow pupm |
Power | 125W |
Power Supply | AC220V or AC110V |
Gross Weigth | 58KG |
Net Weight | 45KG |
Volume | 0.32CBM |
Support Software | Protl99 / Altium Designer / Eagle / Pads / Allegro |

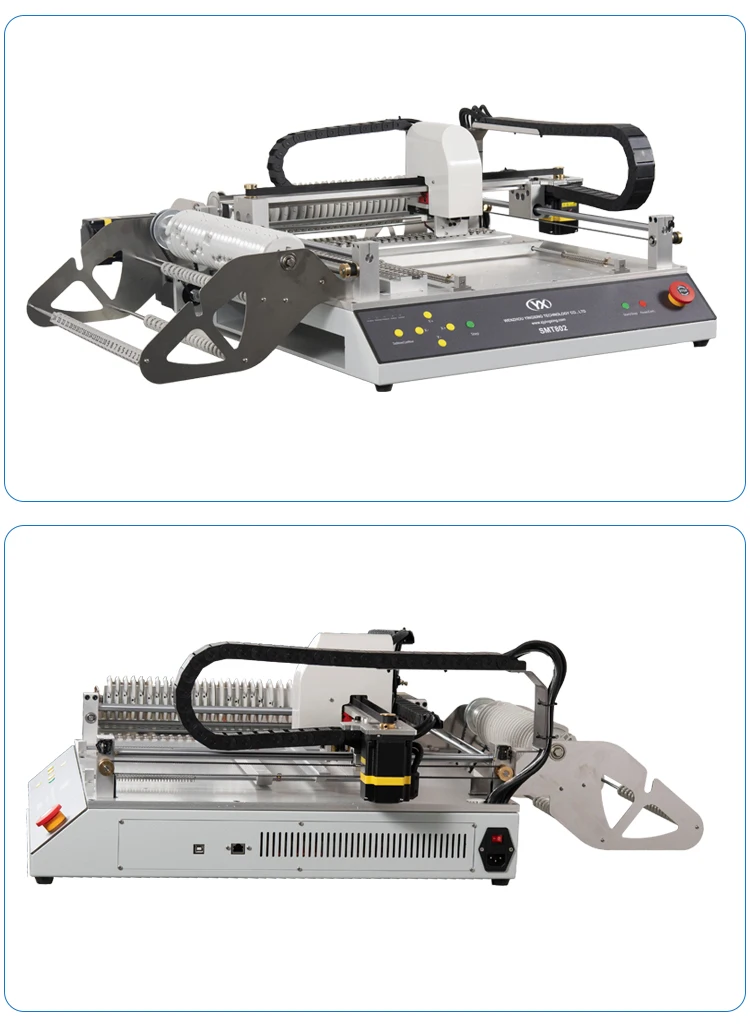

Product Details
Company Information
Exhibition
Certifications
Product packaging
FAQ
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
