Product Overview
Description

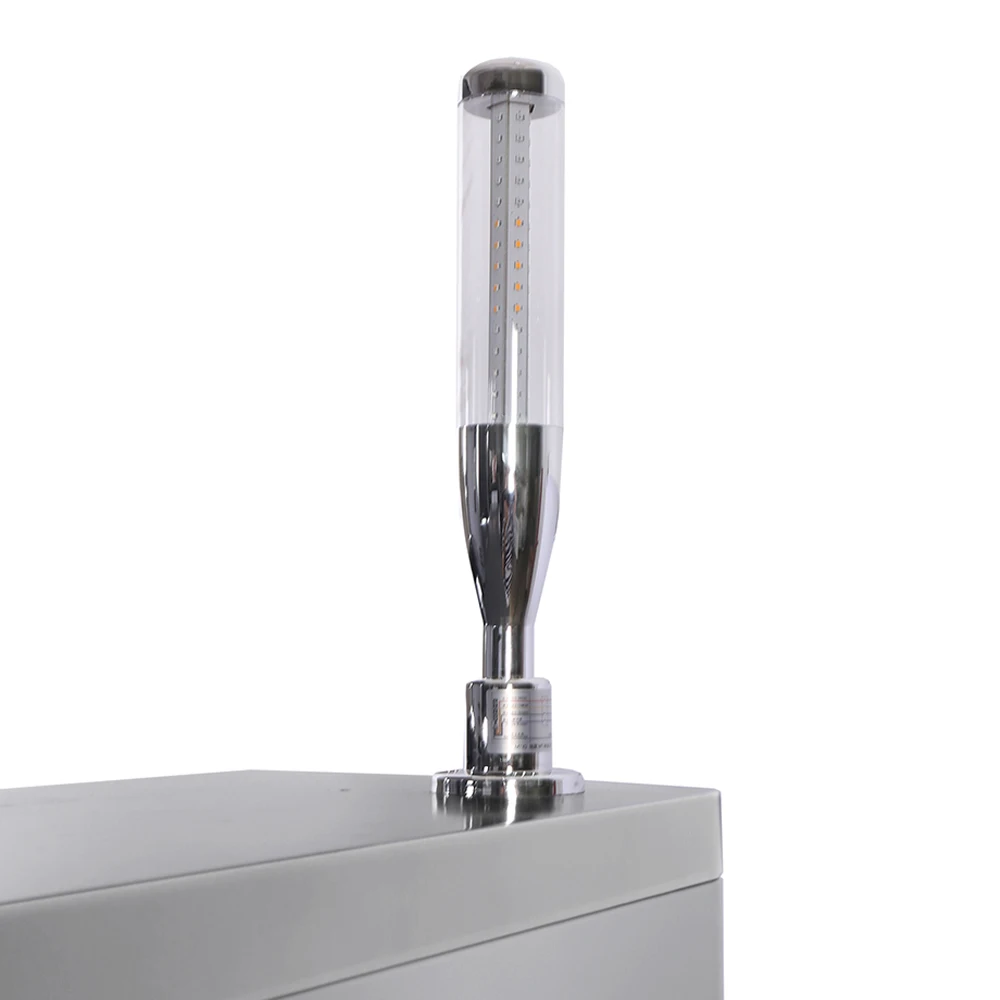

Automatic NeoDen N10P SMT Machine PCB Manufacturing Machines Pick and Place Machine
Product Description

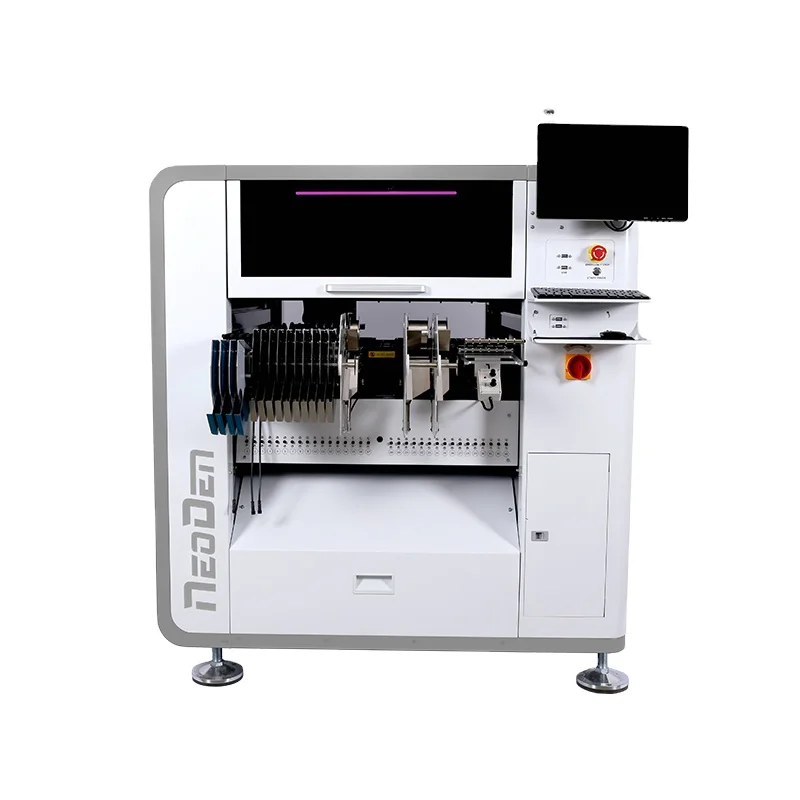

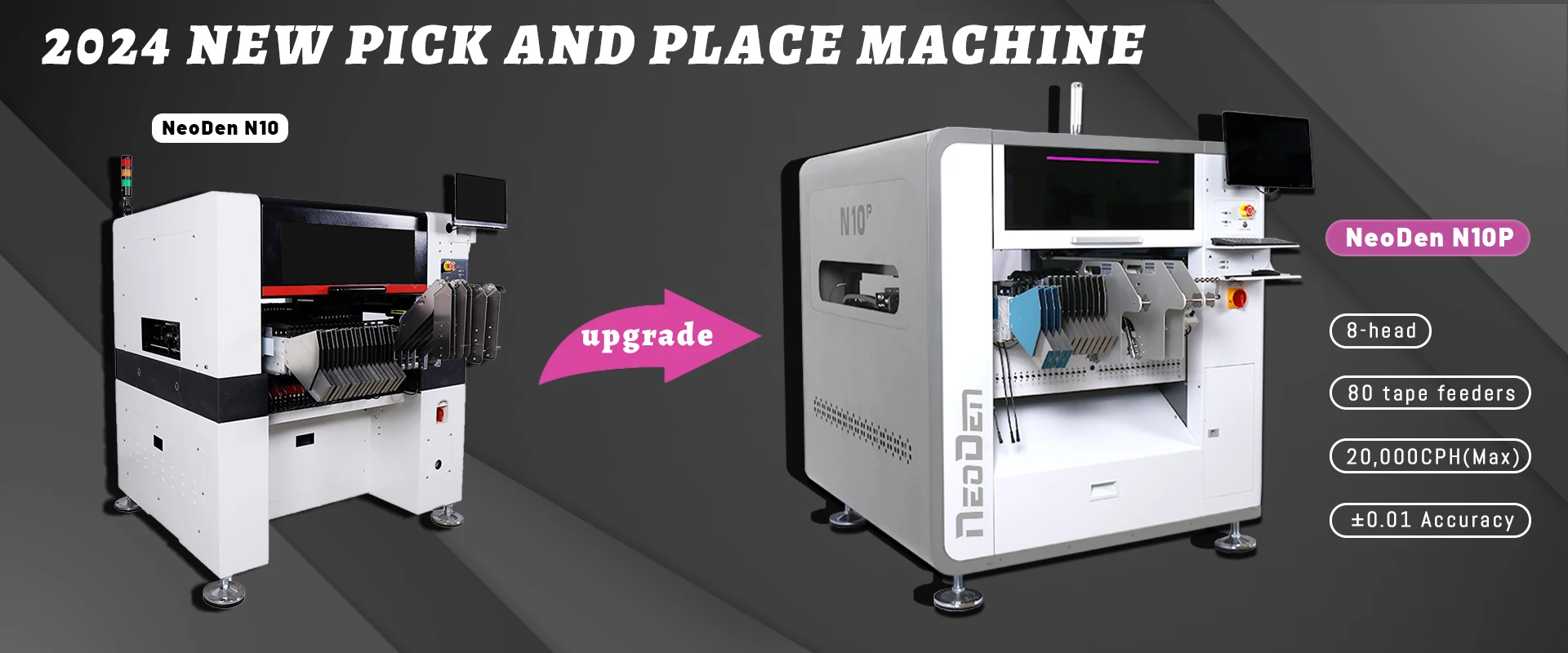

NeoDen N10P is the model upgraded based on NeoDen10. It's a ball screw driven, 8 heads, maximum speed at 20,000CPH, 39 automatic nozzle change slots, supports 80 tape feeders, push up table, 20 stick feeders, 60 tray feeders, nozzle air pressure detection and is applicable to 1,500mm long board.
It supports both electric feeder and pneumatic feeder.
The cost of electric feeder is higher, but for component which needs high accuracy, such as 0201, you need to select electric feeder.
The cost of pneumatic feeder is lower, you can select it for normal assembly work.
The feeder size: 8mm/ 12mm/ 16mm/ 24mm/ 32mm/ 44mm/ 56mm.
Applicable components: 0201, 0402, 0603, 0805, 1206, 1210, SOP, SSOP, SOC, QFP, QFN, BGA, 3538, 4148 diode, 3535 ball shape LED, 5050 etc.
Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security,
instruments and meters industry, communication industry, intelligent control industry, internet industry of things and military industry, etc.
It supports both electric feeder and pneumatic feeder.
The cost of electric feeder is higher, but for component which needs high accuracy, such as 0201, you need to select electric feeder.
The cost of pneumatic feeder is lower, you can select it for normal assembly work.
The feeder size: 8mm/ 12mm/ 16mm/ 24mm/ 32mm/ 44mm/ 56mm.
Applicable components: 0201, 0402, 0603, 0805, 1206, 1210, SOP, SSOP, SOC, QFP, QFN, BGA, 3538, 4148 diode, 3535 ball shape LED, 5050 etc.
Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security,
instruments and meters industry, communication industry, intelligent control industry, internet industry of things and military industry, etc.
What is NeoDen N10P
It supports PCB within size (L)1500mm*(W)450mm
Automatic nozzle change function has been added to the system. 39 nozzle positions increase the speed and flexibility of integrated placement.
IC camera improves the size of IC photos and realizes automatic calibration with automatic nozzle change.
Automatic calibration of nozzle height increases the convenience of recycling material by adding a throw box.

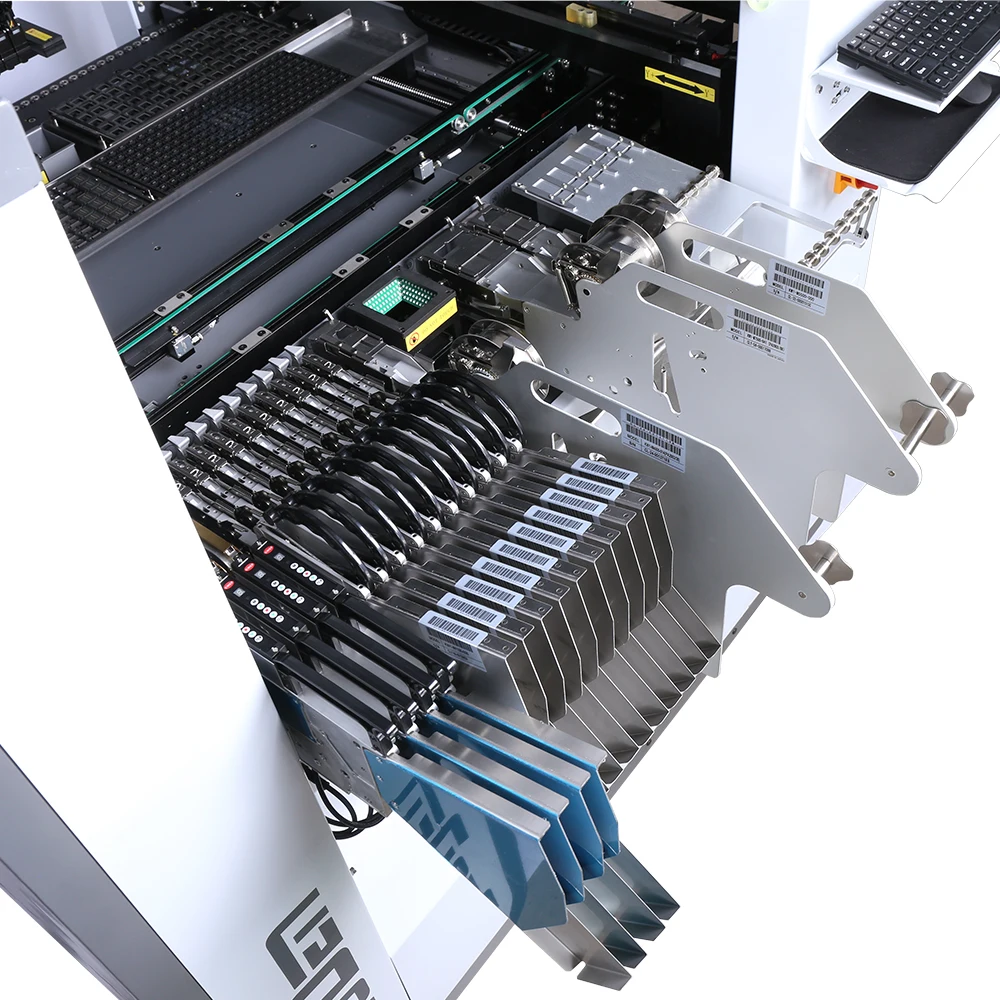

80 tape feeders to increase the number of simultaneous feeding capacity
Measuring of nozzle air pressure to improve work stability and eliminate obstacles
Optimized software design to improve ease of use and stability
Automatic nozzle change function has been added to the system. 39 nozzle positions increase the speed and flexibility of integrated placement.
IC camera improves the size of IC photos and realizes automatic calibration with automatic nozzle change.
Automatic calibration of nozzle height increases the convenience of recycling material by adding a throw box.
80 tape feeders to increase the number of simultaneous feeding capacity
Measuring of nozzle air pressure to improve work stability and eliminate obstacles
Optimized software design to improve ease of use and stability
Highlights
Automatic nozzle change function with 39 nozzle slots tremendously increase placement speed and flexibility, reduce labor work.
Automatic calibration of nozzle height, manpower can be utilized efficiently.
Abnormal air pressure triggers placement pause to prevent potential damage and waste of materials.
8 heads with fully closed-loop control system support to pick up components simultaneously with maximum speed 20,000CPH.

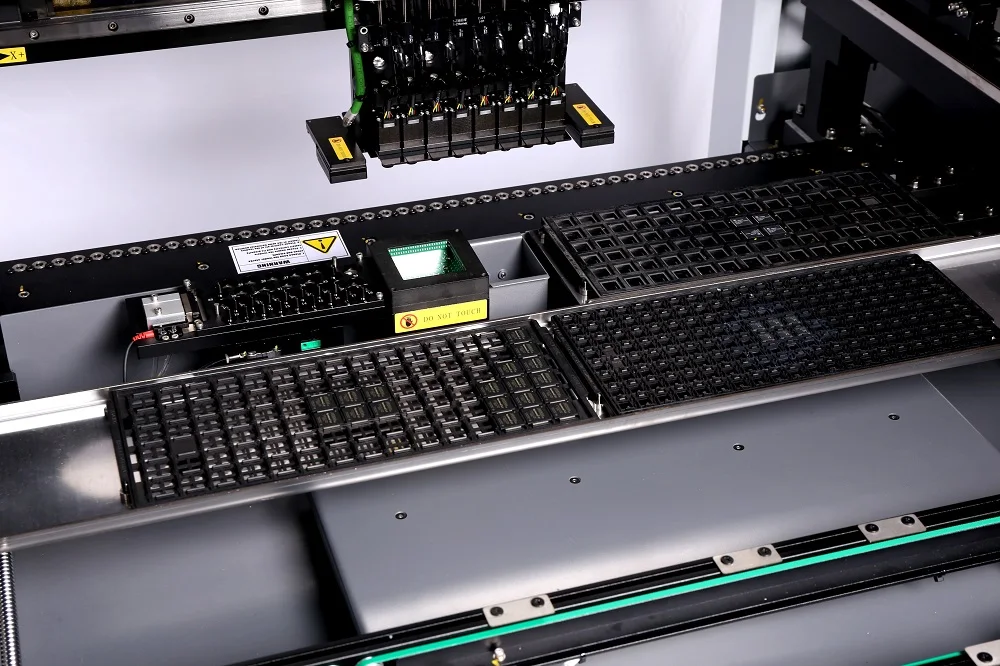

Support 80 tape feeders, 20 stick feeders and 60 tray feeders, which achieve . Allows mixed use of electric and pneumatic feeders in the same feeder base.
Applicable to 1,500mm long board using an extension conveyor (optional).

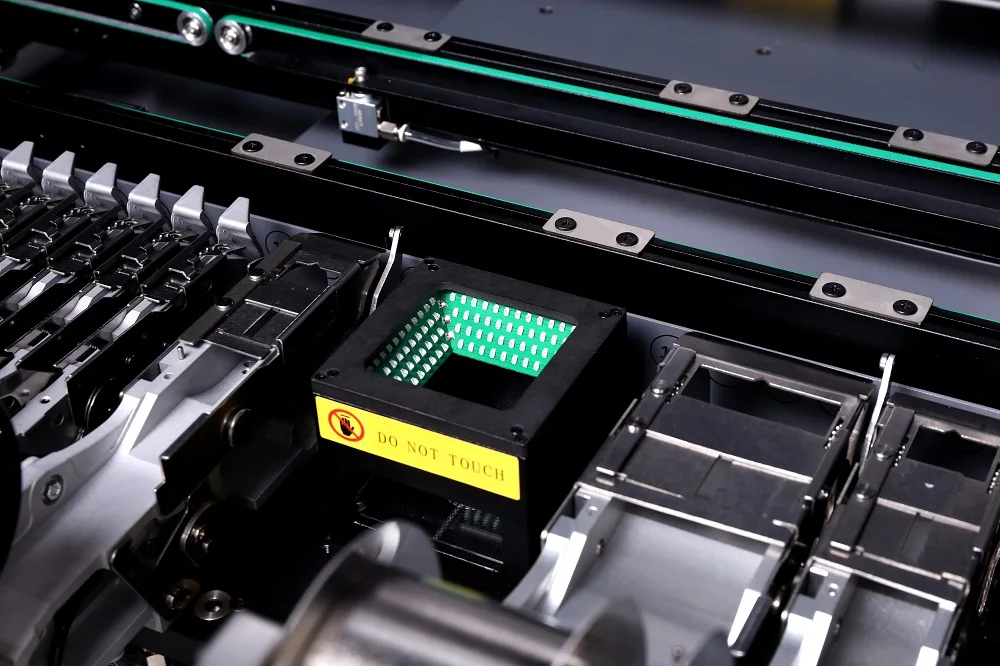

Front and rear with 2 fourth generation high speed flying camera recognition systems, US ON sensors, 28mm industrial lens, for flying shots and high accuracy recognition.
Push up table and support pins help to hold PCB to prevent PCB curve issue
The feet and structure are designed to support to connect with each other work side by side without conveyors
Specification
Number of Head | 8 | ||||
Speed | 20,000CPH(Max) | ||||
Position Accuracy | ±0.01mm | ||||
Camera Configuration | Dual Mark Camera+Front Flying Camera+IC Camera | ||||
Component Range | Flying Camera | 0201-22mmx22mm | |||
IC Camera | 0201-40mmx40mm | ||||
Max Height | 16mm | ||||
PCB Size | Min. | 50mmx50mm | |||
Max. | without IC tray holder | 450mm*1500mm | |||
with 1 IC tray holder | 395mm*1500mm | ||||
PCB Thickness | 0.2mm-3.5mm | ||||
Feeder Capacity | Tape&Reel | 80pcs(33 front+47 rear) | |||
IC Tray | 1 | ||||
Automatic Nozzle Change | Yes | ||||
Support Pins to Hold PCB | Optional | ||||
Power | 600W, Single phase, 220V/110V, 50Hz/60Hz | ||||

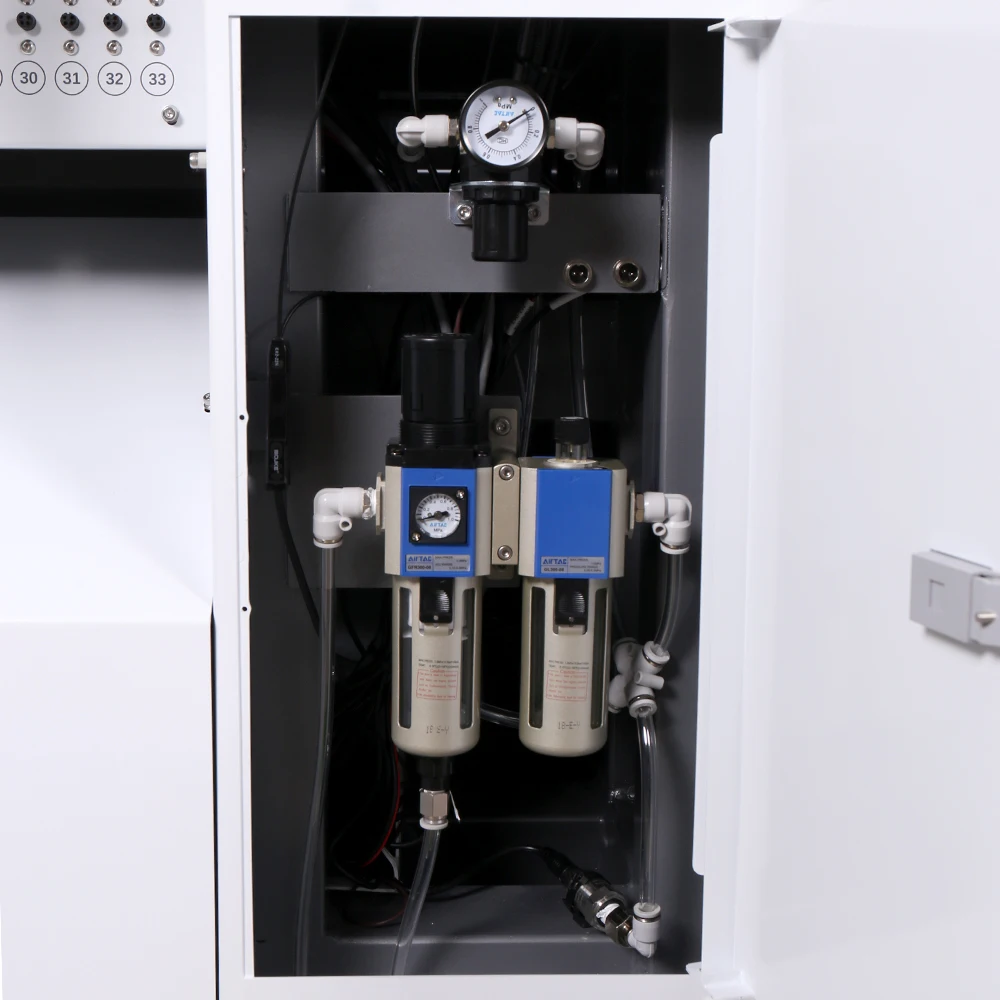

Air Source | 0.6Mpa-0.8Mpa | ||||
Flow rate | 37L/min | ||||
XY Drive Type | WON Linear Guide/THK Grinding Screw C5-2040 | ||||
XY Drive Motor | Panasonic A6 750W Servo Motor | ||||
XY Motion Feedback Control | SPM/IBG Magnetic Linear Encoder | ||||
Weight | 1,000kgs | ||||
Dimension | 1289mmx1254mmx1386mm | ||||
Packing Size | 1420mmx1420mmx1620mm | ||||
