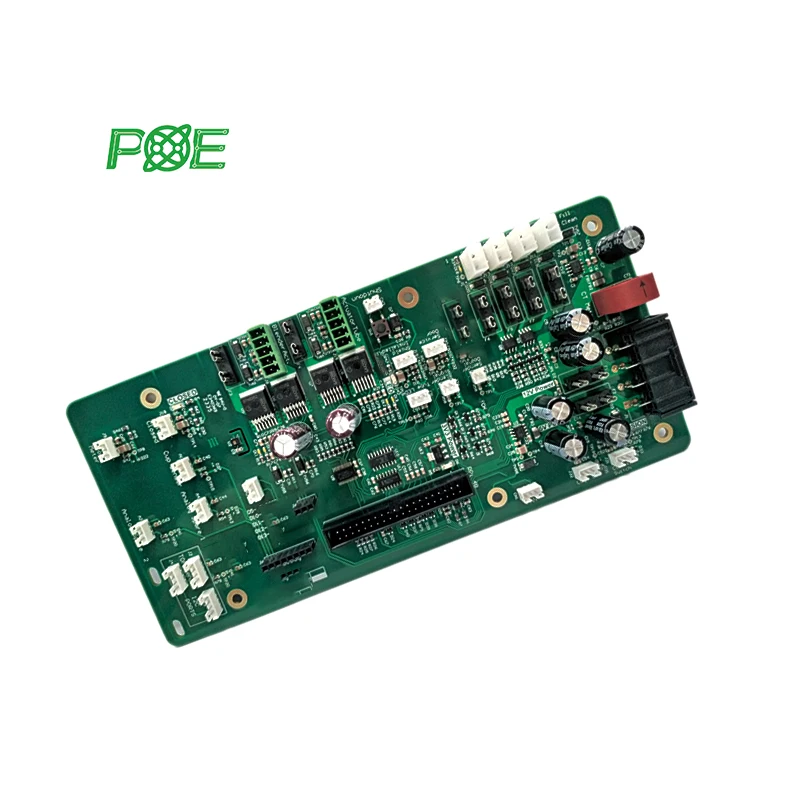

PCBA Circuit Electronic Board Assembly Printed Circuit Board PCB Board Manufacturing
- Category: >>>
- Supplier: Shenzhen Wanfeng Technology Co. Ltd.
Share on (1601273432347):
Product Overview
Description

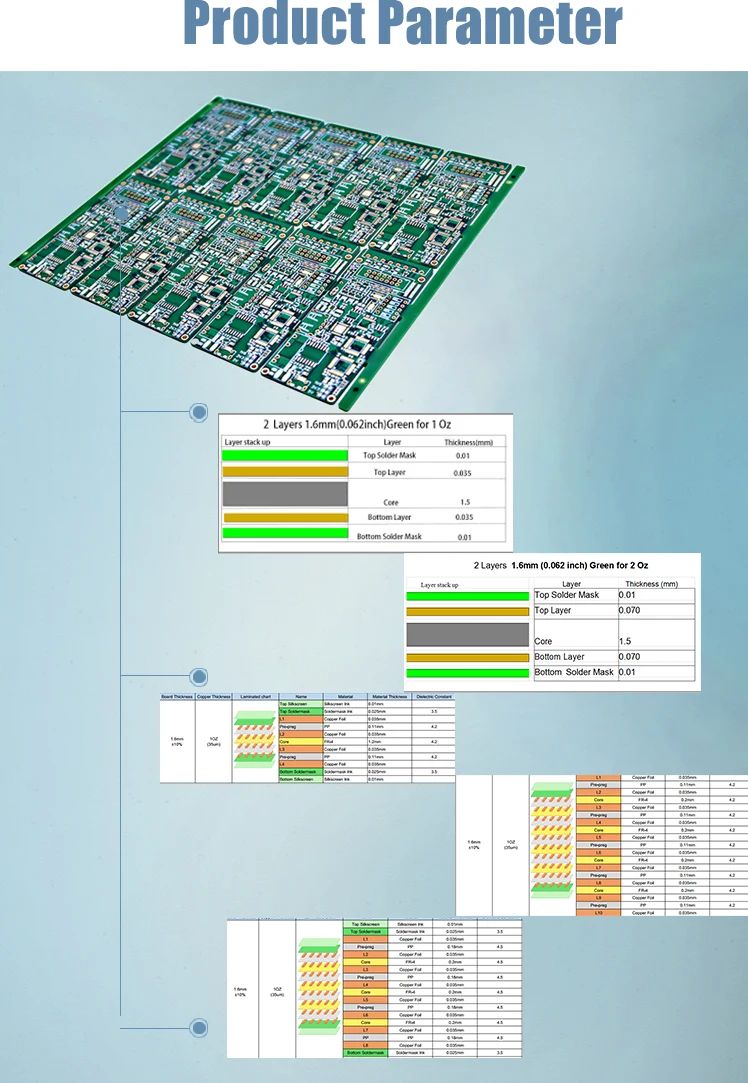

Company Capability | ||
Layers | 1-40 layers | |
Copper Thickness | 0.5-6 OZ | |
Material | FR4 (Shengyi China, ITEQ, KB A+,HZ), HI-TG, FR06, Rogers, Taconic, Argon, Nalco, Isola and so on | |
Solder Mask | green, yellow,white, blue,black,red | |
Finished Surface | conventional hasl, lead free hasl, immersion gold, immersion tin, immersion silver, hard gold, OSP... | |
Silkscreen color | white, black | |
Products Type | HF(High-Frequency)&(Radio Frequency)board, impendance controlled board, HDI board, BGA&Fine pitch board | |
Minimum line width/gap | Minimum line width/gap | |
Minimum hole size | Minimum hole size | |
Minimum Annlar Ring | 4mil | |
Max Copper thickness | 6OZ | |
Min Solder Mask Bridge | 0.08mm | |
Plugging Vias capability | 0.2-0.8mm | |
01
1-40 layers pcb production
including FR4, Polyimide,
aluminum and high frequency
material.
aluminum and high frequency
material.
02
03

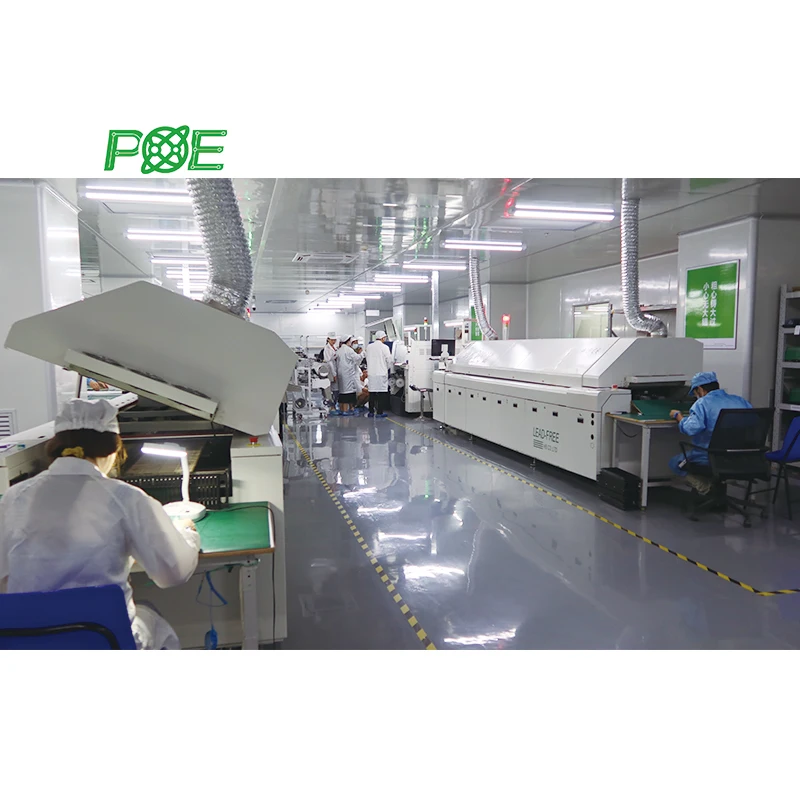

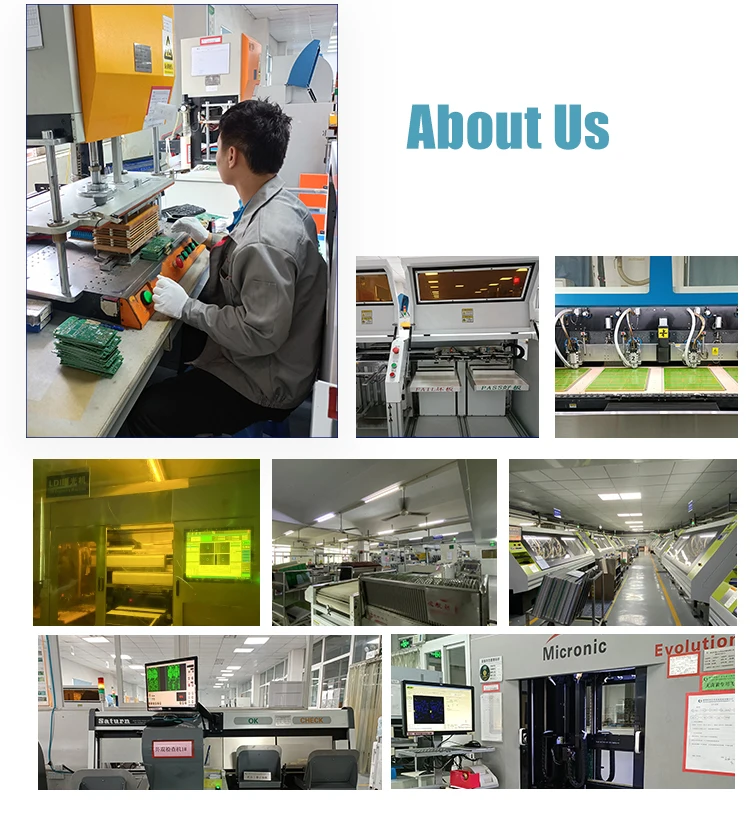

Since 1996, POE has established itself as a premier provider of PCB Fabrication, PCB Assembly, and Part Procurement services. Over the years, our customers have relied on us to deliver their time sensitive jobs with the highest level of quality. We have the capability to produce FR4 PCBs, Aluminum PCBs, HDI PCBs, Multilayer PCBs (up to 40 layers), Gold Finger PCBs and Rogers PCBs. POE has been dedicated to the manufacture and supply of high quality printed circuit boards which are widely used in many industries such as communications, medical equipment, optical module, industrial, aerospace, computers, automotive, power and instrumental industries.
Whether your need is for small volume prototypes, medium or high-volume production, POE is driven to always delivery high quality goods and services, on time, and on budget
Whether your need is for small volume prototypes, medium or high-volume production, POE is driven to always delivery high quality goods and services, on time, and on budget
FAQ
Q: What is needed for PCB /PCBA quotation?
A: For Bare PCB project, please provide Quantity, Gerber file and specification like material, surface finish treatment, copper thickness, board thickness, soldermask color and silkscreen color and other special
specs.
specs.
For PCBA project, please provide above information as well, and BOM list, pick and place file. If you need turnkey service include programming and functional testing etc, kindly contact us for more details.
Q: Are my files safe?
A: Your files are held in complete safety and security. We protect the intellectual property for our customers in the whole process. All documents from customers are never shared with any third parties. We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level.
Q: What’s your minimum of quantity ( MOQ) ?
A: There is no MOQ in POE(PCBA shenzhen). We are able to handle small as well as large volume production with flexibility.
Q: How to calculate the shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
Q: What other service do you have?
A: We mainly focus on PCB +Assembly +Components sourcing service.
Additionally, we can also provide programming, testing, cables, enclosure assembly service.
Additionally, we can also provide programming, testing, cables, enclosure assembly service.
Q: Can we inspect quality during production?
A: Yes, we are open and transparent on each production process. We Welcome you visit our factory to inspect our production process.
Q: What is your testing policy and how you control the quality?
A: Regarding to PCB samples, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by Electrical fixture which is faster. As to PCBA production, there are automated optical inspection (AOI) for each batch, X-ray inspection for BGA parts, first article inspection (FAI) before mass production.
