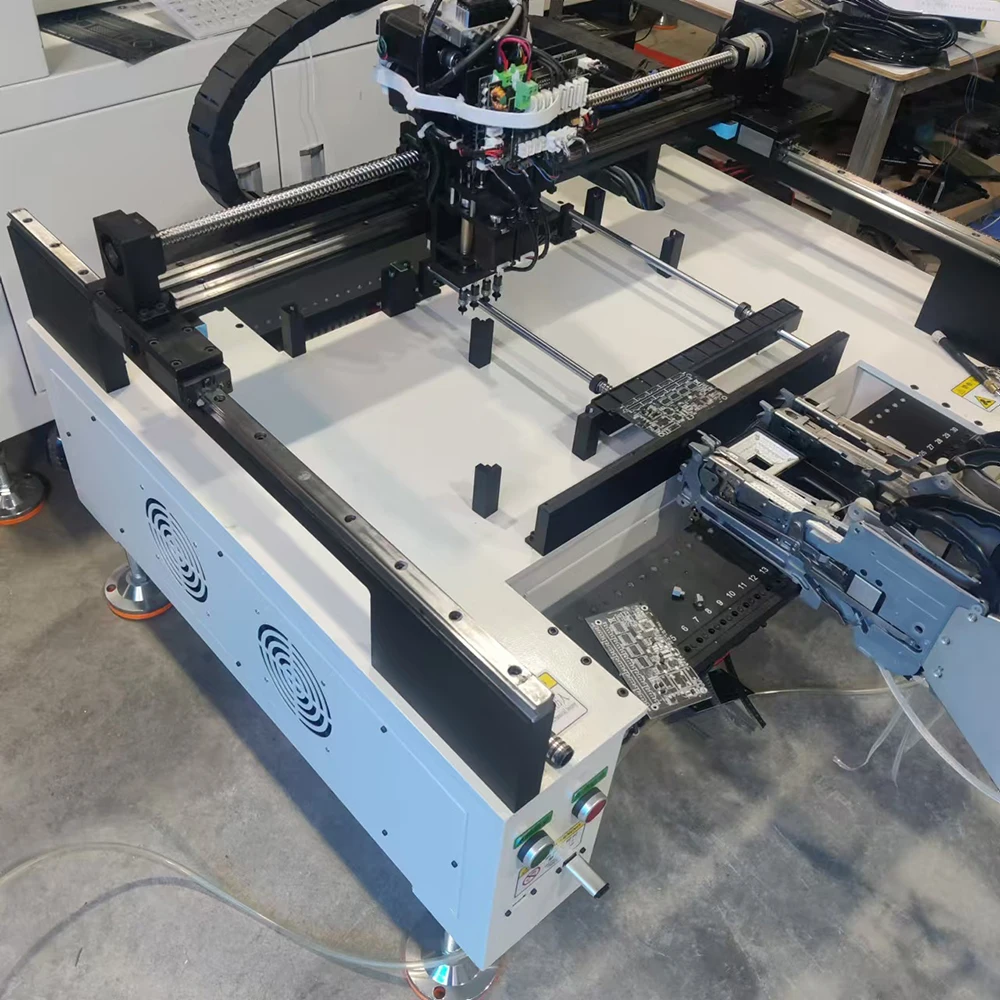

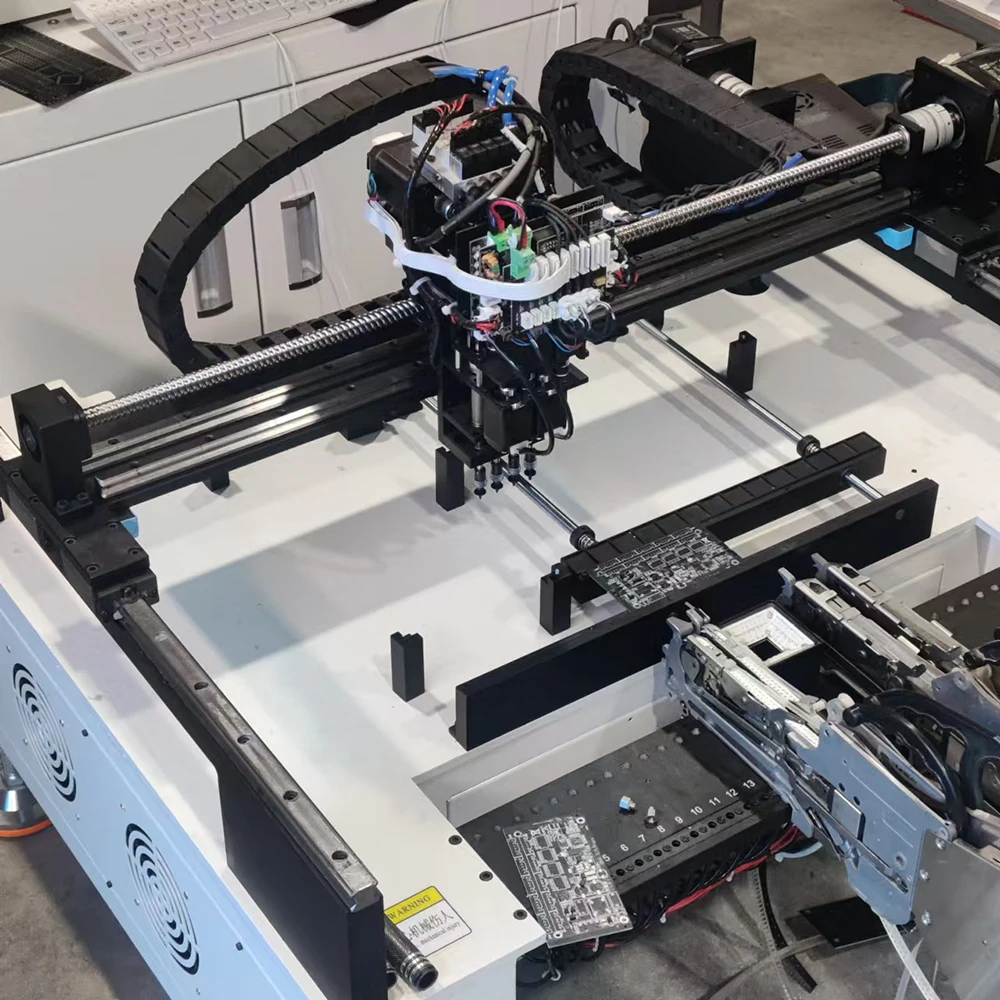

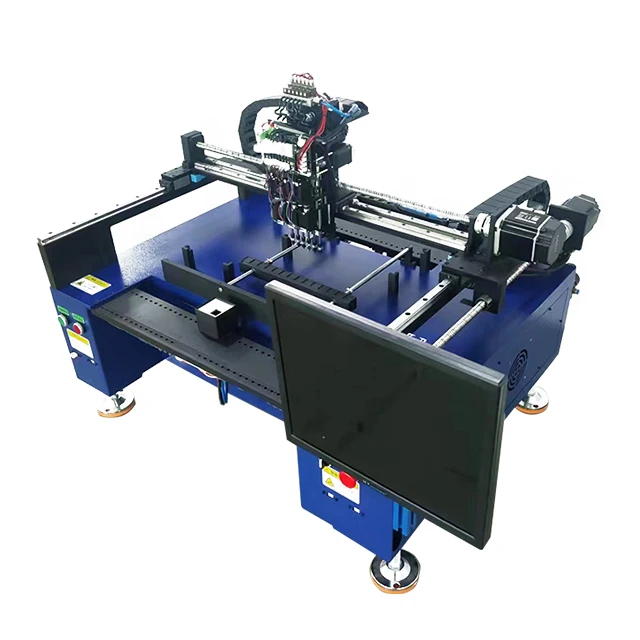

4 pack SMT desktop mounting machine GZ G460ZPCB printer LED light assembly line
- Category: >>>
- Supplier: Dongguan Anleji Intelligent Electronics Co. Ltd.
Share on (1601277441364):
Product Overview
Description
Product details
1. Ball spline structure of mounting head 2. independent Z axis, 4-6 heads are taken together 3. The visual speed is 6000-10000CPH
4. TBI ball screw +HIWIN guide rail slider 5. X Y axis AC servo motor and Z axis closed-loop stepping motor. 6. Stick firmly to 0402
4. TBI ball screw +HIWIN guide rail slider 5. X Y axis AC servo motor and Z axis closed-loop stepping motor. 6. Stick firmly to 0402
Product advantage

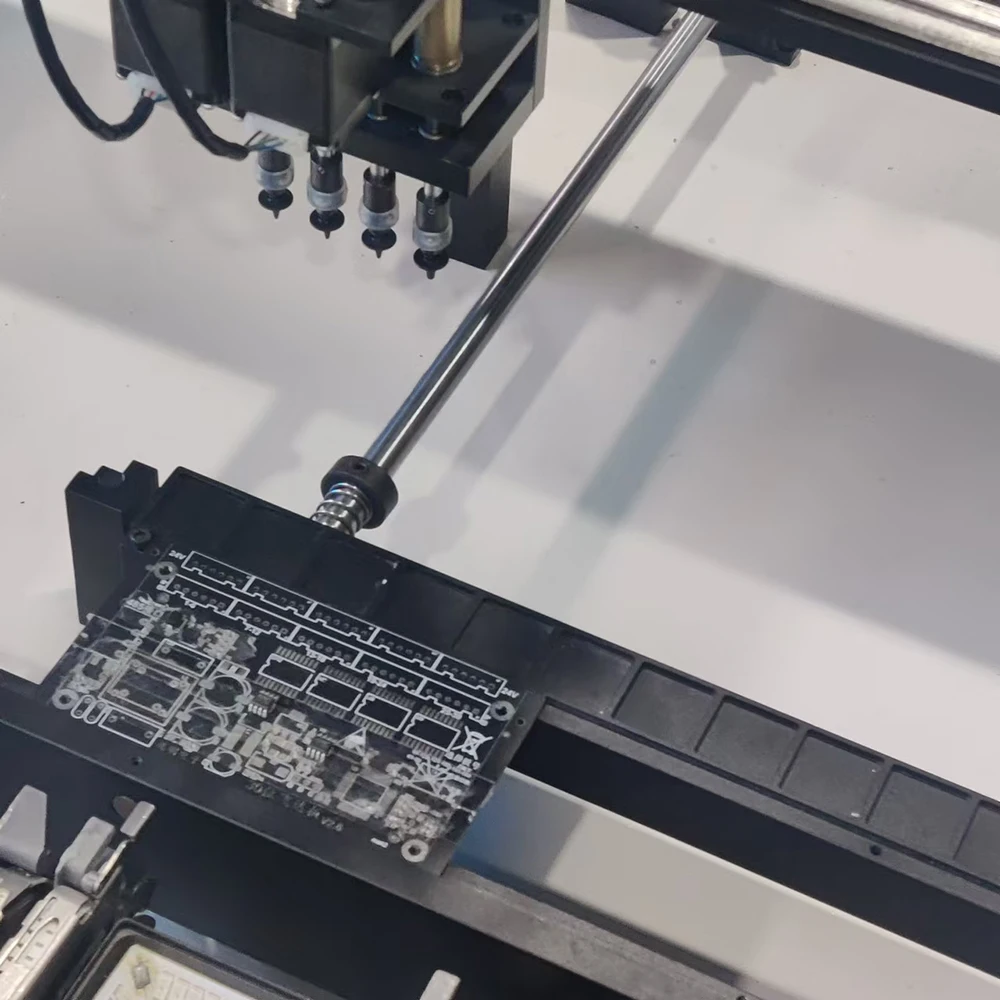

Mounting head update iteration
Mounting head version 1.0
Swing arm driving structure
Swing arm driving structure
Speed: 2000-3000CPH
Suction nozzle: JUKI universal suction nozzle
Z axis: simultaneous fetching is not supported.
Cost: low-end machine adoption
Suction nozzle: JUKI universal suction nozzle
Z axis: simultaneous fetching is not supported.
Cost: low-end machine adoption
Mounting head version 2.0
Direct drive structure
Direct drive structure
Speed: 4000-5000CPH
Suction nozzle: JUKI universal suction nozzle
Z axis: simultaneous fetching is not supported.
Cost: low-end machine adoption
Suction nozzle: JUKI universal suction nozzle
Z axis: simultaneous fetching is not supported.
Cost: low-end machine adoption
Mounting head version 3.0
Ball spline structure
Ball spline structure
Speed: 6000-10000CPH
Suction nozzle: Samsung CN suction nozzle
Z-axis: Independent Z-axis supports simultaneous retrieval.
Cost: Commercial end machine adoption
Suction nozzle: Samsung CN suction nozzle
Z-axis: Independent Z-axis supports simultaneous retrieval.
Cost: Commercial end machine adoption
1, ball spline, stable structure
2, 4/6 head with take.
3. Independent Z axis
4. The average speed is 8000CPH
5, stable mounting 0402
2, 4/6 head with take.
3. Independent Z axis
4. The average speed is 8000CPH
5, stable mounting 0402
Specification
Type No. | GZ-G460Z | GZ-G660Z | |
Number of mounting heads | 4 heads | 6 heads | |
Nozzle type | Samsung Series nozzles | Samsung series nozzle | |
Number of trays | 2 | 1 | |
Visual mounting speed | 9000 pcs/h (maximum visual speed) | 10000 pcs/h (Max visual speed) | |
6000 pcs/h (size mixing speed) | 7000 pcs/h (size mixing speed) | ||
PCB entry mode | Manual boarding | Left → right (special can be customized), support left and right device connection function | |
PCB board size | 200*300mm (2 trays as standard) | 300*300mm(standard with 1 tray) | |
500*360mm (Max size without tray) | |||
Number of feeders | 60 bits (30 in front and back) | ||
Feeder type | 8/12/16/24/36mm pneumatic feeder, vibration feeder, (electric feeder feeder can be customized) | ||
Repeatable positioning accuracy | The 0.05 mm | ||
Maximum height of component | ≤10mm (customizable) | ||
Z-axis rotation Angle | 0 ~ 360 ° | ||
Nozzle buffer range | The 3.0 mm | ||
Z-axis maximum range of movement | 30mm | ||
Compatible file formats | CSV, TXT, XLS | ||
Type of mounting device | RC (0402, 0603, 0805, 1206, etc.) | ||
LED light beads (0603, 0805, 3014, 5050, etc.) | |||
Chips (SOT, SOP, QFN, BGA, etc.) | |||
Max 25 * 25mm pin spacing greater than 0.3mm | |||
Device Packaging | Braid material, bulk material, (IC) pipe material, pallet and other conventional packaging | ||
Vision System | 130W mark Camera Hikon 500W High Speed flying camera centering camera | ||
Operating system | Built-in industrial computer (running WIN7) with 17 "monitor, keyboard, mouse | ||
Sports system | TBI ball screw HIWIN guide slider | ||
Drive motor | X, Y double 750W AC servo motor Z-axis closed-loop stepper motor | ||
Negative pressure system | Built-in vacuum pump *1 | ||
Input power | AC220V ±10% 50Hz 1.5KVA | ||
Equipment size | L1040*W1030*H750mm | ||
Equipment weight | 200 kg | ||
Product configuration

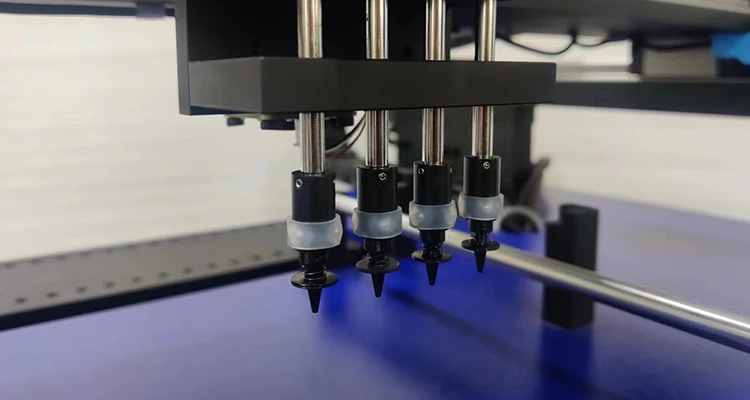

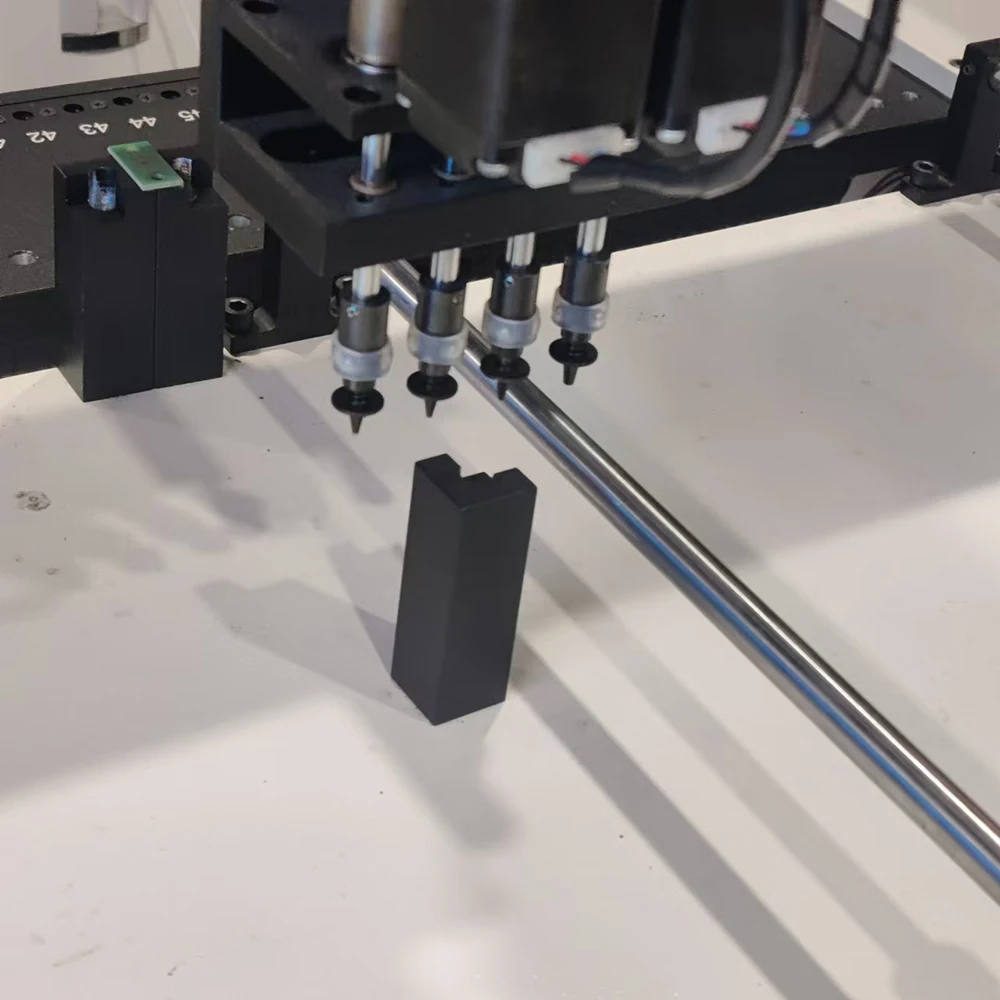

● Mounting head structure
My home: ball spline structure
Other homes: direct drive structure
Other homes: direct drive structure
● Feeder
My home: air transport feida supplies.
Other home: stripper feeding.
Other home: stripper feeding.
● Number of mounting heads
My home: 4-6 mounting heads can be taken together.
Other home: 2 mounting heads
Other home: 2 mounting heads
● TBI ball screw
High precision, reversibility and high efficiency, which can maintain stable mounting and ensure that the X and Y axes are not
offset.
offset.

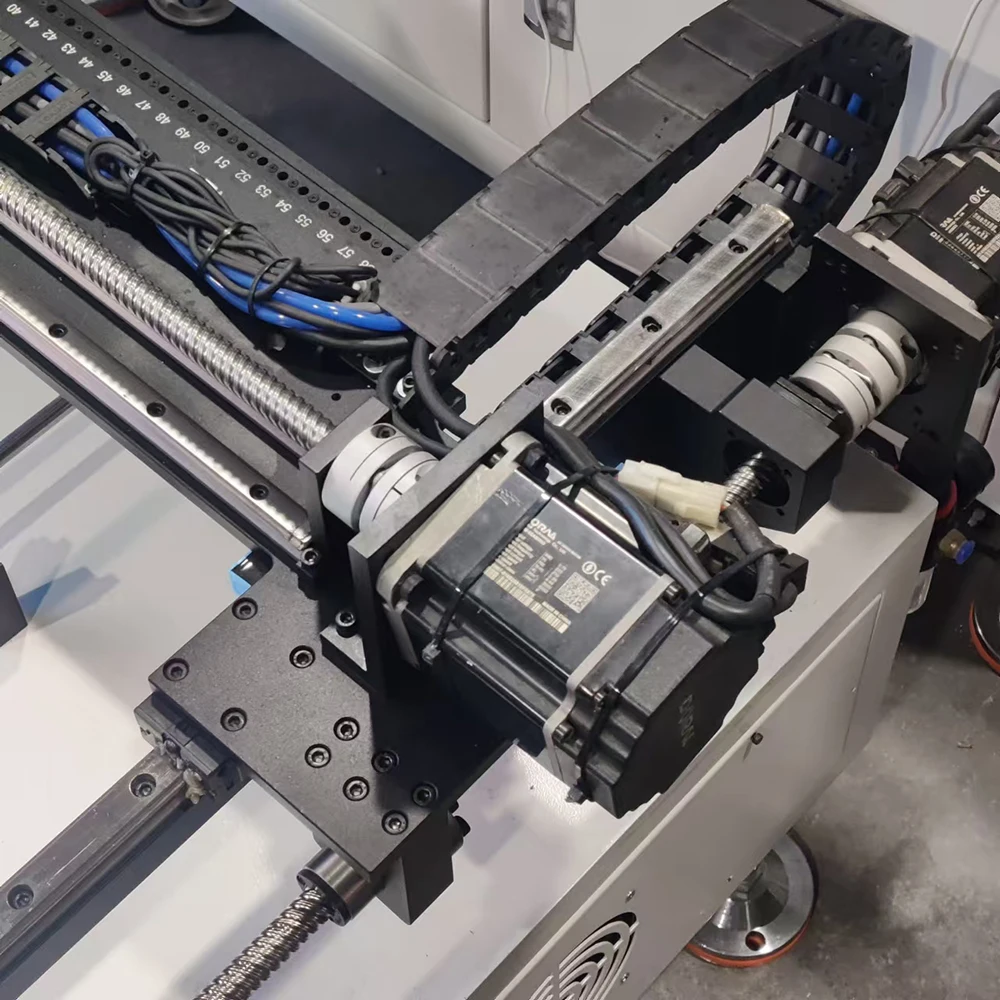

● Servo motor
Closed loop control, more stable positioning; Low fever, no step loss, low noise,Large torque, smooth and accurate, high-speed
response.
response.
● Silver linear guide rail
High precision, low noise, not easy to wear, long service life, accurate positioning in high-speed operation and stable mounting.
Generally, the mounting heads of desktop Mounter on the market are driven by direct connection, which does not support independent and simultaneous absorption of Z axis. Most of the mounting heads are about 2. Our small desktop Mounter has spline structure, Z axis is independent axis, limit spacing supports multi-head simultaneous removal, mounting head is 4-6, speed is twice that of other small desktop mounters, weight is 200kg, Feida feeding, stable and does not leak materials, less failure rate. 0402 can be stably mounted.
Company Profile
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: What's the mode of transportation? A1: These are heavy machines. We suggest you use a cargo ship. But it is also possible to repair machine parts by air.
Q2: Is it difficult to use these machines?
A2: The software is very simple. You can learn to operate it in two or three days at most. We provide online Q&A, troubleshooting and technical consulting services. Provide one-on-one after-sales service.
Q3: What is the warranty status?
A3: We support one-year warranty. During the warranty period, all accessories will be provided to you for free.
Q4: What language is the software? Do you provide software updates?
A4: English and Chinese.Free software upgrade for life.
Q5: What are your payment terms?
A5: Pay 100% of the payment before delivery, or pay 50% of the deposit in advance, and the rest will be paid before delivery.
Q6: When is your delivery date?
A6: The delivery date is about 15-20 days after full payment.
Q2: Is it difficult to use these machines?
A2: The software is very simple. You can learn to operate it in two or three days at most. We provide online Q&A, troubleshooting and technical consulting services. Provide one-on-one after-sales service.
Q3: What is the warranty status?
A3: We support one-year warranty. During the warranty period, all accessories will be provided to you for free.
Q4: What language is the software? Do you provide software updates?
A4: English and Chinese.Free software upgrade for life.
Q5: What are your payment terms?
A5: Pay 100% of the payment before delivery, or pay 50% of the deposit in advance, and the rest will be paid before delivery.
Q6: When is your delivery date?
A6: The delivery date is about 15-20 days after full payment.
