Fully automatic SMT production line for manufacturing electronic products with an average speed of 6000CPH
- Category: >>>
- Supplier: Dongguan Anleji Intelligent Electronics Co. Ltd.
Share on (1601277838685):
Product Overview
Description
Product details
1. Ball spline structure of mounting head 2. independent Z axis, 4-6 heads are taken together 3. The visual speed is 6000-10000CPH
4. TBI ball screw +HIWIN guide rail slider 5. X Y axis AC servo motor and Z axis closed-loop stepping motor. 6. Stick firmly to
0402
4. TBI ball screw +HIWIN guide rail slider 5. X Y axis AC servo motor and Z axis closed-loop stepping motor. 6. Stick firmly to
0402
Product advantage
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Mounting head version 1.0
Swing arm driving structure
Swing arm driving structure
Speed: 2000-3000CPH Suction nozzle: JUKI universal suction nozzle Z axis: simultaneous fetching is not supported. Cost: low-end
machine adoption
machine adoption
Mounting head version 2.0
Direct drive structure
Direct drive structure
Speed: 4000-5000CPH
Suction nozzle: JUKI universal suction nozzle
Z axis: simultaneous fetching is not supported.
Cost: low-end machine adoption
Suction nozzle: JUKI universal suction nozzle
Z axis: simultaneous fetching is not supported.
Cost: low-end machine adoption
Mounting head version 3.0
Ball spline structure
Ball spline structure
Speed: 6000-10000CPH
Suction nozzle: Samsung CN suction nozzle
Z-axis: Independent Z-axis supports simultaneous retrieval.
Cost: Commercial end machine adoption
Suction nozzle: Samsung CN suction nozzle
Z-axis: Independent Z-axis supports simultaneous retrieval.
Cost: Commercial end machine adoption

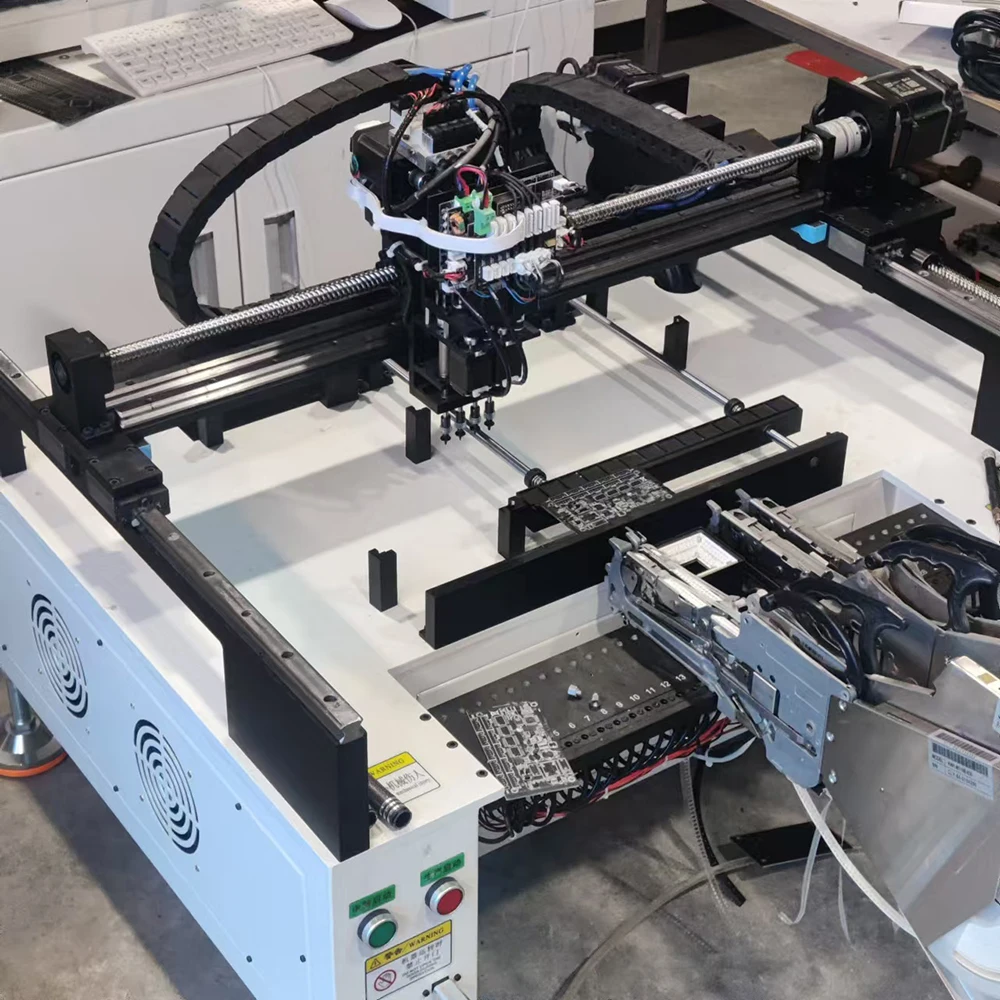

Small desktop mounter
Mounting speed : 6000-10000CPH
Mounting accuracy : ±0.05mm
Maximum attachable component : ≤10mm (support customization)
Maximum identification chip size : 25*25mm (support customization)
Mounting accuracy : ±0.05mm
Maximum attachable component : ≤10mm (support customization)
Maximum identification chip size : 25*25mm (support customization)
Product parameter

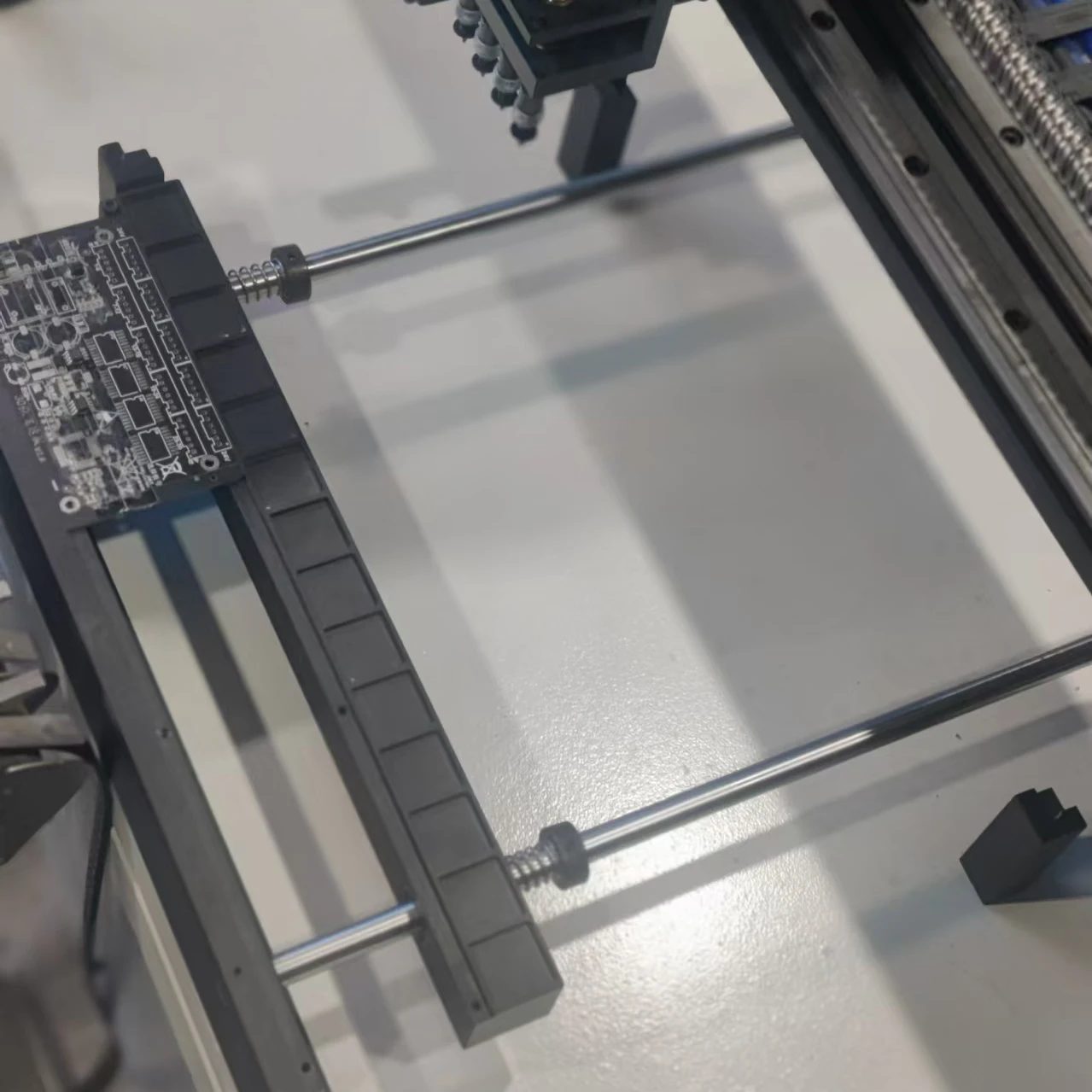

Type No. | GZ-G460Z | GZ-G660Z | |
Number of mounting heads | 4 heads | 6 heads | |
Nozzle type | Samsung Series nozzles | Samsung series nozzle | |
Number of trays | 2 | 1 | |
Visual mounting speed | 9000 pcs/h (maximum visual speed) | 10000 pcs/h (Max visual speed) | |
6000 pcs/h (size mixing speed) | 7000 pcs/h (size mixing speed) | ||
PCB entry mode | Manual boarding | Left → right (special can be customized), support left and right device connection function | |
PCB board size | 200*300mm (2 trays as standard) | 300*300mm(standard with 1 tray) | |
500*360mm (Max size without tray) | |||
Number of feeders | 60 bits (30 in front and back) | ||
Feeder type | 8/12/16/24/36mm pneumatic feeder, vibration feeder, (electric feeder feeder can be customized) | ||
Repeatable positioning accuracy | The 0.05 mm | ||
Maximum height of component | ≤10mm (customizable) | ||
Z-axis rotation Angle | 0 ~ 360 ° | ||
Nozzle buffer range | The 3.0 mm | ||
Z-axis maximum range of movement | 30mm | ||
Compatible file formats | CSV, TXT, XLS | ||
Type of mounting device | RC (0402, 0603, 0805, 1206, etc.) | ||
LED light beads (0603, 0805, 3014, 5050, etc.) | |||
Chips (SOT, SOP, QFN, BGA, etc.) | |||
Max 25 * 25mm pin spacing greater than 0.3mm | |||
Device Packaging | Braid material, bulk material, (IC) pipe material, pallet and other conventional packaging | ||

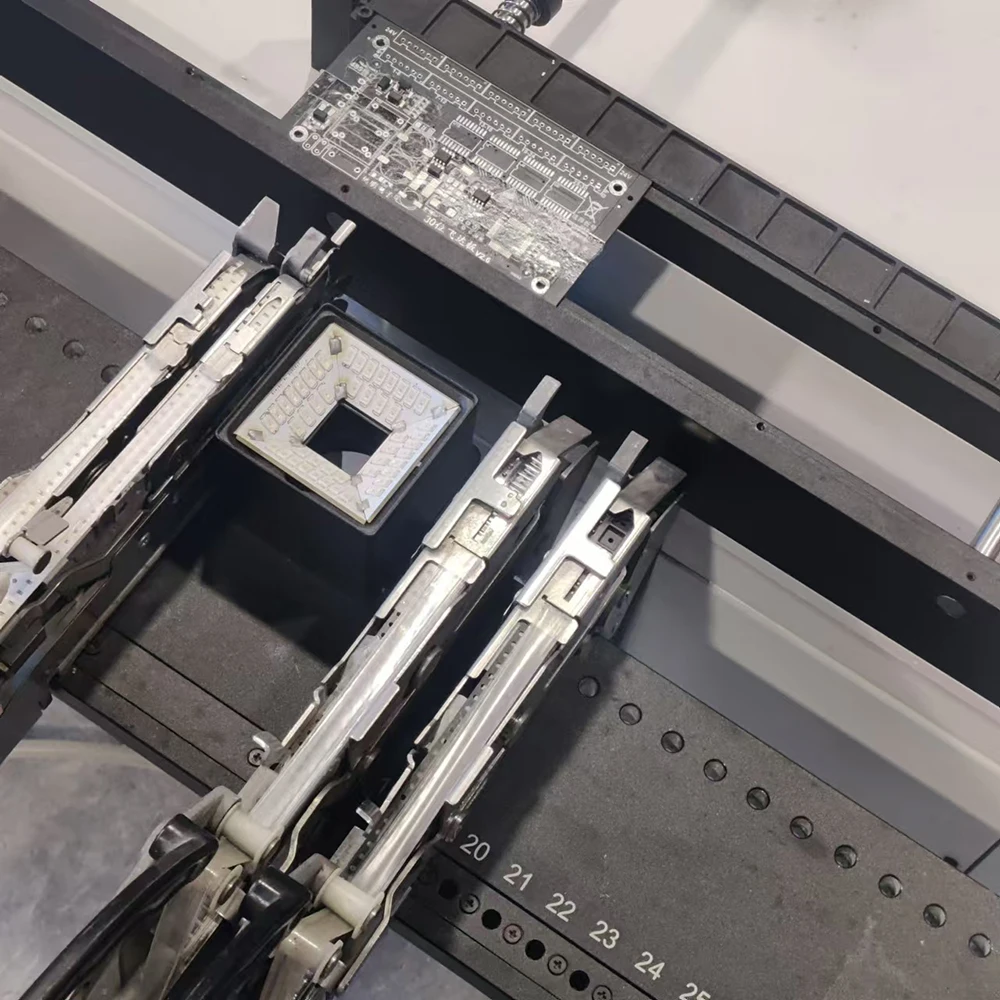

Vision System | 130W mark Camera Hikon 500W High Speed flying camera centering camera | ||
Operating system | Built-in industrial computer (running WIN7) with 17 "monitor, keyboard, mouse | ||
Sports system | TBI ball screw HIWIN guide slider | ||
Drive motor | X, Y double 750W AC servo motor Z-axis closed-loop stepper motor | ||
Negative pressure system | Built-in vacuum pump *1 | ||
Input power | AC220V ±10% 50Hz 1.5KVA | ||
Equipment size | L1040*W1030*H750mm | ||
Equipment weight | 200 kg | ||
Product configuration

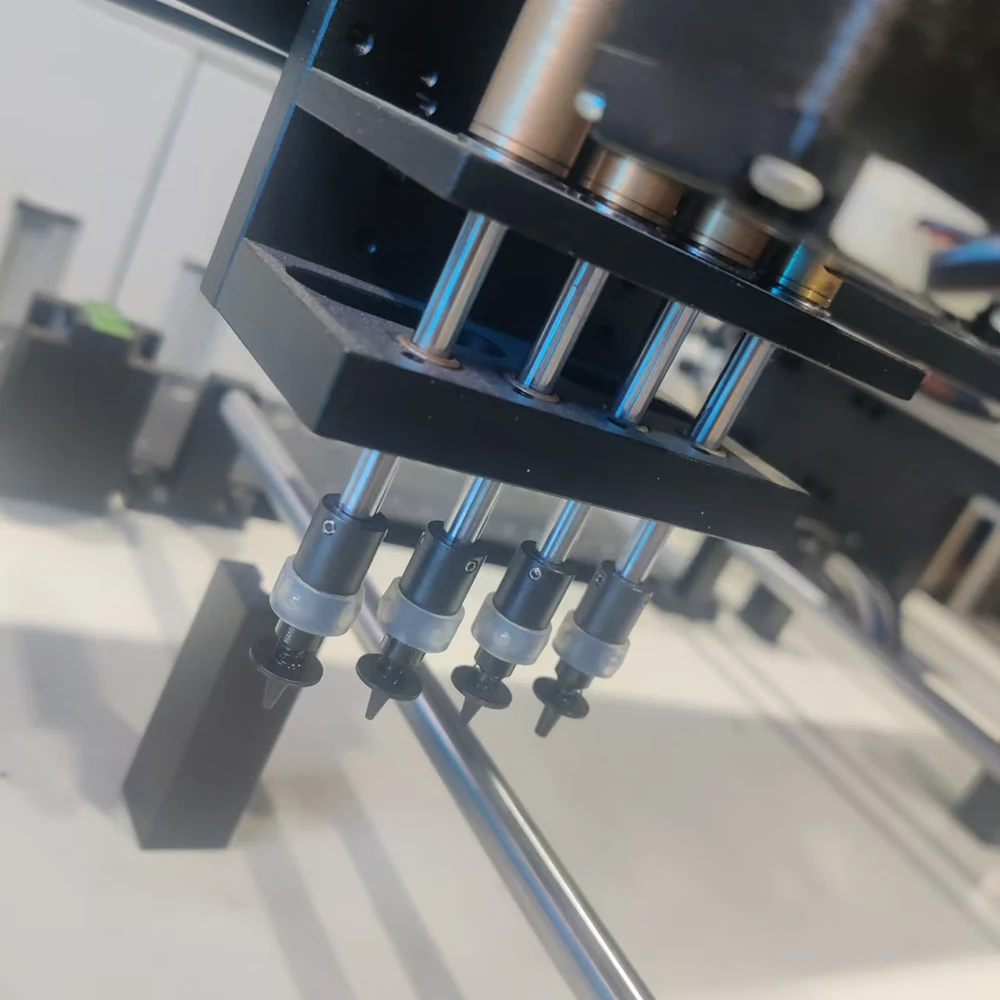

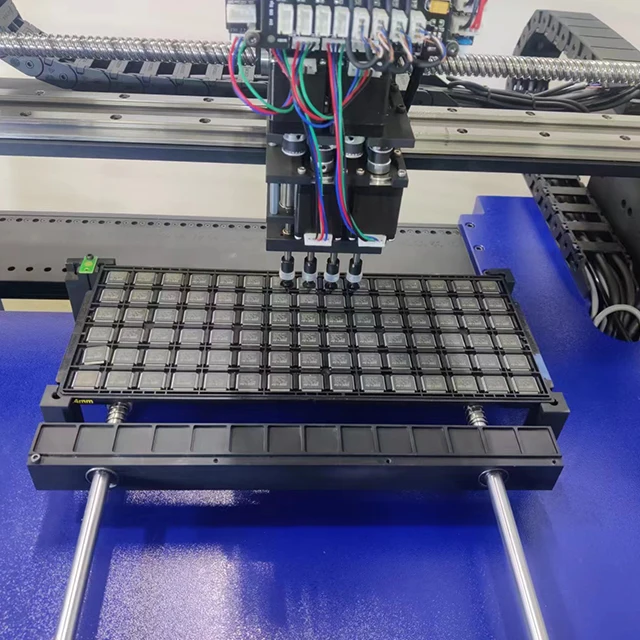

Ball spline structure
The weight of the joint is greatly reduced, and the Z-axis is independently controlled to realize the simultaneous taking of 8 heads. The spline structure ensures the accuracy and stability while improving the speed.
XY drive spindle
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Dongling servo drive motor
Double servo drive motor, increase motor torque, and control repetition accuracy of 0.02 mm.
SMT PCB installation process
Manual printing table
1. Fix the PCB on the manual printing table, pour solder paste on the steel screen and print.
Desktop mounter
2. The printed PCB board is mounted on the mounter with resistors, capacitors, chips, etc.
Bench reflow soldering
3. Place the installed PCB board on the reflow soldering net chain for welding, and wait for inspection after welding.
Recommend Products

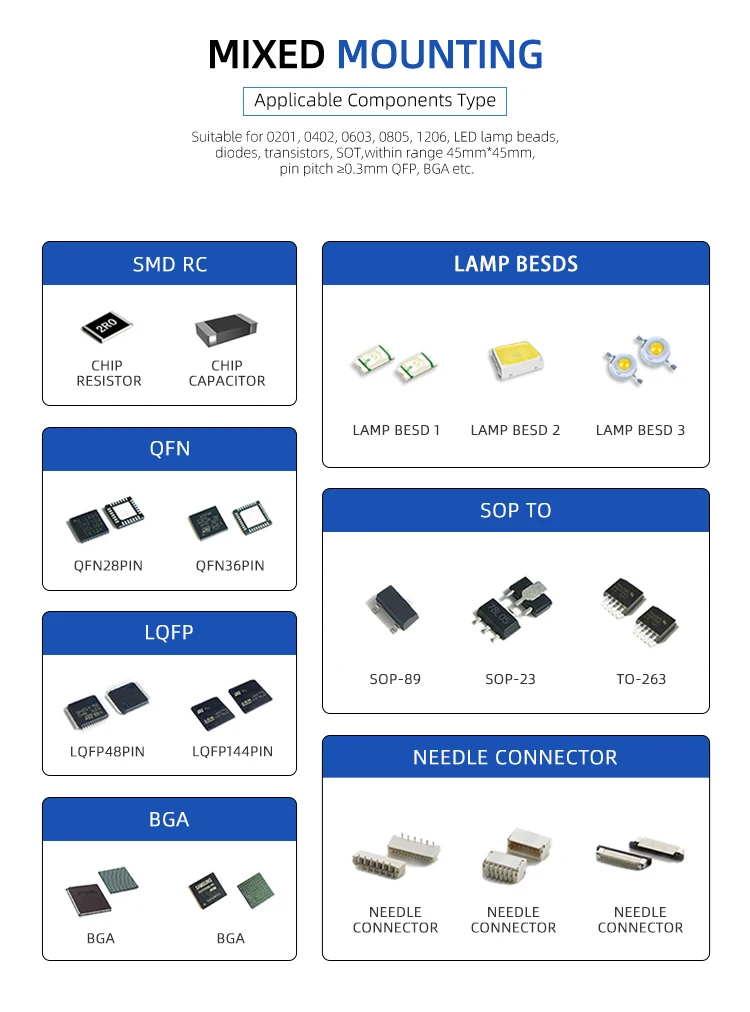

Scope of application
Suitable for mixed pasting of various components.
Basic mounting range
A variety of special-shaped parts, lamp beads,
inductors, magnetic beads and other 0402 and above mounting components.
Highest attachable component : ≤10mm (support customization)
Maximum identification chip size : 25*25mm (support customization)
Maximum identification chip size : 25*25mm (support customization)
Chip : QFN, QFP and BGA pin spacing ≥ 0.3mm.
Lamp bead : 0402~5730, lumen imitation, lens
Others : SOP TO series, needle holder connector series, non-standard accessories series.
About us

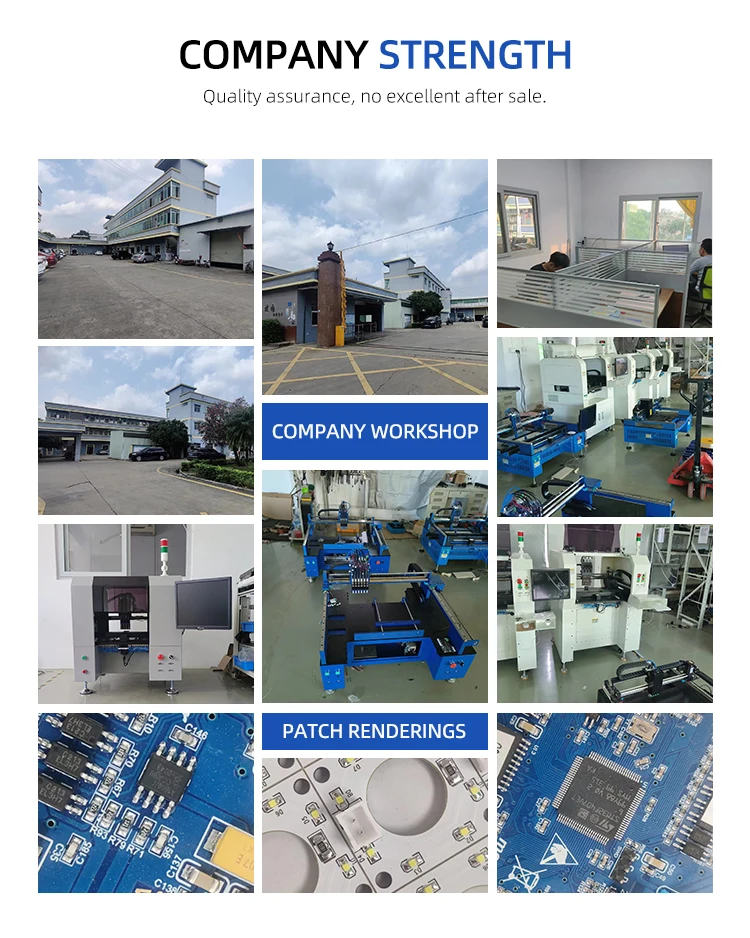

COMPANY STRENGTH
COMPANY STRENGTH Quality assurance, Worry free after sale.
COMPANY CERTIFICATE
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: What's the mode of transportation?
A1: These are heavy machines. We suggest you use a cargo ship. But it is also possible to repair machine parts by air.
Q2: Is it difficult to use these machines?
A2: The software is very simple. You can learn to operate it in two or three days at most. We provide online Q&A, troubleshooting and technical consulting services. Provide one-on-one after-sales service.
Q3: What is the warranty status?
A3: We support one-year warranty. During the warranty period, all accessories will be provided to you for free.
Q4: What language is the software? Do you provide software updates?
A4: English and Chinese.Free software upgrade for life.
Q5: What are your payment terms?
A5: Pay 100% of the payment before delivery, or pay 50% of the deposit in advance, and the rest will be paid before delivery.
Q6: When is your delivery date?
A6: The delivery date is about 15-20 days after full payment.
