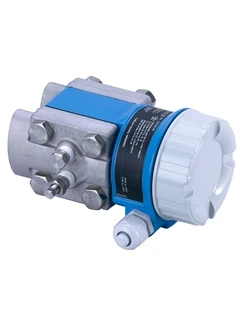

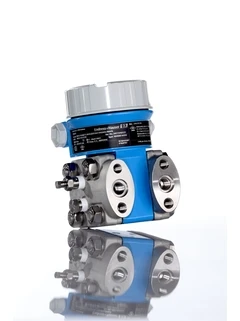

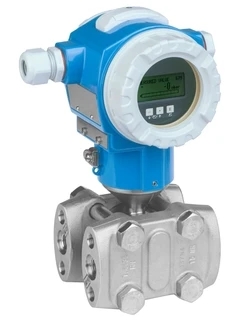

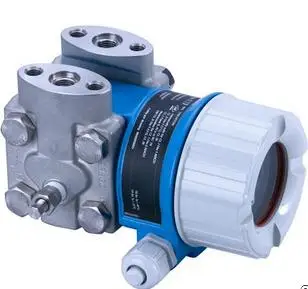

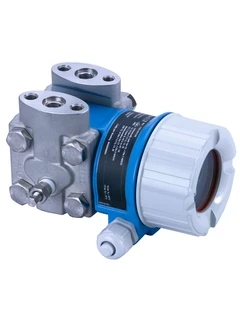

PMD55B 6594/0 Deltabar PMD55B Differential Pressure Transmitter
- Category: >>>
- Supplier: Shenzhen Minglan Optoelectronic Trading Co. Limited
Share on (1601282639759):
Product Overview
Description
PMD55B-6594/0 PMD55B-BFBACBH37FCASAJA1D+Q1VD Deltabar PMD55B - Differential Pressure Transmitter
Approval: BF ATEX/IEC II 2G Ex db IIC T6 Gb
Output: BA 2-wire 4-20mA HART
Display; Operation: C Segment display w/o buttons
Housing; Material: B Single compartment; Alu, coated
Electrical Connection: H Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: 3 Differential
Sensor Range: 7F 500mbar/50kPa/7.5psi
Calibration; Unit: C Nominal value; kPa/MPa
Installation: A Horizontal impulse line, left side high pressure, with side vent
Process Connection: SAJ NPT1/4-18 IEC61518 UNF7/16-20, 316L
Membrane Material: A 316L
Fill Fluid: 1 Silicone oil
Seal: D FKM
>>Accessory Enclosed: Q1 Mounting bracket, wall/pipe, 316L
>Regional Device Adaption: VD China
Specs at a glance
Accuracy
Standard:
up to 0.075 %
Platinum:
up to 0.055 %
Process temperature
-40°C...+110°C (-40°F...+230°F)
Pressure measuring range
30 mbar.... 40 bar (0.45 psi... 600 psi)
Main wetted parts
316L, AlloyC
Material process membrane
316L, AlloyC
Measuring cell
30 mbar...40 bar
(0.45 psi...600 psi)
Field of application
This transmitter belongs to the new Deltabar generation. It is robust and easy to operate either locally or remotely. The
transmitter can be controlled wireless via app on a mobile device using a secure Bluetooth connection. The PMD55B allows condition-based maintenance which increases efficiency in technical service significantly.The software is designed to simplify the handling. Intuitive wizards guide you through the setup and proof testing of the device which minimizes operating errors.
* Pressure measuring range: up to 40 bar (600 psi)
* Static pressure up to 250bar (3750psi)
* Accuracy: up to +/-0.055%
Benefits
* Wireless control of the device in the process area with the SmartBlue App without interrupting the process
* Reduce on site accidents and protect equipment when instruments are in difficult to reach areas
* Reduce systematic failures - error free SIL commissioning and instrument guided proof testing
Output: BA 2-wire 4-20mA HART
Display; Operation: C Segment display w/o buttons
Housing; Material: B Single compartment; Alu, coated
Electrical Connection: H Thread NPT1/2, IP66/68 NEMA Type 4X/6P
Pressure Type: 3 Differential
Sensor Range: 7F 500mbar/50kPa/7.5psi
Calibration; Unit: C Nominal value; kPa/MPa
Installation: A Horizontal impulse line, left side high pressure, with side vent
Process Connection: SAJ NPT1/4-18 IEC61518 UNF7/16-20, 316L
Membrane Material: A 316L
Fill Fluid: 1 Silicone oil
Seal: D FKM
>>Accessory Enclosed: Q1 Mounting bracket, wall/pipe, 316L
>Regional Device Adaption: VD China
Specs at a glance
Accuracy
Standard:
up to 0.075 %
Platinum:
up to 0.055 %
Process temperature
-40°C...+110°C (-40°F...+230°F)
Pressure measuring range
30 mbar.... 40 bar (0.45 psi... 600 psi)
Main wetted parts
316L, AlloyC
Material process membrane
316L, AlloyC
Measuring cell
30 mbar...40 bar
(0.45 psi...600 psi)
Field of application
This transmitter belongs to the new Deltabar generation. It is robust and easy to operate either locally or remotely. The
transmitter can be controlled wireless via app on a mobile device using a secure Bluetooth connection. The PMD55B allows condition-based maintenance which increases efficiency in technical service significantly.The software is designed to simplify the handling. Intuitive wizards guide you through the setup and proof testing of the device which minimizes operating errors.
* Pressure measuring range: up to 40 bar (600 psi)
* Static pressure up to 250bar (3750psi)
* Accuracy: up to +/-0.055%
Benefits
* Wireless control of the device in the process area with the SmartBlue App without interrupting the process
* Reduce on site accidents and protect equipment when instruments are in difficult to reach areas
* Reduce systematic failures - error free SIL commissioning and instrument guided proof testing
Important Terms:
1. Place of delivery (EXW/FOB/CIF): EXW
2. Packing cost: For free
3. Unit weight: Kg/lbs 8kg
4. Unit dimensions: (W x L x H) : 40*35*30cm
5. HS Code: 90261000
6. Payment terms: TT
7. Warranty: 12 months
1. Place of delivery (EXW/FOB/CIF): EXW
2. Packing cost: For free
3. Unit weight: Kg/lbs 8kg
4. Unit dimensions: (W x L x H) : 40*35*30cm
5. HS Code: 90261000
6. Payment terms: TT
7. Warranty: 12 months
Product Description
Specification
item | value |
Place of Origin | Germany |
Brand Name | E+H |
Model Number | PMD55B-6594/0 |
Display Type | Analog and Digital |
Measuring Range | 30 mbar.... 40 bar |
Accuracy Class | high |
Supply Voltage | 220V |
Operating Temperature | -40°C...+110°C |
Dimensions | 10cm*30cm |
Weight | 15kg |
Approval: | ATEX/IEC II 2G Ex db IIC T6 Gb |
Output: | 2-wire 4-20mA HART |
Pressure Type: | Differential |
Sensor Range: | 500mbar/50kPa/7.5psi |
Calibration; Unit: | Nominal value; kPa/MPa |
Display; Operation: | Segment display w/o buttons |
Housing; Material: | Single compartment; Alu, coated |
Process Connection: | NPT1/4-18 IEC61518 UNF7/16-20, 316L |
Packing & Delivery
Carton box
Company Profile
Minglan Tech a name synonymous with Process Control Instrumentation and Electrical and Instrument and Solution Provider have established themselves as a Quality Leader since its inception in 1998 based at Hong Kong ( China ).
For more than 20 years, we have successfully executed many prestigious orders by supplying Sophisticated Electronic Instruments and Control Systems and HT Panel and LT and Panel. Indigenization of the instruments of our product range have been in hand with our commitment to the manufacture of safe, reliable and quality instrument. Our thrust today is in the field of microprocessor based instrumentation and control systems. A knowledge inspiring and skilled arena that we are in, we are staffed to meet the dictates of the field and thus can provide various control and monitoring software packages for Instrumentation and control.
Application Gallery
Power : Feed Water (Drum Level & DP across Drum Level), Furnace Vacuum, SH Steam Temp Stage I & II (L&R), Dearator Level, Condenser Hotwell Level and REC, HP Heater Level, LP Heater Level, Gland Seal Steam Pressure, Gland Steam Temperature, Thermal Load, FD, PA and Vapor Fan Control
Oil & Gas : Platform & Pipeline, Catalytic Cracking, Distillation Columns, Blending, Reactors
Pulp & Paper : Stock Preparation, Chest Box, Bleaching
Mining : Ore Dressing, Pyro/Hydro Processing, Electrolytic Refining, Crushers, Ball Mills, Classifiers, Filters, Flotation Devices, Magnetic Separators, Calcining Kilns, Digesters, Evaporators
Food & Beverages : Evaporators, Blending & Batching, Fermenting
Steel : Blast Furnaces, Continuous Casting, Reheating Furnaces, Biological Waste Treatment, Annealing Lines Sintherization
Water & Waste Water : Filter Backwash, Chemical Feed, Clear well Level, Finished Water Pumping, Remote Workstation Monitoring, Sludge Process, Sequencing Batch Reactor Plants, Rotating Biological Contactor Plant, Sludge Dewatering, Incinerator Control, Return and Waste activated sludge pumping.
For more than 20 years, we have successfully executed many prestigious orders by supplying Sophisticated Electronic Instruments and Control Systems and HT Panel and LT and Panel. Indigenization of the instruments of our product range have been in hand with our commitment to the manufacture of safe, reliable and quality instrument. Our thrust today is in the field of microprocessor based instrumentation and control systems. A knowledge inspiring and skilled arena that we are in, we are staffed to meet the dictates of the field and thus can provide various control and monitoring software packages for Instrumentation and control.
Application Gallery
Power : Feed Water (Drum Level & DP across Drum Level), Furnace Vacuum, SH Steam Temp Stage I & II (L&R), Dearator Level, Condenser Hotwell Level and REC, HP Heater Level, LP Heater Level, Gland Seal Steam Pressure, Gland Steam Temperature, Thermal Load, FD, PA and Vapor Fan Control
Oil & Gas : Platform & Pipeline, Catalytic Cracking, Distillation Columns, Blending, Reactors
Pulp & Paper : Stock Preparation, Chest Box, Bleaching
Mining : Ore Dressing, Pyro/Hydro Processing, Electrolytic Refining, Crushers, Ball Mills, Classifiers, Filters, Flotation Devices, Magnetic Separators, Calcining Kilns, Digesters, Evaporators
Food & Beverages : Evaporators, Blending & Batching, Fermenting
Steel : Blast Furnaces, Continuous Casting, Reheating Furnaces, Biological Waste Treatment, Annealing Lines Sintherization
Water & Waste Water : Filter Backwash, Chemical Feed, Clear well Level, Finished Water Pumping, Remote Workstation Monitoring, Sludge Process, Sequencing Batch Reactor Plants, Rotating Biological Contactor Plant, Sludge Dewatering, Incinerator Control, Return and Waste activated sludge pumping.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to Domestic Market(50.00%),Southeast Asia(20.00%),Mid East(20.00%),Eastern Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Instrumentation,PLC,Analyzer,Pressure Transmitter,Valve
4. why should you buy from us not from other suppliers?
GSI specialize in control systems and instrumentation. We consistently deliver the highest quality of brand products.We have thousands of regular models and spare parts in warehouse. We serve for clents from different countries over 15 years.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2014,sell to Domestic Market(50.00%),Southeast Asia(20.00%),Mid East(20.00%),Eastern Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Instrumentation,PLC,Analyzer,Pressure Transmitter,Valve
4. why should you buy from us not from other suppliers?
GSI specialize in control systems and instrumentation. We consistently deliver the highest quality of brand products.We have thousands of regular models and spare parts in warehouse. We serve for clents from different countries over 15 years.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese
