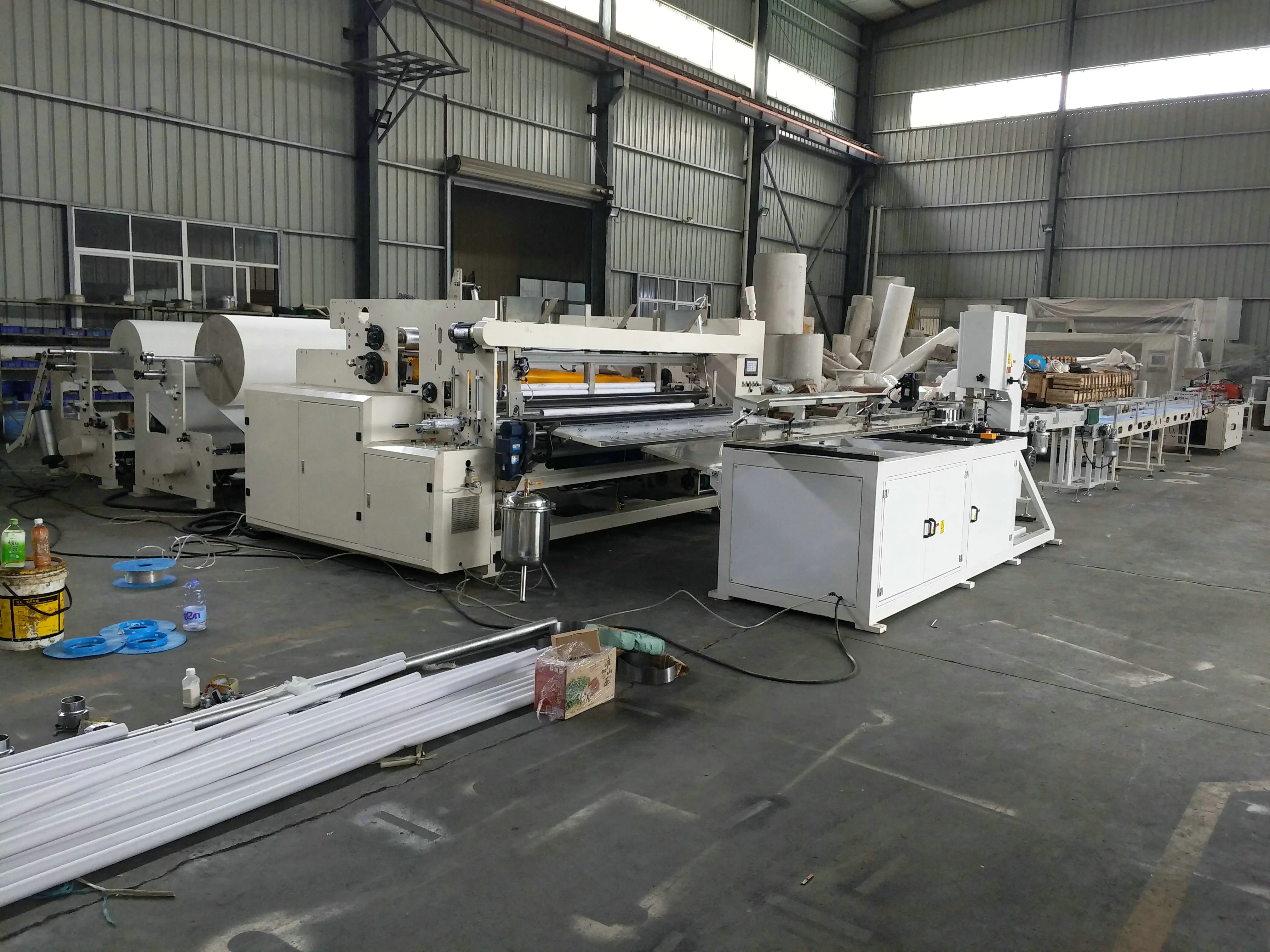

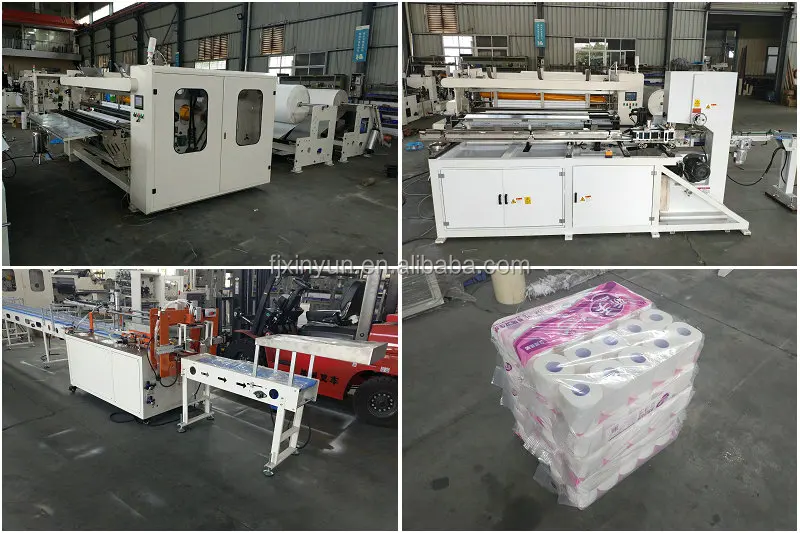

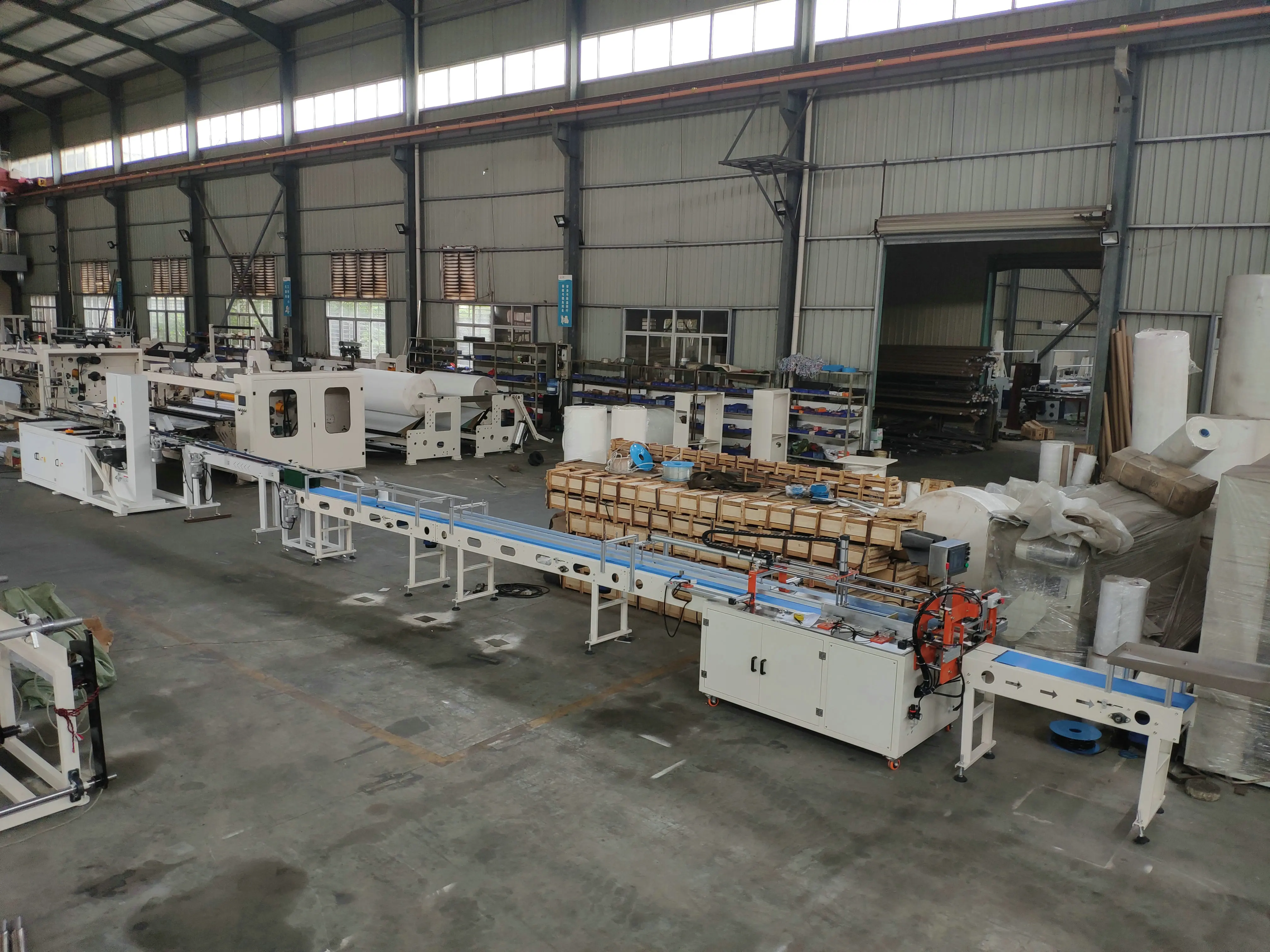

XY-TQ-B-400 Semi auto good quality full automatic toilet tissue paper embossing machine production line

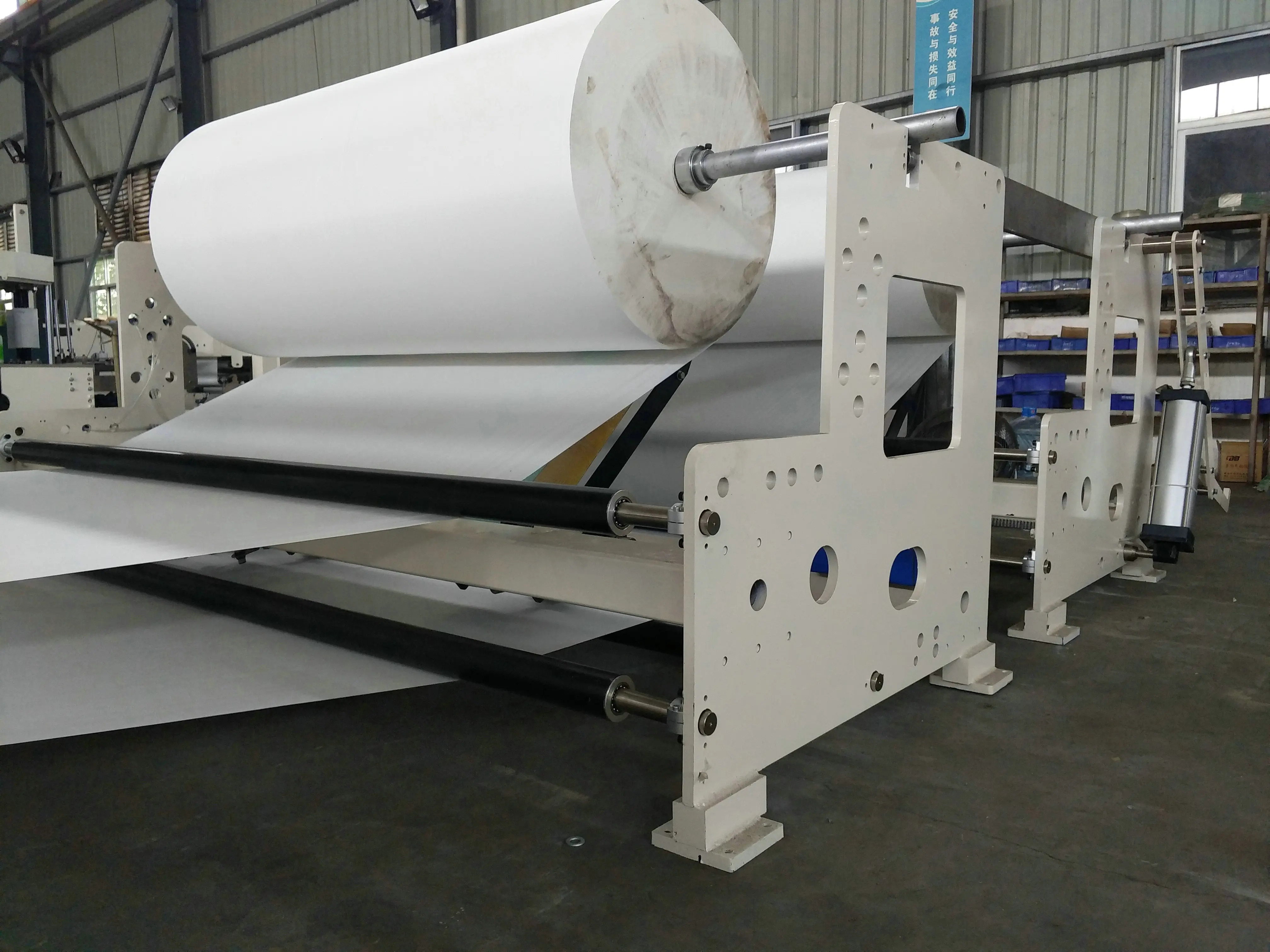

XY-TQ-B this equipment is to perforate and rewind the parent roll raw paper into various sizes of small toilet paper roll according to the requested. The finished product is neat, in good order and with equality tension.It's the best choice for new tissue paper factory.
Semi auto good quality full automatic toilet tissue paper embossing machine production line | ||||||||||||||
Model | 1092B | 1575B | 2000B | 2200B | 2400B | 2600B | 2800B | |||||||
Width of jumbo roll(mm) | 1200 | 1800 | 1950 | 2150 | 2350 | 2550 | 2750 | |||||||
Production speed | 150-200m/minute | |||||||||||||
Power of equipment | 4.5kw-15kw (380V 50Hz) | |||||||||||||
Maximum diameter of rewinding | 90-130 mm (adjustable) | |||||||||||||
Air compressor pneumatic system | 3 Pa,the mini. pressure 5kg/cm2 pa(prepared by buyer) | |||||||||||||
Overall size(mm) | 6200*2750*1800 （L*W*H） | |||||||||||||
Weight | About 3-5 T | |||||||||||||
Chosen items (Should be ordered separately) | ||||||||||||||
Embossment unit | Single embossing, Double embossing, Edge embossing | |||||||||||||
Rewinding unit | Non-core rewinding unit(coreless) | |||||||||||||
Lamination unit | Color gule lamination | |||||||||||||
Other special request for machine is welcome | ||||||||||||||

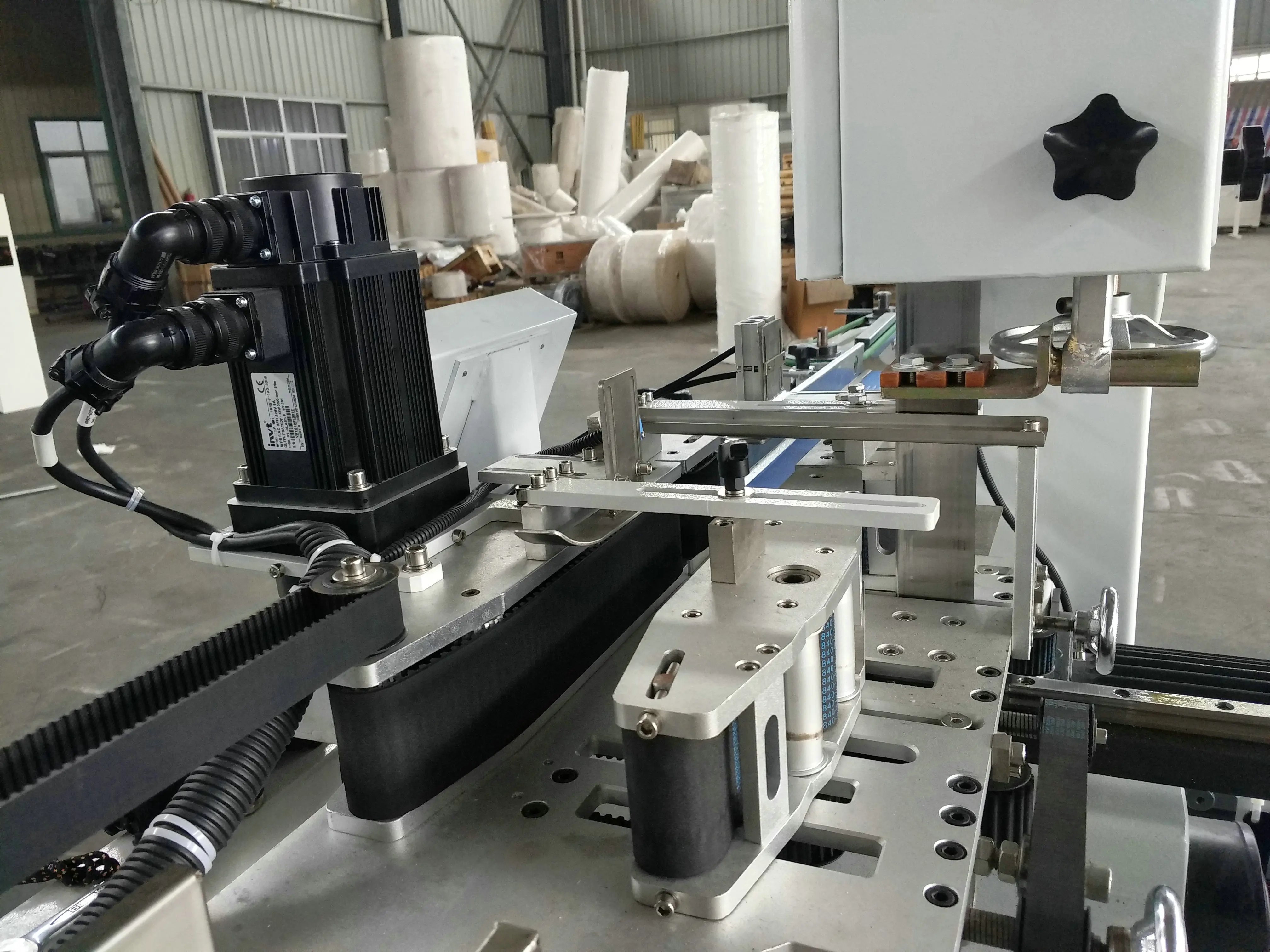

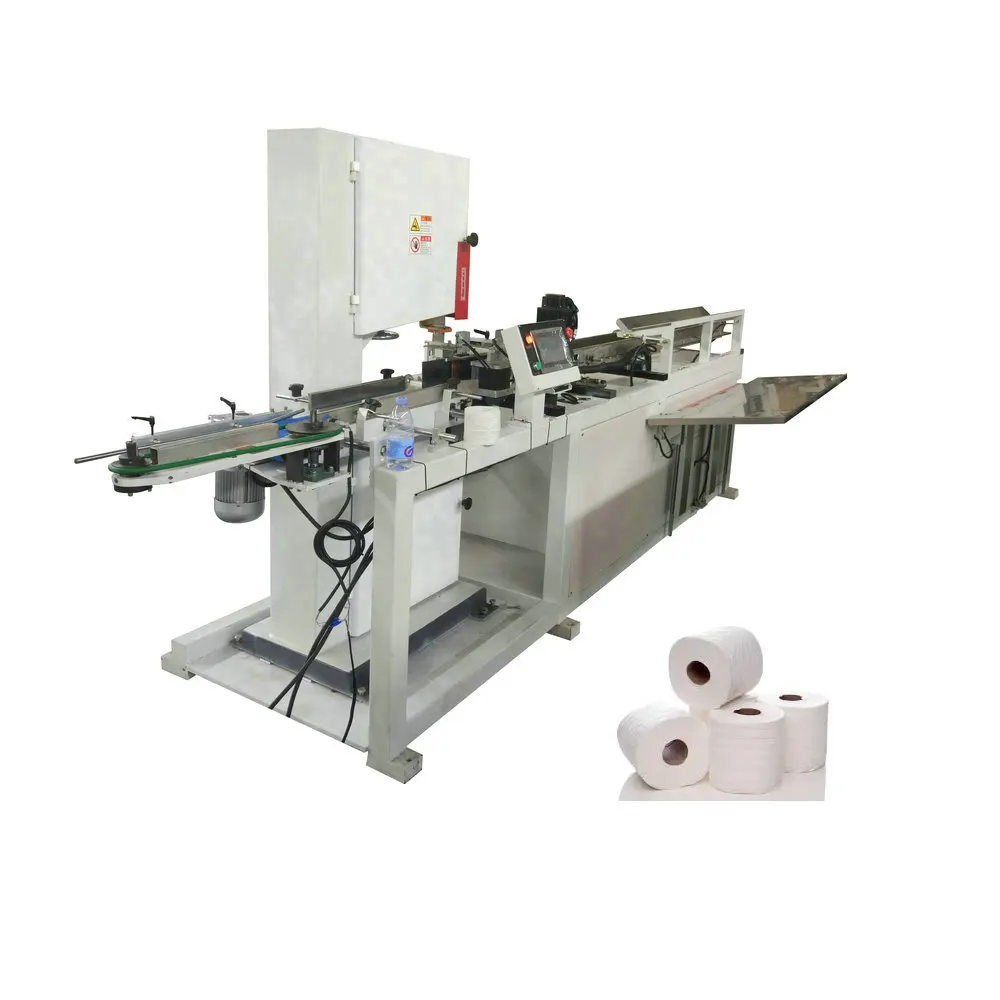

XY-AI-400 Automatic Toilet Paper Band Saw Cutting Machine
Technical performance characteristic：
The equipment is operated by using PLC program control, big screen true color human﹣computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.
This band saw is good for new paper factory to cut toilet paper roll and kitchen towel.
Feature and function:
1、When the paper can not be cut down, the equipment will automatically stops and gives an alarm;
2、The high precision servo system is used in the feed motor servo system, to ensure the quality of the finished product;
3、The equipment automatically calculate the quantity of the finished product being cut; according to the raw material and the
length of the finished product;
4、When data input is incorrect, the equipment breaks off and prompts to adjust on the interface;
5、The waste paper head and paper end can be automatically sorted;
6、The automatic sharpening knife system is used in the equipment, can adjust the sharpening knife system according the requirement
of paper being cut, which increase the cutting life;
7、The sharp steel wheel is used in the sharpening knife system, which increase the sharpening knife efficiency
The equipment is operated by using PLC program control, big screen true color human﹣computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.
This band saw is good for new paper factory to cut toilet paper roll and kitchen towel.
Feature and function:
1、When the paper can not be cut down, the equipment will automatically stops and gives an alarm;
2、The high precision servo system is used in the feed motor servo system, to ensure the quality of the finished product;
3、The equipment automatically calculate the quantity of the finished product being cut; according to the raw material and the
length of the finished product;
4、When data input is incorrect, the equipment breaks off and prompts to adjust on the interface;
5、The waste paper head and paper end can be automatically sorted;
6、The automatic sharpening knife system is used in the equipment, can adjust the sharpening knife system according the requirement
of paper being cut, which increase the cutting life;
7、The sharp steel wheel is used in the sharpening knife system, which increase the sharpening knife efficiency
Cutting speed | 80～100cuts/minute |
Cutting blade | band saw blade(Size 3750*60*0.6) |
Toilet log length | ≦2850mm(it can be made according to customer request) |
Finished toilet roll length | ≦300mm |
Finished toilet roll diameter | 70-130mm |
Cutting tolerance | ±1.5mm |
Power supply | 5kw 380V 50H 3 phase 4line |
Overall size | 2800x1500x2100mm |
Machine weight | 1100KG |

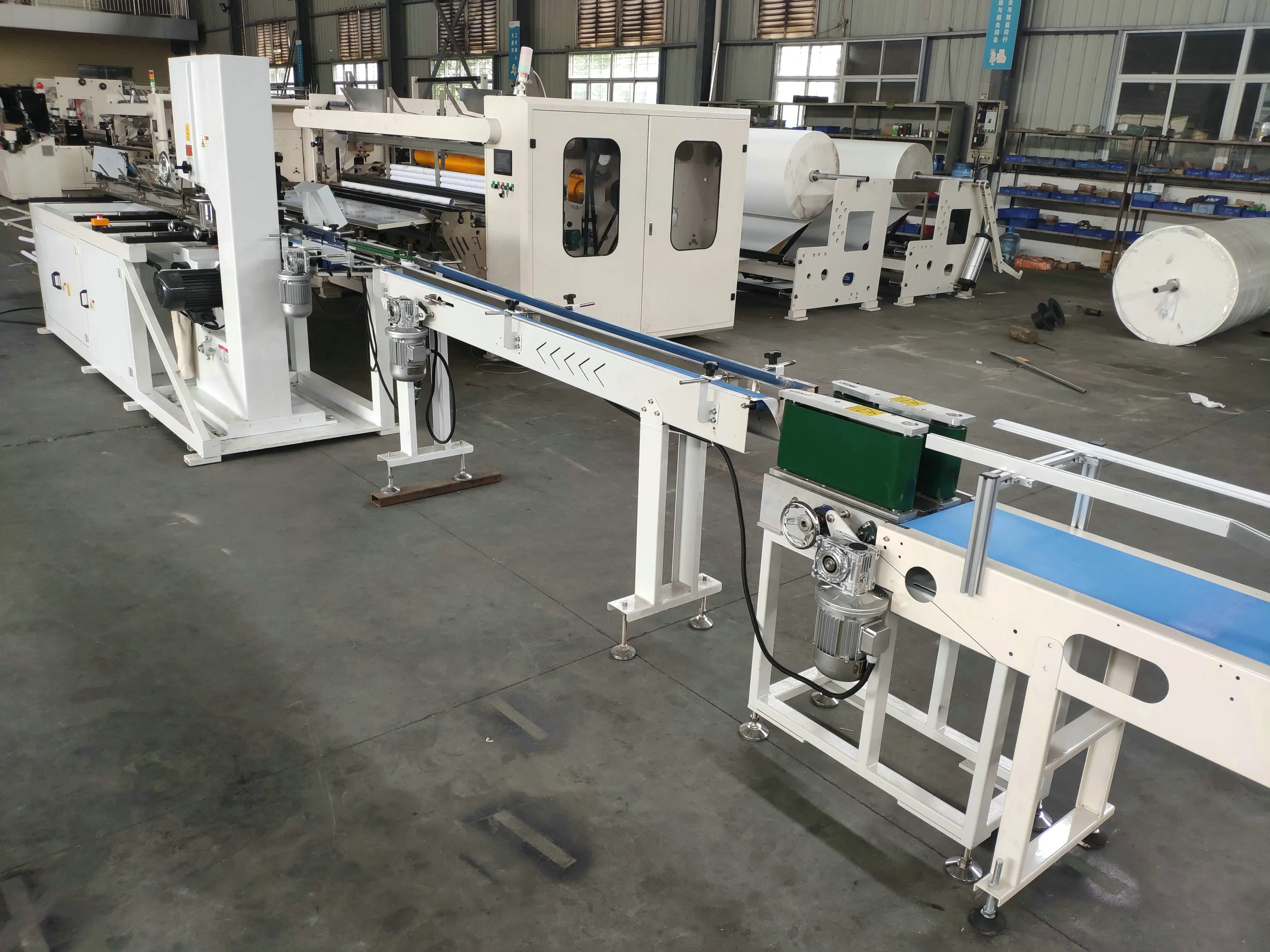

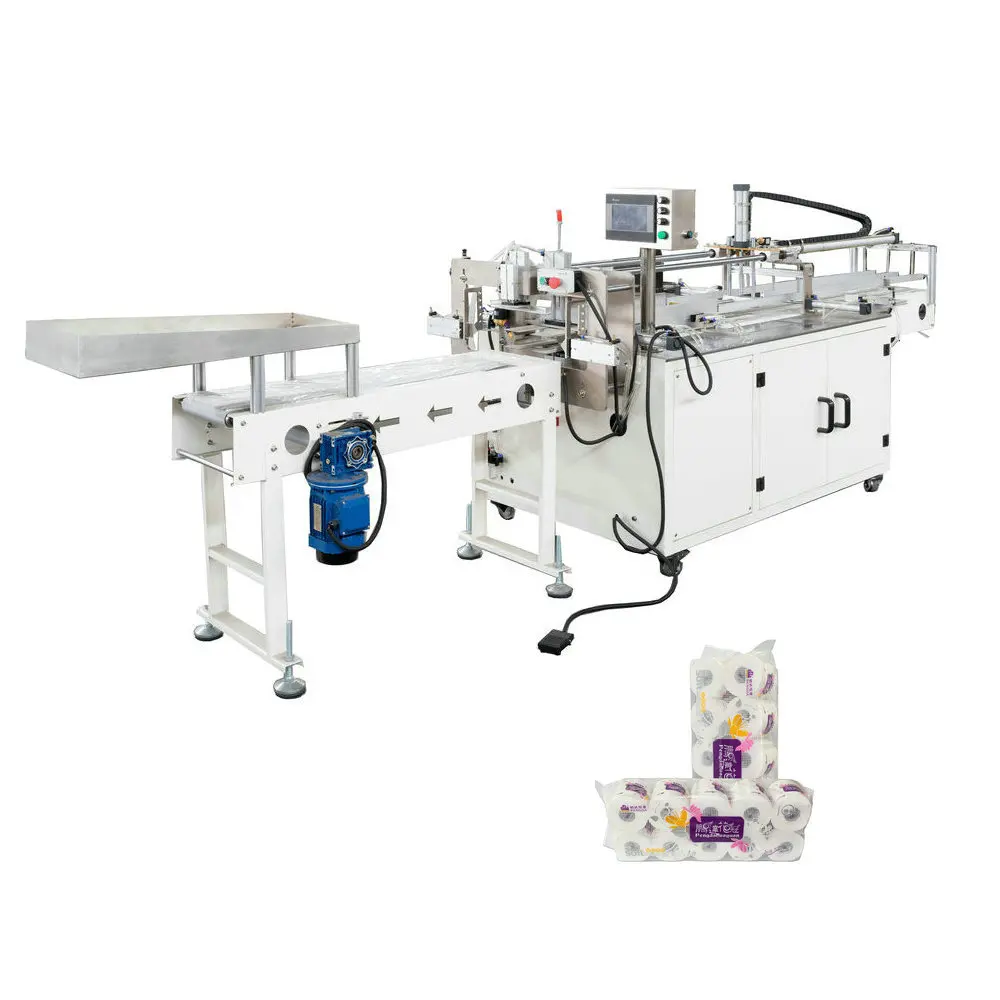

XY-AI-398A Semi Auto Multiple Rolls Packing Machine
Functions and Features:
This machine is specially used for packaging toilet paper roll, with a conveyor belt.
The machine to adapt to the toilet paper roll diameter is less than or equal to 90-120MM, 8 or 10 can be packaged or 12 rolls of toilet paper.
The machine is simple, flexible, sealed bag is the one machine.
It’s easy to operate: Insert the premade bag into output hole, press the jog switch, it will automatically put rolls into bag, meanwhile cutting and sealing.
Functions and Features:
This machine is specially used for packaging toilet paper roll, with a conveyor belt.
The machine to adapt to the toilet paper roll diameter is less than or equal to 90-120MM, 8 or 10 can be packaged or 12 rolls of toilet paper.
The machine is simple, flexible, sealed bag is the one machine.
It’s easy to operate: Insert the premade bag into output hole, press the jog switch, it will automatically put rolls into bag, meanwhile cutting and sealing.
Speed | 5-8bags/min |
Voltage | 220V 50HZ |
Main Power | 0.74KW |
Sealing Transformer Power | 0.45KW |
Total Power | 1.19KW |
Air Pressure | 0.4-0.5MPA |
Overall Dimension | 8700*1000*1300 mm |
Weight | 450KG |
Detailed Images

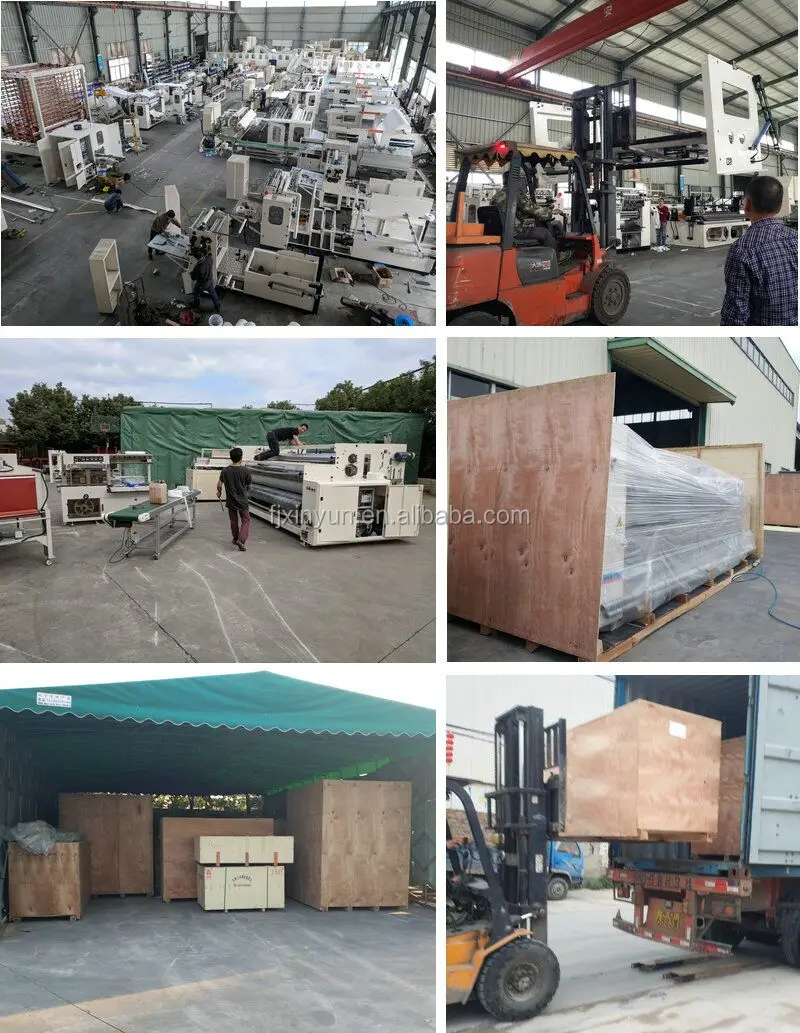

Packing & Delivery
We can help customer to book shipping space and arrange shipping as well !
The machine will be packed in Wooden Case.
Spraying antirust oil on machine surface and cover PE film,then packed by seaworthy Export Packing Wooden Case, ensure that the goods will safely arrive at the erection or construction site without any damage.
Our Company

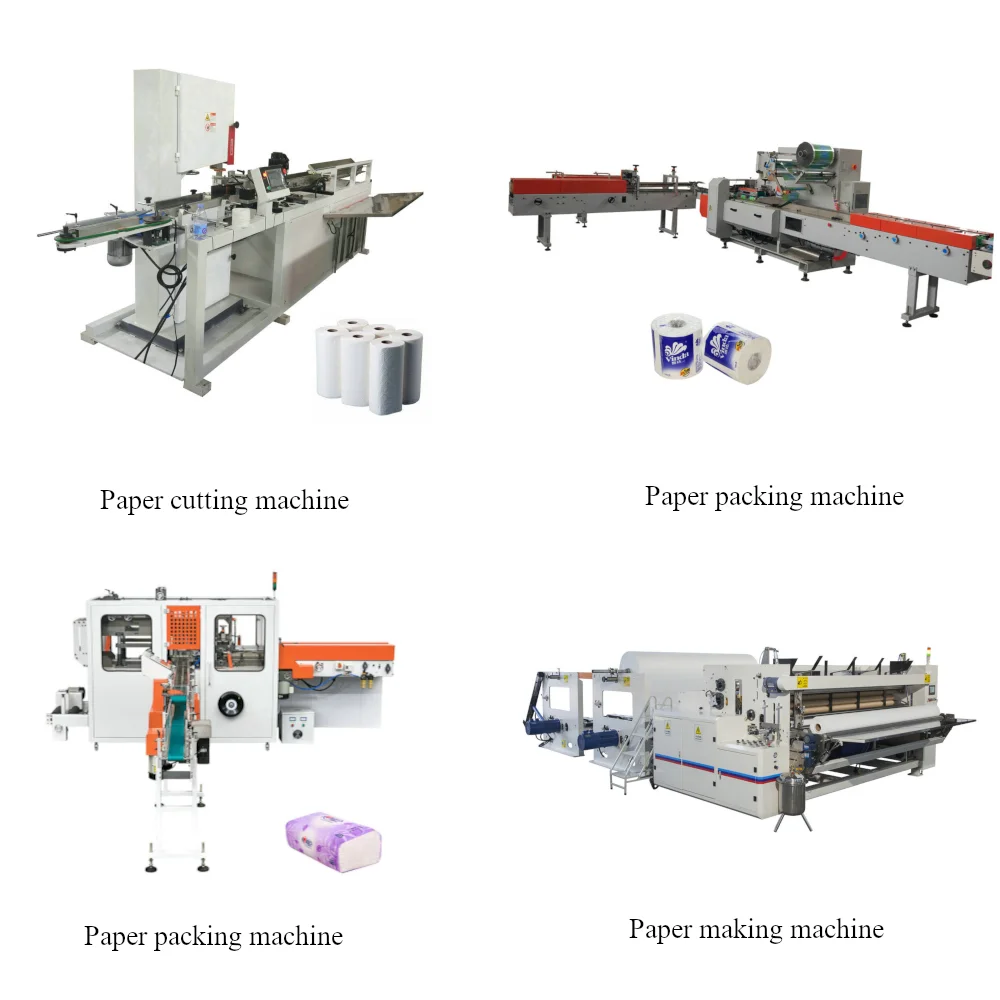

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Related Products
Certifications
FAQ
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
