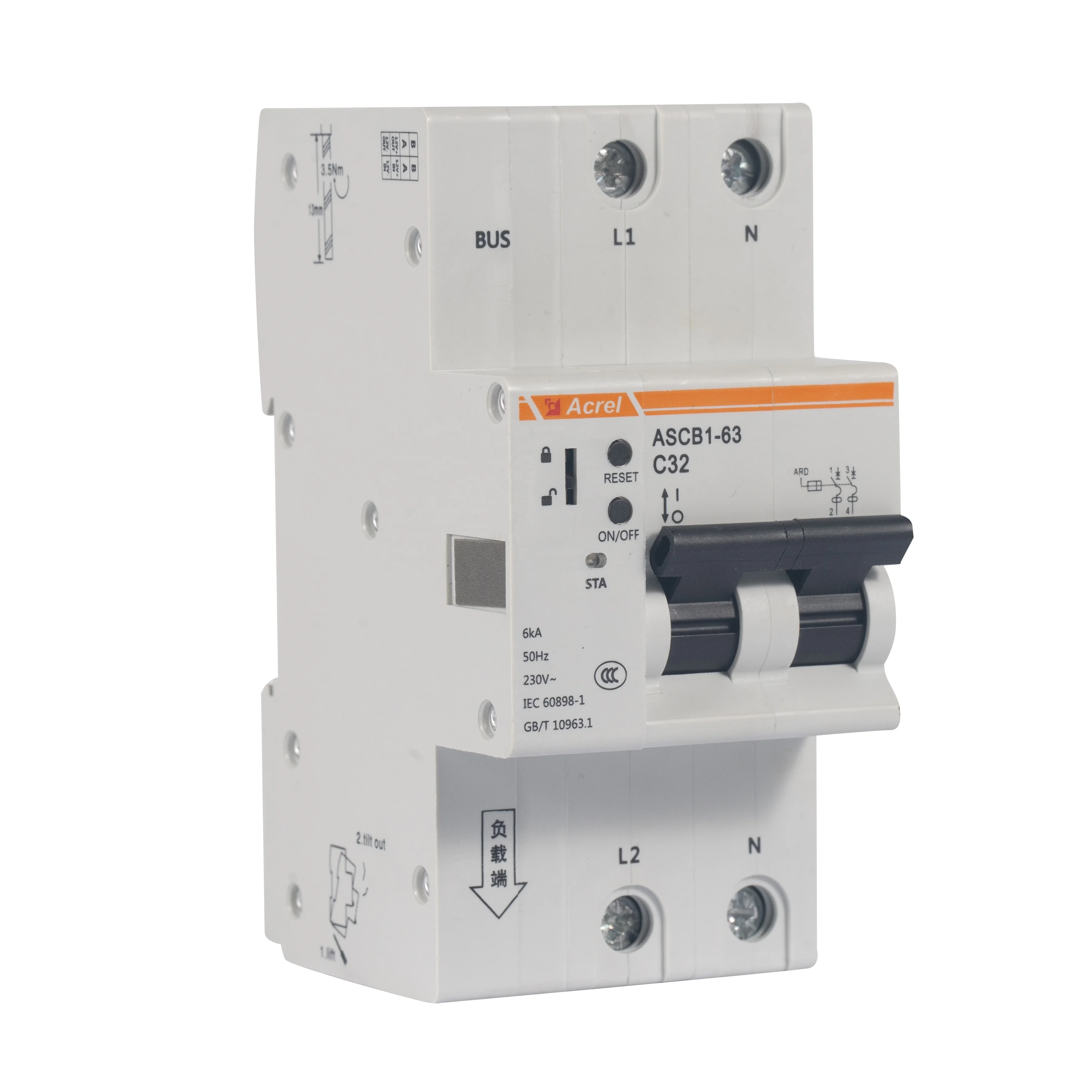

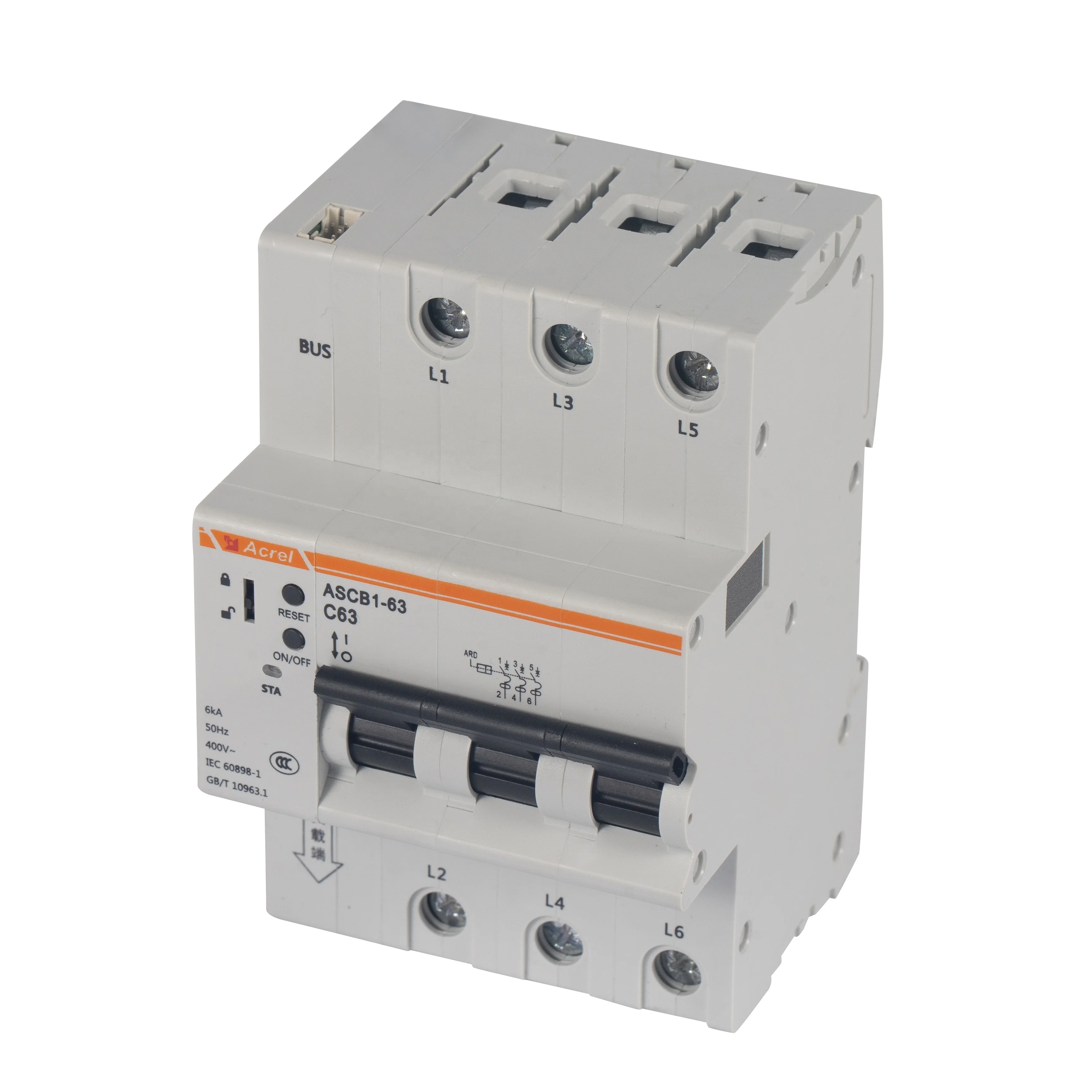

Acrel ASCB 4P three phase smart wifi circuit breaker remotely control automatic remote control protection
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1601284438149):
Product Overview
Description
Product Description

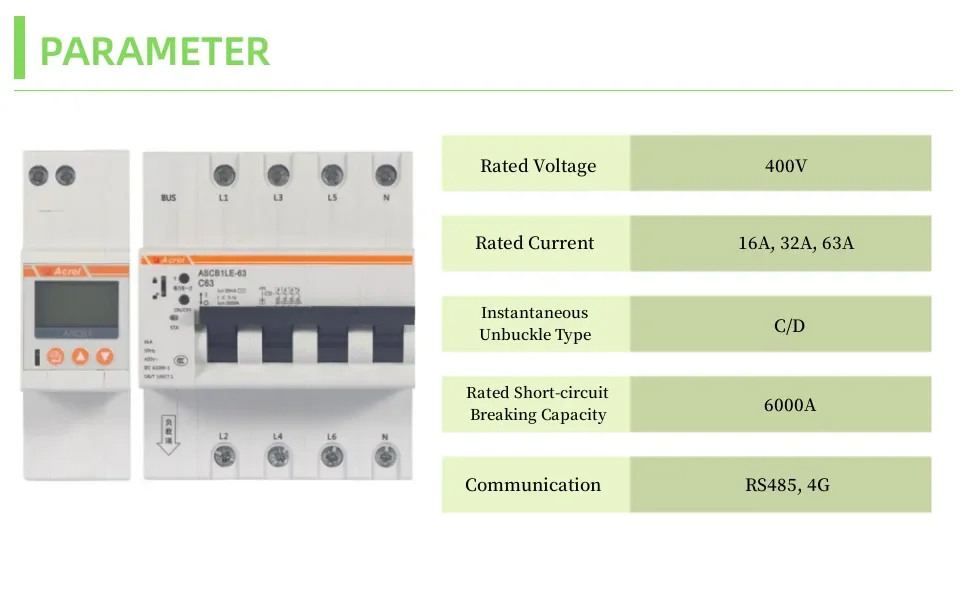

Parameters
Model | ASCB1-63 | ASCB1LE-63 | |||
Pole | 1P/2P/3P/4P | 2P/4P | |||
Grade of Shell | 63A | ||||
Rated Voltage | 230V（1P/2P）、400V(3P/4P) | ||||
Rated Current | 6A,10A,16A,20A,25A,32A,40A,50A,63A | ||||
Instantaneous Unbuckle Type | C/D | ||||
Rated Short-circuit Breaking Capacity | 6000A | ||||
Protect | Over-current Protection | Default 100% rated current alert，110% Rated current trip with adjustable threshold | |||
Short-circuit Protection | 5-10 Rated current for 0.04 seconds for circuit break protection | ||||
Overload Protection | Default 100% rated power alert，110% Rated power trip with adjustable threshold | ||||
Over-voltage Protection | Default 110% rated voltage alert，120% rated voltage trip with adjustable threshold | ||||
Under-voltage Protection | Default 90% rated voltage alert，80% rated voltage trip with adjustable threshold | ||||
Over-temperature Protection | Default 80℃ alert，100℃ trip, the threshold is adjustable | ||||
Leakage Protection | No | Default 20mA alert, 30mA trip, the threshold is adjustable | |||
Leakage self-Inspection | No | Manual button self-inspection | |||
Electrical Life | 6000 times | ||||
Levels of Protection | IP20 | ||||
Connection Capacity | 1-35mm² | ||||
Elevation Requirements | 2000m | ||||
Ambient Temperature | -10℃～55℃，the average temperature at 24h was no higher than 40℃ | ||||
Environmental Requirements | No explosion hazard, no conductive dust, no sufficient corrosion of metal and damaged insulation, no significant vibration | ||||
Relative Humidity | At + 40℃, the relative humidity of the air is 50% and can have high relative humidity at lower temperatures | ||||
Storage Temperature | -20℃-70℃ | ||||
Class of Pollution | Ⅱ | ||||
Installation Type | Ⅲ | ||||
Way to Installation | Standard 35mm guide rail installation | ||||
Customized service
If you have any special requirements, for example modbus address ，rated current and other specifications ,please feel free to Contact Us.

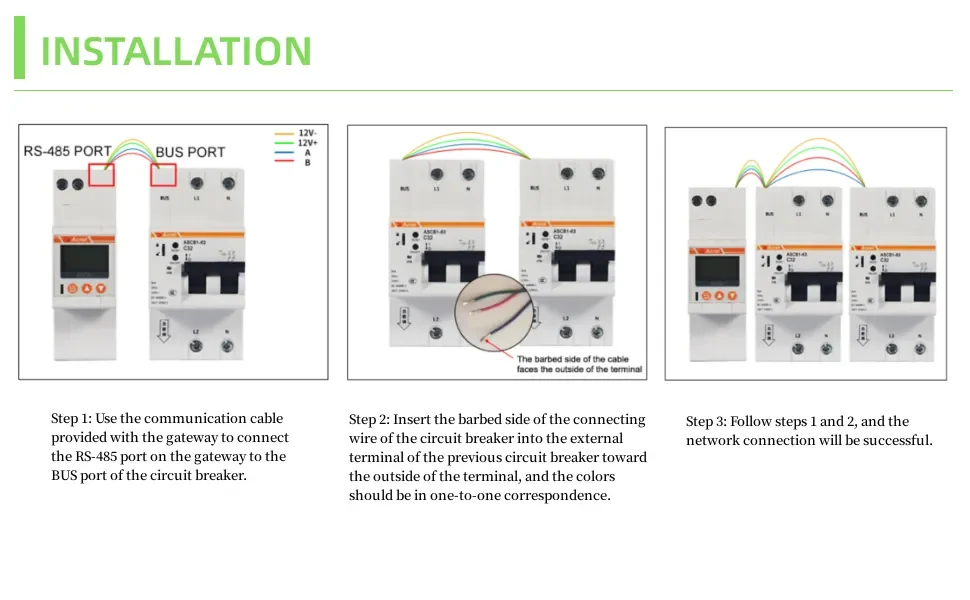

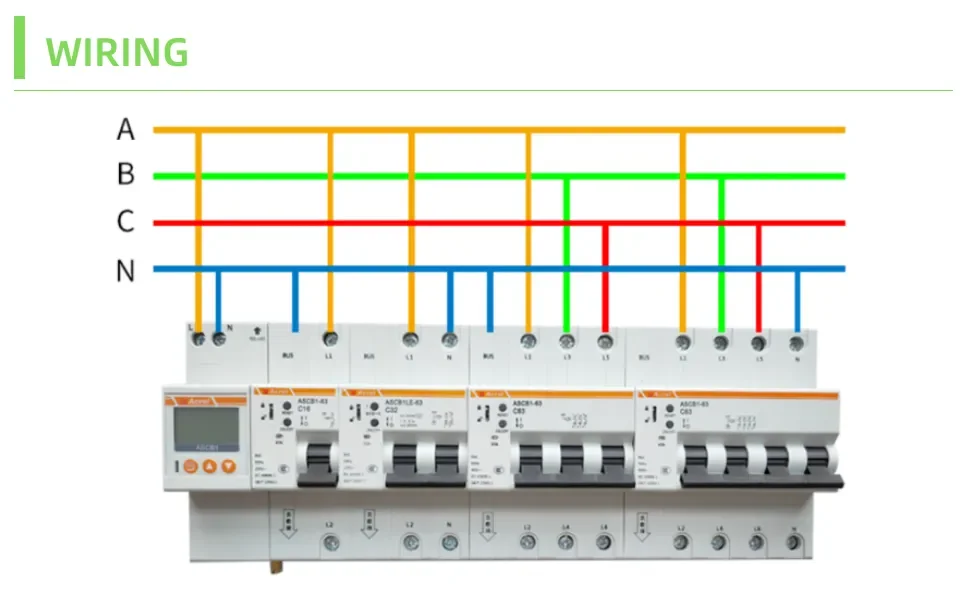

Wiring and Details

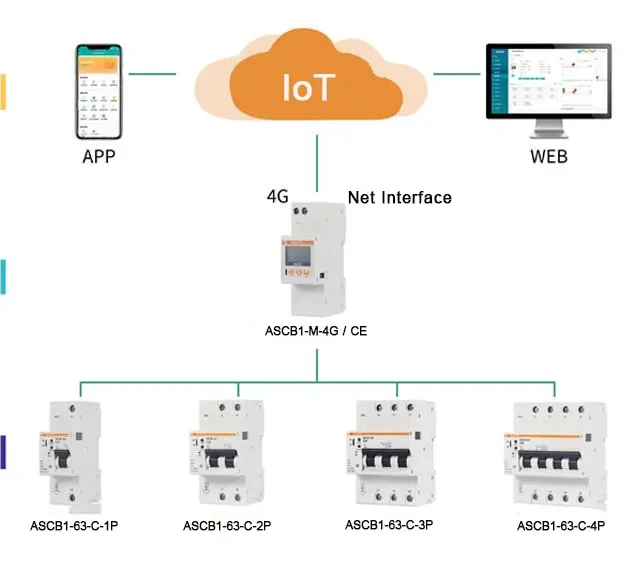

Typical Connection
Certifications
Packaging & Delivery
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory. Warmly welcome you to visit and investigate our factory.
Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to
quantity.
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.
Q: What is your terms of payment ?
A: Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below:
