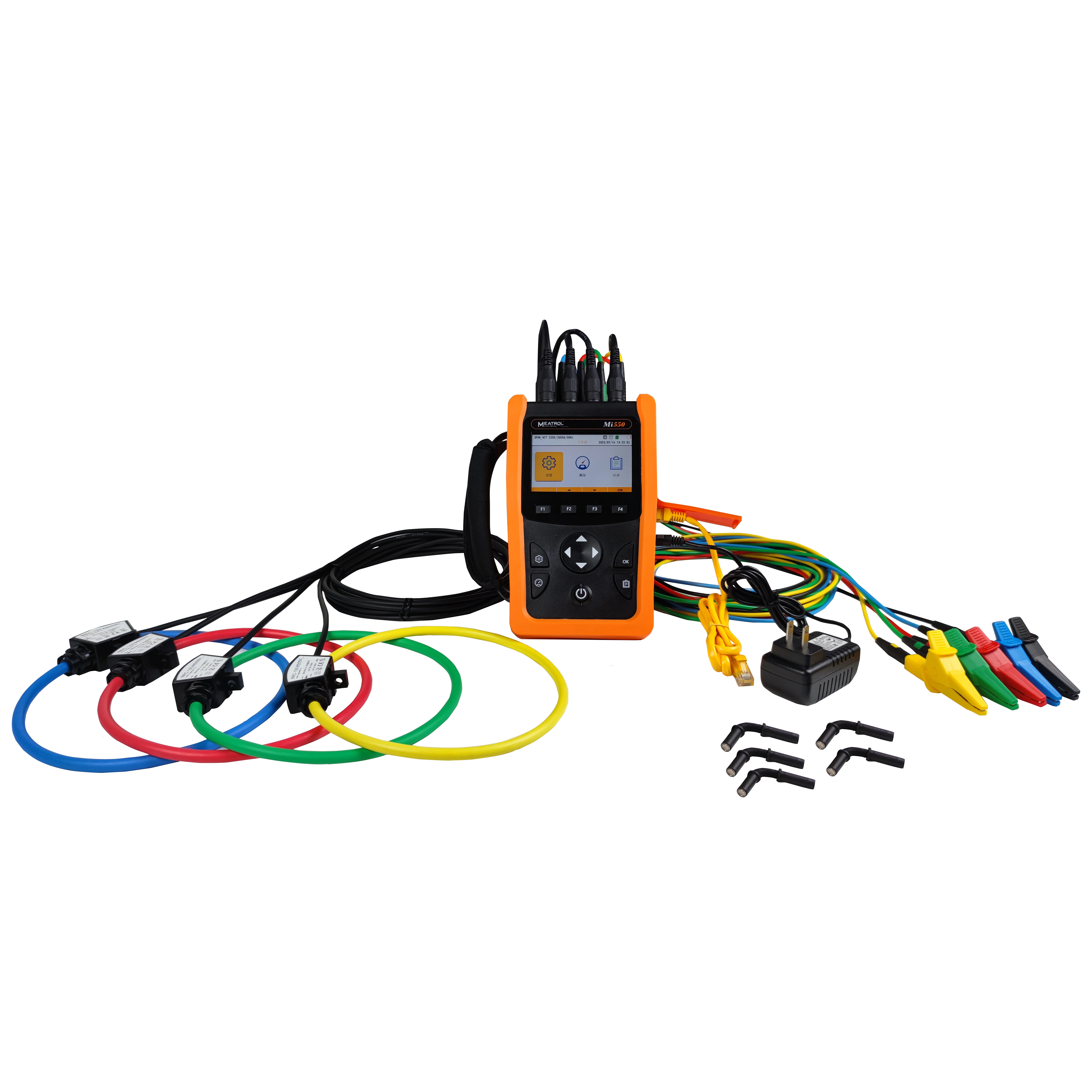

Power Analyzer handheld electrical energy analyzer meter 4 channel voltage current USB 3 phase multi function meter
- Category: >>>
- Supplier: Shanghai Pinyan M&C Technology Co. Ltd.
Share on (1601289197924):
Product Overview
Description
Product Description
Handheld Rogowski coil Power quality analyzer | ||
Model No. | Mi550 | |
Type | Handheld Three phase power quality analyzer | |
Application field | Power analysis, Power measurement, Power quality analysis | |
Wiring system | 3P4W_4CT 3P4W_3CT 3P3W_3CT 3P3W_2CT 1P2w | |
Current sensor | Rogowski coil Voltage-output current clamp, 333mV CTs | |
Voltage access | Direct access Connected through voltage transformer | |
Storage Type | TF card | |
Capacity | 32GB | |
Data export | U disk export (U disk file is FAT32 system) | |
Communication Interface | RJ45- Ethernet | |
Communication Protocol | Modbus-TCP | |
Power Supply | 5VDC, 2A | |
Battery | Rechargeable lithium battery, specification 18650, 2 pcs, capacity about 4000mAh | |
Display | 3.97 inch IPS display | |
Real-time measurement data
Harmonic measurement data
Waveform
Phase angle
Unbalance
Demand
Data logger (32GB Memory)
Basic data record
Voltage harmonic data record
Current harmonic data record
Event type/Start time/Duration/
Amplitude value
Waveform recording
Energy efficiency and Environment protection
CO2 emission factor, Super light Rogowski coil, Portable power quality analyzer
Details Images

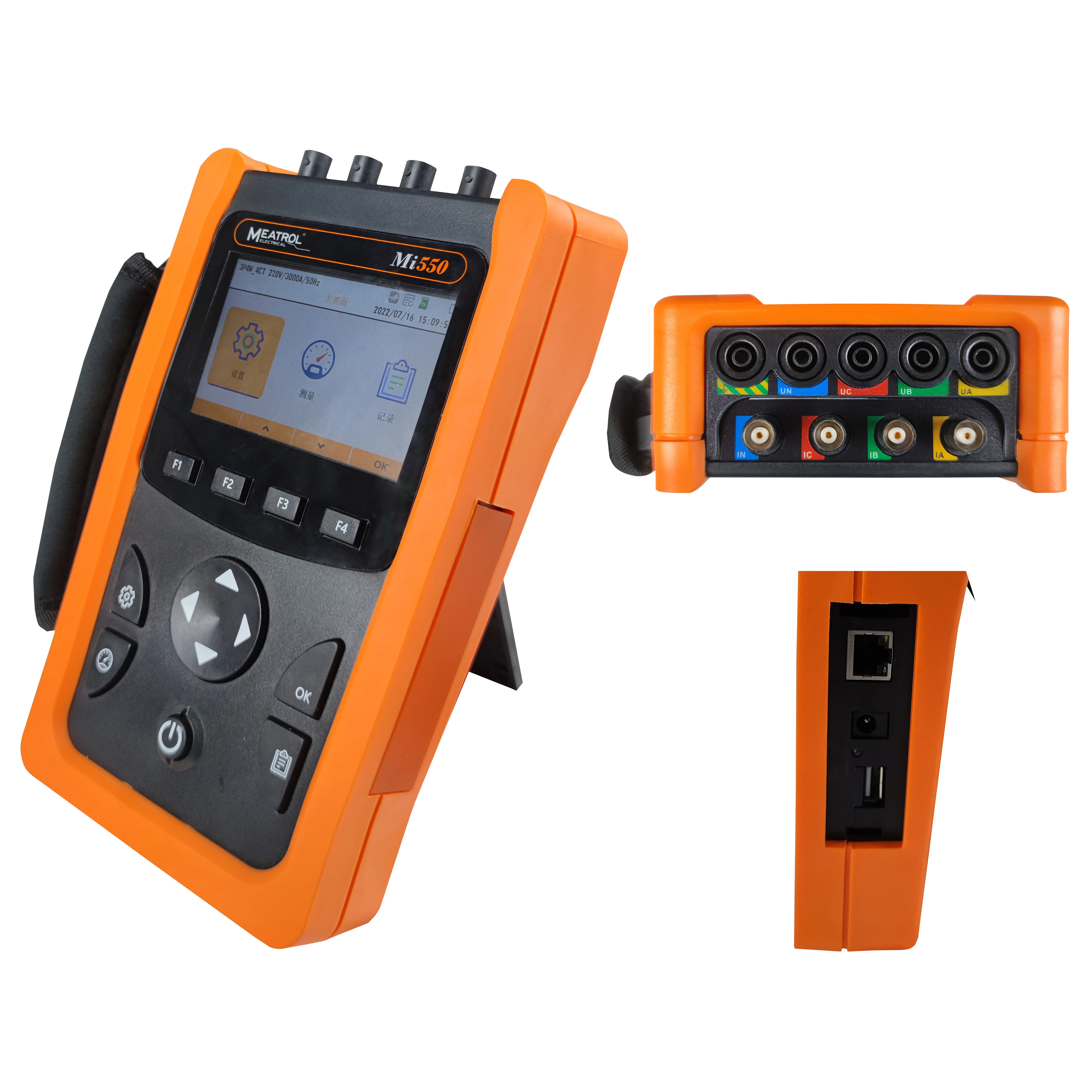

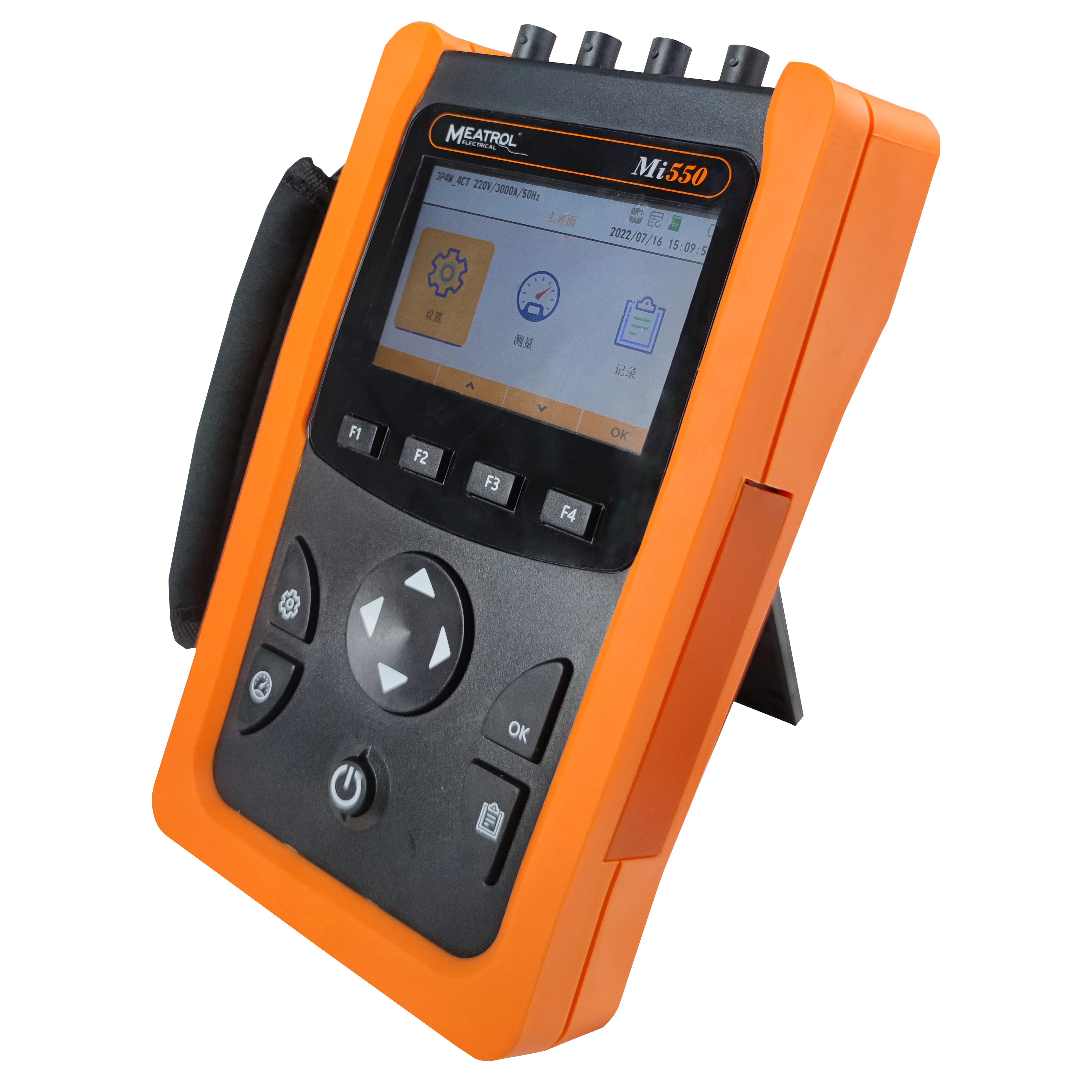

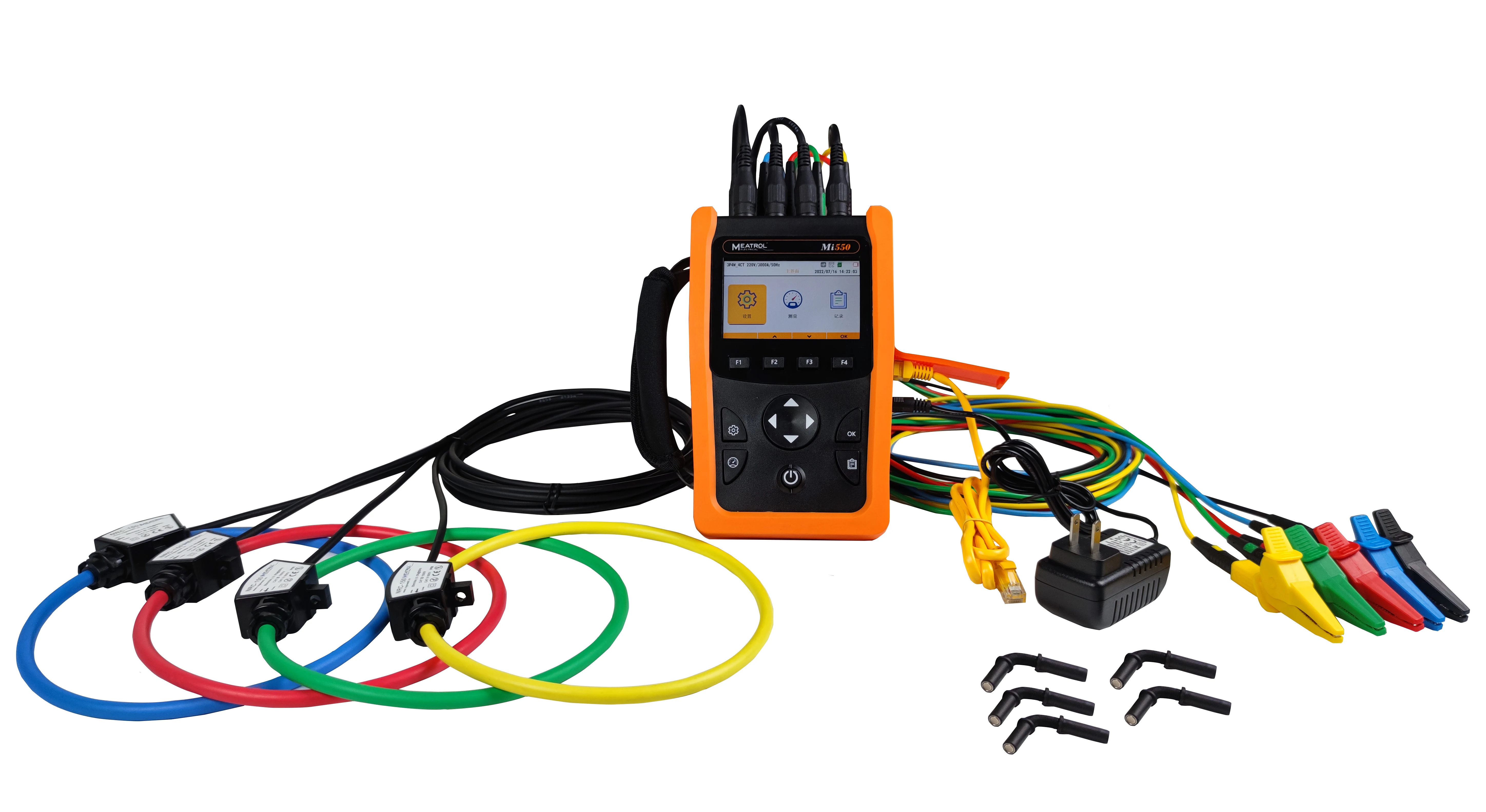

Mi550 handheld three phase power quality analyzer, externally connected with open type Rogowski coil or voltage type CT, it can realize none dismantling wire test, simplify test steps, save construction cost, and is more convenient for engineering test as well as the inspection and maintenance of distribution system.
Built-in lithium batteries
The internal electric energy chip
--- the world's top ADE9000 chip

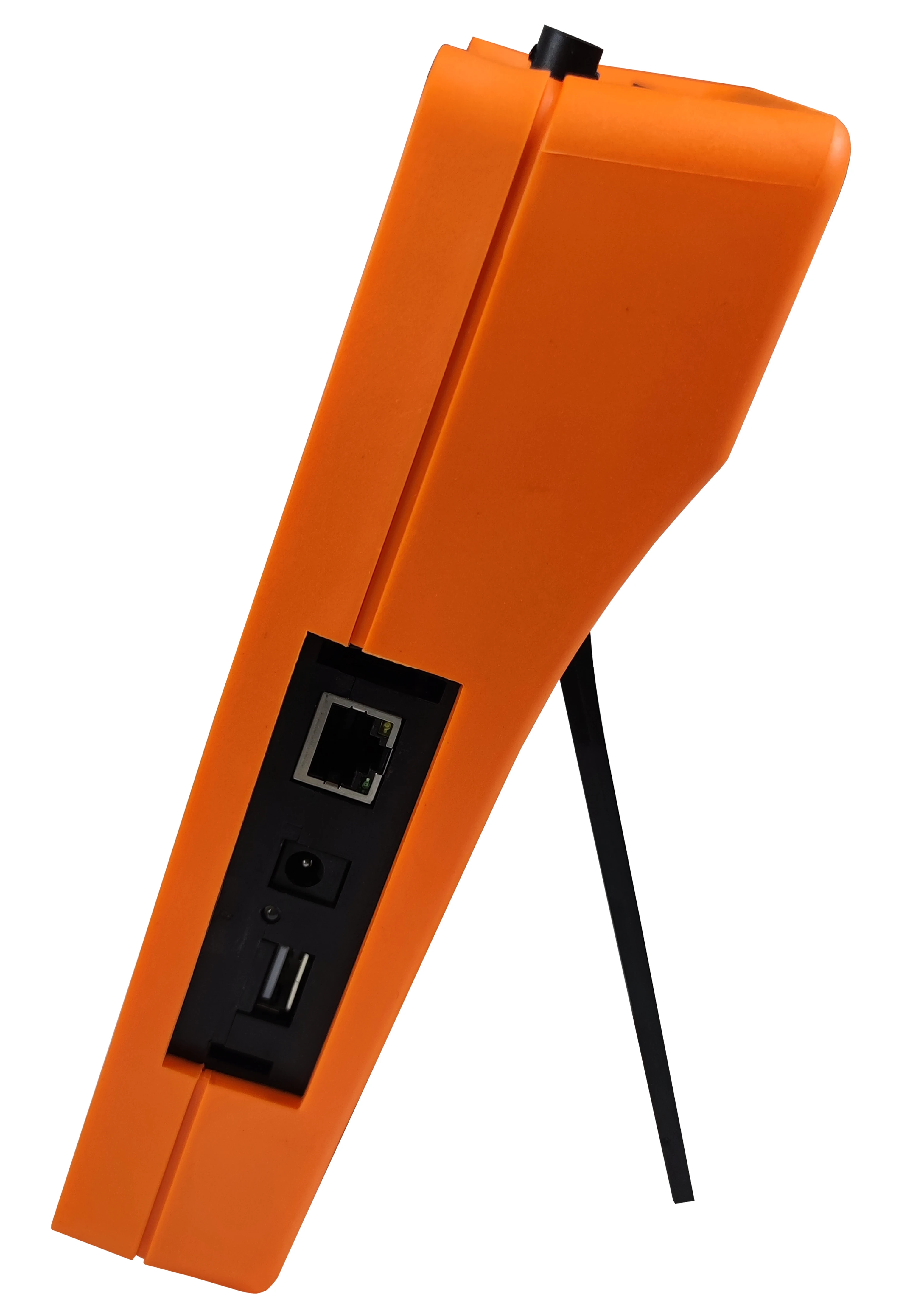

Interface: RJ45- Ethernet
5VDC, 2A Adaptor
U disk export

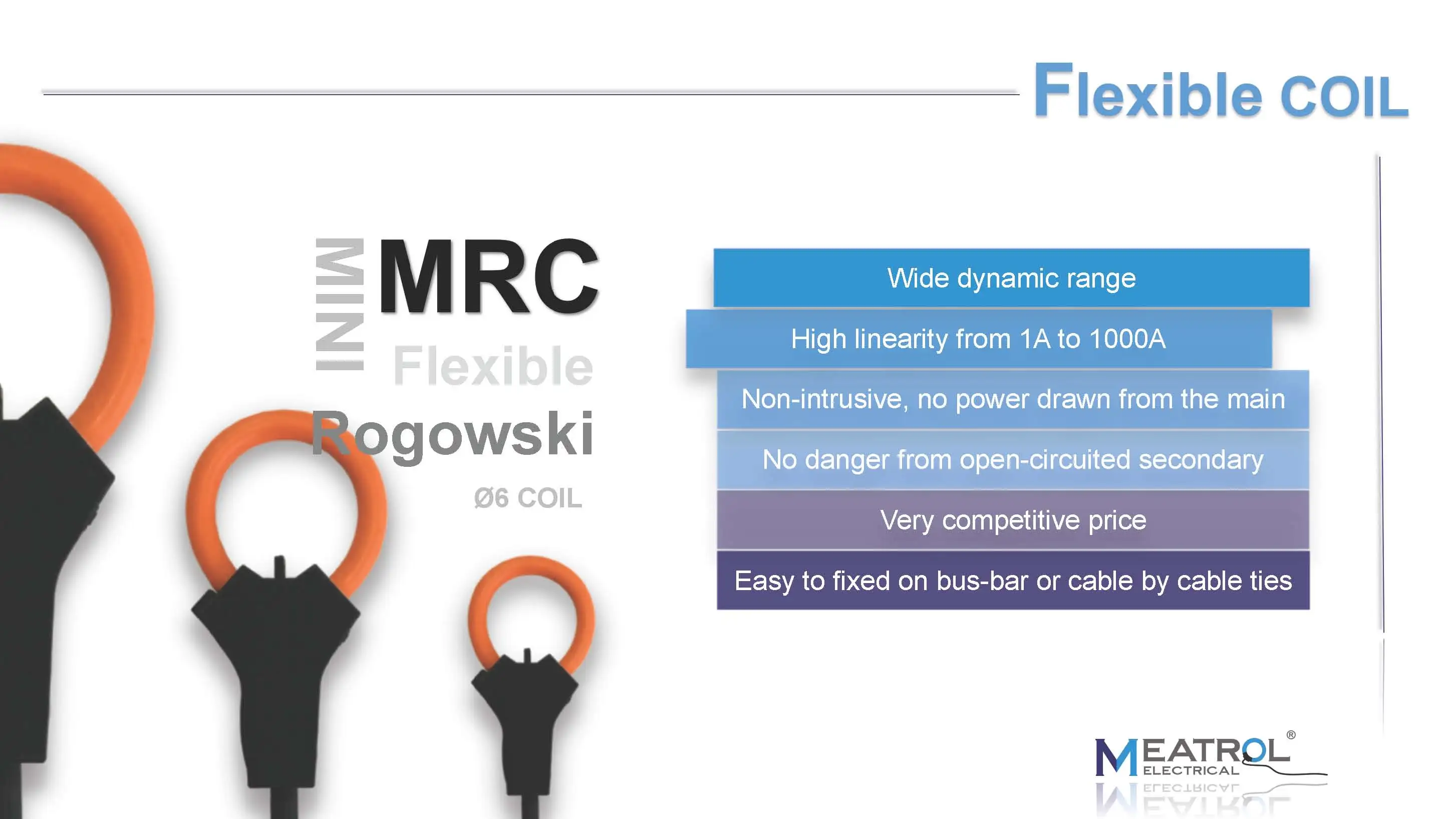

Current sensor:
Rogowski coil
600A TRC-36
3000A NRC-150
6000A NRC-200
10A(100mA-10A) ST08 Current clamp
333mV Split core current transformer
600A TRC-36
3000A NRC-150
6000A NRC-200
10A(100mA-10A) ST08 Current clamp
333mV Split core current transformer
Product Usage
* Power quality：
Voltage swell and dip
(Record time, amplitude value, voltage RMS 1/2 value of each phase and voltage waveform of each phase)
Waveform display Ua,Ub,Uc,Ia,Ib,Ic
Waveform reading (UDP protocol)
(Record time, amplitude value, voltage RMS 1/2 value of each phase and voltage waveform of each phase)
Waveform display Ua,Ub,Uc,Ia,Ib,Ic
Waveform reading (UDP protocol)

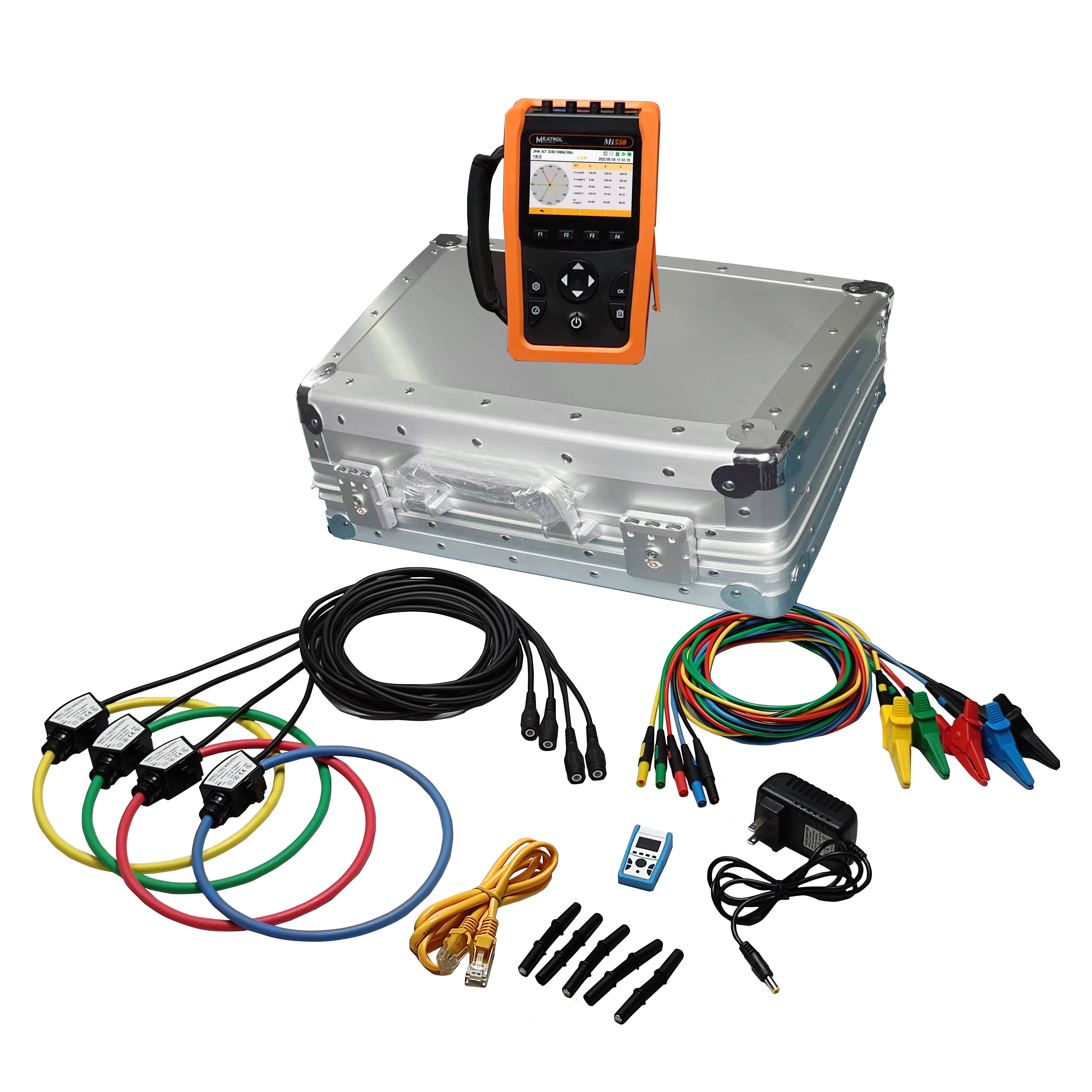

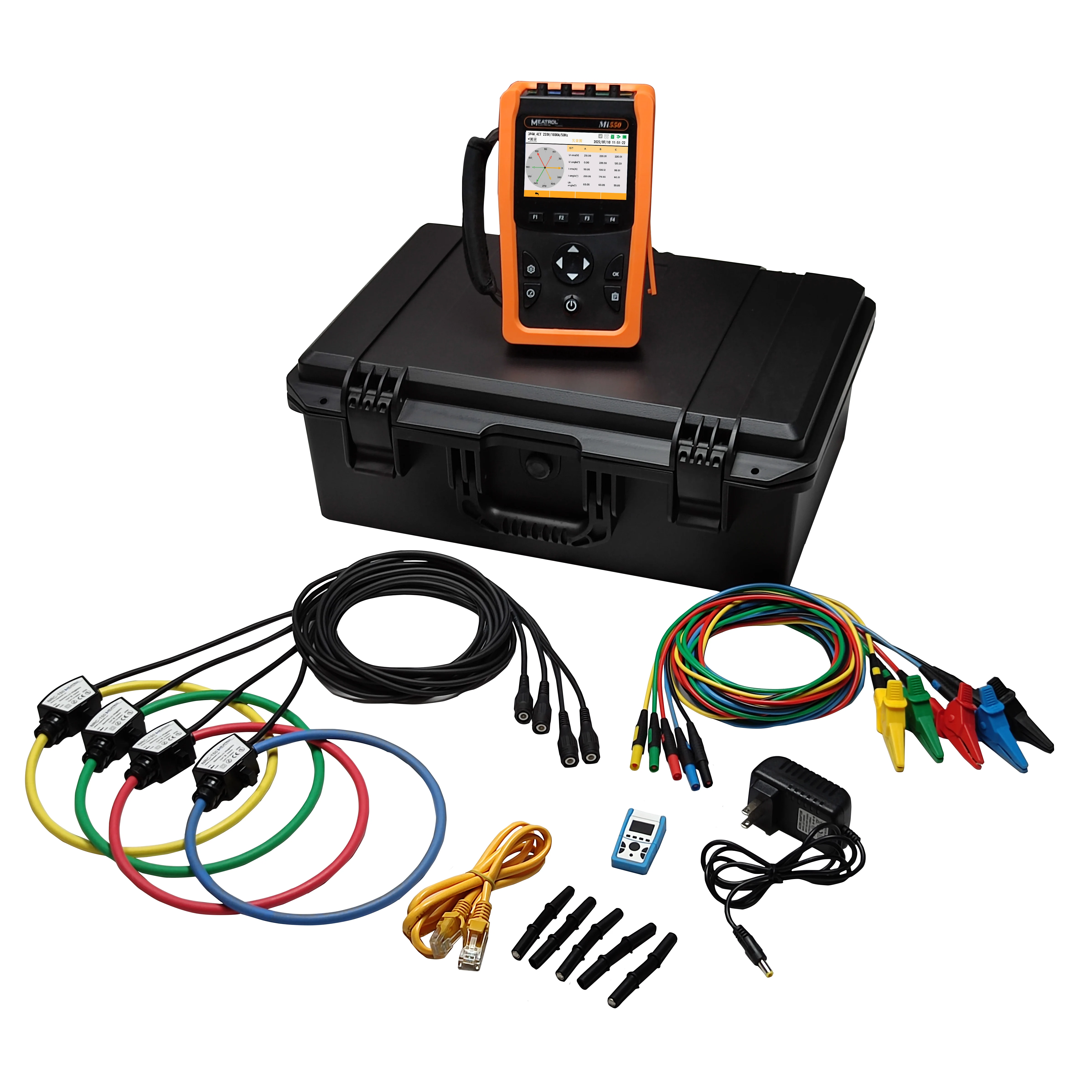

* Accessories: 5pcs voltage clamp, adaptor, 5pcs magnetic probe
* Super light current sensor
* Safe and Easy installation
* High definition 4 inch IPS display
* Support Chinese, English, multilingual
display
* Graphs : waveform, vector diagram and
* Graphs : waveform, vector diagram and
histogram display
Related Products
Packing&Shipping
Company Introduction
ROGOWSKI TECHNOLOGY (SHANGHAI) CO., LTD. founded in 2009.Brand name MEATROL ELECTRICAL, located in the High Technoloy zoon of Minghang district, Shanghai. We are specialized in manufacturing all kinds of devices with applications for current measurement like power meter, power analyzer, High frequency waveform analysis, pulse current test, power transformer monitor, mA current measurement, harmonic tests, wind power generation, welding current monitor, frequency conversion and leakage protection,electric furnace etc.
FAQ
Q: Who is MEATROL?
A:We are the No.1 manufacturer of rogowski coil with meters in China over 16years.
Q:How about your company product quality?
A:High quality, resonable cost.
Q:What's your productivity?
A:Rogowski coil, Produced 1000k pcs Rogowski coil per year.
Q:Do you support customization?
A: Powerful R&D team, Any customization requirements related to Rogowski coil and power metets could be realized.
A:We are the No.1 manufacturer of rogowski coil with meters in China over 16years.
Q:How about your company product quality?
A:High quality, resonable cost.
Q:What's your productivity?
A:Rogowski coil, Produced 1000k pcs Rogowski coil per year.
Q:Do you support customization?
A: Powerful R&D team, Any customization requirements related to Rogowski coil and power metets could be realized.
