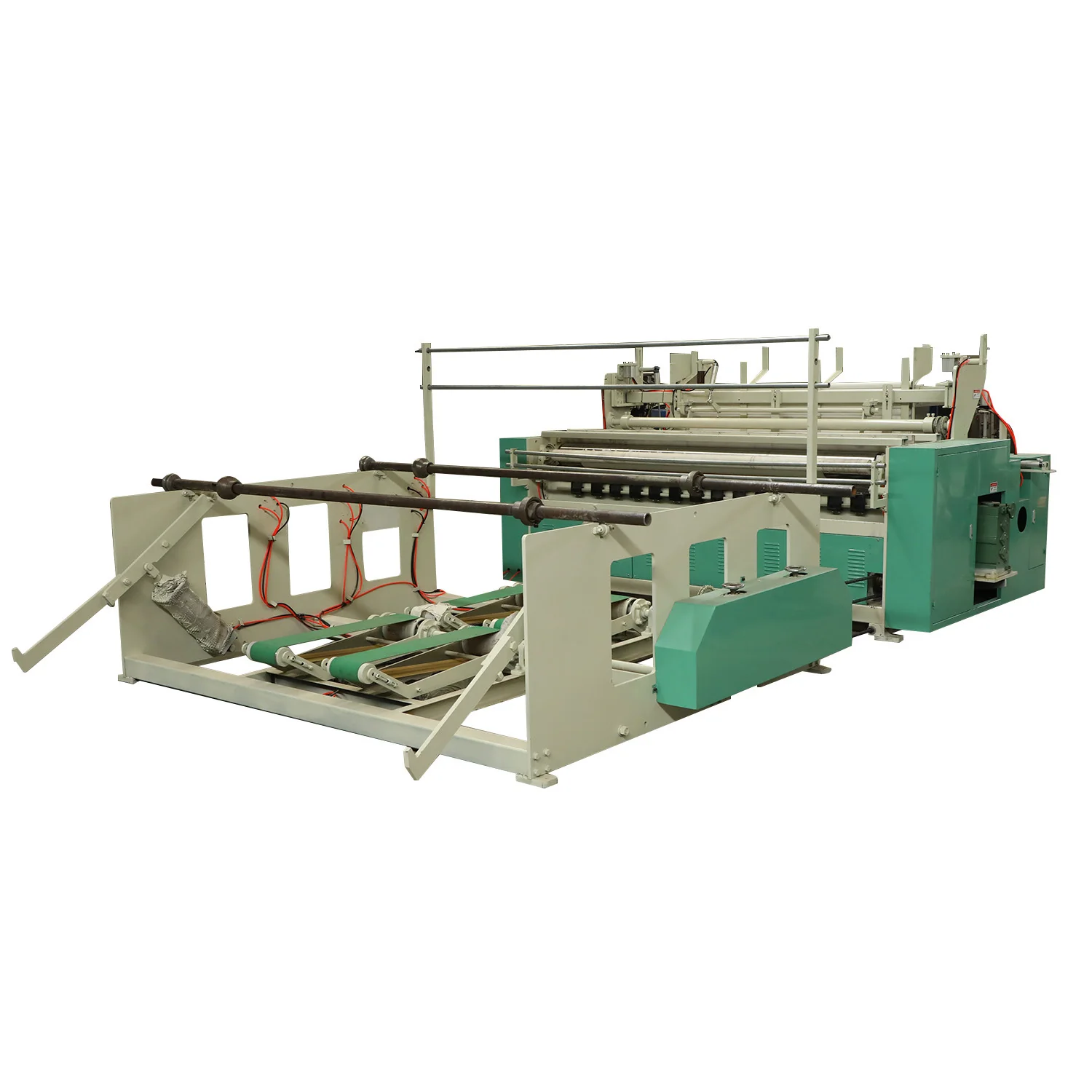

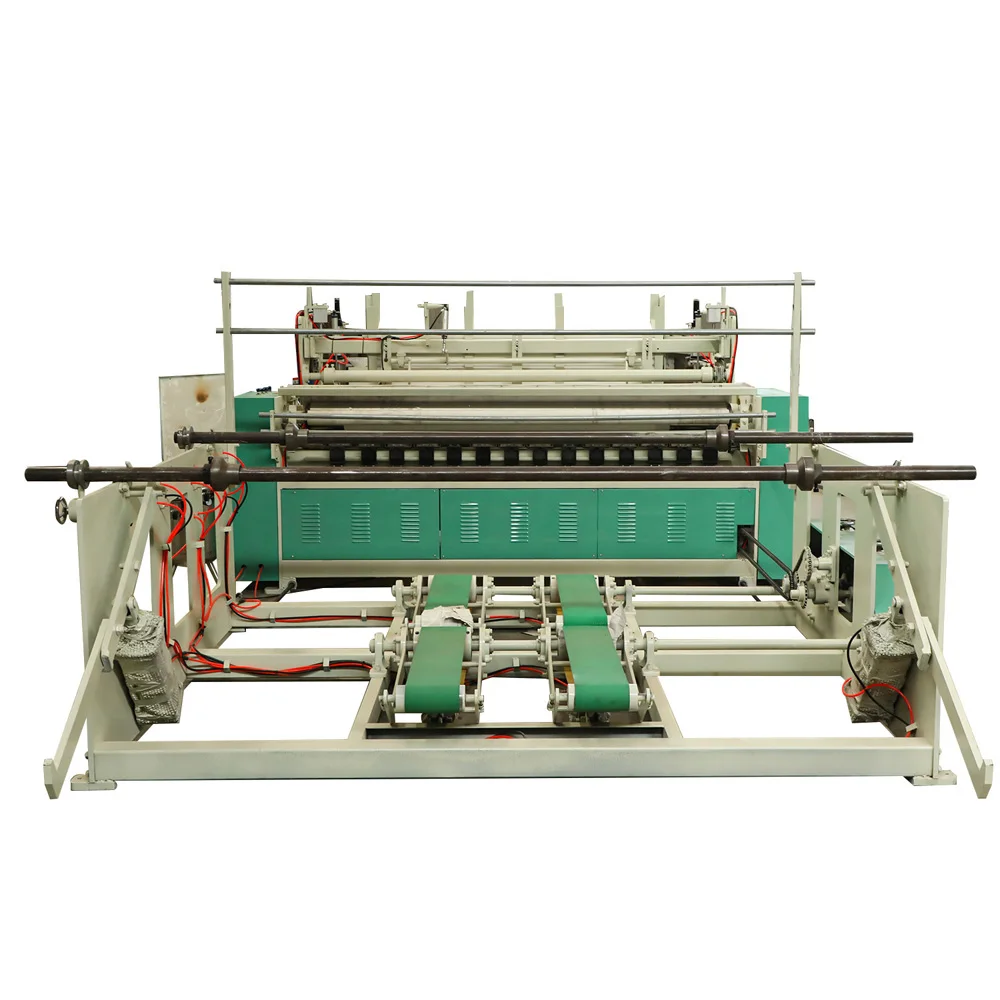

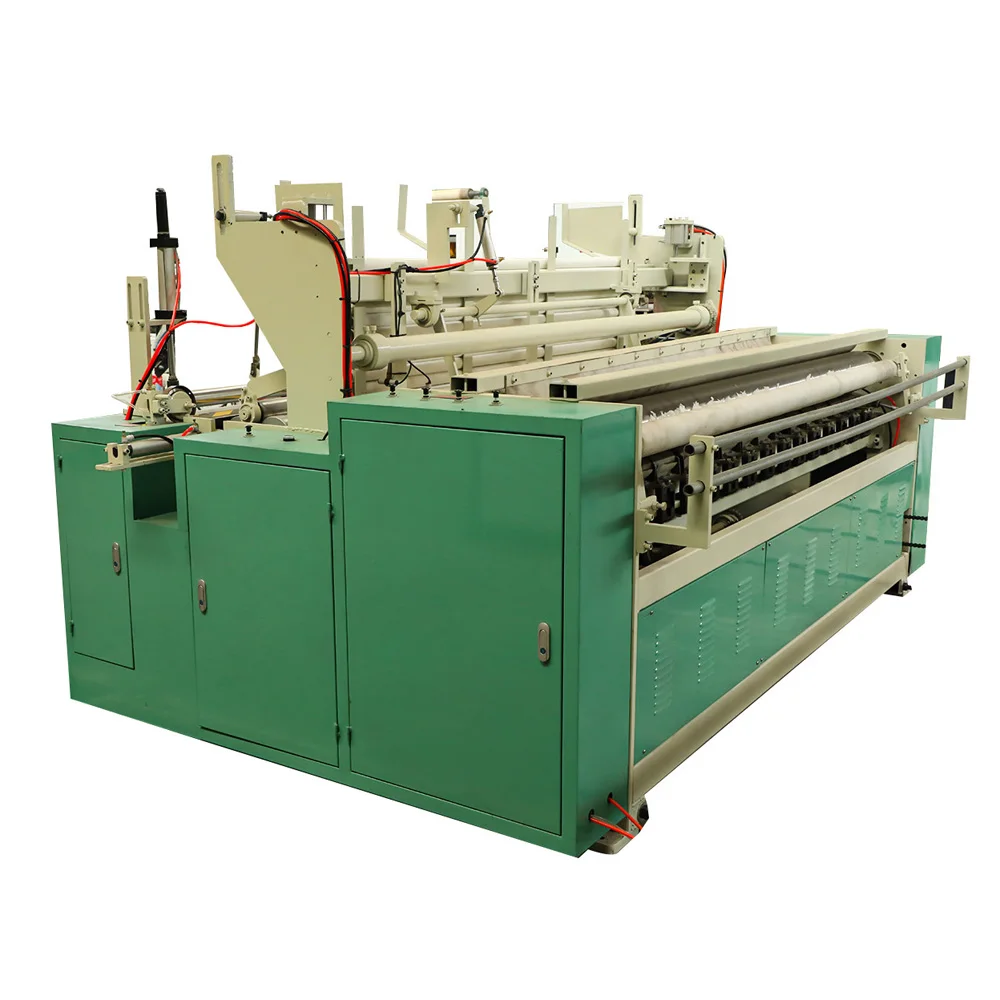

Homeuse Small Business Roll paper without cutting machine 1880 toilet paper rewinding machine

Share on (1601355698049):


Price:$10,800.00

Quantity:


Product Overview

Description



Who Am I?
The household paper industry in Mancheng district began in the 1970s, and after 50 years of development, the area has become a very large household paper industry base in China. At present, there are hundreds of material tissue jumbo roll production enterprises, thousands of tissue paper deep-processing enterprises , and nearly 50,000 employees in this industry, and gradually formed the whole industrial chain of tissue paper material jumbo roll production, tissue paper rewinding processing, color printing packaging, tissue paper machinery, logistics and other industries, and the production capacity of household paper can reach 3.2 million tons. Because of the tissue paper products industry, Mancheng was awarded the national consumer goods strategy demonstration city, is a famous industrial area with Chinese characteristics.
Cailun Machinery is a professional manufacturer of tissue paper processing machines. Products include facial tissue folding machine, log saw cutting machine, tissue paper packaging machine, high speed slitting and rewinding machine, embossing machine, etc. Our machines have won a good reputation in the domestic market and are becoming more and more popular in the foreign market. Sincerely hope to cooperate with more customers and develop together.
1.High integration degree, save space
2.High efficiency ,energy saving,high productivity
3.High stability, easy to maintenance
As a result, our paper machine has become more favored by customers. Now, our paper machine is widely used in toilet paper mills throughout the city and has received very high praise from customers


Products Description






Jumbo rollstands
1-3stands,for make 1-3ply paper,with pneumatic lifter to life jumbo roll automatically
Embossing rollers
embossing rollers
single side embossing,Double sides embossing,Deco color embossing pattern
Perforating device
Can be adjusted to different perforating distances between eachsection

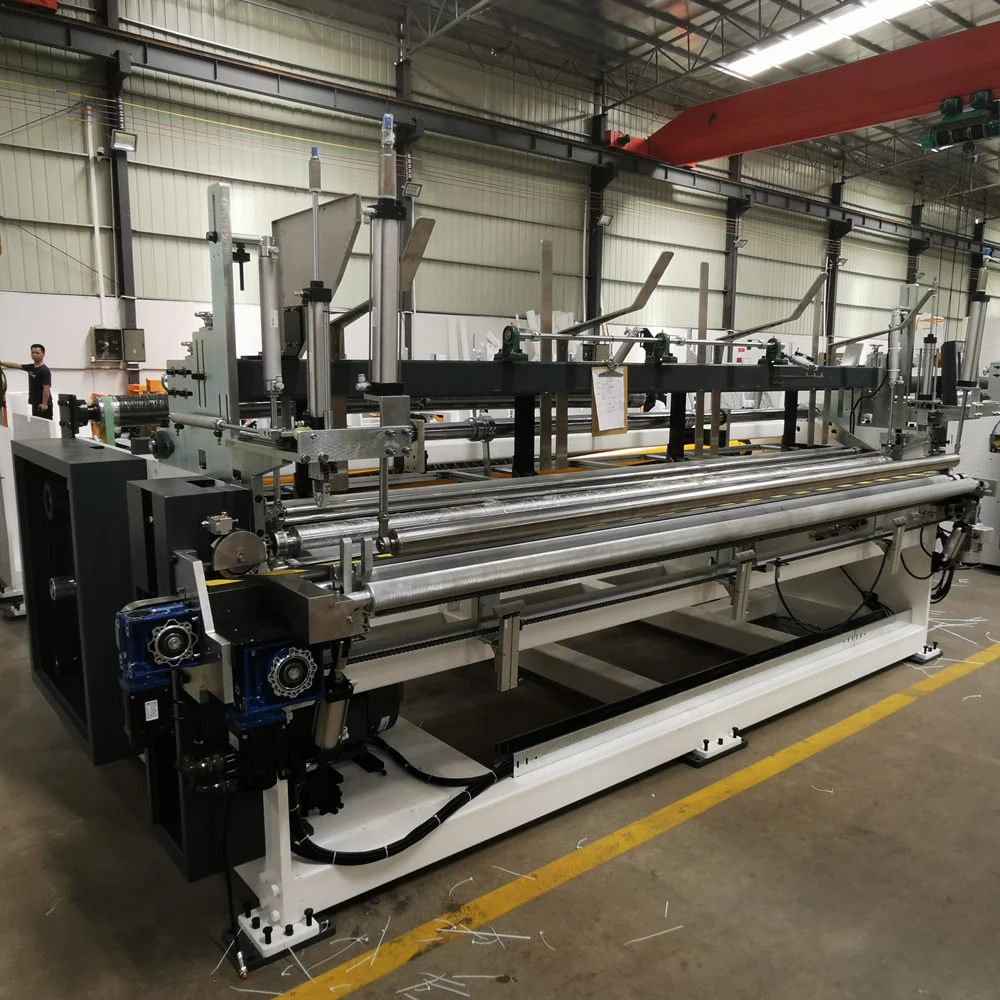

Toilet Paper Rewinding Machine
Jumbo Roll Max Width
2200mm
Jumbo Roll Max Diameter
1200mm (Other size can be specified)
Jumbo Roll Inner Diameter
3inches(76.2mm) (Other size can be specified)
Perforation Distance
3 anvil Blades, Independent motor
Drilling distance
50-300mm
Finished Product Diameter
Φ60~φ200mm
Production Speed
150-250 m/min
Structure
Wallboard type
Unwind standers
2 standers
Paper core load way
Automatic pipe dropping function
Tissue roll spraying
Automatic spraying function
Embossing
Edge embossing or simple embossing roller sets
Independent embossing
Optional
Steel to steel, steel rubber, steel to wool as request
Pneumatic system
3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa
(Provide by user)


Features for toilet paper rewinding machine
1. Automatic perforation (dotted line), slitting and rewinding are completed at one time.
2. Pneumatic(Automatic) paper loading, pneumatic belt drive, easy to adjust the tension
3. can do machine type depends on customer's requirements.
4. The embossing picture is obviously clear, embossing style can be designed according to customer needs.
5.automatic falling pipe device,automatically cutting paper spray adhesive sealing.
6. Could adjust the perforating size at will;
7. Each functional unit is driven by independent motor, could select edge embossing unit, embossing unit, lamination unit according to demand.
8.Labor saving
9.Can produce 4000-5000 rolls of finished products per hour.
10.The packaging bag can be designed for customers for free.

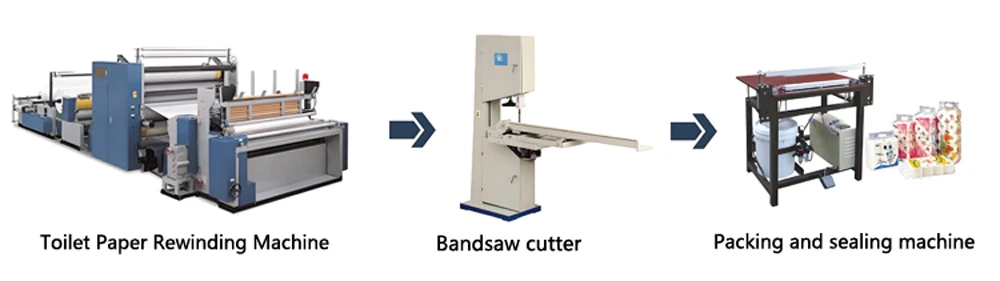

1. Semi Automatic Toilet Paper Roll Production Line:
Toilet Paper Rewinding Machine----Toilet paper roll bandsaw cutting machine-----Toilet paper rolls packing and sealing machine

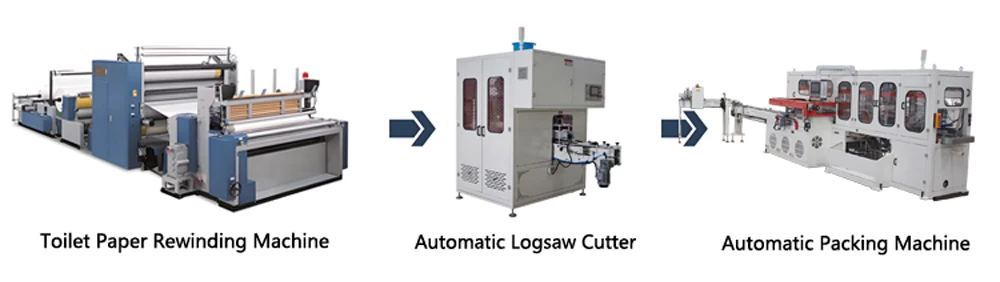

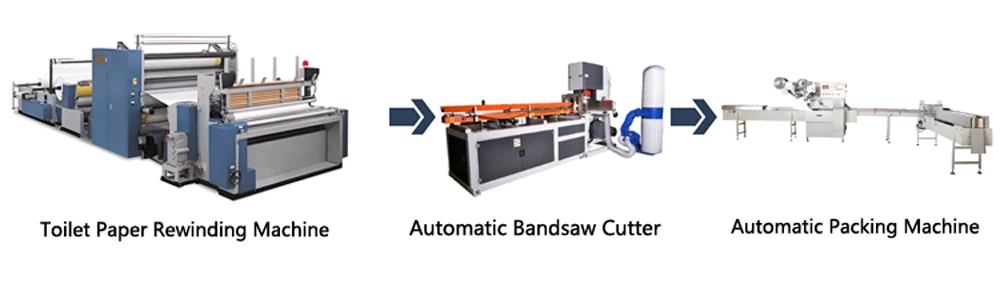

2. Fully Automatic Toilet Paper Roll Production Line:
Toilet paper rewinding machine----Fully automatic toilet paper roll cutting machine-----Automatic toilet paper rolls packing
machine

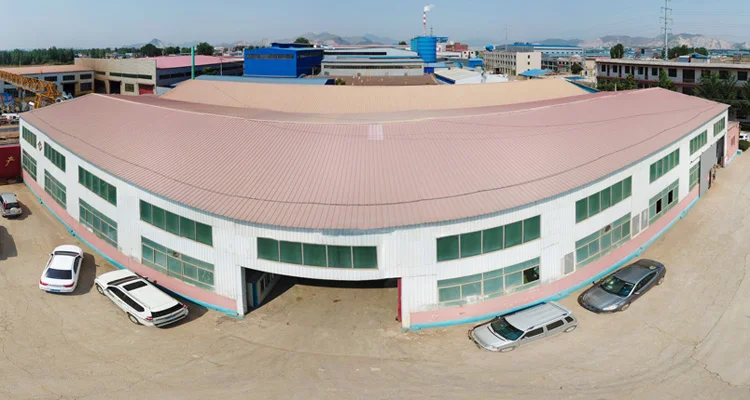

Company Profile




Cailun machinery makes its endeavors in design, R&D, manufacture and sales of tissue paper converting machinery. We mainly produce the machines for the toilet paper roll, kitchen towel paper, facial tissue, paper napkin and pocket tissue by a series of full automatic toilet paper rewinder(or production line), facial tissue machine(or production line), paper napkin folding machines, jumbo roll slitting machines, mini-pocket facial tissue machines, and the relating auxiliary packing machines.
One-stop Solution is how we define The cailun machinery. From design, manufacturing, installation and maintenance, we provide an One-stop Solution for paper tissue production to our customers, helping to give them a competitive advantage in the marketplace.
Upholding the principle of”Customer-orientation”, Cailun machinery continues making great efforts to meet the all most demands and requirements of our clients, supplying them the most advanced equipments and good after -sales service.
Taking the most advanced technology as the guidance,living by quality, Cailun machinery has won an excellent reputation in this industry both at home and abroad.
The striving and prospering enterprise–Cailun machinery, looks forward to your attention and patronage! In the rapid competitive market, We sincerely hope to shakes hand with you to create a bright future! Because your success speak our success!


Our services


Our Expertise
Cailun Machinery is a professional manufacturer of tissue processing and packaging machines.we have cultivated a strong research team and engineers in the 50 year development process,
We can provide solutions to customers from products choosing, designing, installing and training. From upfront engineering to ongoing technical support, our designs are focused on Each customer's needs
Our Service
Pre-Sales Service
1.Professional toilet paper business team receives free business plan
2.Sample testing support to ensure the quality of the equipment

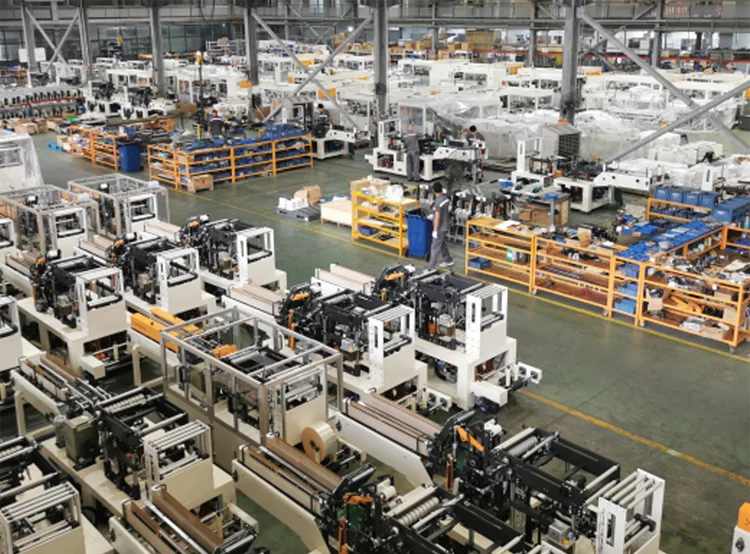

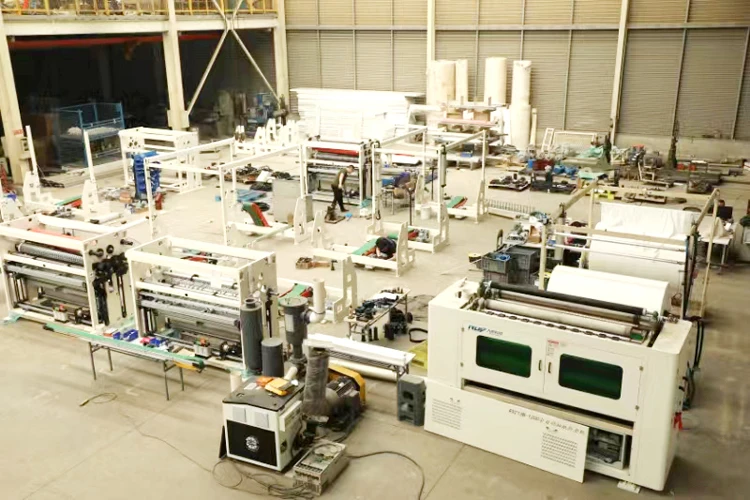

3.View our Factory further understand how Cailun Machinery operates through the paper mill
After-Sales Service
1.we will provide you with 24-hour online technical support. In addition, we can also provide you with instructional videos on the installation and daily commissioning and maintenance.
2.We will provide a professional and detailed user guide to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service.
3.Our company can suggest the good supplier of raw material for all kinds of tissue paper making machines for you or offer you directly after you make a order to us.
4.The guarantee is one year. After the machine arrive the buyer’s factory, if the buyer requests, the seller has to send the engineer to the buy’s factory to install and test the machine, our professional after-sales technicians can also provide on-site installation and commissioning services as per request.(buyer should bear the cost for the service).

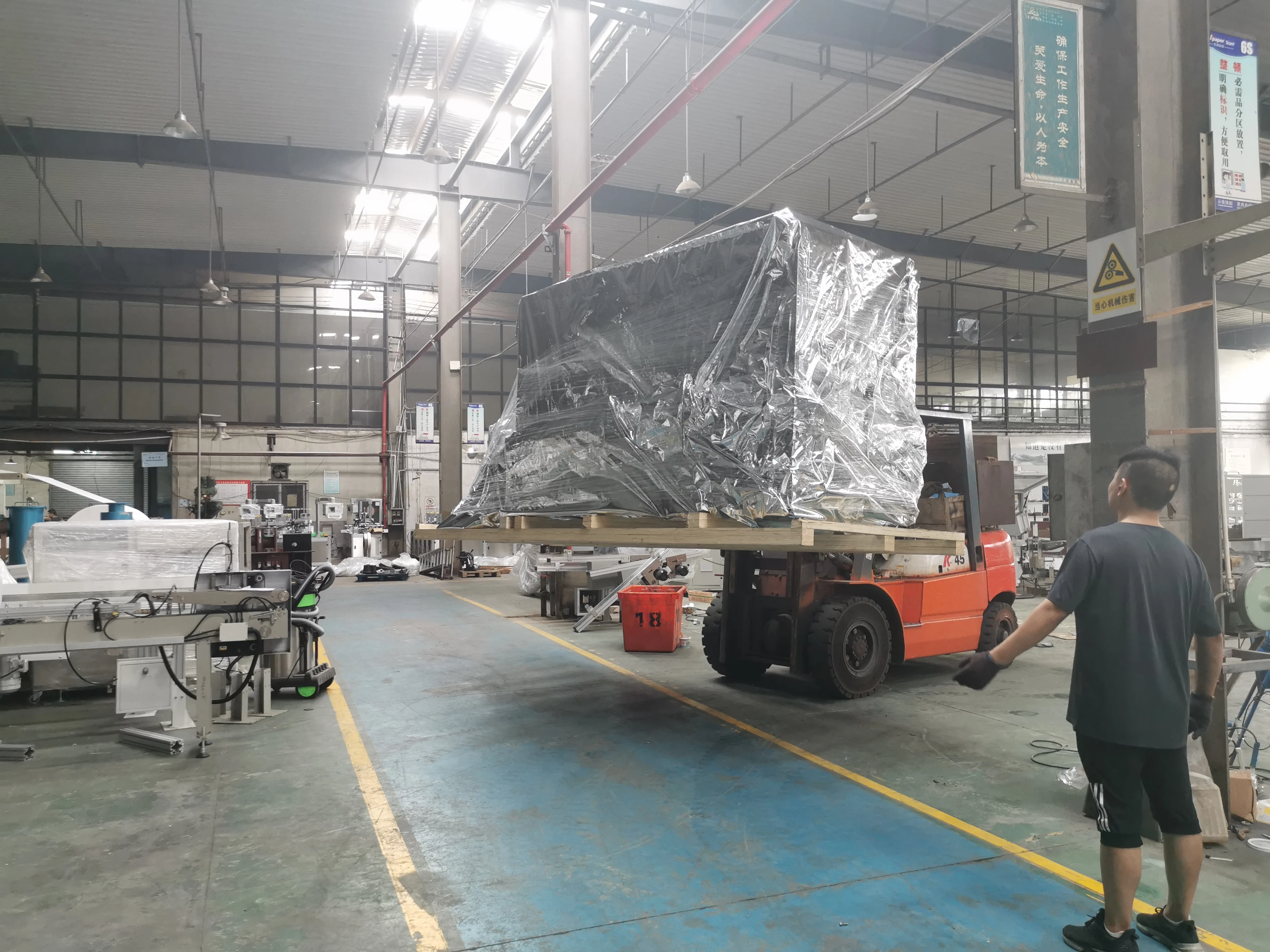

Product packaging

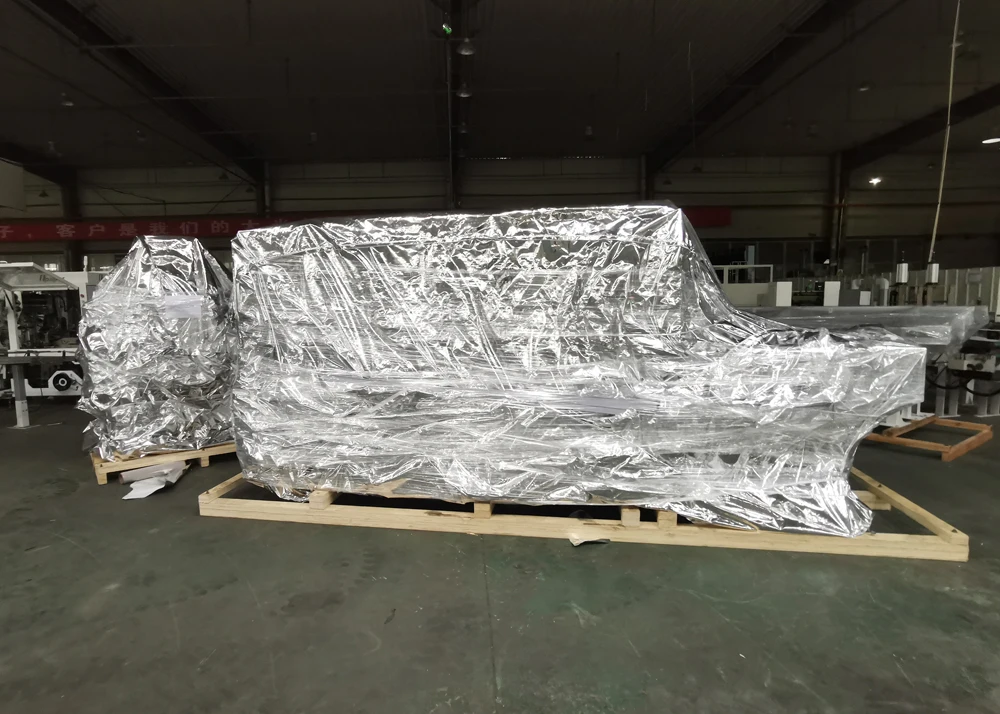

Packaging:
1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tight plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.

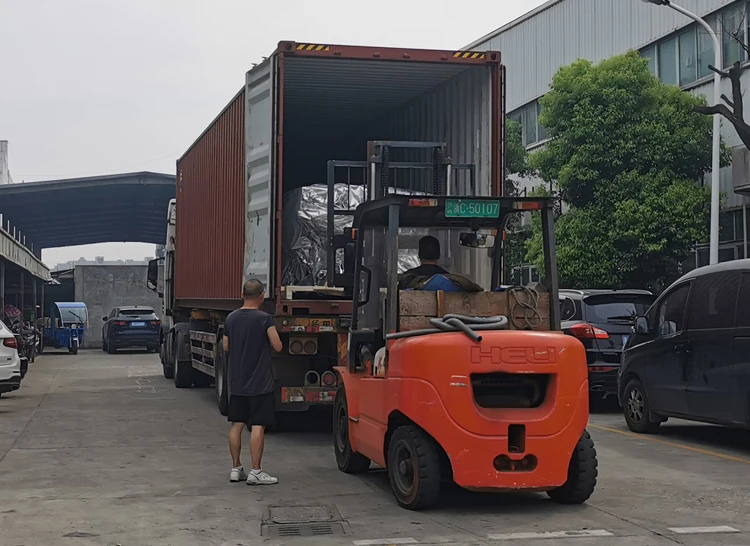

Shipment:
1.Sea transportation is from Qingdao,Tianjin,Shanghai Port or other China main ports
2.The delivery time is decided by your needed machines or machine parts. But it also follows your needs.


FAQ


Q1: How do we build trust in the first business?
A: We believe that a win-win business must be based on our professional services and excellent products. Our team will fully study your needs, and clearly explain our products and solutions to you so that you can understand our services. We can take you to visit our modern factory through a video call, so that you can understand how your machine will be produced and let you know more about our products. Before delivery, we can cooperate with your partners to carry out factory acceptance test, or carry out acceptance through test video or video call. Make sure that the best tissue paper making machine you need is ready before shipment.
Q2: How do you control the quality?
A: We do quality testing before starting the bulk production. Also, there is stricy quality control system in place to ensure good quality to the client. Also, we always request our customers to inspect the goods before shipping.
Q3: How to operate and maintain the machine?
A: First, We will provide a professional and detailed user guide to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service
Q4: What kind of after sales service will you offer to us?
A: 14 months from the time of loading by seller quality guarantee. Life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the production cost of the spare parts. Free technical supporting and maintenance consulting lifetime
Q5: Can the same production line produce different tissue products?
A:We can customize a dual-purpose machine that can both produce paper tissues and cotton towels if you need.
Q6: Can special sizes be customized?
A:Yes, if you need to produce products with non-standard specifications, we can customize equipment with corresponding specifications for you.
Q7: How can our toilet roll plant obtain the raw material?
A:The raw materials are mainly made from wood pulp, cane syrup, deinked waste paper.
You can purchase the raw material in your area. If you like, we can purchase raw material at low cost for you.
Q8: What’s the toilet roll making productiom payment terms ,trade terms you accept ?
A:Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment, accept other way like L/C , wetern union, and do CFR&CIF etc.
Q9: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock or it is 45 days if the goods are not in stock, it is according to quantity.
