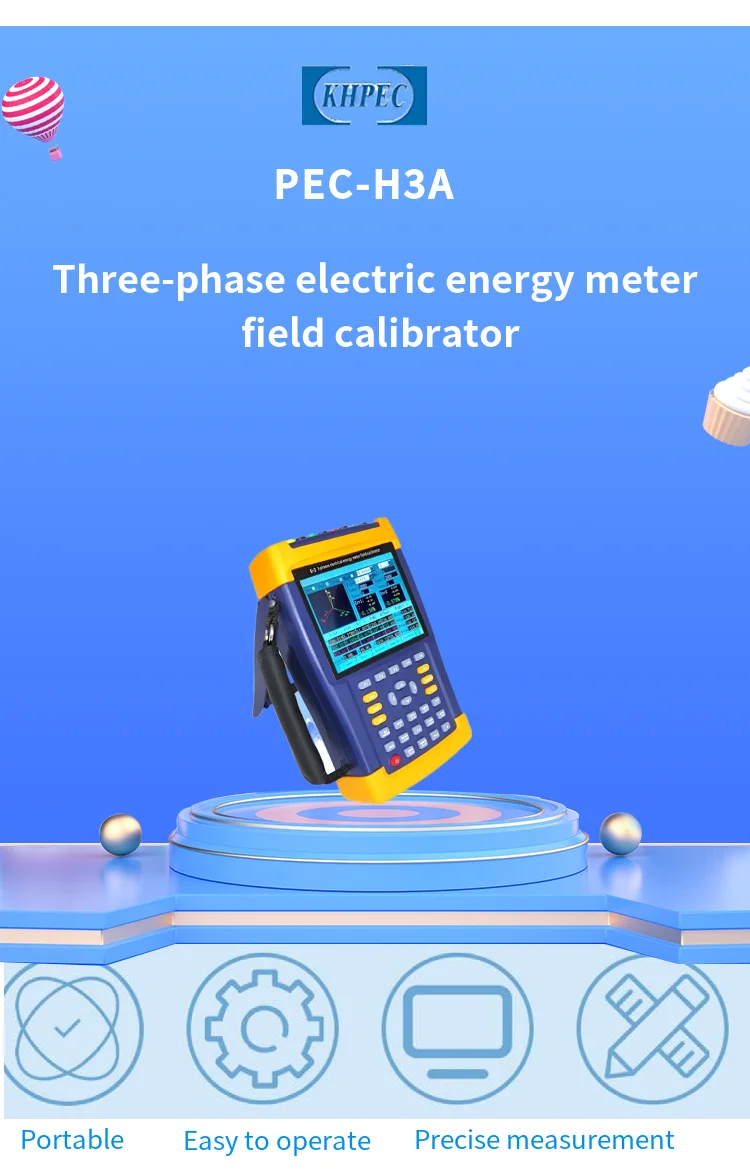

KHPEC Smart 3 Phase Energy Meter Field Testing Calibrator for Chemical Industry Meter Accuracy
- Category: >>>
- Supplier: Zhuhai Kehui Electrical Co. Ltd.Zhuhai Ltd.
Share on (1601368439884):
Product Overview
Description
● Verification of single-phase, three-phase three-wire, three-phase four-wire system active and reactive inductive energy meters and electronic energy meters.
● Simultaneously verify the errors of active and reactive energy meters, and simultaneously verify the errors of the main and auxiliary meters and automatically calculate the rounding errors
Difference. The active and reactive power errors of the load management terminal and the distribution transformer monitoring and metering terminal are verified at the same time.
● Adopt digital true reactive power measurement technology to increase the reactive power accuracy to 0.1%.
● Before the metering device is powered on or during power outage maintenance, wiring inspection, TV and TA magnification check, and secondary circuit testing
impedance.
● Check the energy meter constants.
● Meter clock error check, broadcast school time.
● Read event records such as frozen power, load curve, voltage loss and current loss, programming, cover opening of the electric energy meter, support
Current 645, 698 and other communication protocols.
● The self-calibration function of the clamp meter can ensure the long-term accuracy stability of the clamp meter; ensure the long-term accuracy and stability of the instrument
sex. Minimum test current capability: 1mA at 5A or 1A clamp.
● Contrast method to verify electrical instruments and transmitters such as voltage, current, power, power factor, phase and frequency.
● Support barcode scanning input.
● Optional 20A, 100A, 500A, 1000A or 0-3000A flexible clamps to directly measure low-voltage metering complexes
Combine error, cooperate with 5A clamp, directly measure TA transformation ratio.
● Voltage automatic shifting 0～480V, current input 0-10A directly.
● Wide working power supply AC 50～480V.
● Identify common 48 types of three-phase three-wire and 96 types of three-phase four-wire wiring errors, and prompt correction factor.
● It can measure the waveform of three-phase voltage and current and the 2nd to 63rd harmonics, and can store all harmonic data.
● Store all measurement data of 10,000 meters, including working parameters, for easy analysis afterwards.
● It can communicate with the field operation terminal and PC. Chinese character input. Support U disk, can be upgraded through U disk and serial port
level software. You can download work orders and upload verification data to the marketing system.
● Simultaneously verify the errors of active and reactive energy meters, and simultaneously verify the errors of the main and auxiliary meters and automatically calculate the rounding errors
Difference. The active and reactive power errors of the load management terminal and the distribution transformer monitoring and metering terminal are verified at the same time.
● Adopt digital true reactive power measurement technology to increase the reactive power accuracy to 0.1%.
● Before the metering device is powered on or during power outage maintenance, wiring inspection, TV and TA magnification check, and secondary circuit testing
impedance.
● Check the energy meter constants.
● Meter clock error check, broadcast school time.
● Read event records such as frozen power, load curve, voltage loss and current loss, programming, cover opening of the electric energy meter, support
Current 645, 698 and other communication protocols.
● The self-calibration function of the clamp meter can ensure the long-term accuracy stability of the clamp meter; ensure the long-term accuracy and stability of the instrument
sex. Minimum test current capability: 1mA at 5A or 1A clamp.
● Contrast method to verify electrical instruments and transmitters such as voltage, current, power, power factor, phase and frequency.
● Support barcode scanning input.
● Optional 20A, 100A, 500A, 1000A or 0-3000A flexible clamps to directly measure low-voltage metering complexes
Combine error, cooperate with 5A clamp, directly measure TA transformation ratio.
● Voltage automatic shifting 0～480V, current input 0-10A directly.
● Wide working power supply AC 50～480V.
● Identify common 48 types of three-phase three-wire and 96 types of three-phase four-wire wiring errors, and prompt correction factor.
● It can measure the waveform of three-phase voltage and current and the 2nd to 63rd harmonics, and can store all harmonic data.
● Store all measurement data of 10,000 meters, including working parameters, for easy analysis afterwards.
● It can communicate with the field operation terminal and PC. Chinese character input. Support U disk, can be upgraded through U disk and serial port
level software. You can download work orders and upload verification data to the marketing system.
Product Description
Specification
Main Specifications | ||
Voltage range | AC 0~480V | |
Current range | Double the overload, correct measurement | |
terminal input | 1A、5A | |
Clamp meter input | 5A、20A、100A、500A、1000A、1500A | |
frequency | 45～65Hz | |
Phase measurement range | 0°～ +360°（-180°～ +180°） | |
Energy Pulse Constant | ||
5A | FL=36000P/kWh FH=3.6x108 P/kWh | |
other | FL=36000x5/额定电流（P/kWh） FH=3.6x108 x5/额定电流（P/kWh） | |
Clamp meter input | grade | |
5A (with clamp meter self-correction to ensure long-term accuracy), 20A | ±0.2% | |
100A、500A、1000A、1500A | ±0.5% | |
Transformer ratio | <±0.5% | |
Voltage influence | <±0.01% | |
frequency effect | <±0.01%（45～65Hz） | |
temperature effect | <±5ppm/℃(typ.) | |
24 hours worse | 0.1级（<±0.02%） 0.05级（<±0.01%） | |
U, I harmonic measurement | ||
Measuring range | 2~63 times | |
measurement accuracy | ±0.01% (relative to 100% fundamental wave) | |
basic error | ||
Terminal input | Level 0.1 Level 0.05 | |
Active energy | ±0.1% ±0.05% | |
reactive energy | ±0.1% ±0.1% | |
power | ±0.1% ±0.05% | |
Voltage | ±0.1% ±0.05% | |
current | ±0.1% ±0.05% | |
frequency | ±0.05Hz ±0.05Hz | |
phase | ±0.1° ±0.05° | |
Other technical indicators | ||
power supply | AC 50V～450V（45～65Hz） | |
Battery powered | 6 hours of continuous work | |
Power consumption | About 5VA | |
ambient temperature | -20℃～+50℃ | |
Relative humidity | 40%～95% no condensation | |
size | (L)249*(W)154*(H)58mm | |
weight | 1.8Kg of host / 0.7KG signal source | |

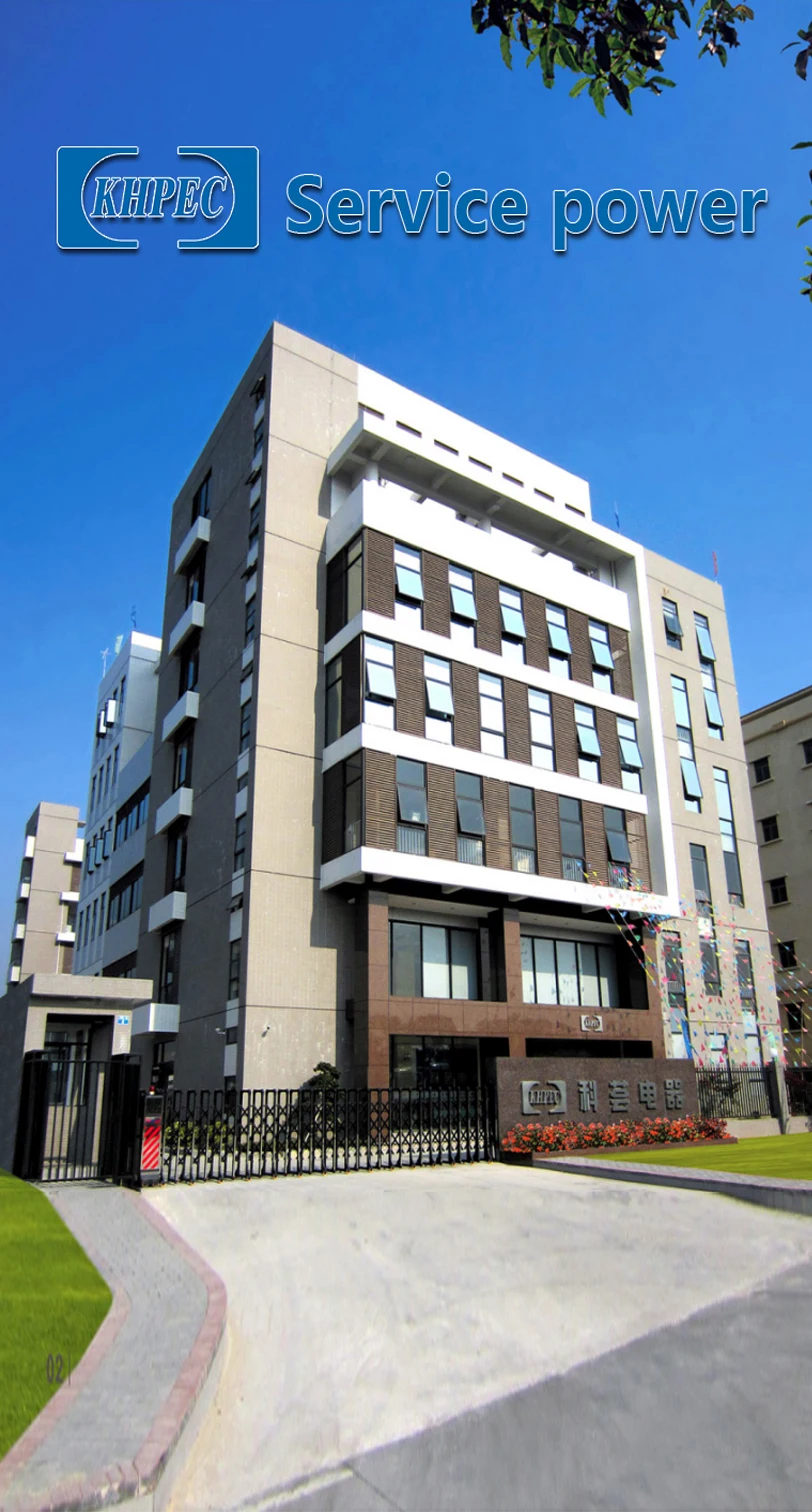

Company Profile
Zhuhai Kehui Electric Appliance Co., LTD

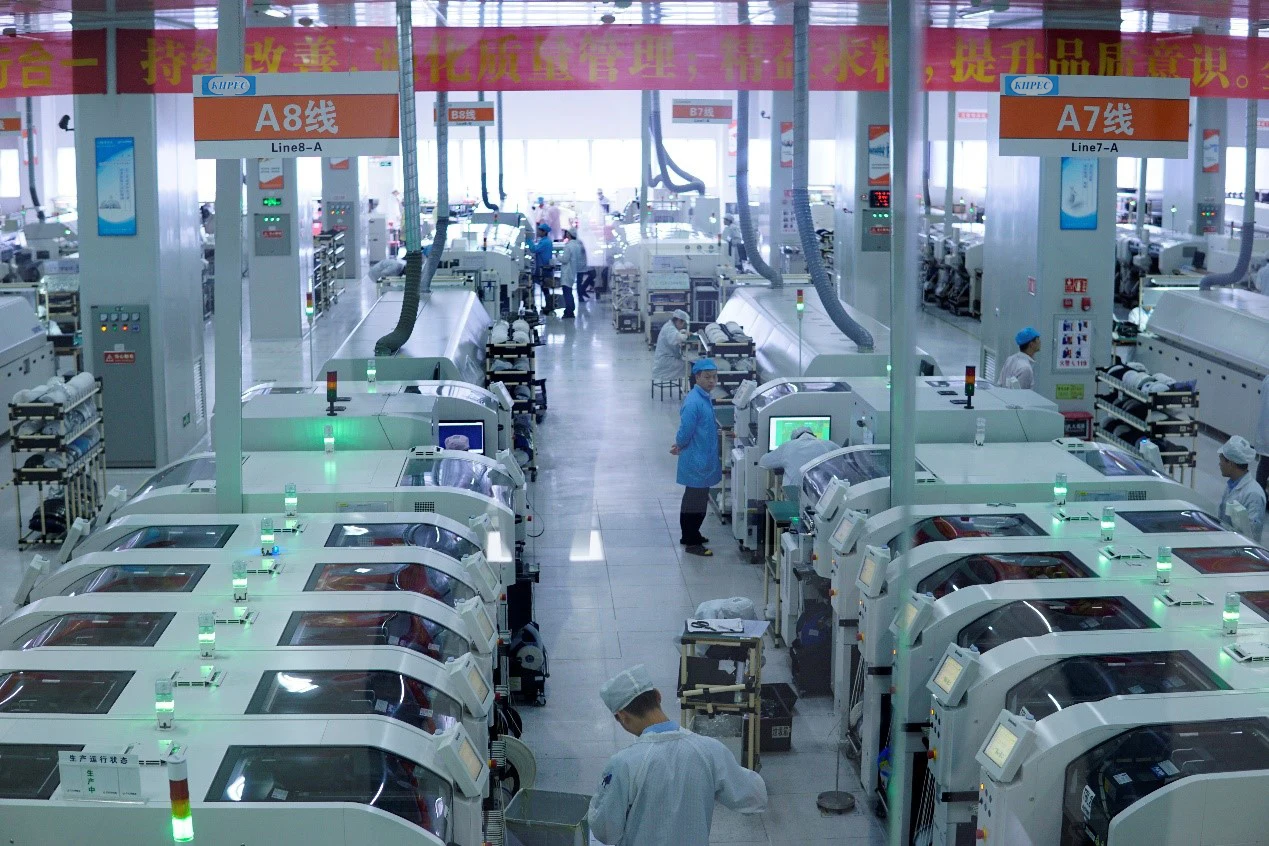

Established in 1995, is a professional R&Dproduct,sale and service enterprise in Energy-meter calibrator, Transformer calibrator, M V Sensor, H V testing equipment and Electrical testing equipment. There we built a R&D and manufacturing base of nearly 10,000 square meters and a series of Laboratories such as Etalon, EMC, Communication(RF,Carrier), High-Voltage, Aging laboratory, We own electric energy reference up to 0.005%、voltage reference、resistance reference、spectrum analyzer、impedance analyzer and other high-end test equipment. We achieved 18 invention patents , 50+ utility patents and a series of technical breakthroughs such as 0.01 level standard meter, 10kV voltage sensor, high-precision A C & D C transformer, online self-calibration of clamp meter, We has won many honors such as national high-tech enterprise, double soft enterprise and production technology enterprise, and many products have been awarded high-tech product certificates by the National Science and Technology Department and provincial Science and Technology Department.
We also welcome O E M, O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, Welcome come contact direct with our customer service center.
After-sale Service
Why Choose Us
Certifications
Payment & Shipping
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery tine?
A: Generally, it is 5-8 work days if the goods are in stock,or it is 8-15 days if the goods are not in stock, it is according to quantity.
Q: How long is your delivery tine?
A: Generally, it is 5-8 work days if the goods are in stock,or it is 8-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment?
A: Payment<=2000USD,100% in advance, Orders over $2000 can be negotiated.
Q: Why should you buy from us?
A: Professional R&D and technical team support, can make OEM & ODM order,and also peovide overall laboratory solutions.
Strict quality control and one your warranty.
Short lead time and fast delivery.
Fast response to your any inquires.
