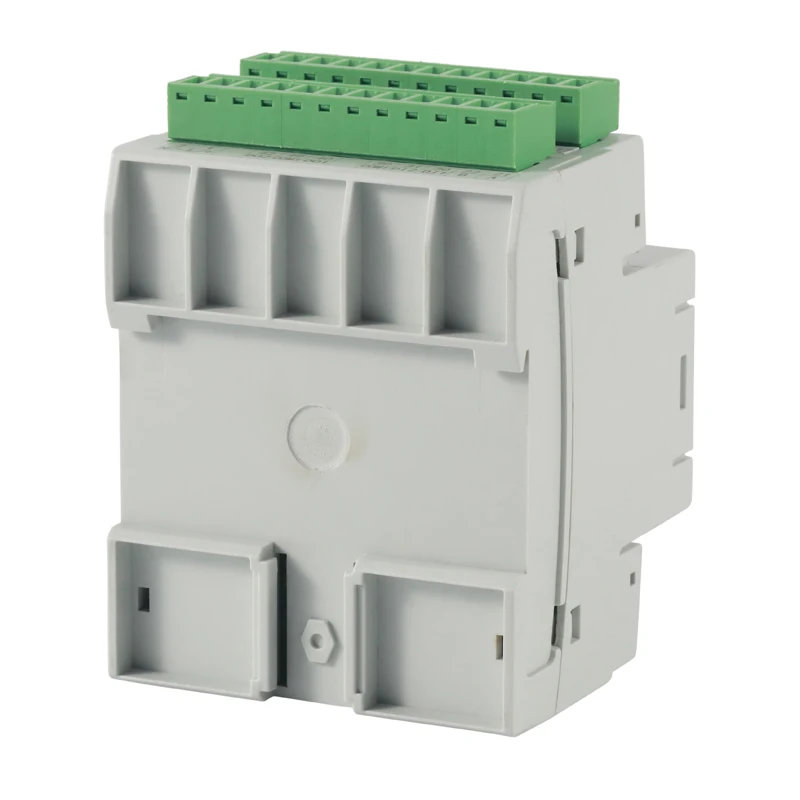

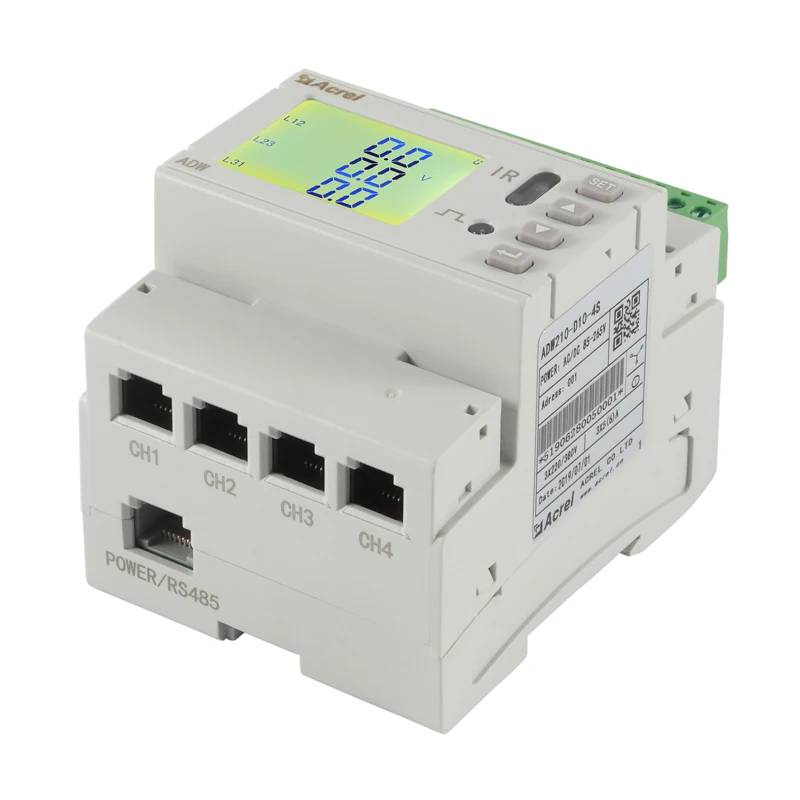

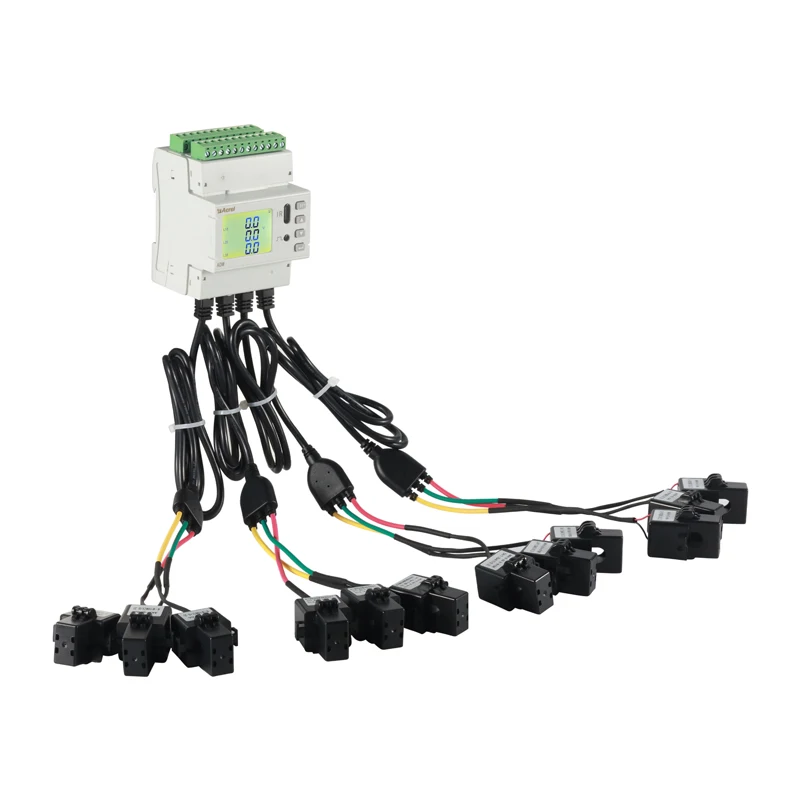

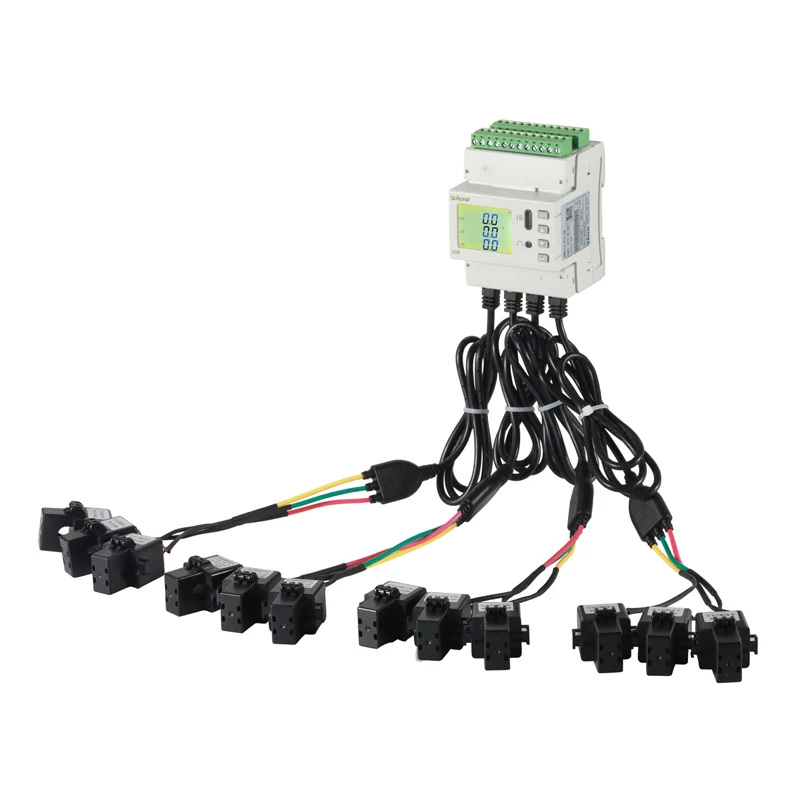

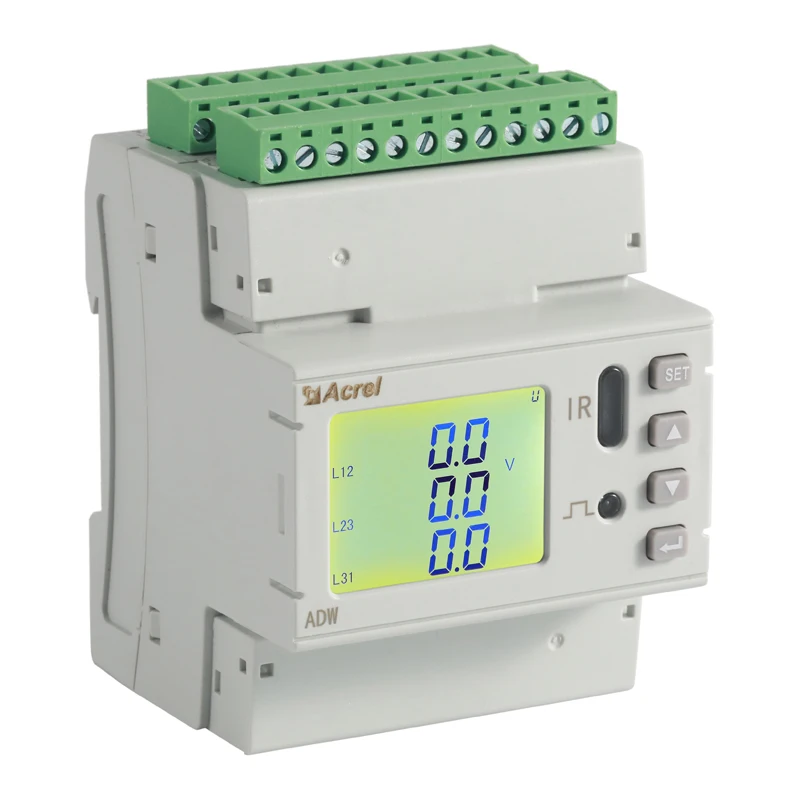

Acrel Din rail Multi circuit IoT Smart Energy meter with 2 channel 10mm 5A/1.25mA CT
- Category: >>>
- Supplier: Acrel E-Business (shanghai) Co. Ltd.Acrel Ltd.
Share on (1601371108124):
Product Overview
Description
Product Introduction
Monitoring | Up to 4 circuits 3-phase or 12 circuits 1-phase | ||||||
Measurement | kWh, kVarh, Current, Voltage, Power, 2~31st Harmonic and etc | ||||||
Voltage Rating | 3*380V~456Vac L-L& 3*220~264Vac L-N | ||||||
Current Rating | 5A; 100A; 400A or 600A AC (with external CTs) | ||||||
Frequency | 45~65Hz | ||||||
Communication | RS485 (MODBUS-RTU) | ||||||
Extra Function | Wireless Communication; Cable Temperature Measurement; DO/DI Function | ||||||
Display | LCD | ||||||
Dimension | 87.8*72*97.7mm (L*W*H) | ||||||
Wiring | 3-phase 4-wire & 3-phase 3-wire | ||||||
Installation | 35mm DIN Rail | ||||||
Standard&Certificate | CE;IEC;LVD | ||||||

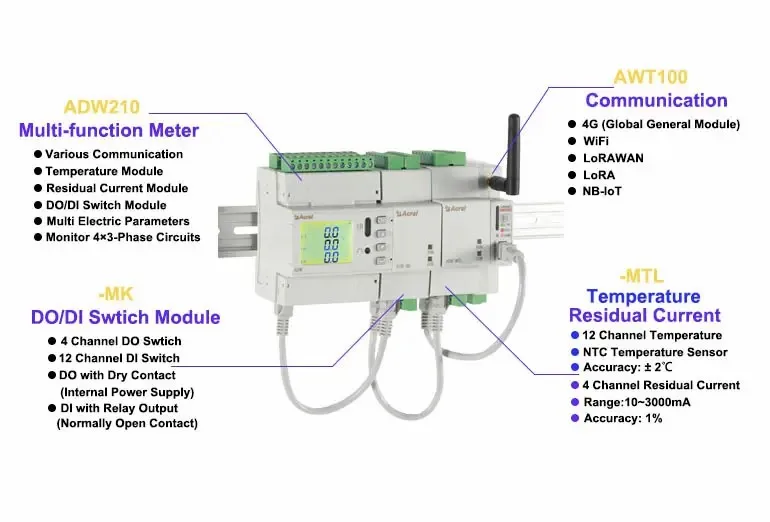

● Monitor up to 4 circuits 3-phase or 12 circuits 1-phase
● Paired CTs with specs of 5A/1.25mA; 100A/20mA; 400A/100mA or
600A/100mA

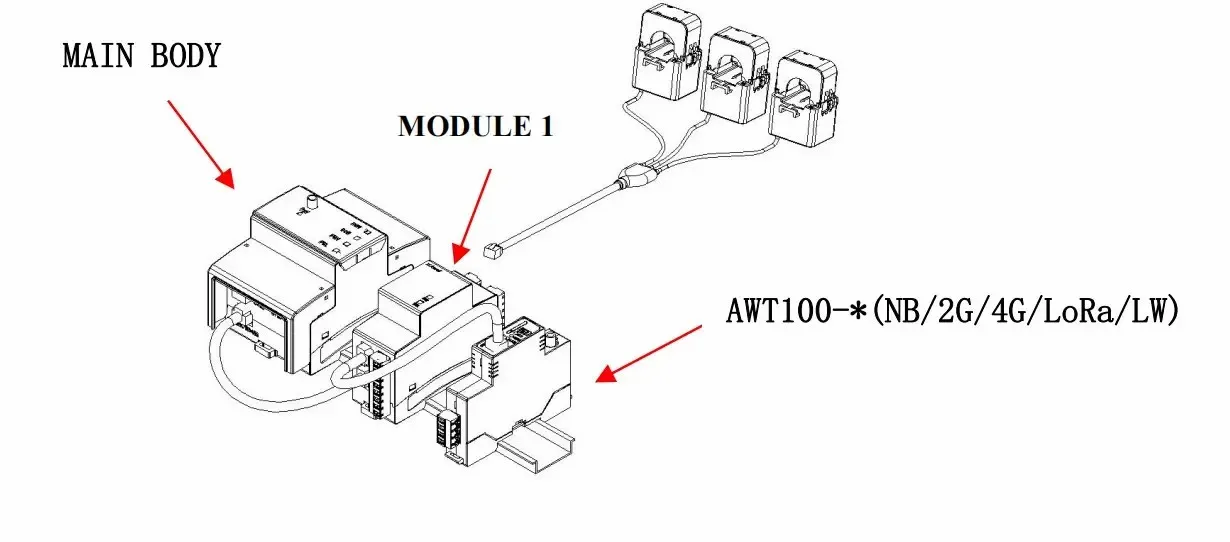

● External CTs Connectwith ADW210 Main Body thrrough RJ12 Interface
● Paired CTs with specs of 5A/1.25mA; 100A/20mA; 400A/100mA or
600A/100mA
● External CTs Connectwith ADW210 Main Body thrrough RJ12 Interface

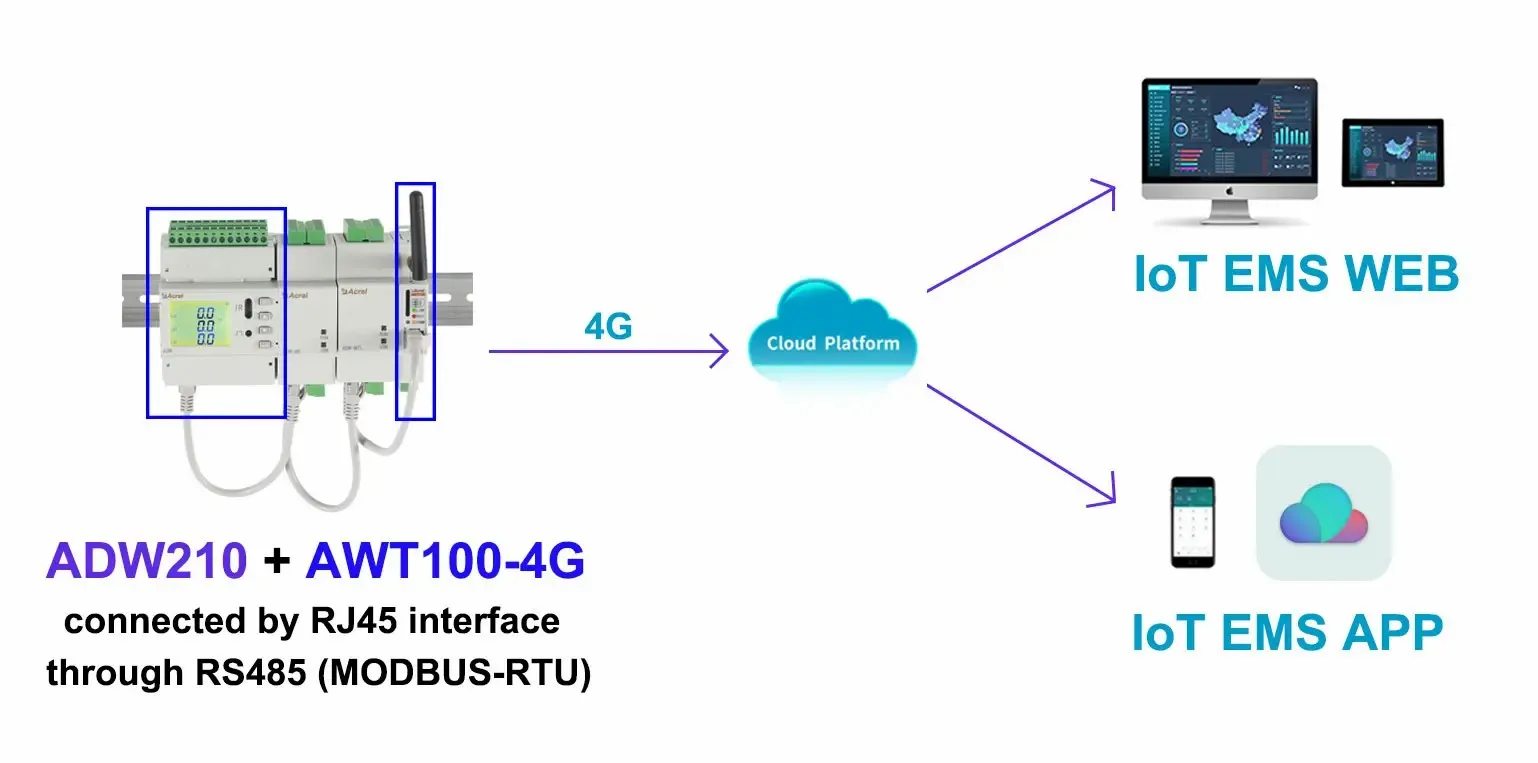

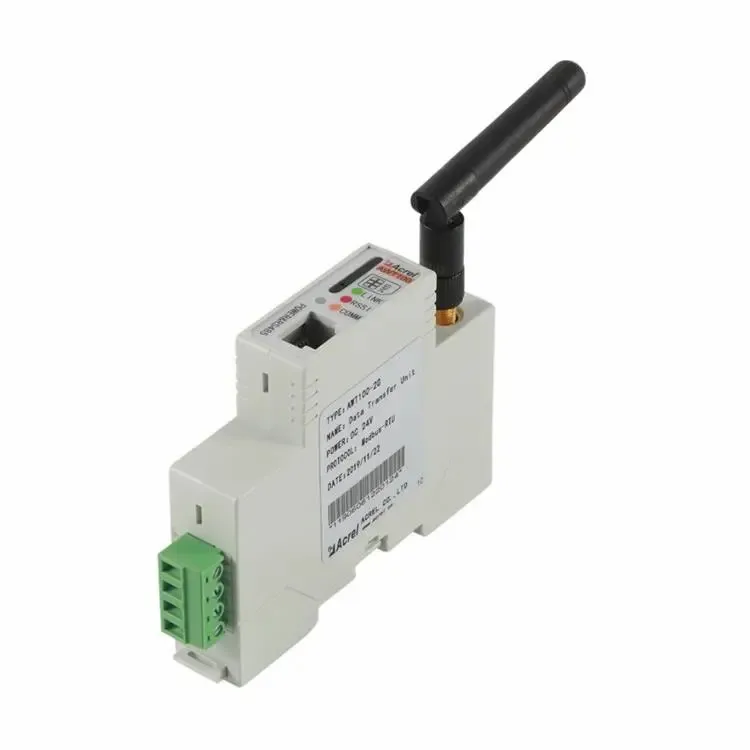

● 4G (Global general module)
● WiFi
● LoRaWAN
● LoRa
● NB-IoT
● WiFi
● LoRaWAN
● LoRa
● NB-IoT
● Temperature Measurement:-20℃~+100℃
● Residual Current Measurement:10~3000 mA
● Accuracy：Temperature：± 2℃; Residual Current：1% (Class 1)
● Residual Current Measurement:10~3000 mA
● Accuracy：Temperature：± 2℃; Residual Current：1% (Class 1)
● Over/Under Current
● Over/Under Voltage
● Over/Under Power
● Phase Loss
● Over/Under Voltage
● Over/Under Power
● Phase Loss
Wiring

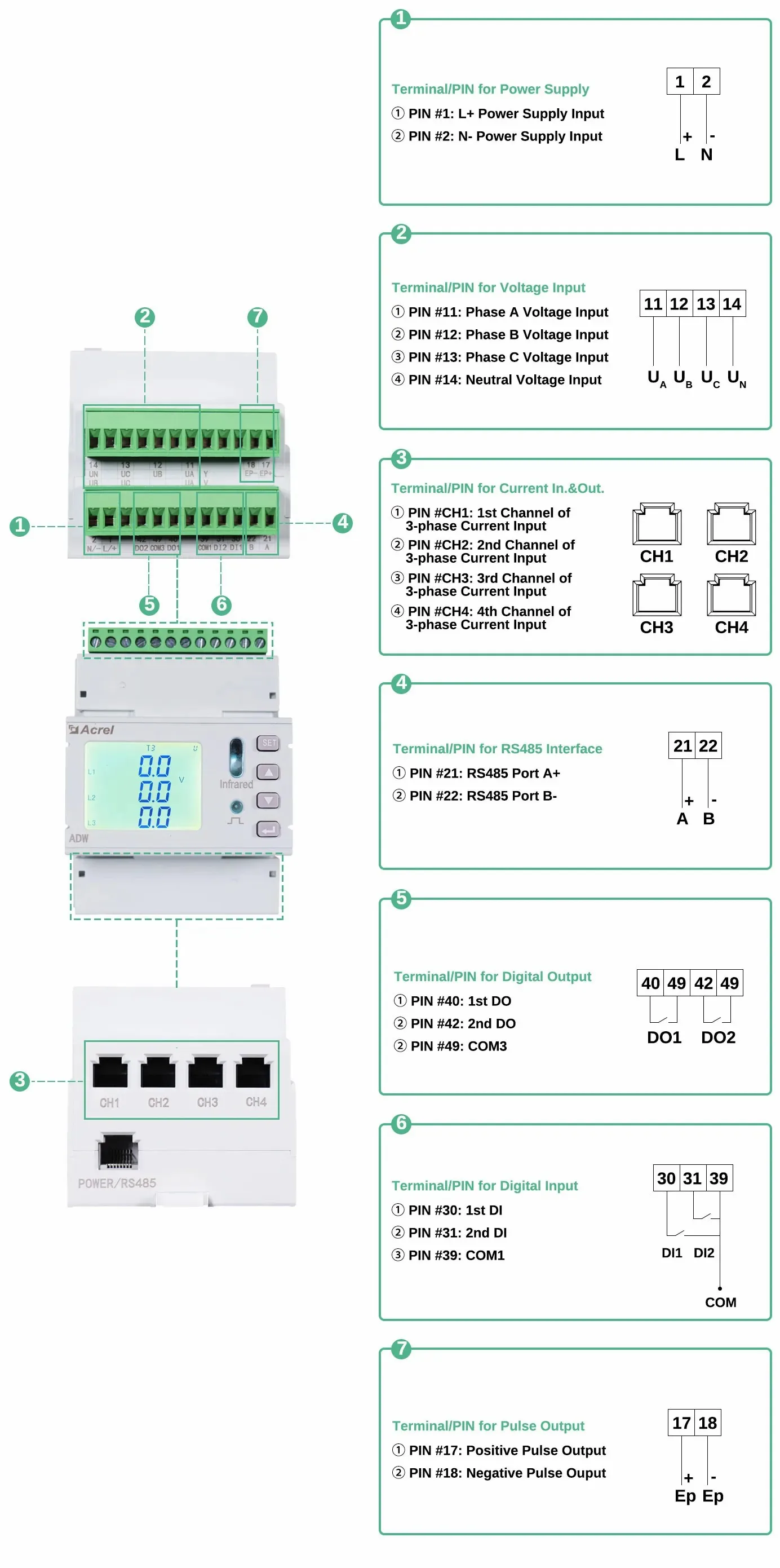

Wiring&Installation

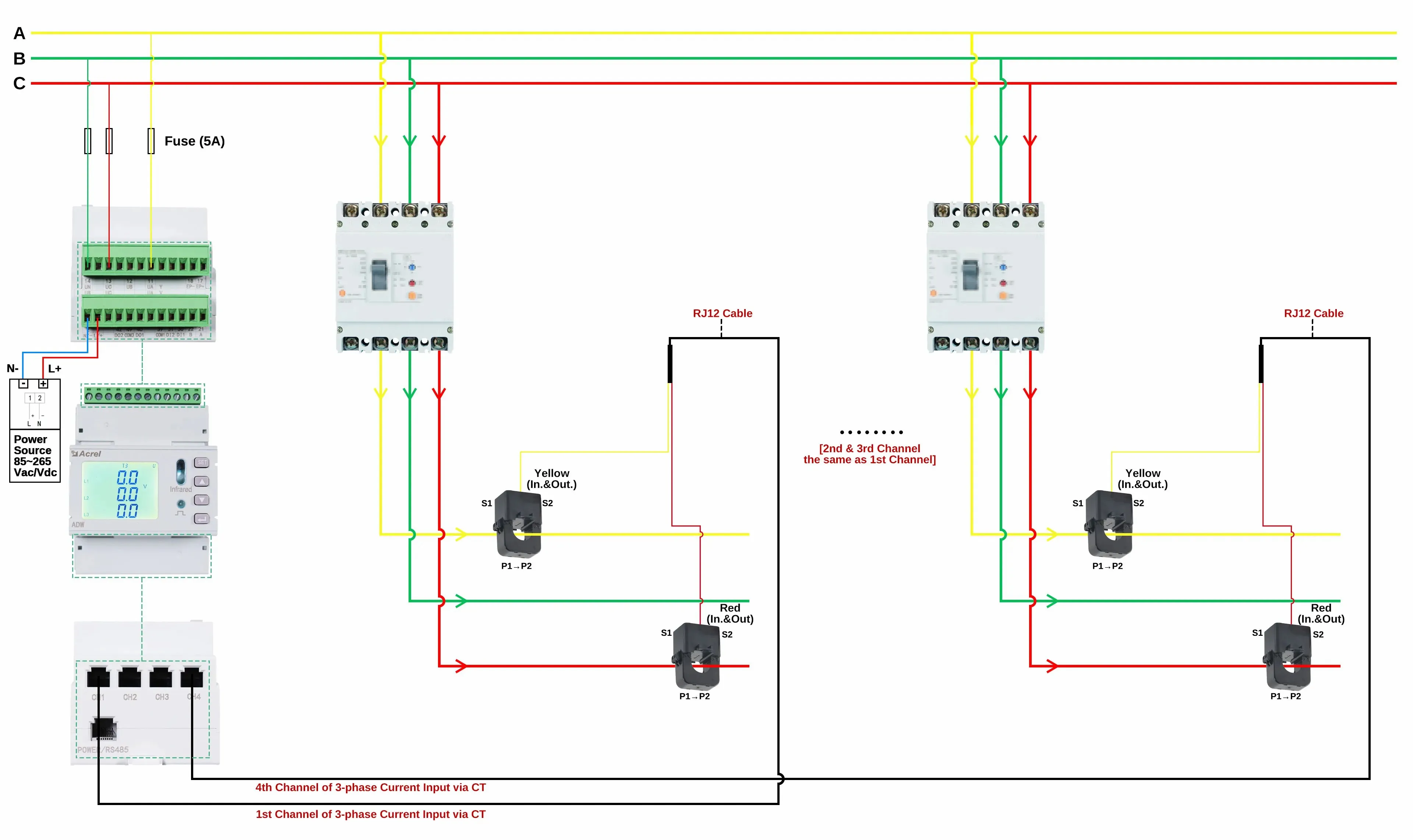

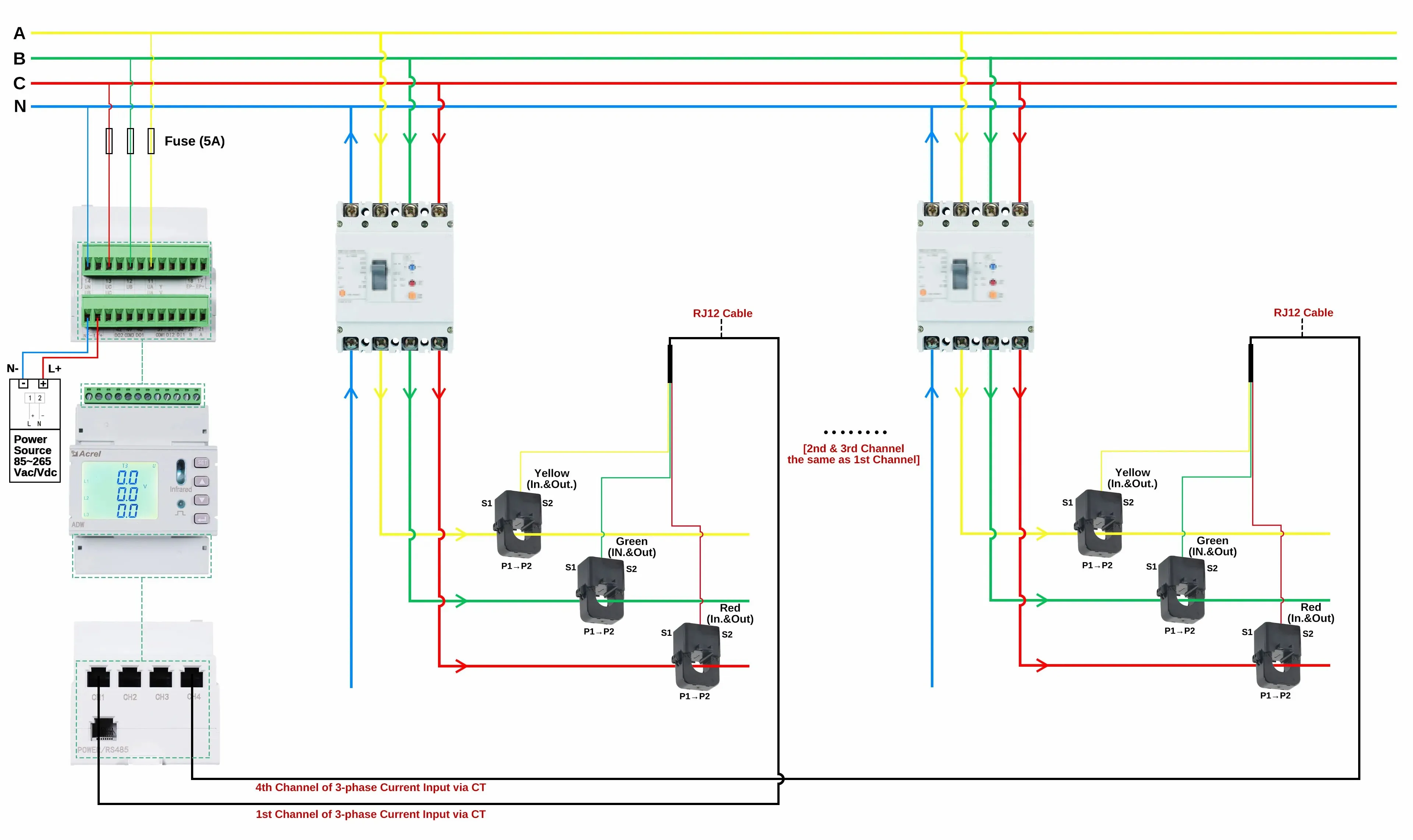

ADW210 3-phase 4-wire Power Wiring
ADW210 3-phase 3-wire Power Wiring Diagram
