Product Overview
Description
Product Information

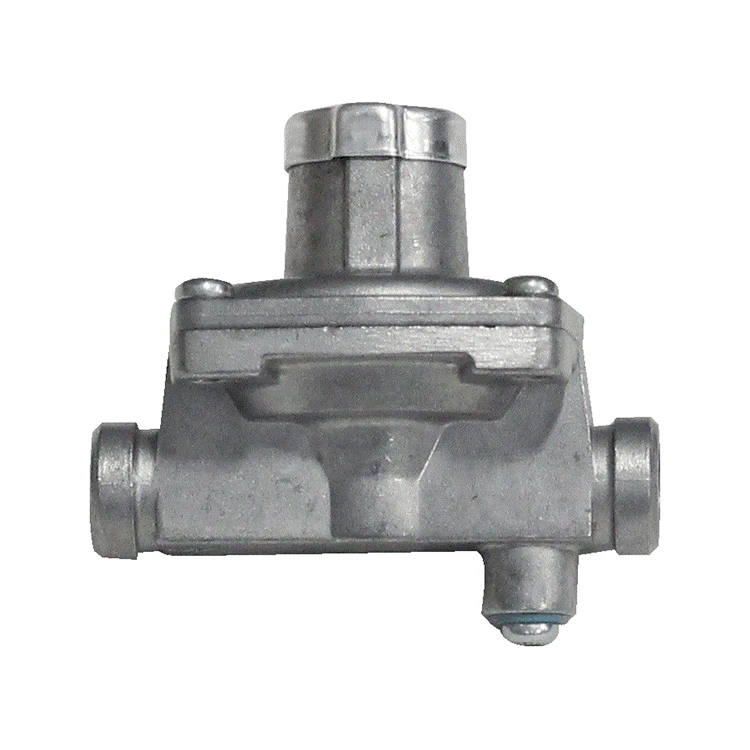

The ITO low pressure governors serve as an intermediate regulator after the first stage for LP Gas or medium pressure for natural gas. Various innovative technologies such as a balancing diaphragm enables both stable regulating performance and a large capacity when driven under a small differential pressure. PT-threaded compact design allows it to be equipped in a compact for use with gas burners and/or gas burning appliances, especially small size models which have light-weight and stable aluminum bodies. They maintain a constant outlet pressure independent of the fluctuation in inlet pressure and/or flow rate due to the burners and the appliances turning on and off. They are widely adopted by popular boiler or burner manufactures as their essential inner components in both domestic and overseas markets.
*Features*
Compact Body – Large flow rate for the connection size
Large Capacity – Suitable for various commercial and industrial installations
Quick Responsiveness – It keeps the outlet pressure stable even if the flow rate changes rapidly after solenoid valves are operated on the line
Stable Performance – Steady outlet pressure despite varying inlet pressures and flow rates
Adjustable Set Point – Various selection of interchangeable spring
*Available Configurations and Options*

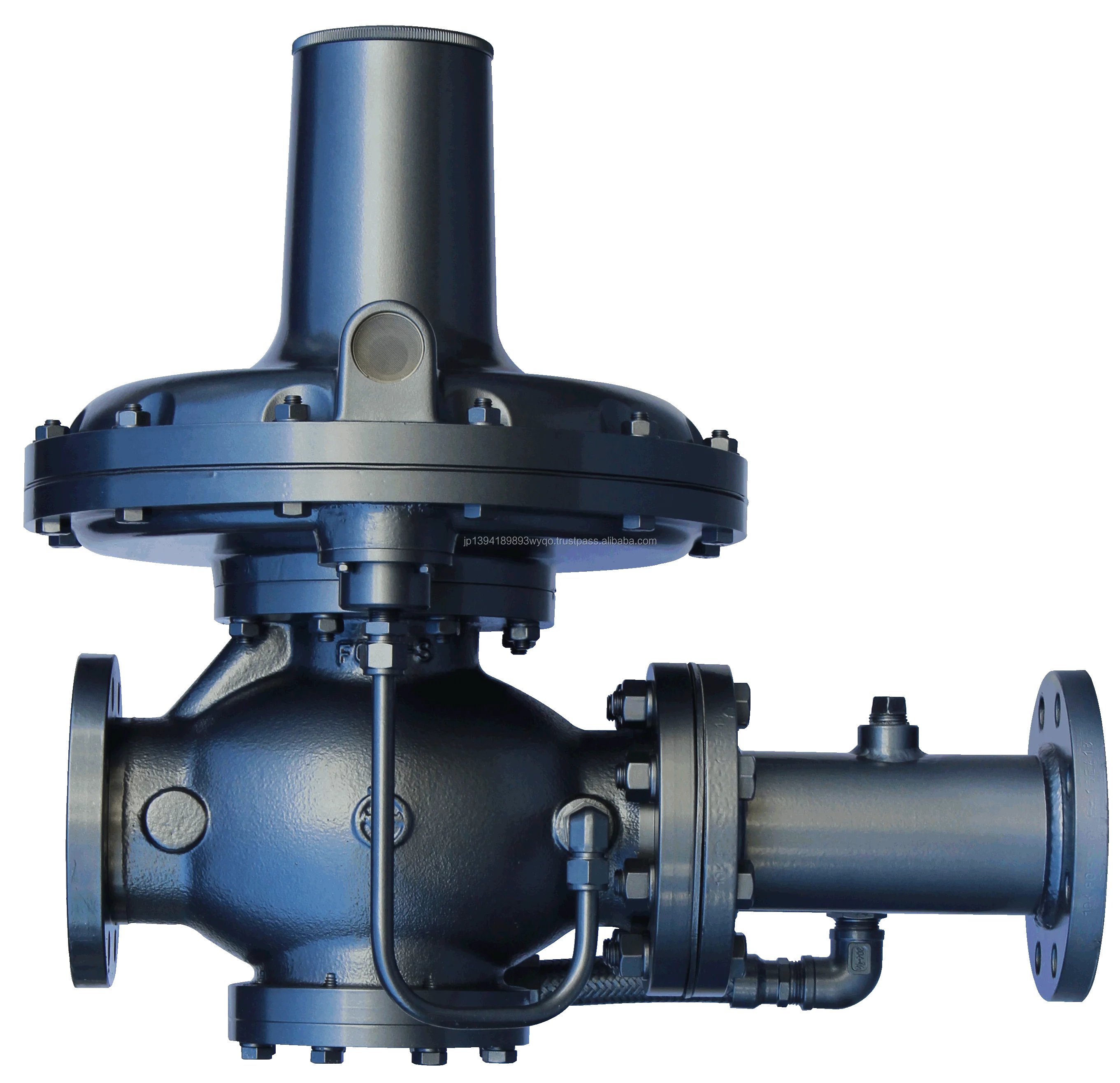

SGX Range: Inlet up to 30 kPa. Various nominal dimensions from 8A(1/4") to 100A (4") and outlet interchangeable springs up to 20 kPa (0.2 bar) are available. SGX-80 and 100 incorporate a feedback mechanism that loads pressure to the diaphragm chamber of the main governor from the outlet side by the auxiliary adjusting governor. This allows stable pressure control despite their large capacity. 5 optional functions are selectable in accordance with your purpose.
*Features*
Compact Body – Large flow rate for the connection size
Large Capacity – Suitable for various commercial and industrial installations
Quick Responsiveness – It keeps the outlet pressure stable even if the flow rate changes rapidly after solenoid valves are operated on the line
Stable Performance – Steady outlet pressure despite varying inlet pressures and flow rates
Adjustable Set Point – Various selection of interchangeable spring
*Available Configurations and Options*

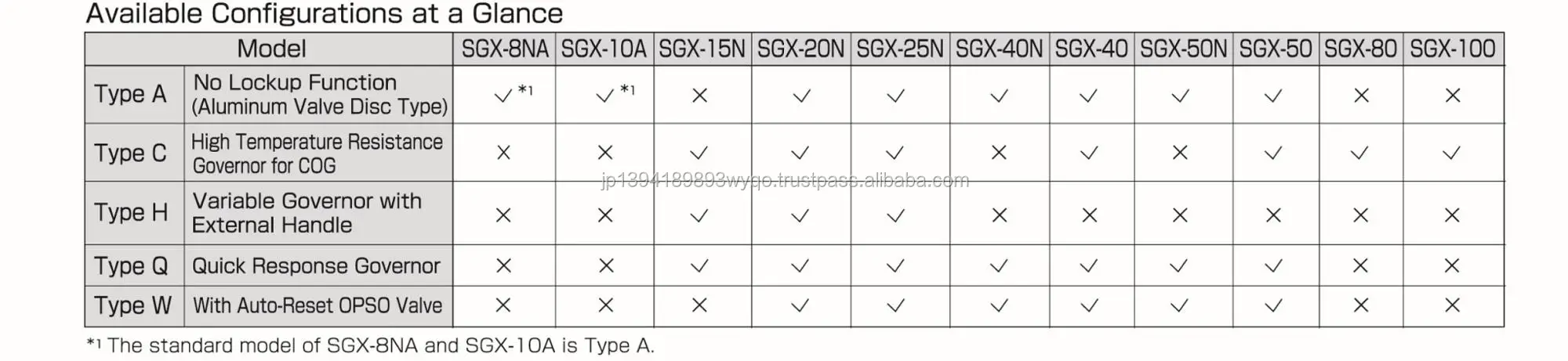

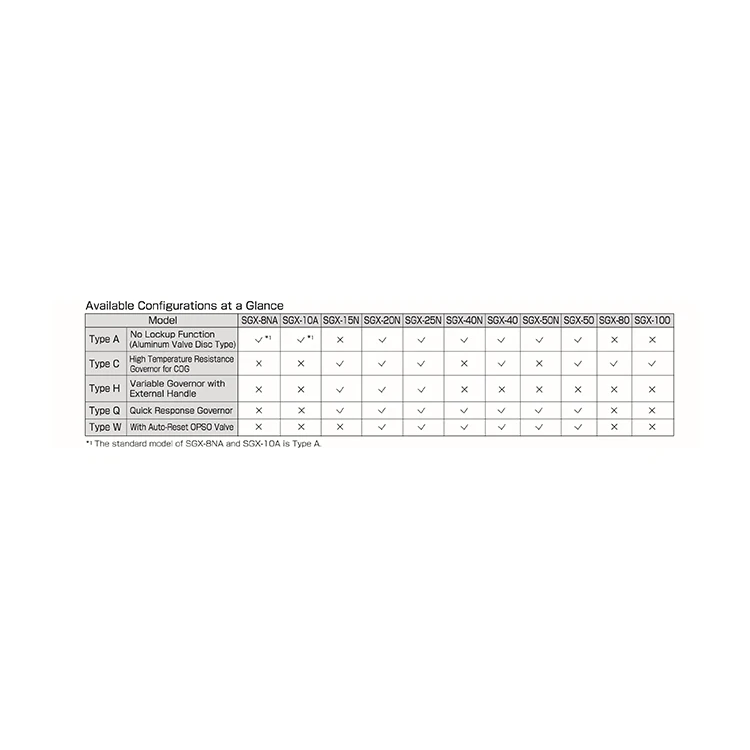

SGX Range: Inlet up to 30 kPa. Various nominal dimensions from 8A(1/4") to 100A (4") and outlet interchangeable springs up to 20 kPa (0.2 bar) are available. SGX-80 and 100 incorporate a feedback mechanism that loads pressure to the diaphragm chamber of the main governor from the outlet side by the auxiliary adjusting governor. This allows stable pressure control despite their large capacity. 5 optional functions are selectable in accordance with your purpose.
- Type A, No Lockup Function (Aluminum Valve Disc Type)
- Type C, High Temperature Resistance for Coke Oven Gas
- Type H, Variable Outlet Pressure with External Handle for easy handling
- Type Q, Quick Response Governor with an additional stabilizer at breather hole
- Type W, Doubled model, for auto reset type over pressure shut off in pressure rising situation and a back up in an emergency case
- Type C, High Temperature Resistance for Coke Oven Gas
- Type H, Variable Outlet Pressure with External Handle for easy handling
- Type Q, Quick Response Governor with an additional stabilizer at breather hole
- Type W, Doubled model, for auto reset type over pressure shut off in pressure rising situation and a back up in an emergency case

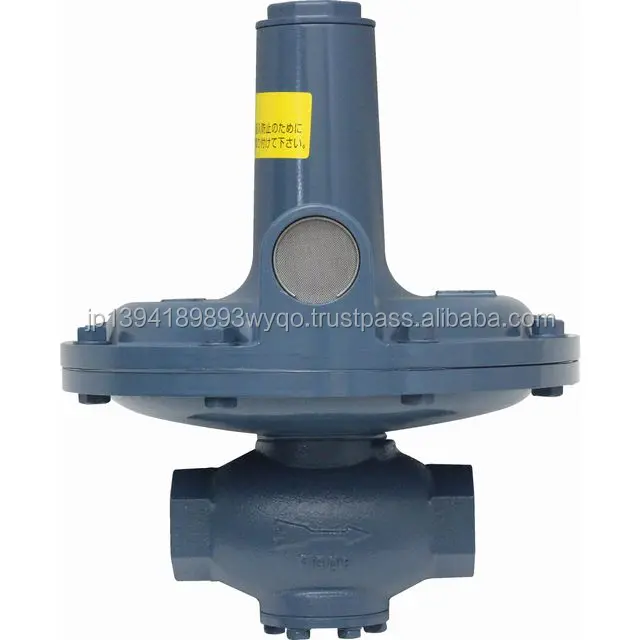

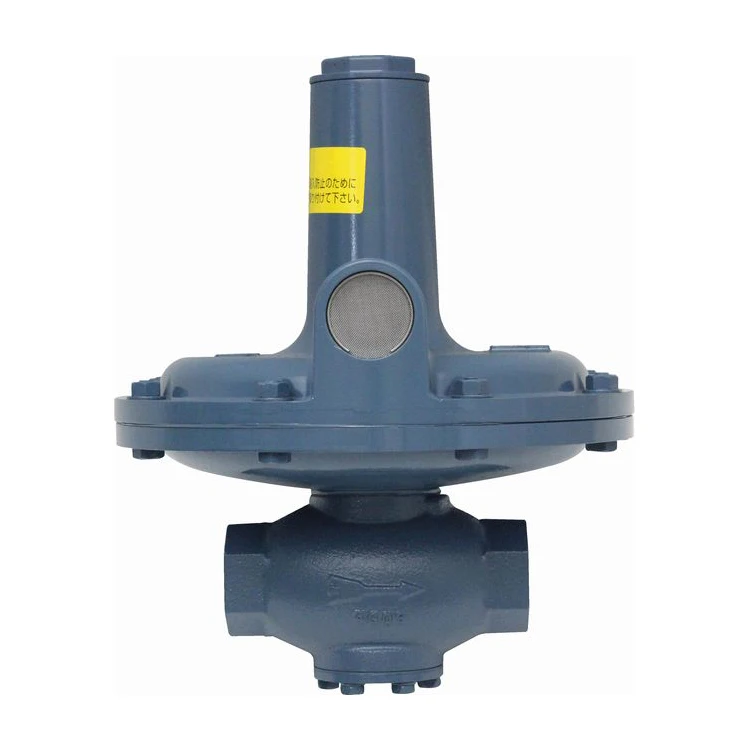

SG Range: Larger capacity model compared to SGX series. Safety relief valve is incorporated. Connection sizes 1", 1 1/2" and 2" and interchangeable springs up to 20 kPa (0.2 bar) are available.

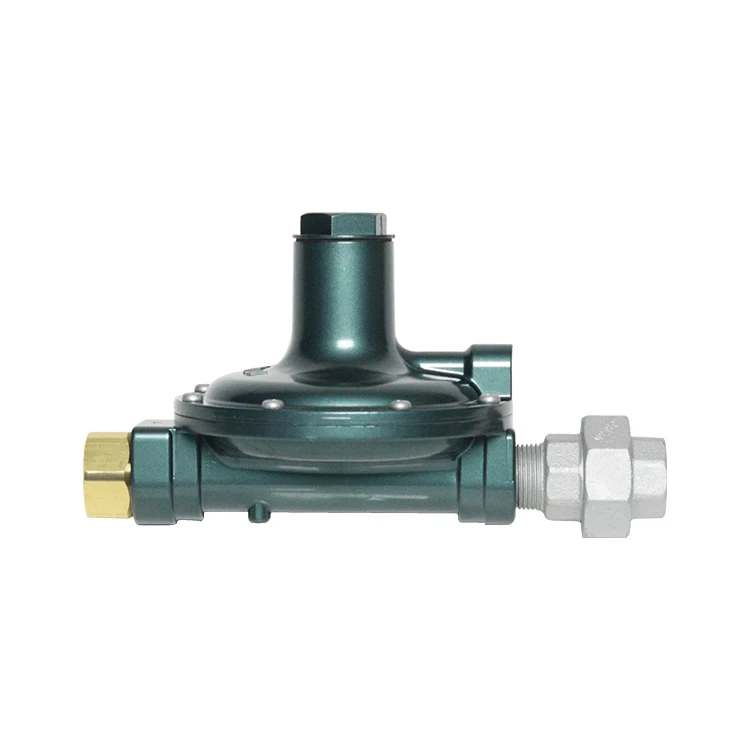

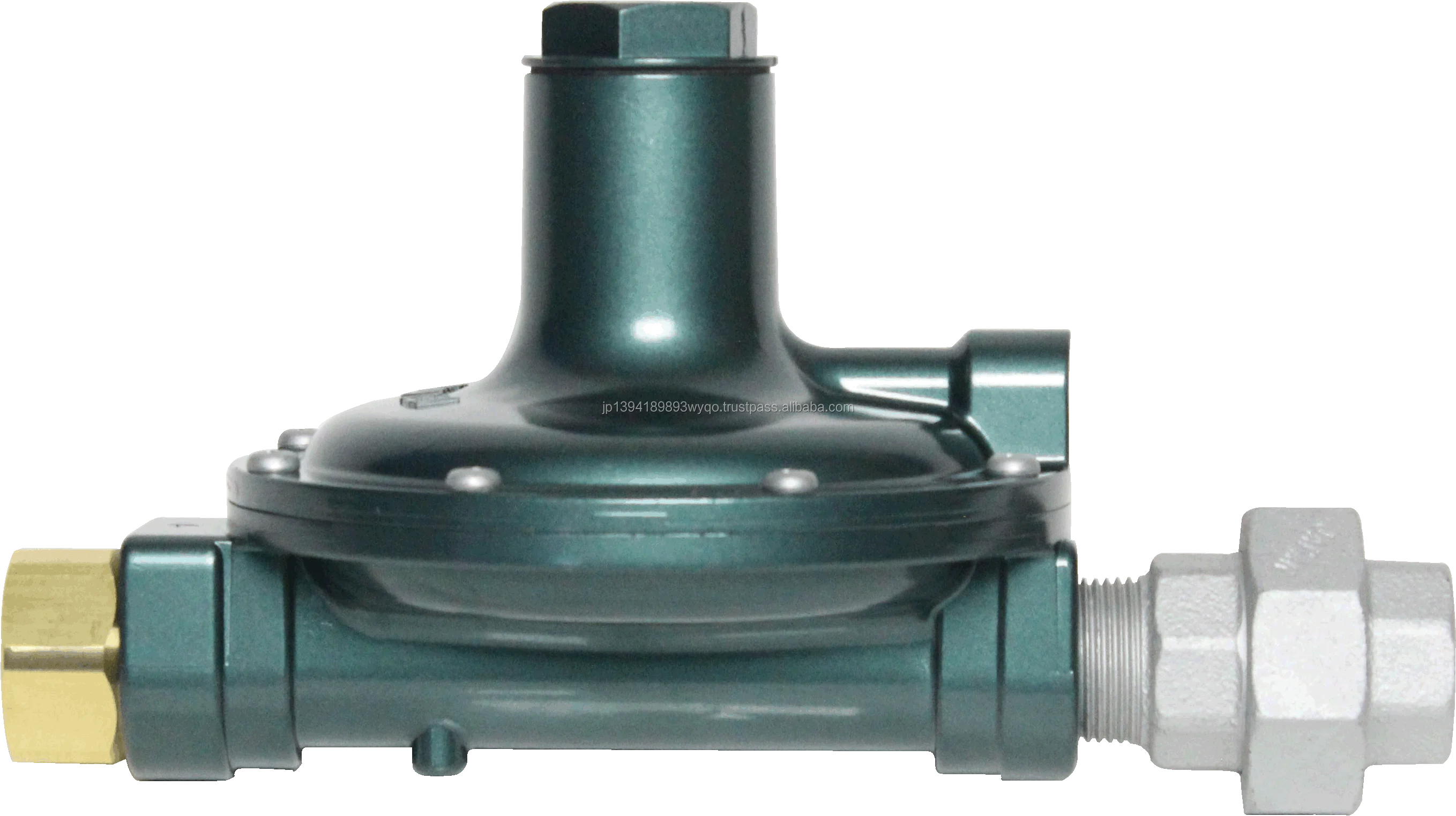

Others: Model C-10 or 20, the small size direct-operated low pressure regulators are also best selling product to be equipped in commercial burning equipment typically on a pilot line of steam boilers.
Model | Maximum Flow Rate (Natural Gas) | Inlet Connection | Outlet Connection | Inlet Pressure | Outlet pressure | Lockup Pressure | Safety Relief Valve Start-to-Discharge | Safety Relief Valve Stop-to-Discharge | ||||||||
SG-24A | 120Nm3/h | Rc1 | Rc1 | 5.80kPa ~ 35.0kPa | 2.55kPa ~ 3.05kPa | ≦3.40kPa | 5.60kPa ~ 8.40kPa | 5.04kPa ~ 8.40kPa | ||||||||
SG-32B | 300Nm3/h | Rc1 1/2 | Rc1 1/2 | |||||||||||||
SG-36A | 460Nm3/h | Rc2 | Rc2 | |||||||||||||
*Flow rate is expressed in m3/h(normal) of 0.6 specific gravity natural gas. | ||||||||||||||||
Model | Maximum Flow Rate (Natural Gas) | Inlet Connection | Outlet Connection | Inlet Pressure | Outlet pressure | Lockup Pressure | ||||||
SGX-8NA | 4.3Nm3/h | Rc1/4 | Rc1/4 | 5.00kPa | 0.90kPa ~ 1.10kPa | N/A | ||||||
SGX-10A | 7.4Nm3/h | Rc3/8 | Rc3/8 | 0.90kPa ~ 1.05kPa | ||||||||
SGX-15N | 32Nm3/h | Rc1/2 | Rc1/2 | 1.70kPa ~ 2.20kPa | ≦2.95kPa | |||||||

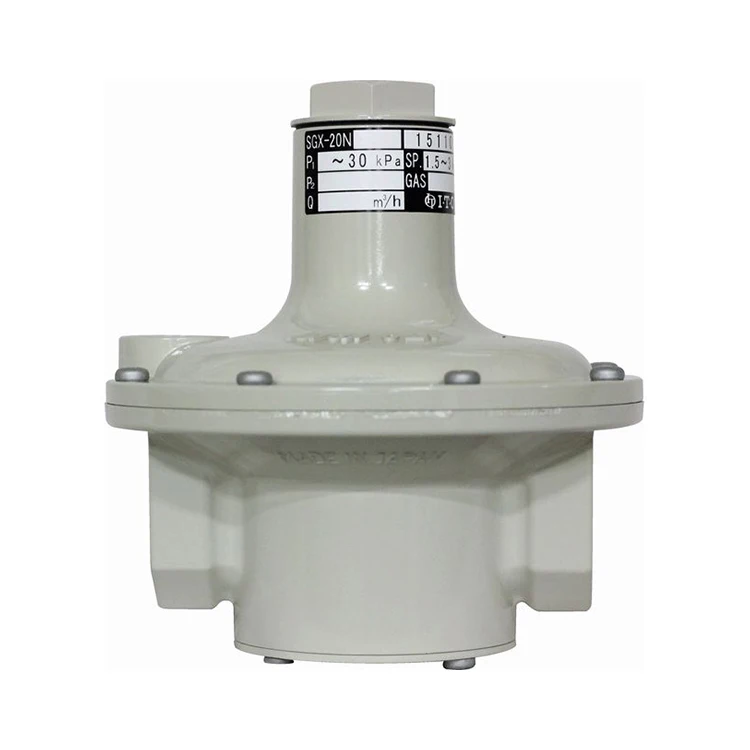

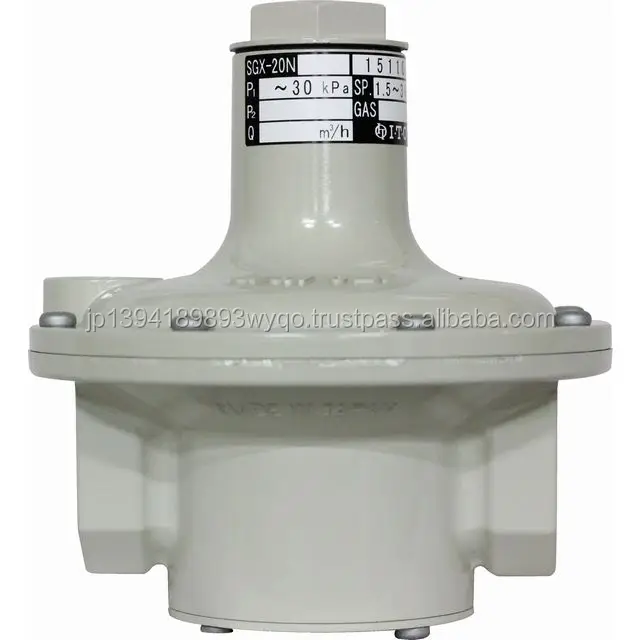

SGX-20N | 50Nm3/h | Rc3/4 | Rc3/4 | |||||||||
SGX-25N | 70Nm3/h | Rc1 | Rc1 | |||||||||
SGX-40N | 200Nm3/h | Rc1 1/2 | Rc1 1/2 | |||||||||
SGX-50N | 390Nm3/h | Rc2 | Rc2 | |||||||||
SGX-80 | 865Nm3/h | JIS 10K 80A Flange(RF) | JIS 10K 80A Flange(FF) | |||||||||
SGX-100 | 1300Nm3/h | JIS 10K 100A Flange(RF) | JIS 10K 100A Flange(FF) | |||||||||
*Flow rate is expressed in m3/h(normal) of 0.6 specific gravity natural gas. | ||||||||||||
Model | Maximum Flow Rate (Natural Gas) | Inlet Connection | Outlet Connection | Inlet Pressure | Outlet pressure | Lockup Pressure | Safety Relief Valve Start-to-Discharge | Safety Relief Valve Stop-to-Discharge | ||||||||
C-10A-1 | 12Nm3/h | Rc1/2 | Rc3/4 Union | 0.07MPa ~ 1.56MPa | 2.30kPa ~ 3.30kPa | ≦3.50kPa | 5.60kPa ~ 8.40kPa | 5.04kPa ~ 8.40kPa | ||||||||
C-10A-2 | 18Nm3/h | 0.025MPa ~ 0.10MPa | ||||||||||||||
C-20-1 | 24Nm3/h | JIS 20K 15A Flange | Rc1 Union | 0.07MPa ~ 1.56MPa | ||||||||||||
C-20-2 | 37Nm3/h | JIS 10K 15A Flange | 0.025MPa ~ 0.10MPa | |||||||||||||
*Flow rate is expressed in m3/h(normal) of 0.6 specific gravity natural gas. | ||||||||||||||||
