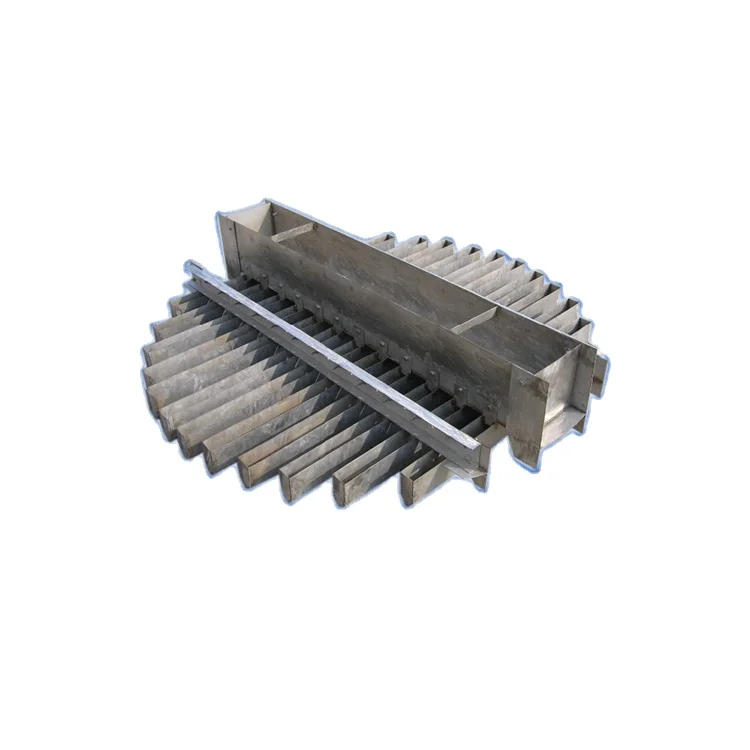

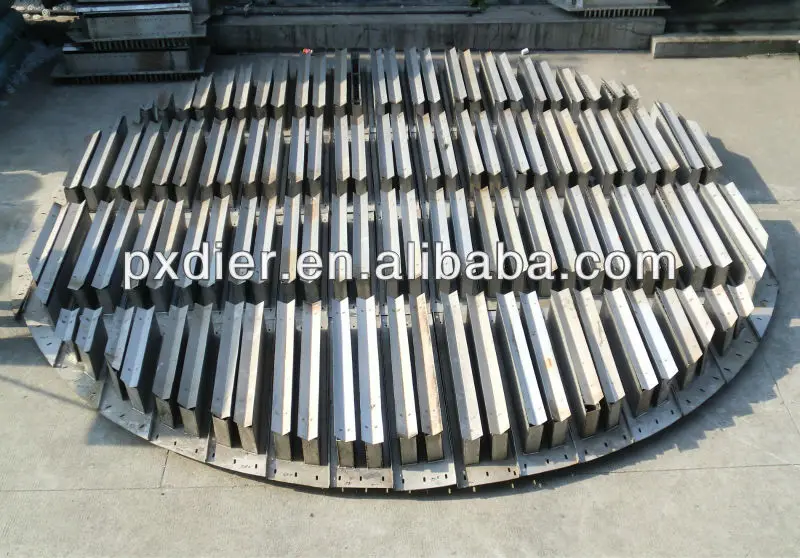

DIER Channel Type Liquid distributor used in Chemical Tower
- Category: Chemical Machinery & Equipment >>>
- Supplier: Jiangxi Pingxiang Dier Chemical Packing Co. Ltd.
Share on (1759081458):
Product Overview
Description
Product Description

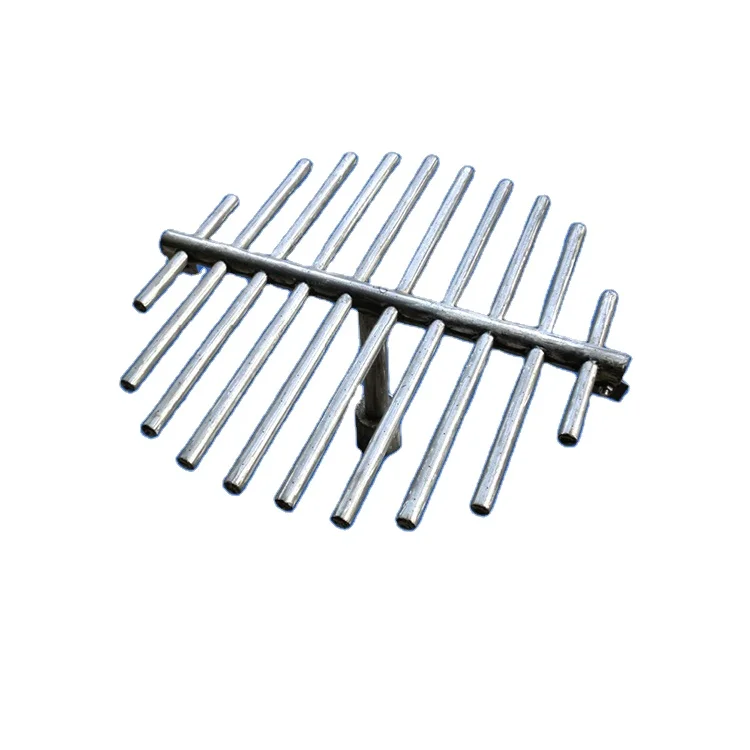

Pipe Arm Distributor
To acquire the maximum efficiency in packed column, liquid should be distributed uniformly over the packed bed.Therefore, Liquid
Distributors are used above each bed of packing.Good practice designed distributors have following specifications:
* Uniform liquid distribution
* Operation flexibility through the turn down range
* Low vapor pressure drop
* Low liquid residence time
* Capability to be used as combined with collector for re-distribution
* Minimum distributor height
* Fouling resistance
* Cross mixing capability
Distributors are used above each bed of packing.Good practice designed distributors have following specifications:
* Uniform liquid distribution
* Operation flexibility through the turn down range
* Low vapor pressure drop
* Low liquid residence time
* Capability to be used as combined with collector for re-distribution
* Minimum distributor height
* Fouling resistance
* Cross mixing capability
In the mass transfer process, evenly distribution of liquid and gas is certain important. If the liquid and gas are not evenly
distributed across the superficial tower area when it enters the packing bed, the liquid-to-gas ratio will be incorrect and the
required separation efficiency will be reduced and even fail. To ensure the intimate contact and high mass transfer efficiency,any cross section In the packed tower should be evenly distributed with gas and liquid. So, the liquid distributor, especially the pre-distributor is priority among priorities.Liquid distributor is an important tower internals in the packed tower, which is installed upper of the packing hold down and
connect with the liquid inlet. The structure of liquid distributor should be reasonable to prevent disturbing hold down device forhigher mass transfer efficiency.
What types of liquid distributor for choice?

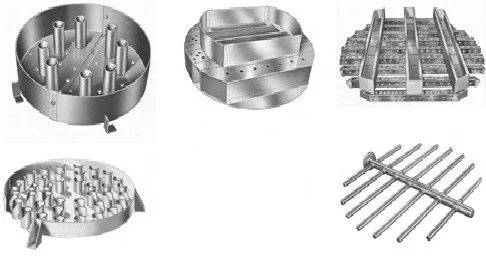

The liquid distributor has various types according to different standard and using conditions. Overall, it has four types.
* Spray nozzles. Hemispherical spray nozzle will distribute the liquids evenly to the random or structured packing bed. There are numerous small holes in 3–10 mm on the nozzle. It is suitable for the smaller diameter packed tower, which is smaller than 600mm.
distributed across the superficial tower area when it enters the packing bed, the liquid-to-gas ratio will be incorrect and the
required separation efficiency will be reduced and even fail. To ensure the intimate contact and high mass transfer efficiency,any cross section In the packed tower should be evenly distributed with gas and liquid. So, the liquid distributor, especially the pre-distributor is priority among priorities.Liquid distributor is an important tower internals in the packed tower, which is installed upper of the packing hold down and
connect with the liquid inlet. The structure of liquid distributor should be reasonable to prevent disturbing hold down device forhigher mass transfer efficiency.
What types of liquid distributor for choice?
The liquid distributor has various types according to different standard and using conditions. Overall, it has four types.
* Spray nozzles. Hemispherical spray nozzle will distribute the liquids evenly to the random or structured packing bed. There are numerous small holes in 3–10 mm on the nozzle. It is suitable for the smaller diameter packed tower, which is smaller than 600mm.

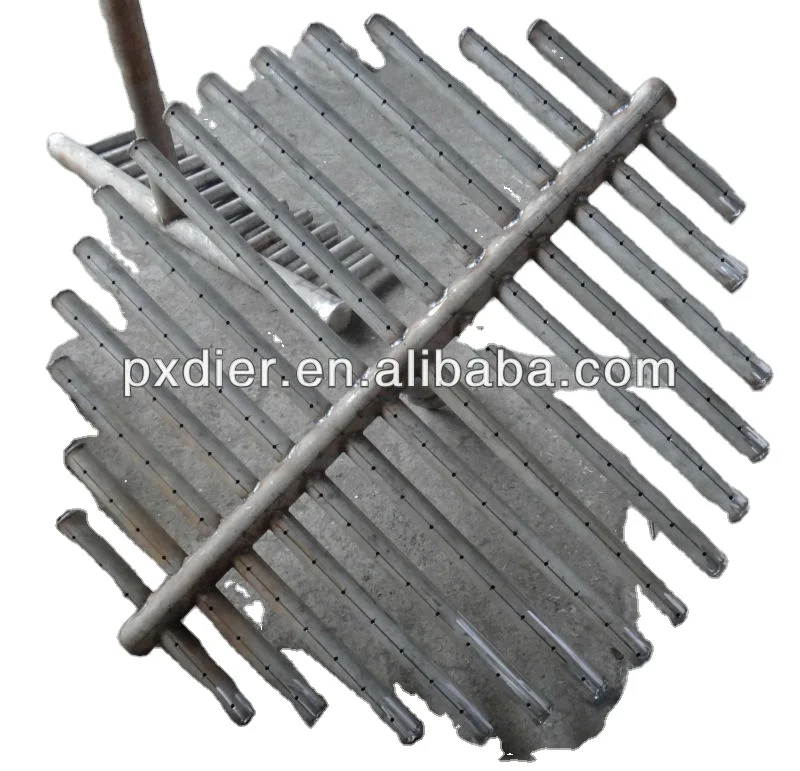

* Perforated pipe distributor. Single row or double row perforated pipes will evenly distributed the liquid to the packing bed through perforated holes under the pipe. It is widely used in the medium liquid, reduced pressure distillation towers and wire gauze structured packing towers. It can be made into ladder shapes and ring shapes.
* Through distributor. It has through type and through-pan type, which is widely used in the heavy liquid and gas load, high
viscosity liquid and liquid with suspended solid.
* Orifice distributor. It can be divided into perforated plate type and pan type. The liquid will flow down through perforated
holes or overflow from the annulus between the distributor and the vessel. It is suitable for the small diameter tower, which is smaller than the 800 mm.
* Through distributor. It has through type and through-pan type, which is widely used in the heavy liquid and gas load, high
viscosity liquid and liquid with suspended solid.
* Orifice distributor. It can be divided into perforated plate type and pan type. The liquid will flow down through perforated
holes or overflow from the annulus between the distributor and the vessel. It is suitable for the small diameter tower, which is smaller than the 800 mm.
30 Years Experience Manufacture
Advanced Production Equipment
01 Laser Cutting Machine
02 Laser Cutting Machine

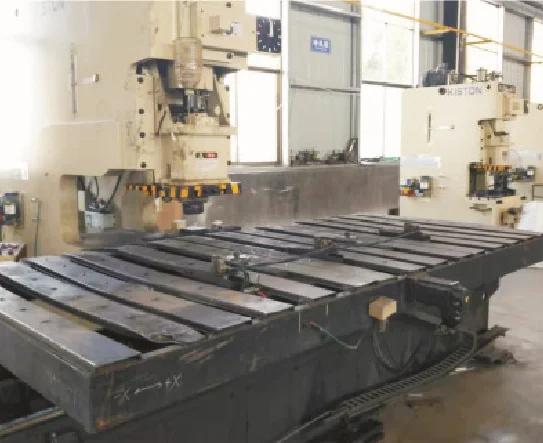

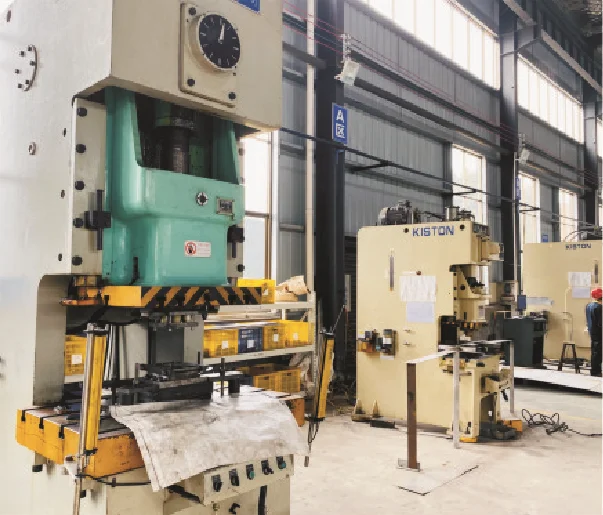

01 Press Equipment
02 Press Equipment
Cutting Machine Tool

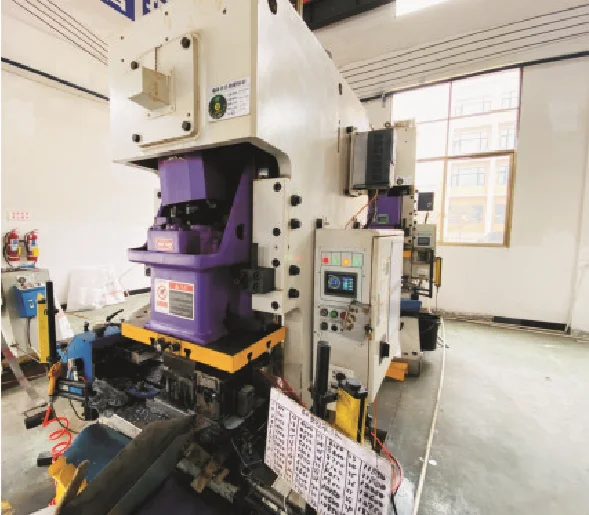

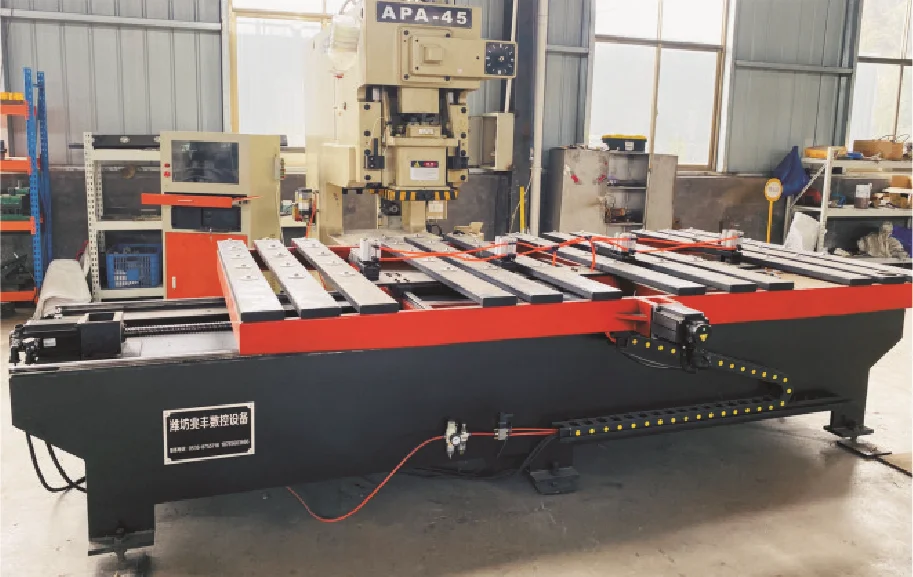

Punching Machine

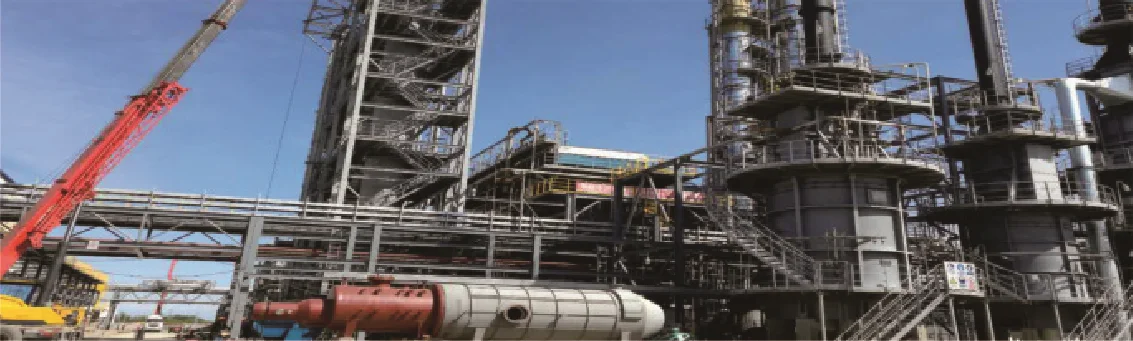

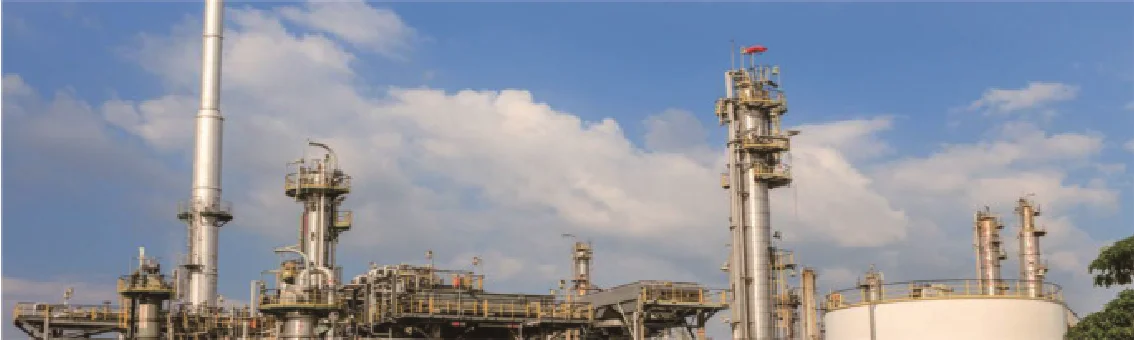

Success Project
20000t/a white oil hydrogenation unit flue gas desulfurization project of Xinjiang Chaoyuan Chemical Co.,Ltd
Shangdong Ronxin Group Coking Project

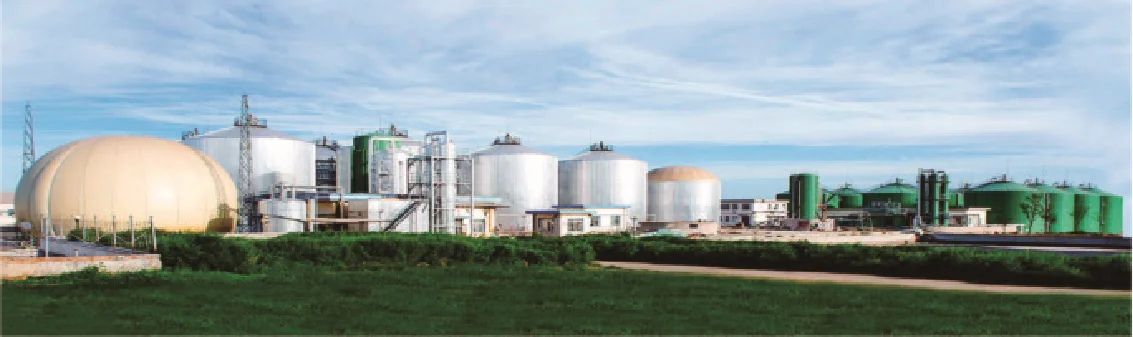

Large Scale Biogas power generation project in Mengniu Aoya demonstration
farm of Hangzhou Energy and Enviroment
Gansu Lanke Petrochemical 1 million T/YEAR Refinery project
Let us give you best service
Name of the factory is DIER. and it opened on 2004. We got 3 factories. And now DIER is the largest chemical packing and tower internal factory among them.
I am vivian. I was employee number 509. When I got there, there stand 6 workshops. I heared about its history from my
collegues. It used to be one building , and you can imagine 1992, it was very small. Now that moved to in the West District of Hi-Tech Industrial Park.
Just from one side to go on other side, it takes 8 minutes.
As the business grew, manufacturing grew together as well to the point where we did not have enough space. So we had to move to a much bigger location.
We service more than 800 clients each year. And would like to benefit more clients around the world.
The difference with us is that In 2013, we established a technology center with 35 technical specialist and we've hired 3 doctors in chemical tower design from Tsinghua Universiy, Tianjing University and East China University of science and technology to provide strong technical support in product quality, tower internals design, production and new product development field.These are all specialist and can help us design and solve the technical problems efficiently.
Our product is , first and foremost, quality based.
It's not about pushing our numbers, I don't think we mass produce, we mass honesty, efficiency, trusted relationship.
I am vivian. I was employee number 509. When I got there, there stand 6 workshops. I heared about its history from my
collegues. It used to be one building , and you can imagine 1992, it was very small. Now that moved to in the West District of Hi-Tech Industrial Park.
Just from one side to go on other side, it takes 8 minutes.
As the business grew, manufacturing grew together as well to the point where we did not have enough space. So we had to move to a much bigger location.
We service more than 800 clients each year. And would like to benefit more clients around the world.
The difference with us is that In 2013, we established a technology center with 35 technical specialist and we've hired 3 doctors in chemical tower design from Tsinghua Universiy, Tianjing University and East China University of science and technology to provide strong technical support in product quality, tower internals design, production and new product development field.These are all specialist and can help us design and solve the technical problems efficiently.
Our product is , first and foremost, quality based.
It's not about pushing our numbers, I don't think we mass produce, we mass honesty, efficiency, trusted relationship.
ASK US EVERYTHING ABOUT TOWER INTERNAL
Packing & Delivery
Carton Box
Wooden Box
Quantity/piece | 0-10 | 11-50 | 51-100 | more than 101 |
Lead time/day | 15 | 25 | 35 | negotiable |
FAQ
1.Q:Are you trade company or manufacture?
A:We are manufacture with more than 30 years experience,and the price is the direct factory price. You can ask us to send
youyoutube videos or just use whatsapp to make a video call to see.
2.Q:How to control the quality?
A:We have strict quality by Production and Technical and QC team.
3.Q:How long is the delivery time?
A:It is about 5 days after payment for stock goods,10-15 days for new producing goods.
4.Q: How to get the sample ?
A: Please contact us via TM or Email for sending you samples.
5.Q:What is the payment terms?
A:Generally,30% in advance,70% before shipment.
6.Q:Can you do OES service?
A:Yes,size & shape could be custom as client's request.
A:We are manufacture with more than 30 years experience,and the price is the direct factory price. You can ask us to send
youyoutube videos or just use whatsapp to make a video call to see.
2.Q:How to control the quality?
A:We have strict quality by Production and Technical and QC team.
3.Q:How long is the delivery time?
A:It is about 5 days after payment for stock goods,10-15 days for new producing goods.
4.Q: How to get the sample ?
A: Please contact us via TM or Email for sending you samples.
5.Q:What is the payment terms?
A:Generally,30% in advance,70% before shipment.
6.Q:Can you do OES service?
A:Yes,size & shape could be custom as client's request.
