JSP 2525 24V 10kgs force DC solenoid electromagnet holding electromagnet lifting electromagnet
- Category: Magnetic Lifter >>>
- Supplier: Tonglu Sushi Jinsun Home Product Factory
Share on (1815238471):
Product Overview
Description
Product Description

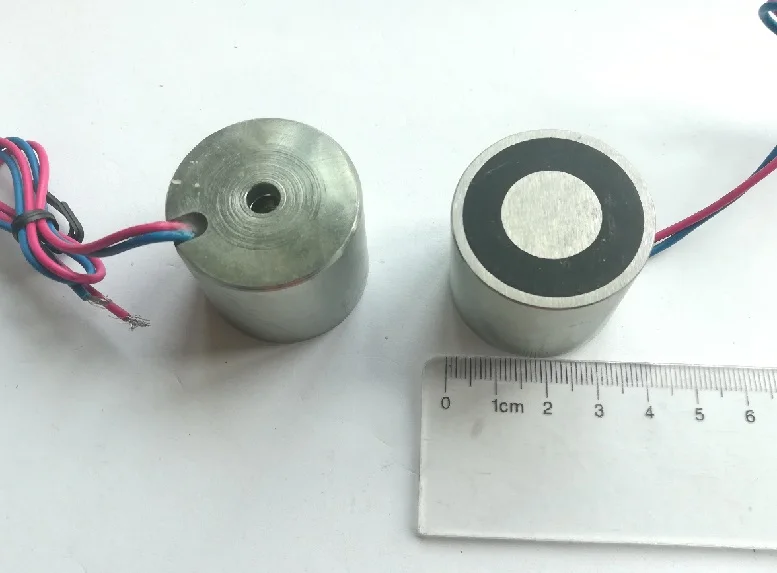

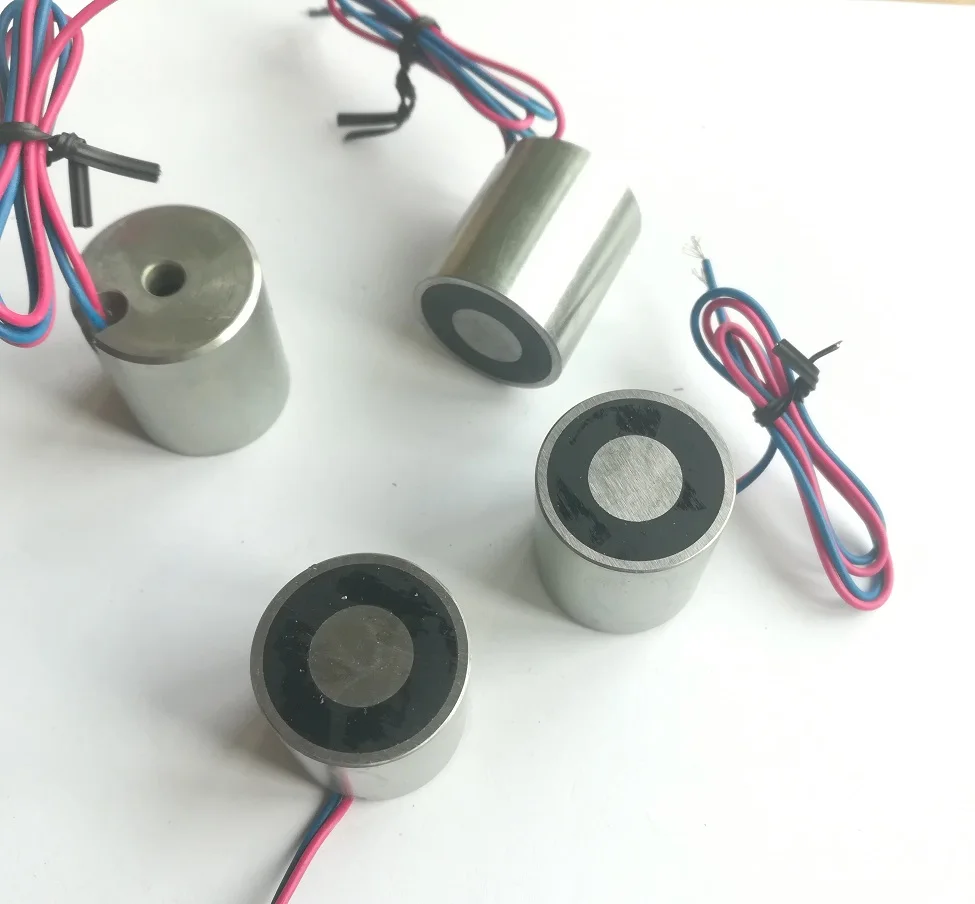

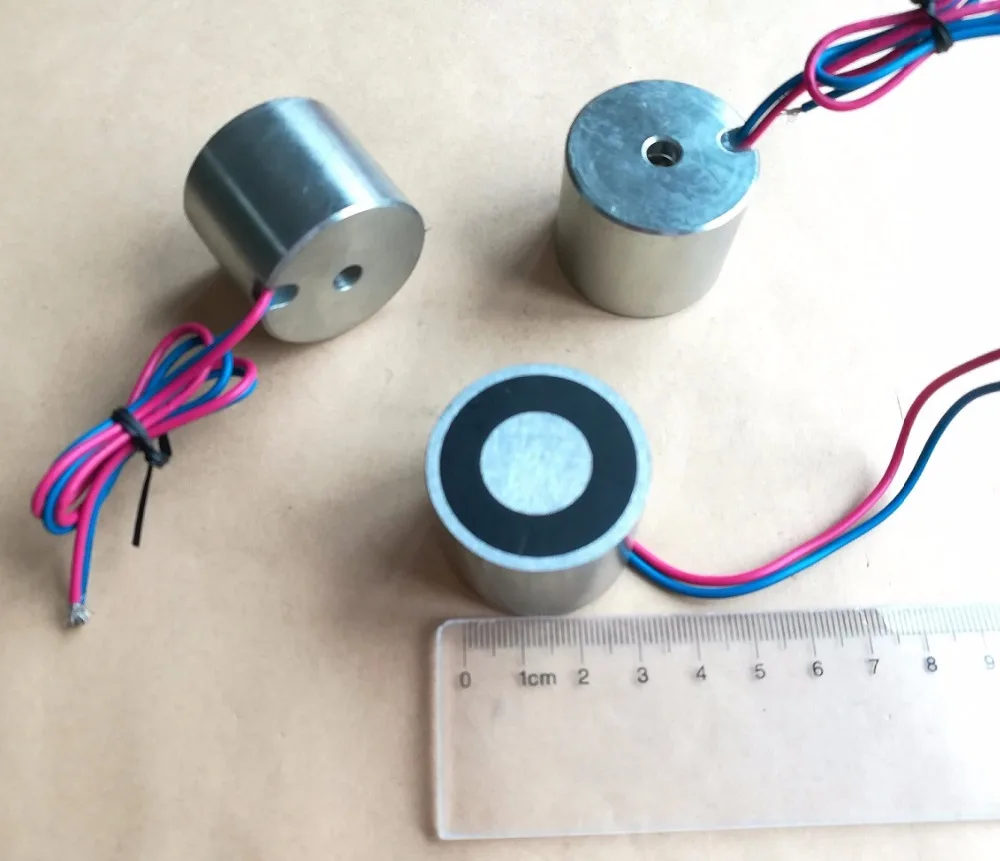

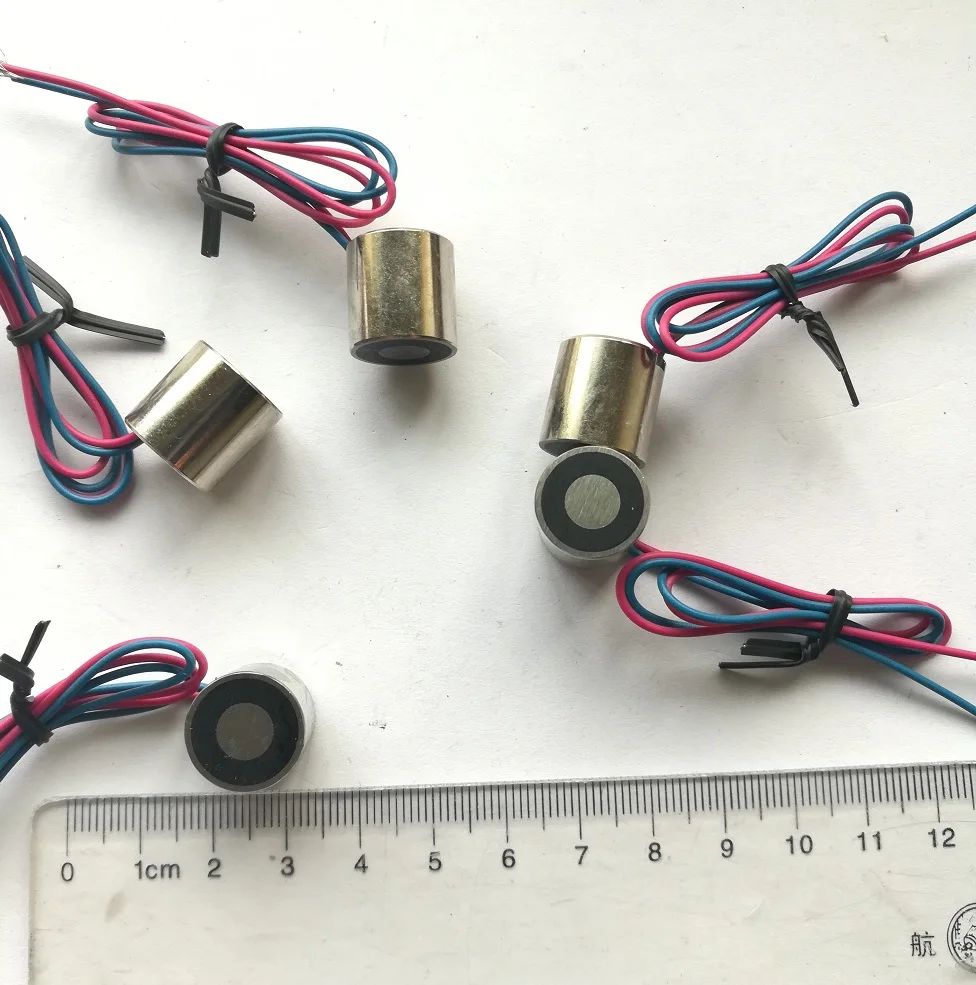

JSP-2525 24V 10kgs force DC solenoid electromagnet holding electromagnet lifting electromagnet
- Model: JSP-2525:
- Power: 24VDC 2.4W
- Size: Dia25 x 25mm, M6 through screw hole
- Attract force: >10kgs
- Power on to hold, power off to release
- Duty cycle: 100%

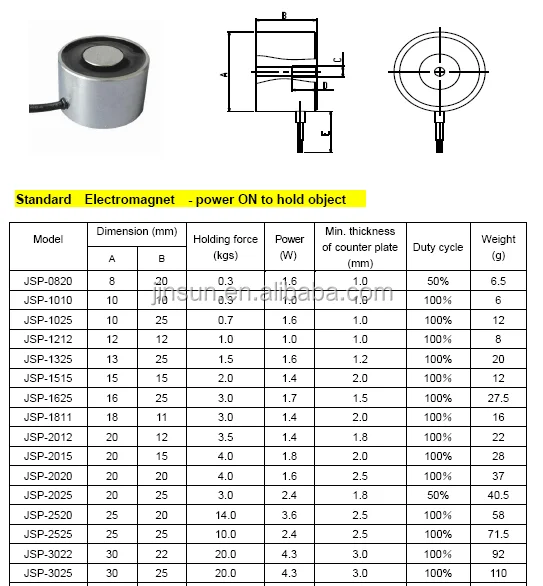

Product | Standard Electromagnet | Insulation Class | B |
Model | JSP-2525 | Service Life | 500 Thousand |
Voltage | DC 24V | Lead time | 5 days if have stock |
Power | 2.4W | Sample Order | Acceptable |
Holding Force | >10kgs | MOQ | 10 pc |
Duty Cycle | 100% | Warranty | 1 Year |
Lead Wire | 250mm | Port of Loading | Ningbo, Zhejiang |

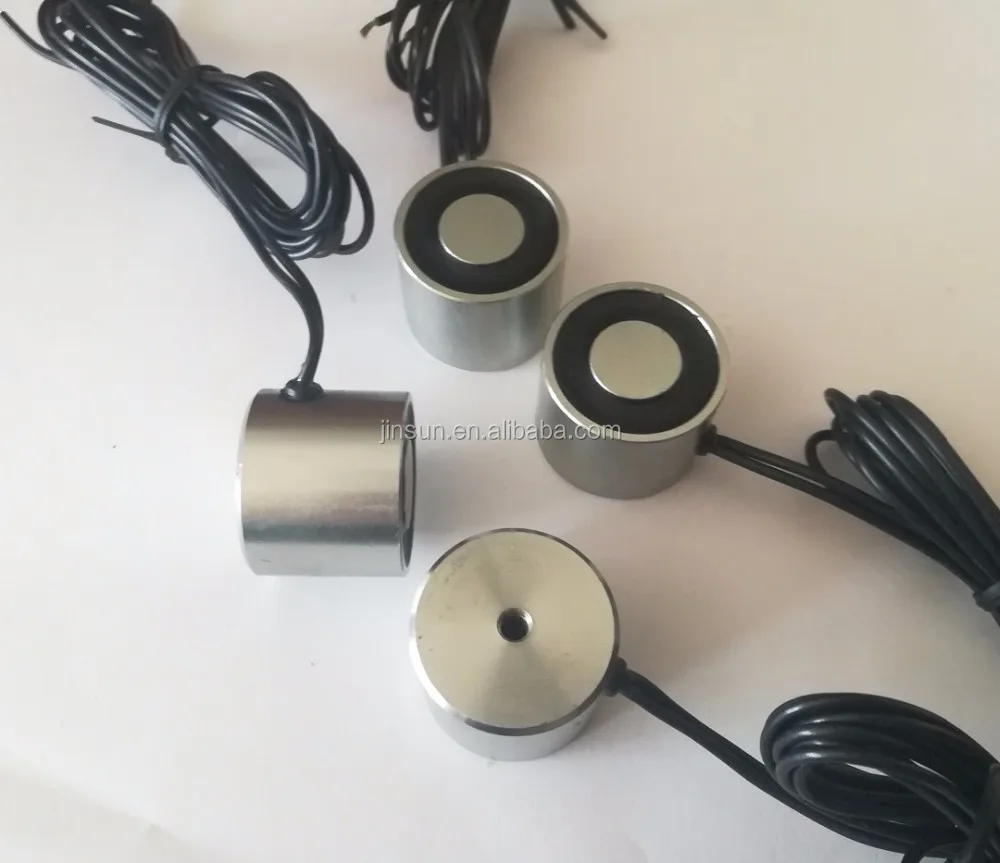

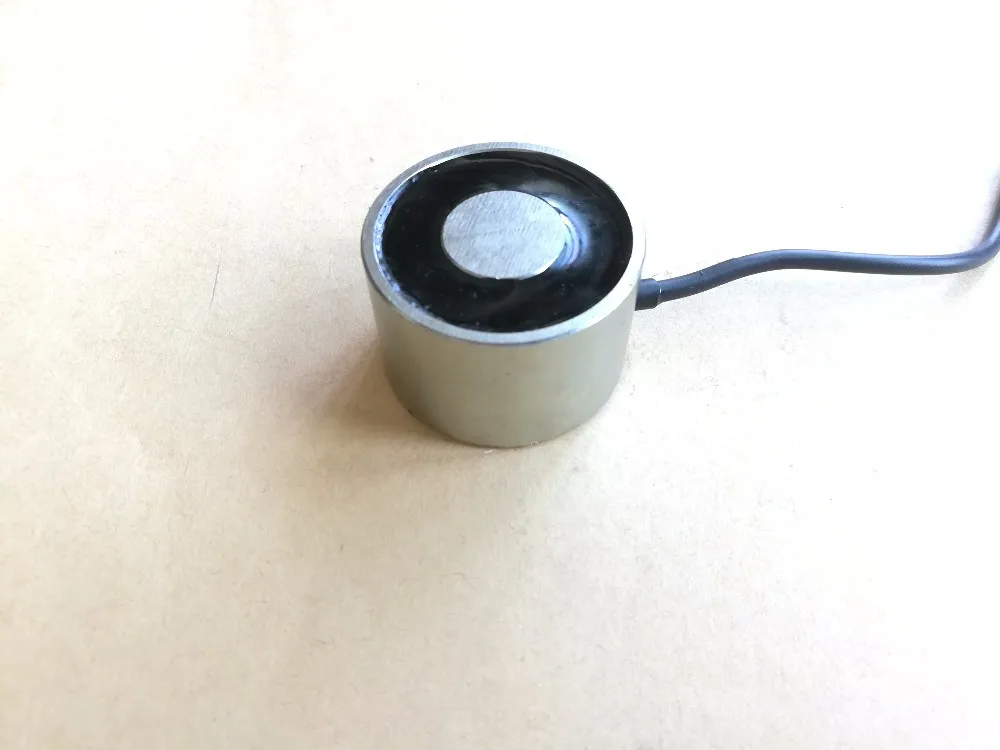

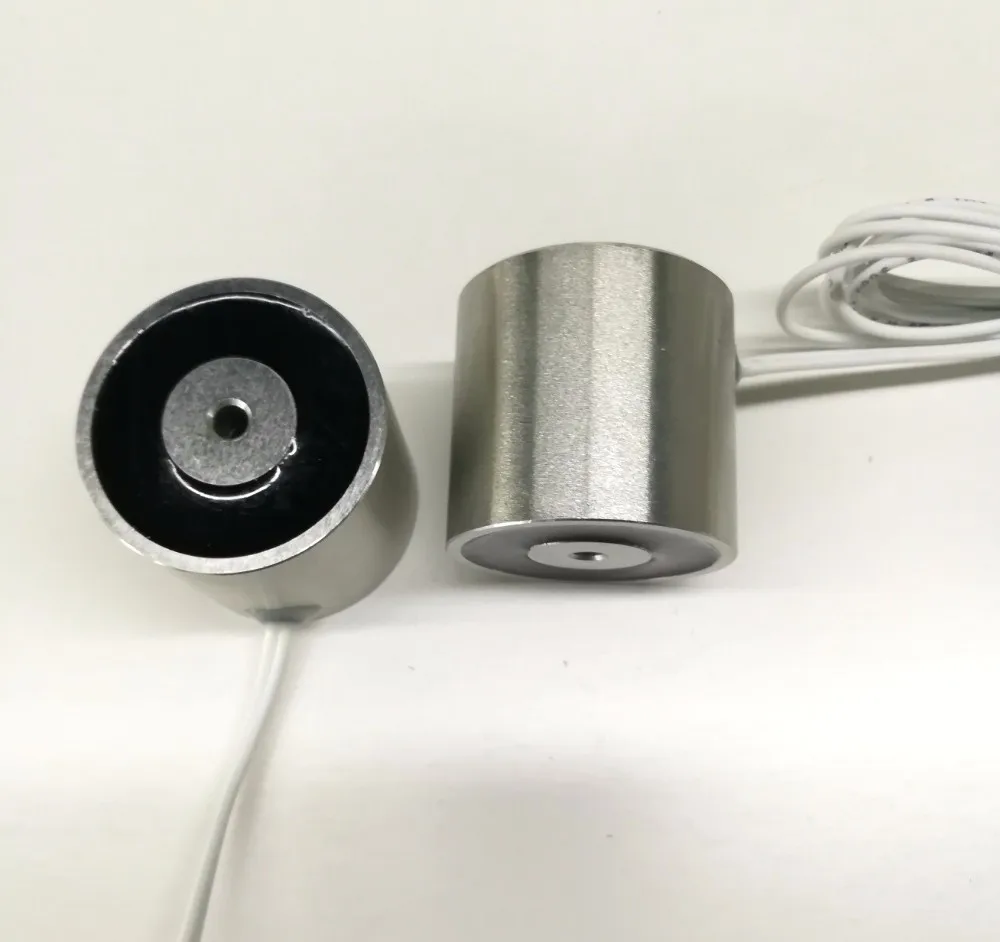

Products Show
Opposite electromagnet
Also called permanent electromagnet, can hold without power, when power is on, it will release object.
Open Frame Solenoid
Push Pull solenoid include open frame solenoid and tubular solenoid, use as lock.
Our Service
High quality Assembly
Automation assembly, ensure quality stable and delivery quickly.
Size & appearance inspection
Raw material incoming test and finished product test of every shipment.
Magnetic force test
Holding force test on every shipment.
Our Company
Factory
Our Factory
Workshop
Our Workshop
About us
Jinsun Electronics Co., Limited is a hi-tech export oriented factory located in Ningbo, Zhejiang province. It has been involved in engineering and manufacturing permanent magnet, magnetic devices and electromagnet since 2007. Rare earth permanent magnet include: neodymium magnets, samarium cobalt magnets and magnetic assemblies. Our Electromagnet includes holding electromagnet, linear push pull solenoid and tubular solenoid.
Our leaders have been in magnetic industry with over 15 years of experience. We have a team of professional engineers, well-trained workers and advanced equipments. Our annual production capacity of magnet reaches 1800ton. 70% of our products are exported, main customers located in Germany, Italy, UK, USA, Canada, Australia, South Korea, Indonesia and Thailand.
If you have any demand for magnetic product or electromagnetic product, please contact us . You will be very satisfied to have us as your vendor.
Packing & Delivery
Packing Details:
- 1pc in one polybag, 5pcs in one box
- 80pcs in once carton
- Carton size: 37 x 27 x 22cm
Delivery time: 25 days
Payment term: 50% T/T in advance, 50% before shipment.
1. Special logistics packaging
2. Suitable carton size
3. Shock bubble film
Our Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How to choose the model?
A: For linear solenoid, please inform us below:
push or pull typedimension limit
stroke & force
duty cycle
duty cycle
For holding electromagnet, please inform us:
holding force you need
dimension limit if have
duty cycle
holding force you need
dimension limit if have
duty cycle
Q: What's Duty Cycle?
Duty cycle = "ON" time /( "ON" time + "OFF" time), time at "second"
E.g. each cycle time is 10s, power on 2s and power off 8s, duty cycle = 2 / (2+8) = 20%. If you always power on, then duty cycle is 100%
Duty cycle = "ON" time /( "ON" time + "OFF" time), time at "second"
E.g. each cycle time is 10s, power on 2s and power off 8s, duty cycle = 2 / (2+8) = 20%. If you always power on, then duty cycle is 100%
