Automatical magnetic hoist shop crane neodymium steel plate lifting ndfeb magnet permanent magnetic lifter (60748770600)

Share on:


Price:RUB 4,459.63 - RUB 222,981.30
Price in USD:Details

Quantity:


Product Overview

Description

_01

Product Description



Magnetic Lifters has strong magnetic path produced by NdFeB magnet which supply permanent power,

On and off of the magnetic path is controlled by turning the manual handle. The lifters have the features

of strong attraction, smaller volume, lighter weight, powerful lifting effort, easy and safe to operate,

long-period operation without power supply. Permanent magnetic lifters are mainly used for lifting and

transporting the steel and iron for factories, docks, ware houses, transportation etc. It can hoist iron,

steel blocks, cylinder and others and provide a quick and convenient method of loading, unloading,

and moving.



Item Name

Steel Plate Lifting Neodymium Permanent Magnet Magnetic Lifter  Hoist Shop Crane Lid

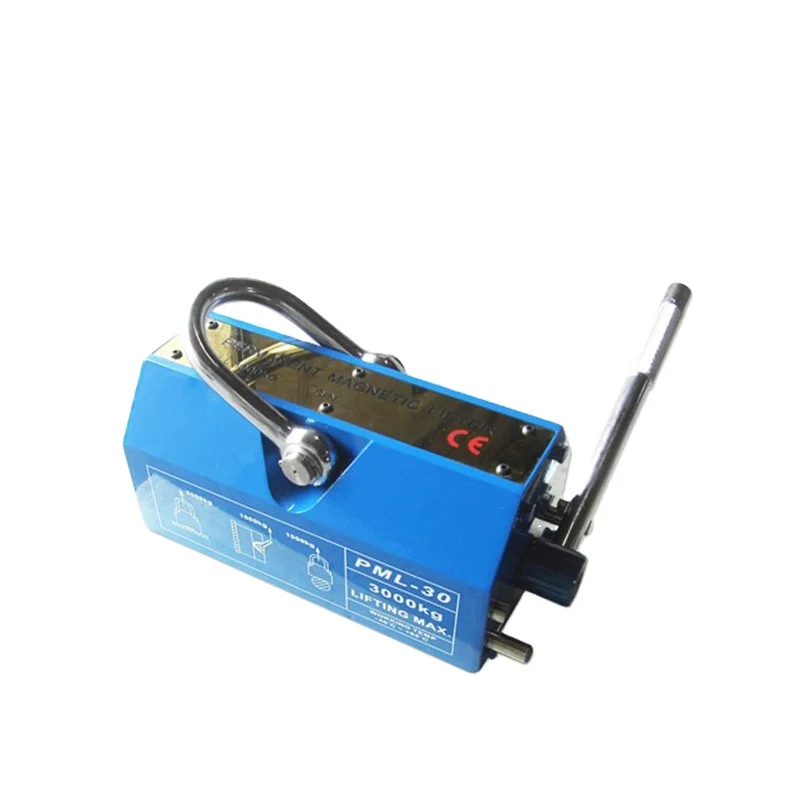

Model Number PML-30
Material NDFEB magnet + steel body without electric power
MOQ 1 set
Color Blue(we can paint the lifter according to customer's request)
Size 453mm*290mm*265mm-R567mm
Certificate CE, ISO9001
Payment Terms T/T, L/C, Paypal, WU, E-checking, VISA, Master Card...
 Production Time 5-25 DAYS(Depends on quantity)
Custom Design Welcome
Service

According to customer's different requirements

we manufacture five series permanent magnet lifters

 Packing 1 set/carton
Delivery Port NINGBO
Advantage

They are used to lift and transport the steel and iron for factories, docks, ware

 houses, transportation etc.  According to the different requirements of

customers, we have designed and produced multiple series of lifters.

Characteristics 1. Available in the lifting capacities of 100kg- 6000kg.
2. 3.5 /3.0 times for safety factor.
3. Self-locking safety block prevents accidental deactivation.
4. No electrical power required.
5. NdFeB material with high density and strong magnetism.
6. Multifunction and severl magnet lifters can use together to holding the loads.
Operation

1.Clean the surface of the load, place the lifter in the center of the load and make

sure the poles are in full contact with the load. Make sure the weight of the load

is no more than the rated value of the lifter.
2.Pull up the handle and rotate the handle to the “ON” position, then release the

handle. The security key on the handle will automatically lock the handle.
3.Set the load on the ground or support. Ensure the load is firmly supported and

 completely in place before releasing the load.
4.Pull up the handle and rotate completely to the “OFF” position. The lifter is now

 in the neutral condition, can be taken away from the load.
