Small Electric Lifting Solenoid Scrap Electro Magnet Solenoid
- Category: Magnetic Lifter >>>
- Supplier: Zhongshan,Landa,Solenoid,Co.,Ltd.
Share on:
Product Overview
Description

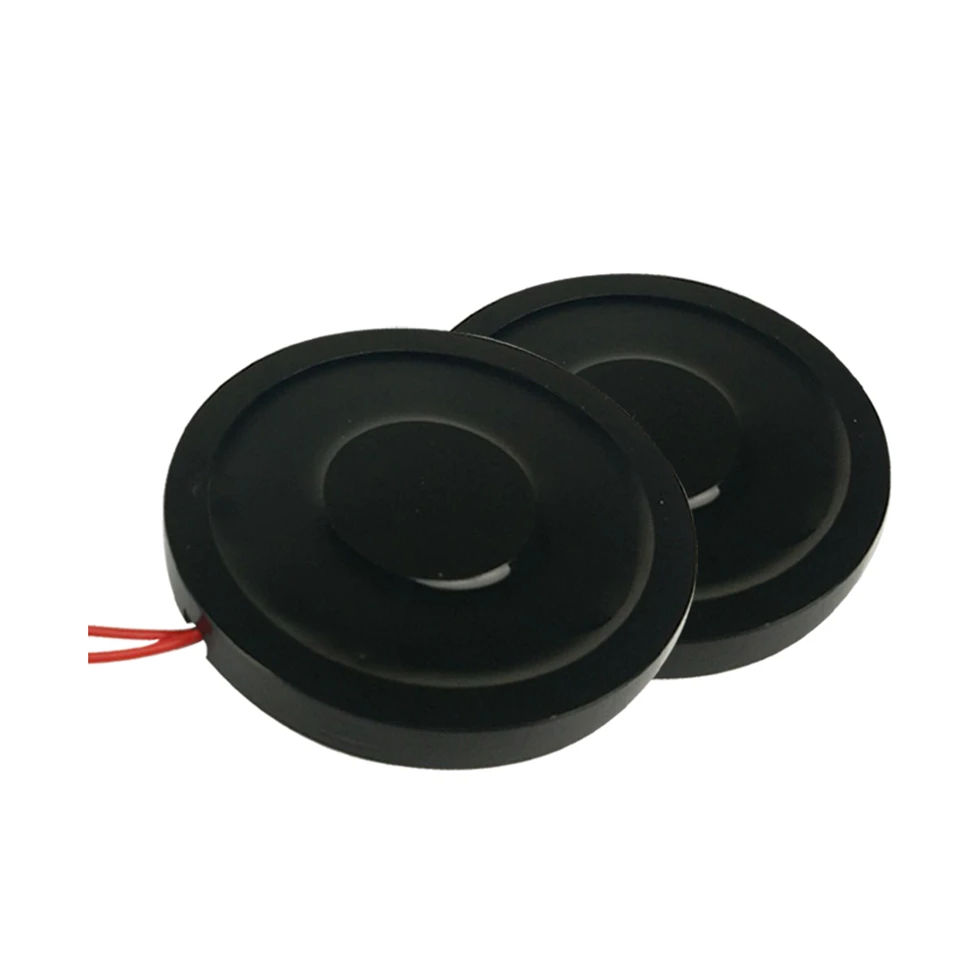

Holding Lock Small Electric Lifting Solenoid Scrap Electro Magnet
Product Description
Brand | Landa | Model | H7009 |
Rated Voltage (V) | DC12 | Rated Power(W) | 15W |
Work Model | Holding Type | Holding Force (N) | 300 |
Stroke(mm) | 0 | Reset Time(s) | 0.2 |
Service Life | 500 Thousand Times | Certification | CE,ROHS,ISO9001 |
Material | Iron | Lead Wire Length(mm) | 200 |
Install Style | screw | Tolerance of Dimension | gb/t1804-m |
Water-proof | IP65 | Insulation Class | B |
Hi-Pot Test | AC 600V 50/60Hz 2s | Non-excitation Holding Force | 0 |
Residual Magnefism | 3N | Duty Cycle | 100% |
Working Temperature | -10°C-100°C | Thread Size(mm) | M6 |
Thread Depth(mm) | 5 | Payment Term | TT,PAYPAL |
Sample Order | Yes | Warranty | 1 Year |
MOQ | 10 pcs | Supply Ability | 5000 pcs per Week |
Delivery Time | 3 Days | Port of Loading | Zhongshan |
Weight | Packaging Details | Shipment Details | ||||
N.W.(KG) | G.W.(KG) | Product Size(mm) | Carton Box Size(mm) | 20GP | 40GP | 40HQ |

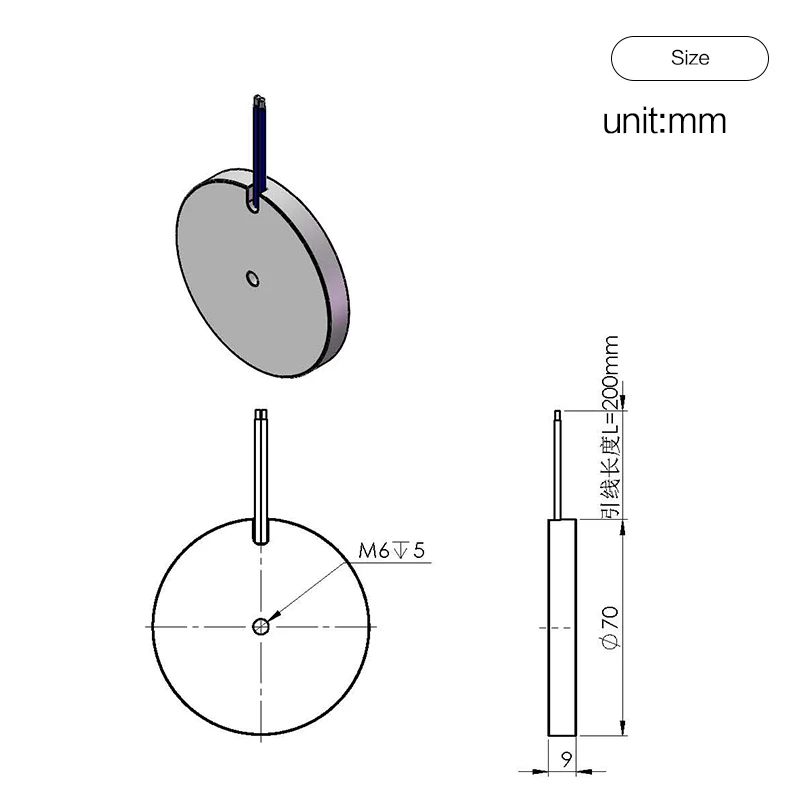

0.21 | 0.3 | 70*9 | 350*310*180 | / | / | / |
Product Features
- Small in size
- Big in force
- With force power on and without force power off
- Easy to operate
- Epoxy filled
- IP65
- Wide range of application
- 10 years of designning and producing experience
- OEM/ODM is welcomed
Product Details
Packaging & Shipping
Our Products: | circular holding solenoid; square holding solenoid; open frame solenoid; tubular solenoid; keep solenoid; lock solenoid >>HOMEPAGE |
MOQ: | 10 PCS; Small orders can be acceptable if we have stocks of this product |
Packing: | Carton Box Size(mm): 350*310*180mm |
Delivery Time: | Shipped in 3-8 days after payment |
Supply Ability: | 5000 pieces per week |
Payment Terms: | T/T; PAYPAL etc. |
Shipping: | Shipping by sea; Port of Loading: Zhongshan |
Company Information
FAQ
Q 1. Are you trading company or manufacturer?
A. We are factory.
Q 2. How long is your delivery time?
A. Generally it is 3-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock. It is according to quantity.
Q 3. Do you provide samples? Is it free or extra?
A. Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q 4. What is your terms of payment?
A. Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
Q 5. Is there any extra charges if we want you to print our logo or company name on your products or the packaging?
A. There is no extra charges. Please offer us the LOGO files, and we will make it well on your product.
