Product Overview
Description

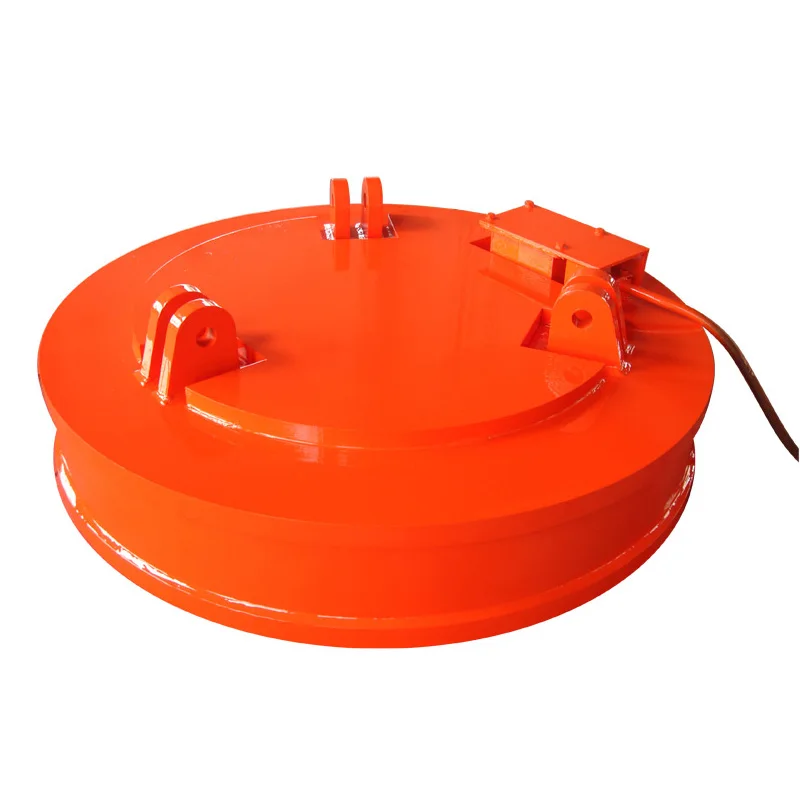

China Electric Scrap Lifting Magnet Factory
--MW5 Series Circular Scrap Lifting Equipment for Crane
Product Description
Main Features:
- Adopt totally sealing structure with good property of moisture-proofing
- Majorized design by computer with reasonable structure, light dead-weight, strong attraction force and low energy consumption
- The energizing coils are processed by special technology to improve the electrical property and mechanical property. Heat-resistant grade of insulating material reaches grade C with long service life
- Rated power-on sustaining rate of normal type electromagnet is increased from 50% to 80%,which improves the efficiency of the electromagnet
- High temperature type electromagnet adopts unique method of heat protection, the temperature of the attached materials is increased from 600 °C to 700 °C, which expands application range of the electromagnet
- Simple and convenient installation, operation and maintenance
Benifits:
- STRONG ATTRACTION FORCE AND ENERGY SAVING
- NORMAL & HIGH TEMPERATURE OPTIONAL
- SIMPLE OPERATION AND MAINTENANCE
Application:

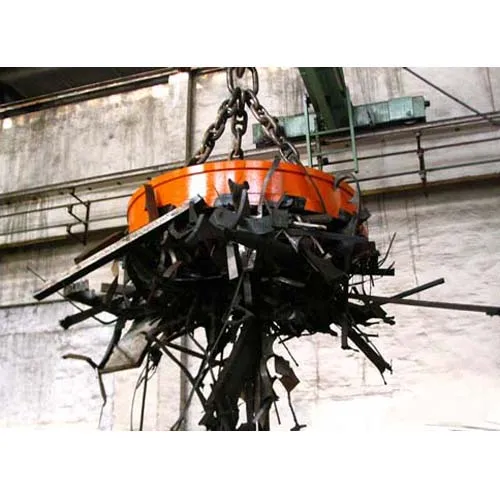

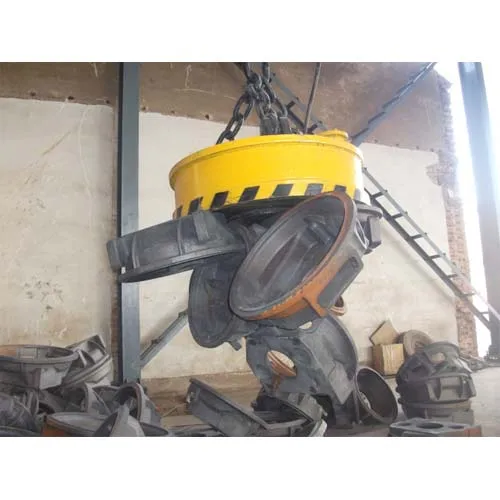

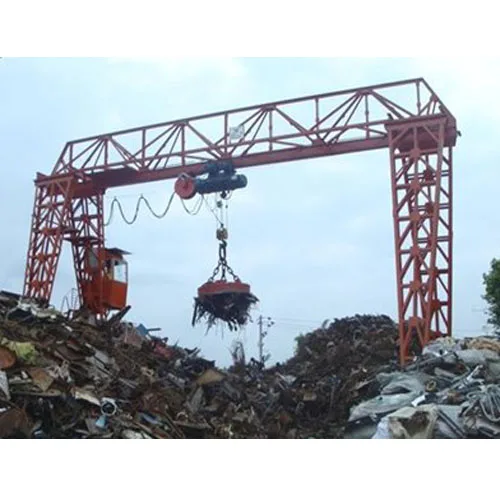

MW5 Series lifting magnet is suitable for transporting cast ingot, steel ball and various kinds of steel scraps.
Technical Data:
(Normal temperature type,Rated voltage DC-220v, Duty cycle TD-60%)
Model | Current(A) | Power(KW) | Lifting capability(KG) | Weight(KG) | Dimention(mm) | ||||||
Steel ball | Steel ignot | Crop end | A | B | C | D | E | ||||
MW5-70L/1 | 15 | 3.3 | 2500 | 380/200 | 120/100 | 490 | 700 | 800 | 160 | 90 | 30 |
MW5-80L/1 | 18 | 3.96 | 3000 | 480/250 | 150/130 | 620 | 800 | 800 | 160 | 90 | 30 |
MW5-90L/1 | 26.6 | 5.9 | 4500 | 650/440 | 250/200 | 800 | 900 | 1090 | 200 | 125 | 40 |
MW5-110L/1 | 35 | 7.7 | 6500 | 1000/800 | 450/400 | 1350 | 1100 | 1140 | 220 | 150 | 45 |
MW5-120L/1 | 45.5 | 10 | 7500 | 1300/1000 | 600/500 | 1700 | 1200 | 1180 | 220 | 150 | 45 |
MW5-130L/1 | 54 | 12 | 8500 | 1400/1100 | 700/600 | 2010 | 1300 | 1240 | 250 | 175 | 50 |
MW5-150L/1 | 71.2 | 15.6 | 11000 | 1900/1500 | 1100/900 | 2830 | 1500 | 1250 | 350 | 210 | 60 |
MW5-165L/1 | 75 | 16.5 | 12500 | 2300/1800 | 1300/1100 | 3200 | 1650 | 1590 | 370 | 230 | 75 |
MW5-180L/1 | 102 | 22.5 | 14500 | 2750/2100 | 1600/1350 | 4230 | 1800 | 1490 | 370 | 230 | 75 |
MW5-210L/1 | 129 | 28.4 | 21000 | 3500/2800 | 2200/1850 | 7000 | 2100 | 1860 | 400 | 250 | 80 |
MW5-240L/1 | 154 | 33.9 | 28000 | 4800/3800 | 2850/2250 | 9000 | 2400 | 2020 | 450 | 280 | 90 |

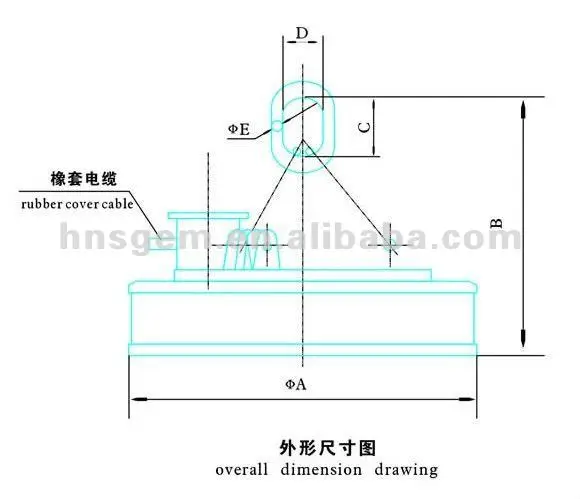

Overall Dimension Drawing:

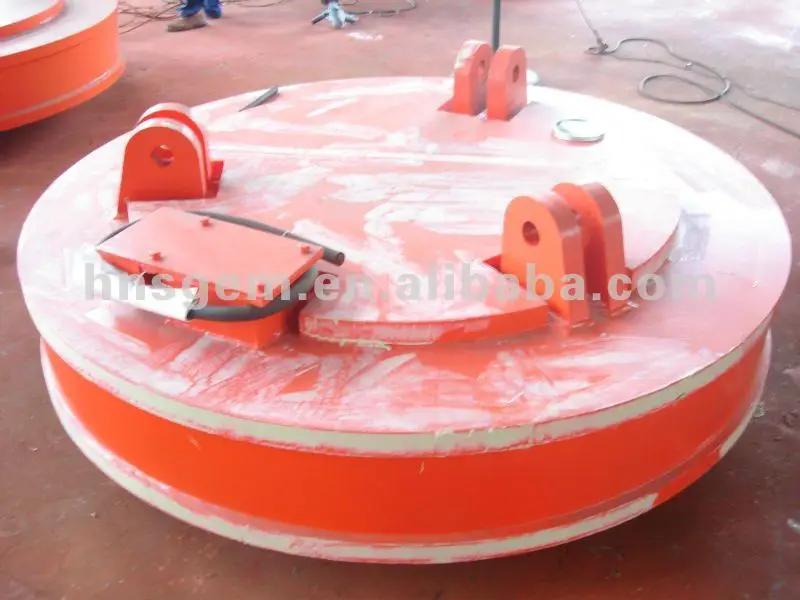

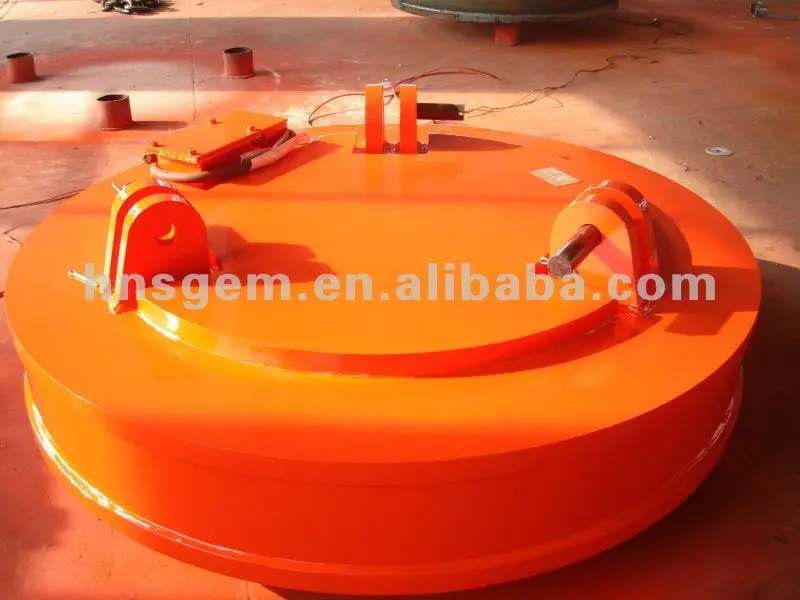

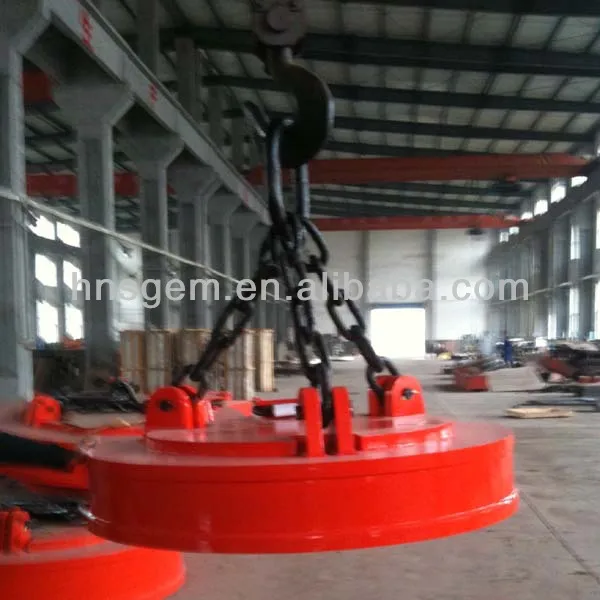

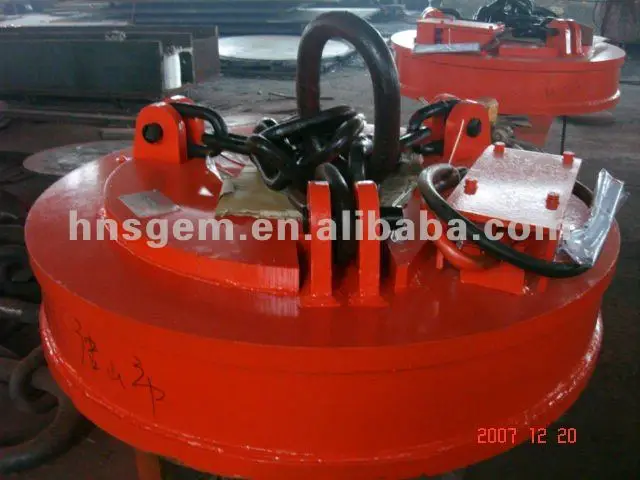

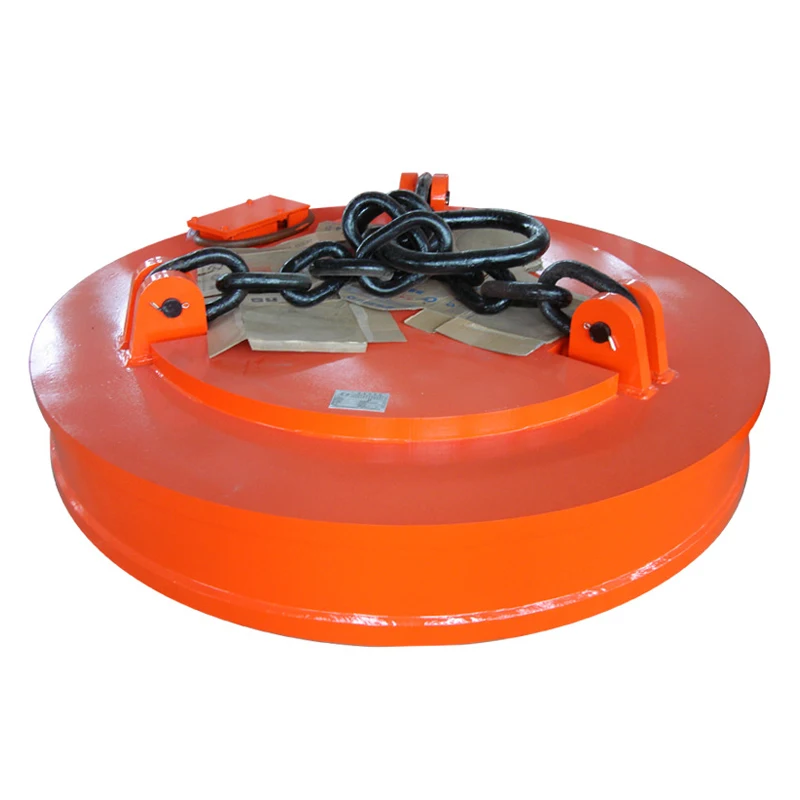

Physical Product Photo:
FAQ
In order to provide you with the best quotation at the shortest time, we need you kindly inform below points to do model selection :
1. What kind of the materials you want to lift? Steel scraps /steel billet/ stell ingot / steel plate/ steel bar /others?
2. What' s the lifting capacity you expect per time?
3. What kind of working site does the magnet work? Indoor or outdoor? how about the working temperature?
4. Kindly provide your power supply information (__V, DC/AC, ___Hz), and information for crane (single beam or double beam, single hook or double hook, how about the loading capacity).
For our relate products you may interested in, kindly click for details:
1. Lifting Electromagnet for Excavator Installation
2. Circular Lifting Electromagnet for Steel Scrap Lifting
3. Oval Shape Lifting Electromagnet for Steel Scrap Lifting
4. Self-discharging Electromagnetic Separator
5. Manual Discharging Type Rectangular Electromagnetic Separator
6. Manual Discharging Type Circular Electromagnetic Separator
7. Lifting Electromagnet for Billet Lifting
8. Lifting Electromagnet for Sheet Plate

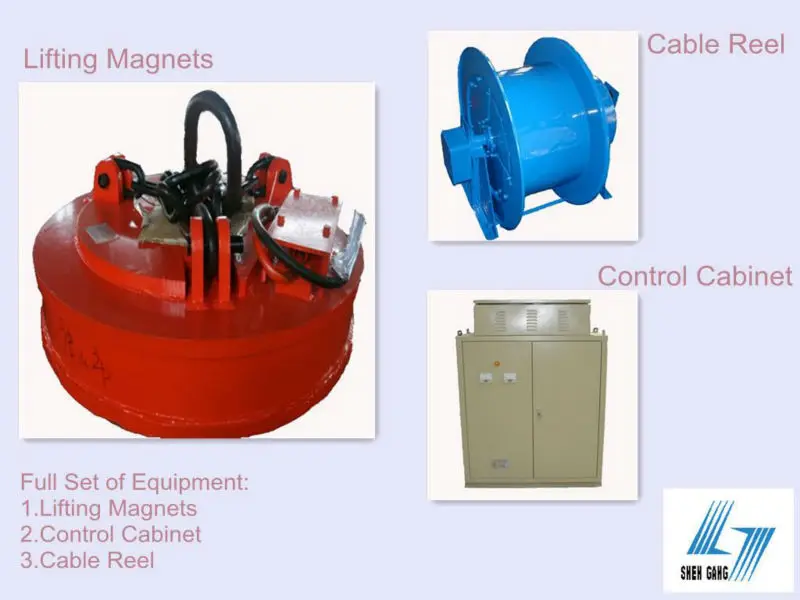

*Lifting Magnet Series:
