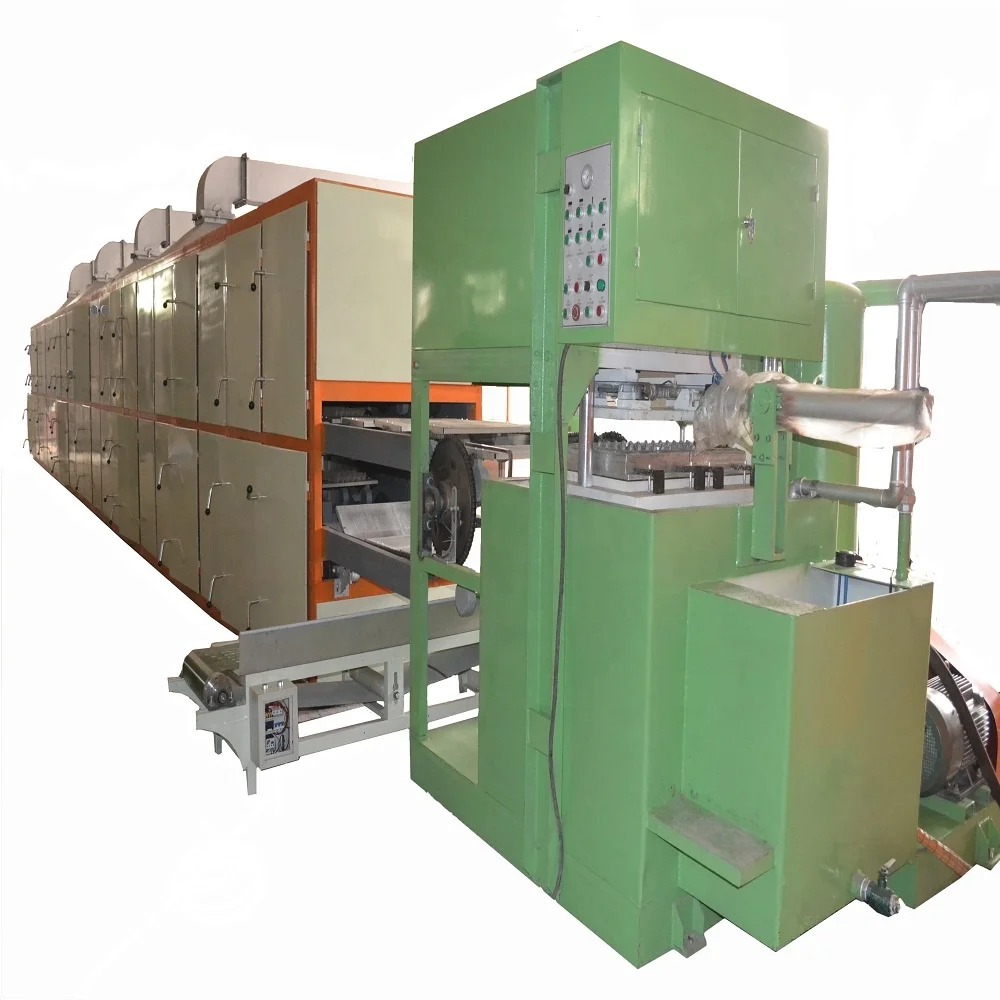

Waste Paper Recycle Used making machine egg tray carton





Egg tray mould quantity		1pcs	2pcs	3pcs	4pcs	6pcs	8pcs
Raw material		Waste paper	Waste paper	Waste paper	Waste paper	Waste paper	Waste paper
Output for egg tray		350pcs/hour	700pcs/hour	1000pcs/hour	1300pcs/hour	2000pcs/hour	2500pcs/hour
Net weight per piece (gram)		70g-75g	70g-75g	70g-75g	70g-75g	70g-75g	70g-75g
The volume of waste paper consumed		0.025ton / hour	0.06ton / hour	0.1ton / hour	0.13ton / hour	0.2ton / hour	0.2ton / hour
The volume of water consumed		0.05ton / hour	0.1ton/hour	0.15ton / hour	0.2ton / hour	0.4ton / hour	0.4ton / hour
Operators number		2-3workers	3-4workers	4-6workers	4-6workers	5-7workers	8-10workers
Area of workshop	Without dryer	More than100M²	More than 100 M²	More than 120 M²	More than 150 M²	More than 200 M²	More than 250 M²
	With dryer	More than200 M²	More than 240 M²	More than300M²	More than 320 M²	More than 450M²	More than 520M²
		(8*25M)	(8*30M)	(10*30M)	(10*32M)	(15*30M)	(15*35M)
Capacity of power	Without dryer	20KW	30KW	40KW	45KW	65KW	70KW
	With dryer	30KW	45kw	60kw	65kw	90kw	100kw
Machine length	Without dryer	7meters	8meters	9meters	10meters	10meters	12meters
	With dryer	18-22meters	24-28meters	25-30meters	25-30meters	25-30meters	28-35meters
Size of container	Without dryer	20ft*1	20ft*1	40ft*1	40ft*1	40ft*1	40ft*1
	With dryer	40ft*1+20ft*1	40ft*2+20ft*1	40ft*2+20ft*1	40ft*3	40ft*3+20ft*1	40ft*4+20ft*1





1. Service phone line keep 24 hours unlocked
2. All emails will get response within 24 hours
3. Any needed machine parts can be supplied with professional guiding and ordinary price.
4. Engineer can be dispatched abroad for installation and maintenance.
5. Collect after-sale-service feedback from customer, keep improving.





Our production line has Fully Automatic and Semi Automatic two types , both have computer control system .
1. What is Semi Automatic type ?
If only order The 1st and 2nd compulsory parts , that's Semi Automatic because you'll have to do the work of drying up egg tray manually;
2. What is Fully Automat type ?
Meaning: the production line includes the Drying system and the whole procedure can be done Automatically .
Of course, the price and the required work space would have big difference from the semi-automatic type.
3. Quality
--- Our machines use UK Technical and part of the components are Germany-made (ex: Ball valve) .
-- Our machine is made by Tooling NOT by Welding , insuring a minimum of 10 years’ lifespan .
-- The Egg tray moulds material is Aluminium which can keep the fixed shape much better than that made of rubber material.
--- 99.9% of Success rate: Even if there is a failed egg tray , just throw it back to Pulping area and it can be re-used avoiding waste ;
--- Our machine has been sold to worldwide for over 10 years with continued re-order by some customers with their business grow .
4 .What capacity per hour do you offer ?
 Our machines’ capacity is from 350pcs/hr to 5000pcs/hr.
5.Do your products come with a warranty ?
 Yes , we have 2 years warranty according the international practice.
6.Can I customize this kind of machine from your factory?
 Yes ,we offer custom-made service to our customers, you need to provide us some samples,such as photos,dimensions etc.
