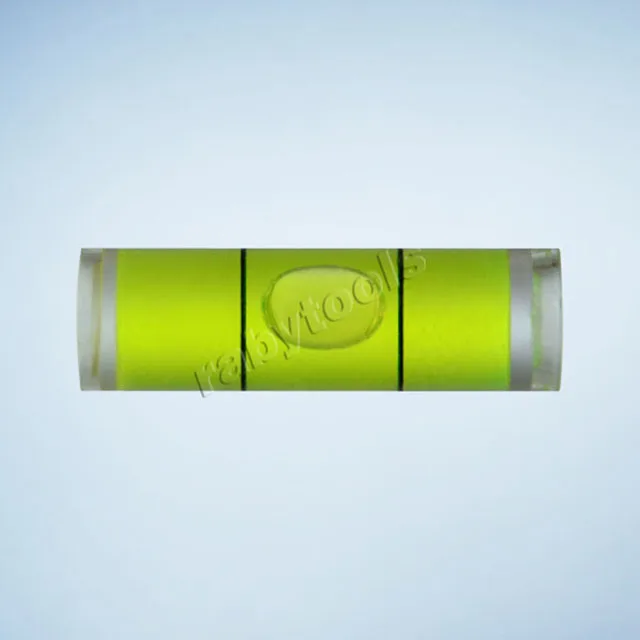

High accuracy acrylic bubbles level vial with best priceRB CY1240

Product Overview

Description







Cylinder bubble level vial
No.	Item No.	Dia. (mm)	L (mm)	Sensitivity
1	RB-CY0512	5	12	30'+/-6'
2	RB-CY0513	5	13	45'+/-6'
3	RB-CY0614	6	14	30'+/-6'
4	RB-CY0615	6	15	45'+/-6’
5	RB-CY0620	6	20	45'+/-6’
6	RB-CY0629	6	29	45'+/-6’
7	RB-CY6518	6.5	18	20—25’
8	RB-CY0718A-30	7	18	30'+/-6'
9	RB-CY0718B-60	7	18	60'+/-6'
10	RB-CY77254	7.7	25.4	45'+/-6'
11	RB-CY7726	7.7	26	45'+/-6'
12	RB-CY0727	7	26.4	30'+/-6'
13	RB-CY0730	7	30	60'+/-6'
14	RB-CY0820	8	20	30'+/-6'
15	RB-CY0822A-30	8	22	30'+/-6'
16	RB-CY0822B-80	8	22	80'+/-10'
17	RB-CY0822C-120	8	22	120'+/-10'
18	RB-CY0823A-30	8	22	30'+/-6'
19	RB-CY0823B-60	8	22	60'+/-6'
20	RB-CY0825	8	25	30'+/-6'
21	RB-CY0835	8	34.5	45'+/-6'
22	RB-CY9523	9.5	23	30'+/-6'
23	RB-CY9525	9.5	25	30'+/-6'
24	RB-CY9531	9.5	31	30'+/-6'
25	RB-CY9535	9.5	34.8	30'+/-6'
26	RB-CY95395	9.5	39.5	45'+/-6'
27	RB-CY9540	9.5	40	30'+/-6'
28	RB-CY1023	10	23	15'+/-3'
29	RB-CY1025	10	25	30'+/-6'
30	RB-CY1030	10	30	30'+/-6'
31	RB-CY1035	10	35	30'+/-6'
32	RB-CY1135	11	35	30'+/-6'
33	RB-CY1240	13	45	30'+/-6'



Type No.	Centrality@marked  0°position         (MARK UP)	Centrality @180°to mark position    (MARK DOWN)	Max migration 0°to      180°position
RB- CY1240	0.5MM/M	0.5MM/M	o.5MM/M



       1. The sensitivity is 30'+/-6'.And the size is 12MM in diameter,40MM in length.

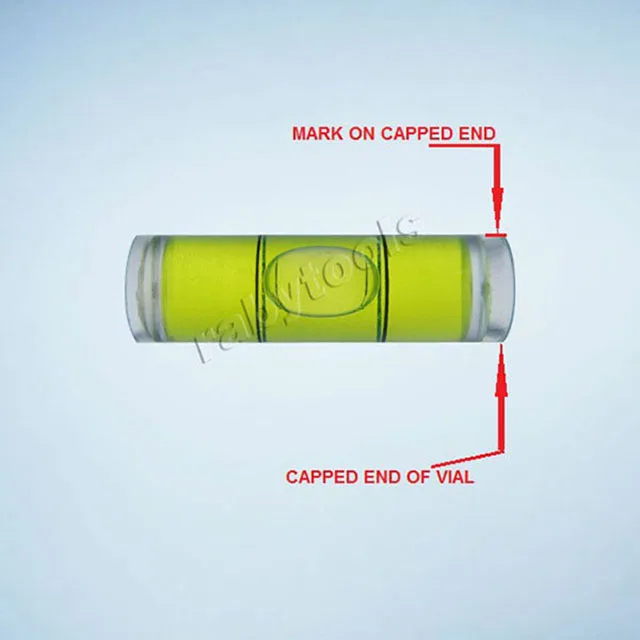

       2. When the vial is to be marked as the shown in the end, it will denote the "0°" position of the vial.



       3. Centrality of air bubble between rings when a maxmum of 2MM of each end is supported on a

           level surface will be like the table.



       4. Migration of air bubble between position marked 0°position and 180°position will be like the table

          also.



      5. The product is free of scratches/burrs with no grease or foreign materials on the surface



      6. There have no visible foreign material in the vial fluid.



      7. The vial could remain the color after 80 hours of exposure to.



We could produce the product according to your samples, drawing
