Automatic Spiral Paper Tubes Cores Making Winding Forming Machines Price Paper Tube Core Machine China CFJG 100
- Category: Paper Product Making Machinery >>>
- Supplier: Wenzhou Chuangfeng Machinery Co. Ltd.
Share on (1892590530):
Product Overview
Description
Product Description

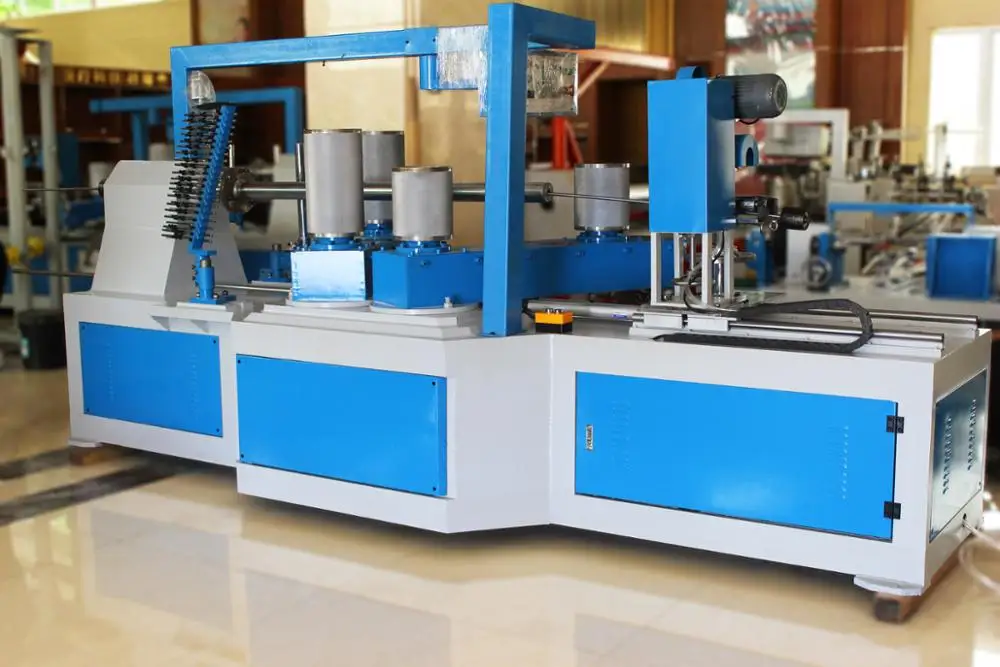

CFJG-100 Medium size tube & core making machine is suitable for Adhesive tape cores; textile cores; Stretch Film Cores and other industrial paper tubes & cores.
-- PLC controlled Automatic Paper Core Making Machine adopts Computerized Control System. All the working parameters can be setup on the controlling panel (touch screen type) .
-- Single circular blade inline cutting system with cutting range 500-5000mm.
-- All the brands of components like Motor; Inverter; PLC; Touch Screen can be customized as per your requirement.
Technical Parameters
Technical Parameter | Control System | ||
Paper Layer | 3-16 Layers | PLC | Xinjie |
Inner Diameter | 20-200mm | Man-machine Interface | Touch Screen (Xinjie) |
Wall Thickness | 1-10mm | Inverter | 15KW Delta (Taiwan) |
Winding Speed | 0-20 meters/min | Execute Components | CHNT |
Winding Nose | Four noses two belts | Signal Components | Hugong |
Shaft Fixing Way | Flange | Pneumatic Components | Jingwei |
Cutting System | Single Circular Blade | Electric Components | CHNT |
Gluing Way | Single / Double (can be chose) | Configuration | |
Length fixing | Infrared | Paper Reel Stand | 16 Layers Integral Type |
Operator | 2-3 persons | Gluing System | 16 Layers Spraying Type |
Speed Control | By Inverter | Inner Paper Shelf | 1 Set |
Power Supply | 380V/3Phase/50Hz (can be customized) |
| |
Discharging Shelf | 1 Set | ||
Size | Belt | 2 Pieces | |
Mainframe | 4100*1650*1800mm | Mandrel Shaft | 2 Pieces |
Working Space | 11000*7000mm | Belt Adjusting | Manual |
Weight | 4000kgs | Paper Reel Stand & Gluing Shelf Adjusting | Manual |
Driving System | |||
Main Motor | 7.5KW Wannan | Automatically Gluing | Gluing Pump 1.5kw |
Motor Rotating Speed | 1400r/min | Lubricating Oil for Paper Tape | Automatically Supply |
Nose Rotating Speed | 48r/min | ||
Nose Output Strength | 3000N.m | Enclosed Spare Parts | |
Reduction Box | WPO155 | Extra Blades | 3 Pieces |
Gear Box | WPO155 | Useful Tool | 1 Set |
Driving Chain | 16A*2 |
|
|
Pictures

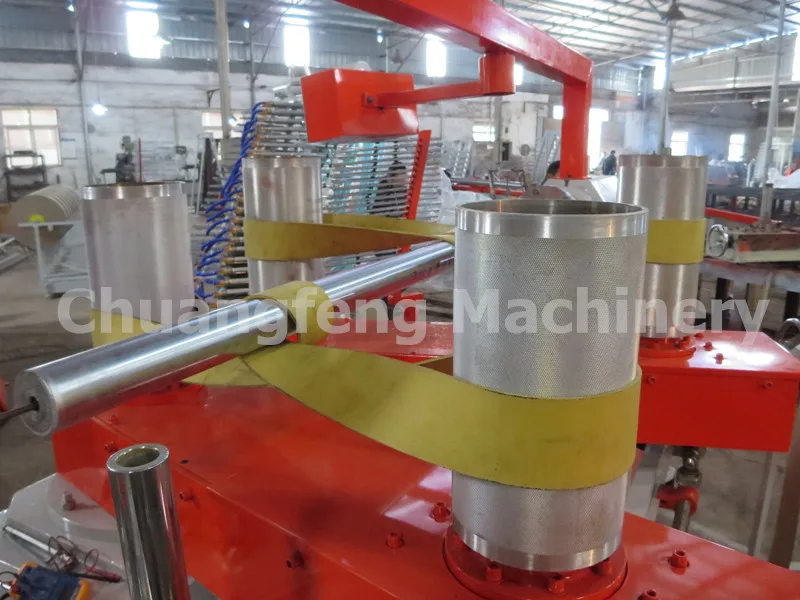

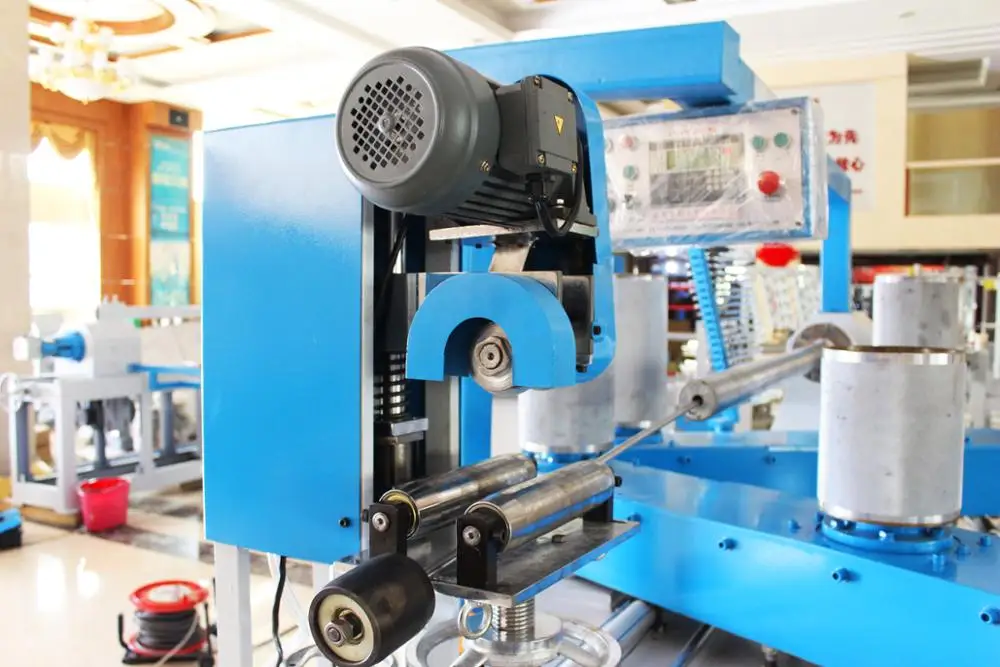

- Winding Part (four head 2 belts) ; Parameters can be set on the operating panel
- Inline Cutting System (Cutting length from 500mm to 5000mm; error < 2mm)

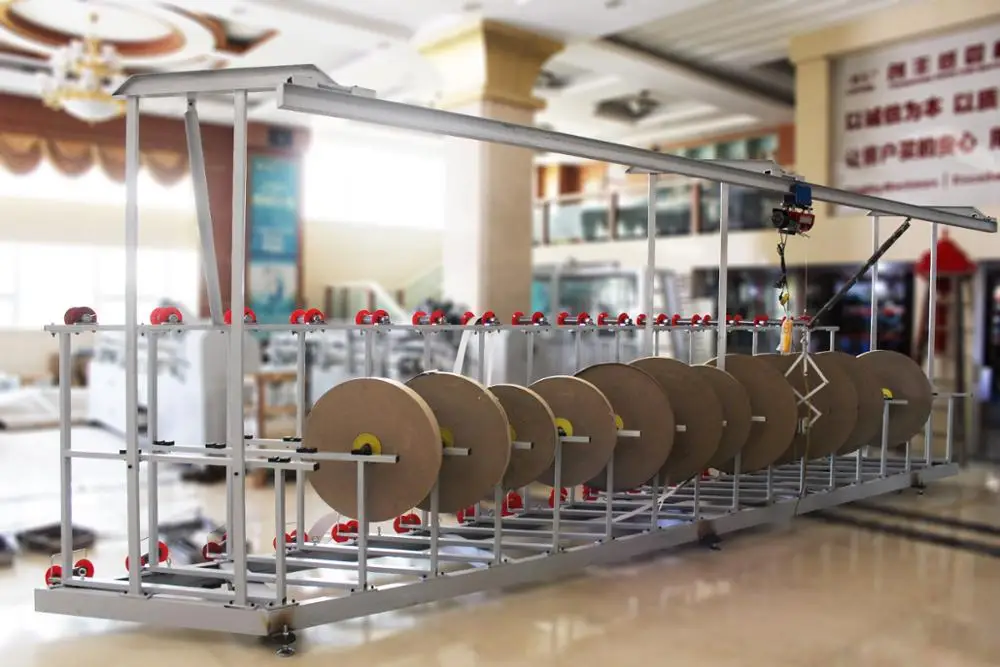

- 16 Layers Integral Type Paper Reel Stand

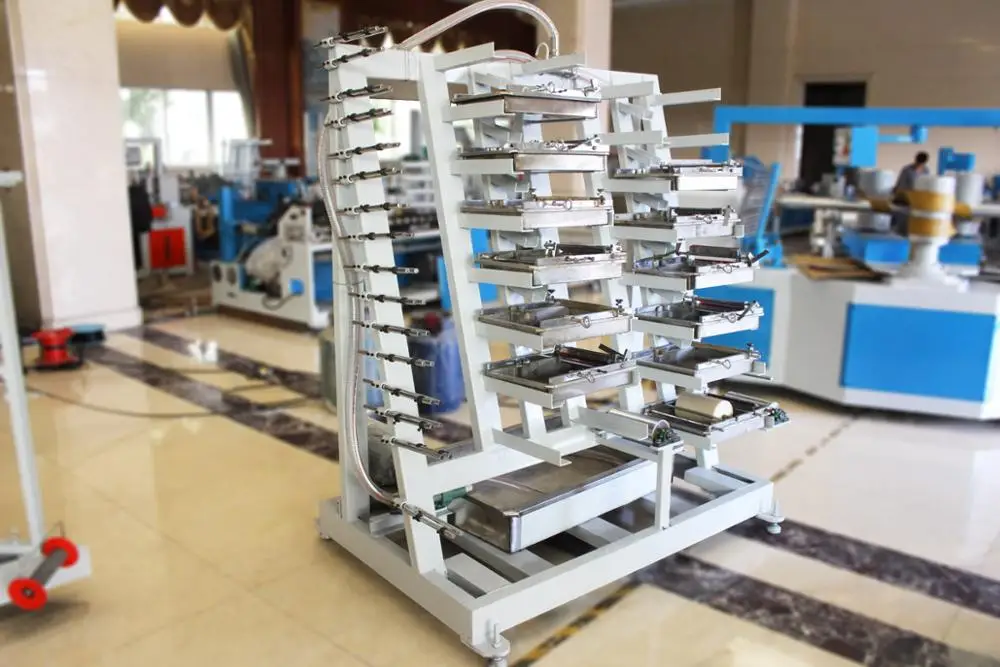

- 16 Layer Spraying Type Glue Unit

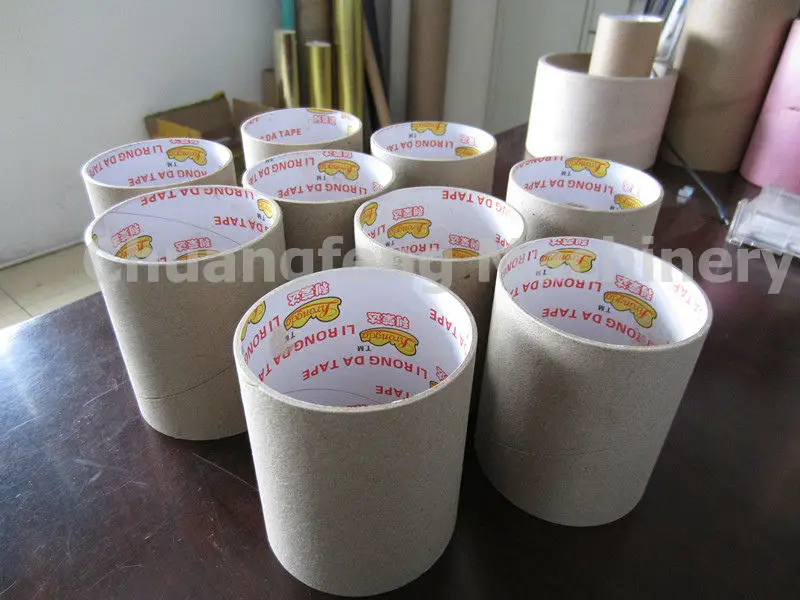

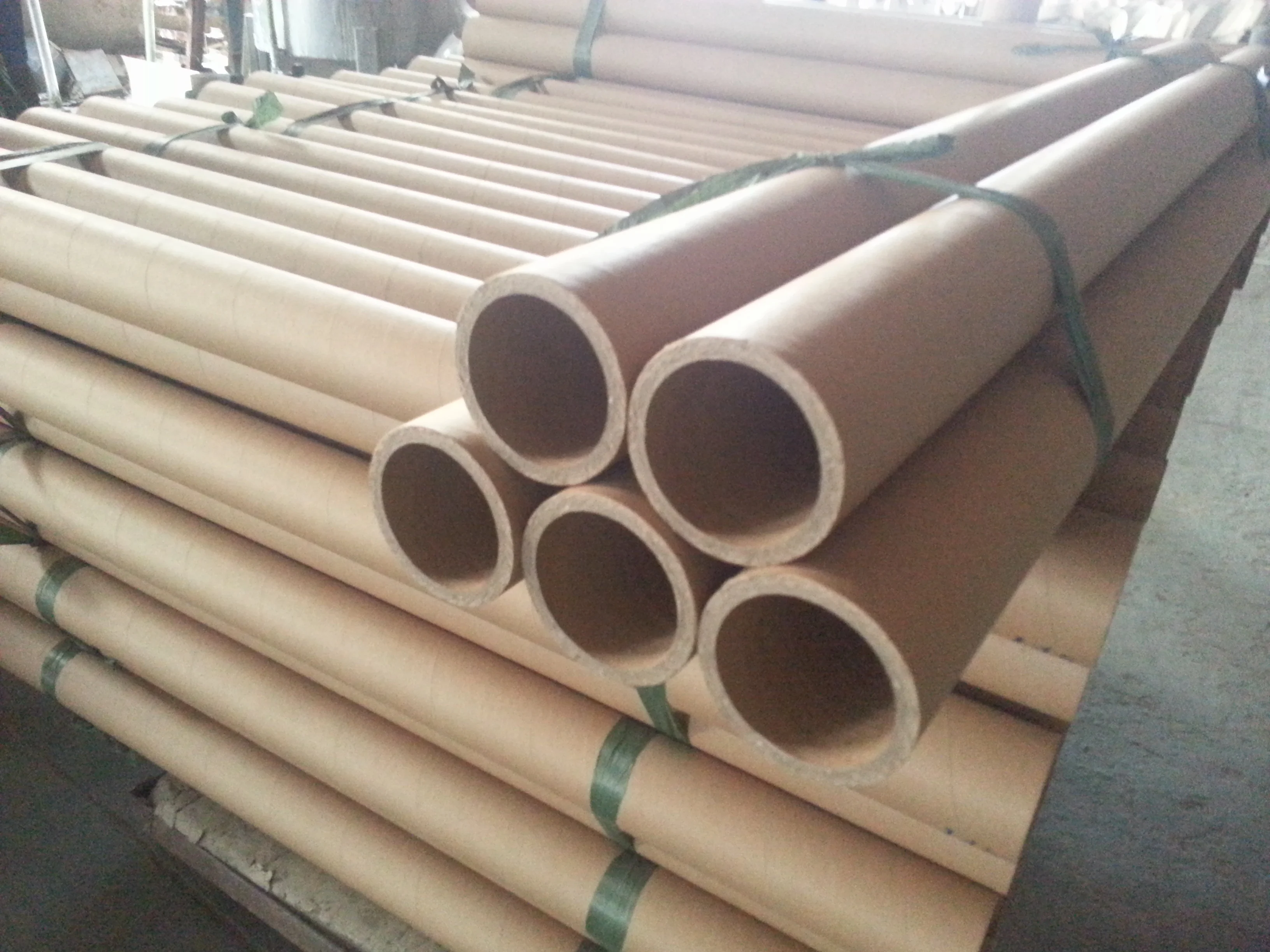

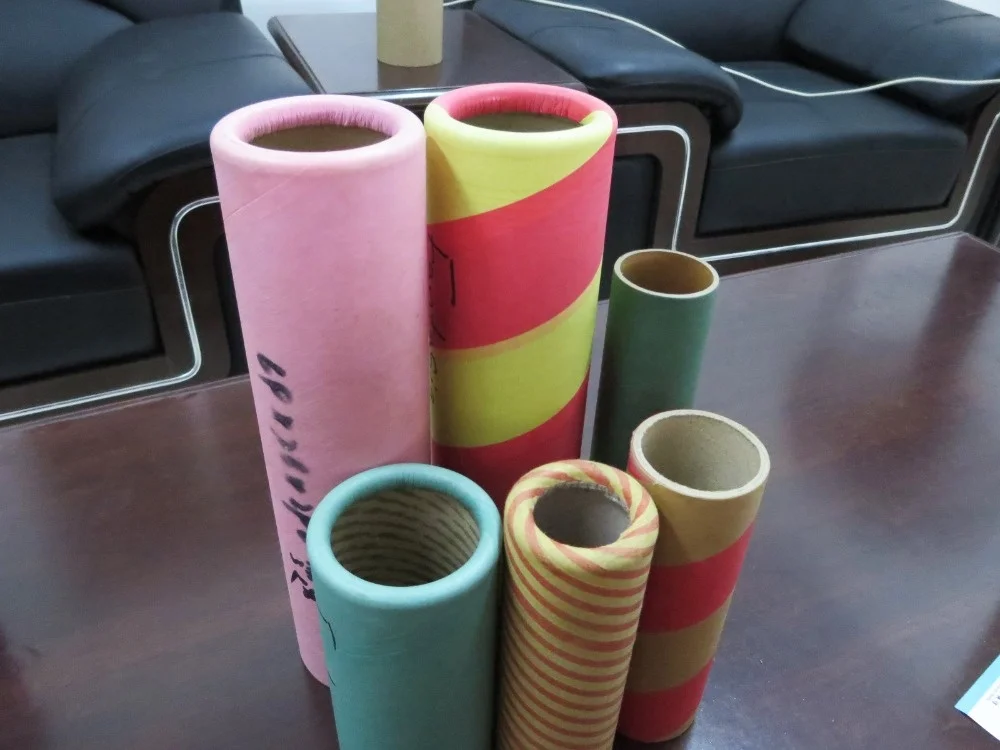

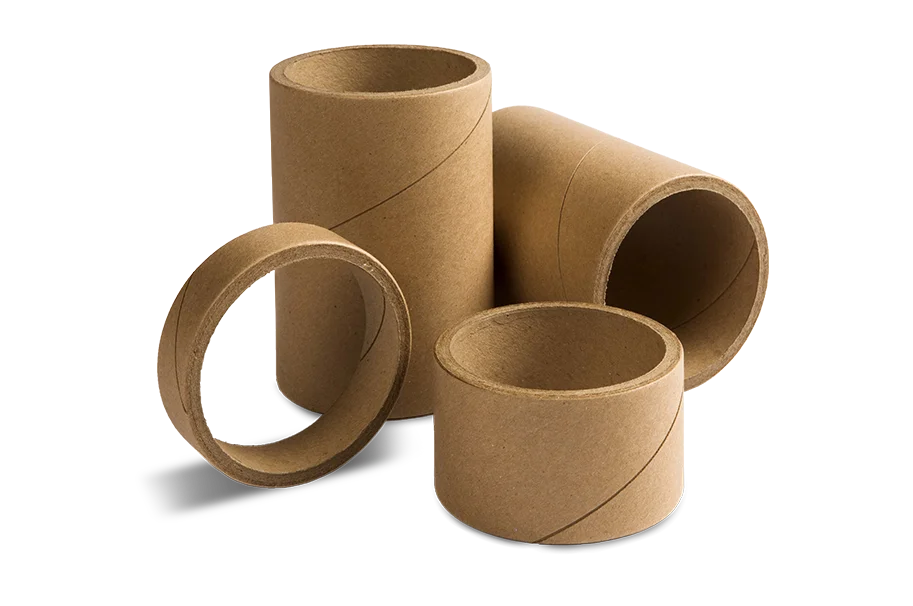

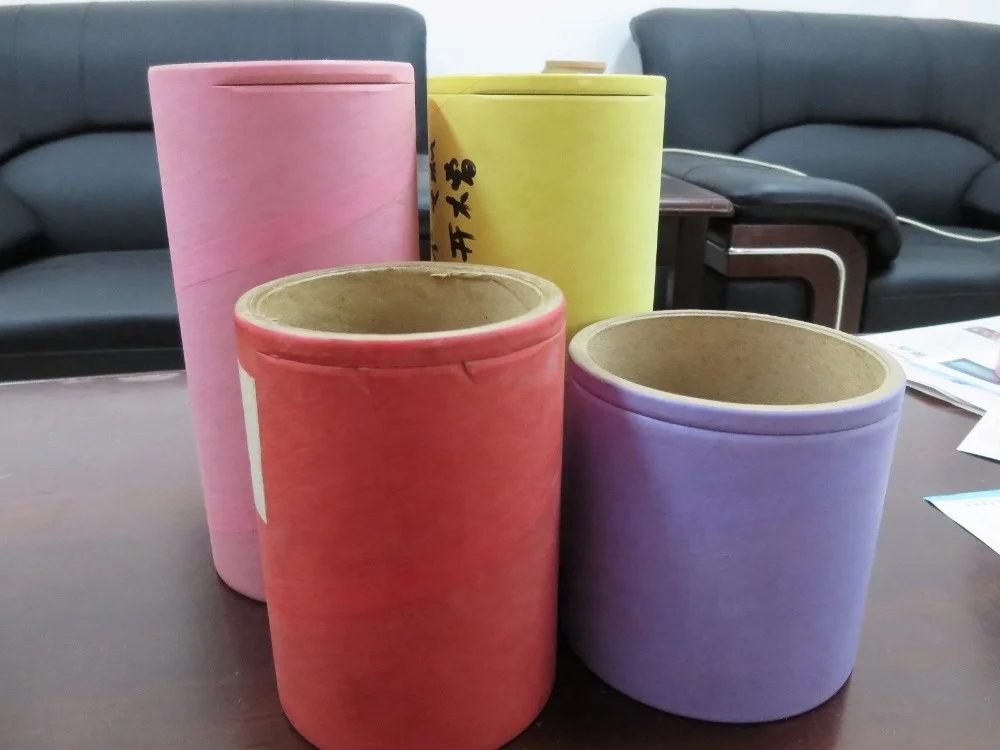

Finished Products
