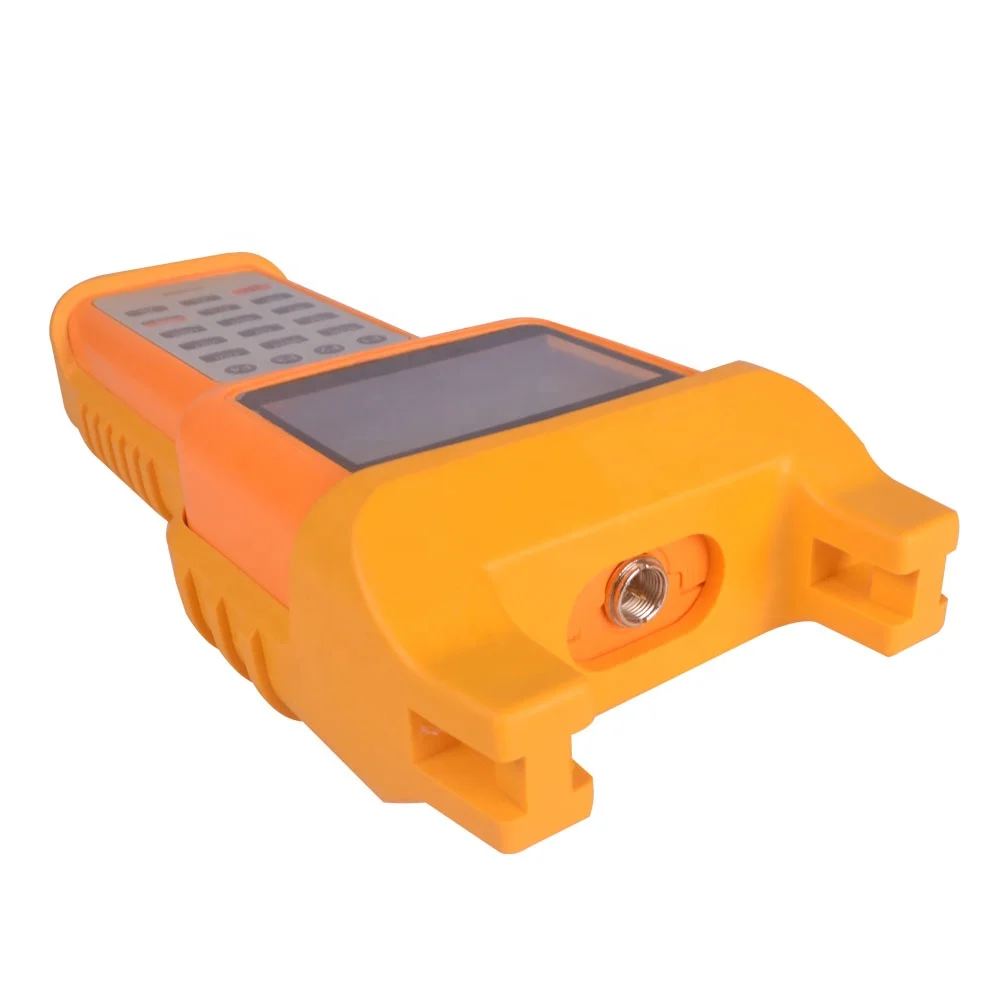

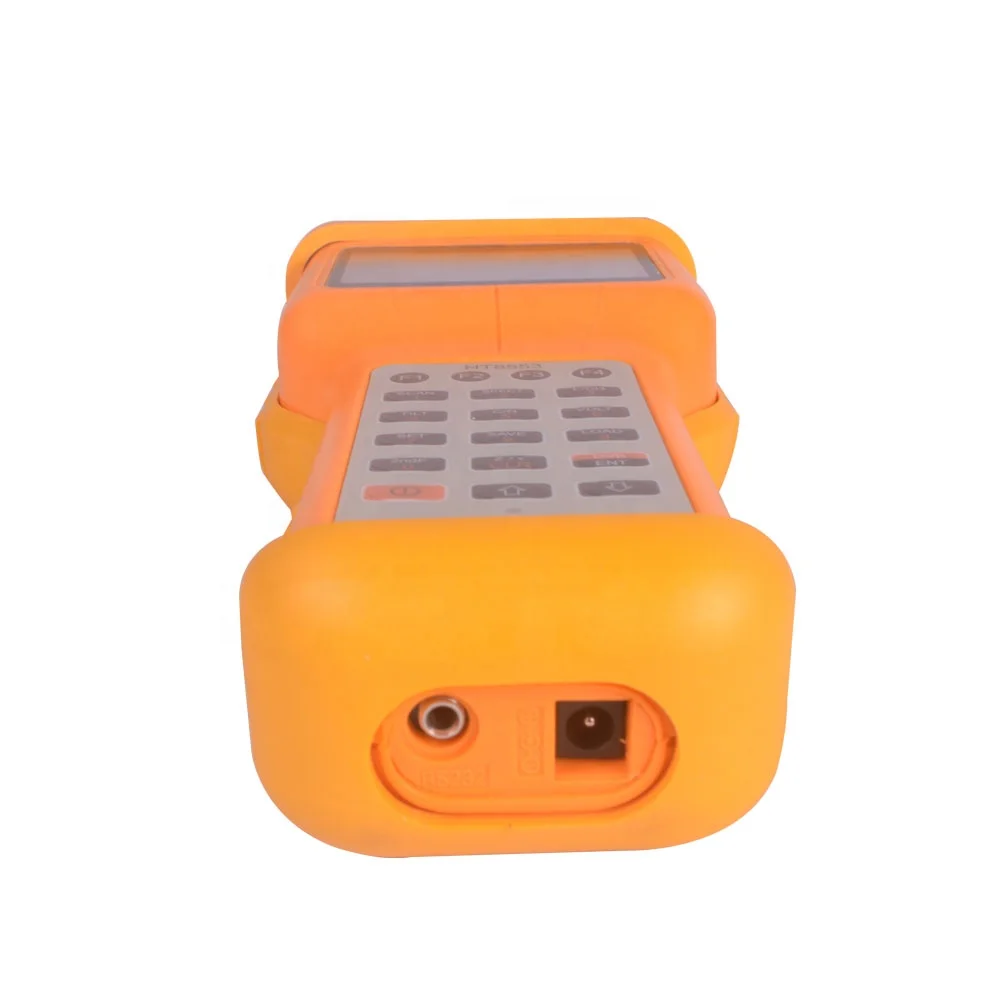

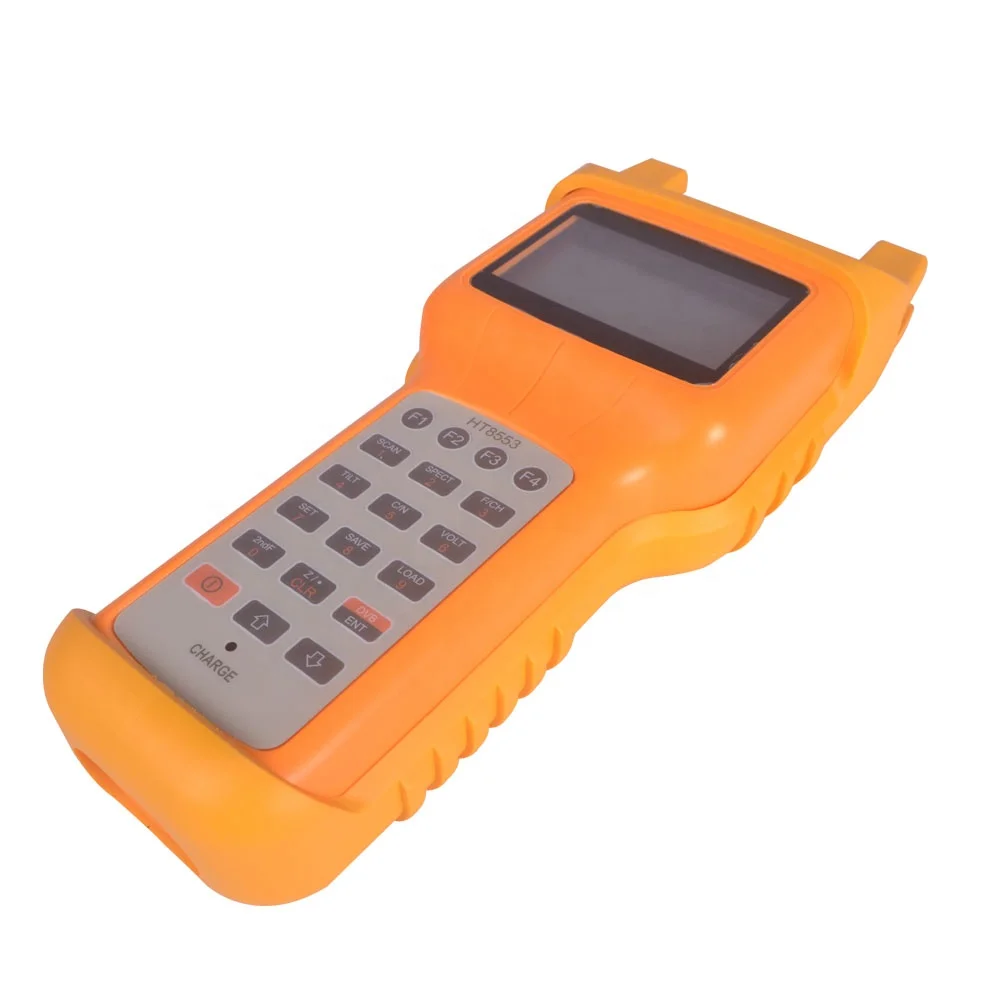

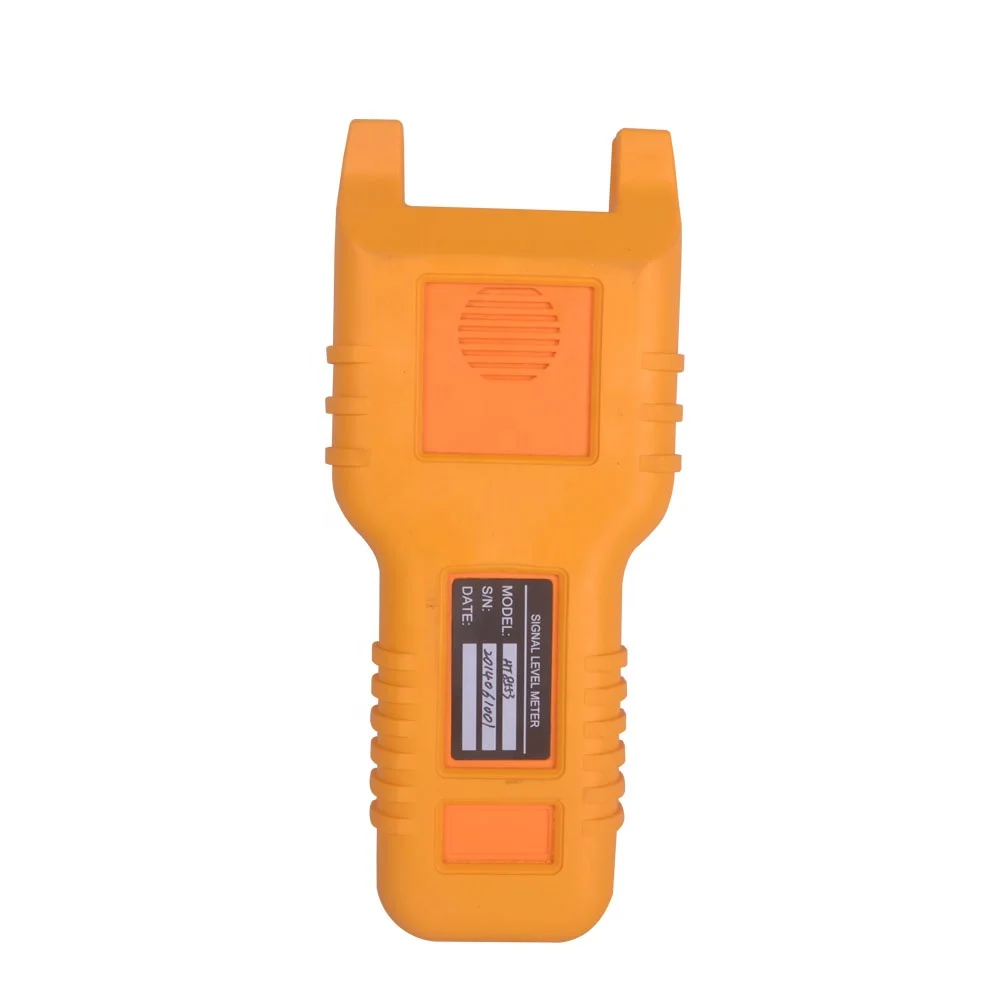

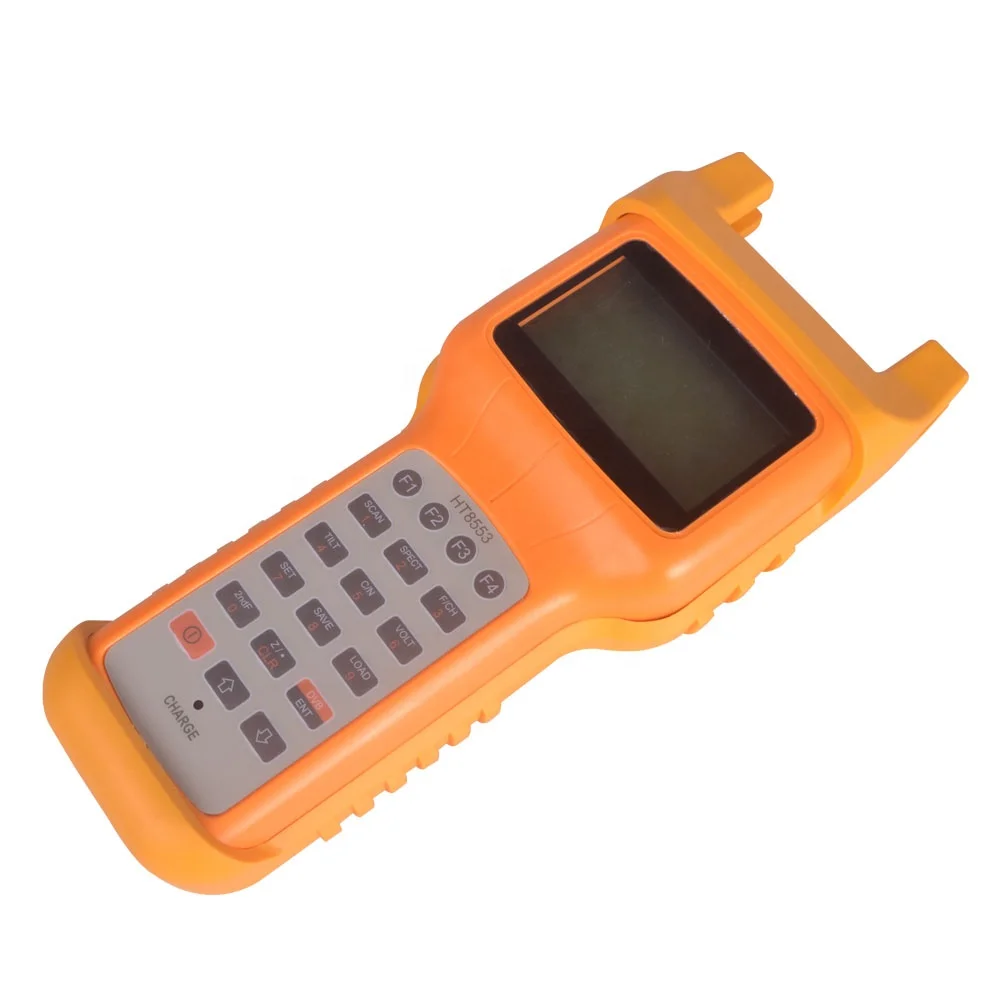

[Softel]Cable Catv Rf Signal Level Meter
The Low price rf signal level meter/Catv signal level meter , SE828B is able to measure EQ, C/N, V/A and trunk volt in the CATV analog system, the number keys is designed to direct input frequency so that work would be easier. It can measure 2 channels at the same time. Working Frequency range: 46~870Mhz, level range: 30dBμV — 115dBμV. Input impedance 75ohm (BNC or F type connector). AC and DC NI-MH-rechargeable battery power.

Frequency and level:




  • Frequency range: 46~870Mhz (5~860MHZ optional)

  • Resolution Bandwidth: 280KHz ± 50KHz

  • Channels: all user channels

  • Level ranger: 30dBμV — 115dBμV

  • Accuracy: ±1.5dBuV(under room temperature) ±2.5dBuV(- l0 — +50°C)

  • Input impedance: 75Ω(BNC or F connector)

  • Wave detection: peak value



Channels:

Voltage:


  • Voltage range: 0~100VAC

  • Accuracy: ±1.5V

  • Resolution: 0.1V


C/N


  • Level range: 80dBuV – 105dBuV

  • Dimension: 215mm x 95mm X 47mm

  • Weight: 550g (without charger)

  • Working Temperature: -10°C -- + 40°C

  • Display LCD: STN LCD with back light




Power


  • DC Supply: DC 7.2V/1.6Ah rechargeable battery

  • AC Supply: AC 220V/50Hz±10%

  • Battery working hours:longer than 4.5 hours at continuous

  • working mode


Recharging hours: 12 -- 14 hours.




Accessories


  •  Battery Charger: charger 1pc

  •  RF Input connector: F type  2pcs

  •  User Manual :1 copy
