China best supplier small coil winding machine automatic current transformer winding machine

Product Overview

Description



1.YW-260A current transformer coil winding machine Application:



Current transformer coil winding machine is used for winding toroidal current transformer coils,is a new generation of winding equipment according to the power industry requirement.



2.YW-260A current transformer winding machine technical parameters:



Model No.	YW-260A	YW-300B	YW-400C	YW-500D
Wire Diameter	0.5-1.5mm	0.5-2.6mm	0.5-3.2mm	0.5-3.2mm

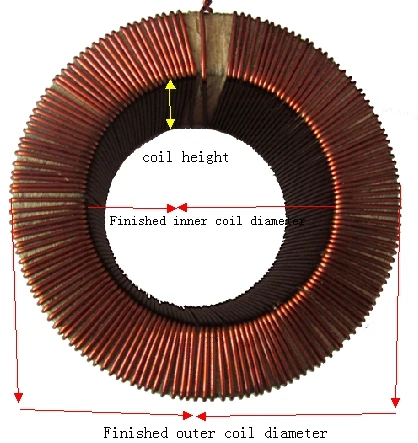

Min Finished Inner Diameter	30mm	50mm	60mm	60mm
Max Finished Outter Diameter	260mm	350mm	450mm	550mm
Max Finished Height	70mm	100mm	140mm	250mm
Max Winding Speed	100rpm	100rpm	100rpm	100rpm
Power	0.75KW	1.5KW	1.5KW	1.5KW
Size of Machine        (mm)	600*1000*12 00	700*1000*1300	700*1000*1400	850*1000*1500







3.YW-260A current transformer winding machine features:

1. Japan Mitsubishi PLC control High productive,human-computer interaction.
2. Stepping motor speed control for accurate winding,Winding speed can be specified using the front panel keys.
3. User friendly control console with touch screen.
4. High-tech shuttle for highest efficiency.
5. Microprocessor based controls, easy for program-setting and handling for operator.
6. Large memory capacity for storing steps of winding.
7. Password protection for administrative settings as well as operators setting.
8. Easy programming of multi-step, multi-speed settings.
9. Heavy machine weight design to avoid machine shaking while winding.
10. Automatically laying wire, change winding direction.
11. Realize dual-wire, multi-wire winding, forward and backward winding, preset 100 different kinds of wire data in machine.





4.Yibo current transformer winding machine advantages:



1.The only manufacturer who can professional supply all kinds of winding machines in transformer industry , such as current transformer winding machine, voltage transformer winding machine winding machine for mirco-transformer etc ,with best factory price.



2.Professional rich experience engineers and research team, our engineers have 25 experience who serviced many years in ABB, many patented products are owned by us.



3.Have a line and lab special for producing CT and PT we can winding samples and test in our lab, our principle is we promise make qualified products, testing in our lab first, then delivery machines to clients.



4.Professional Technique training, our engineer available training technique overseas or you send engineers learn technique from our factory.



5. Best and full range of service:

    Before service: We supply winding samples first and test it in our lab.



    Mid- service:     We promise adopts good quality materials and electronic components to supply best machine to clients.



    After-service:    We guarantee 12 month quality warranty period, and we responsible for training clients control winding ability.

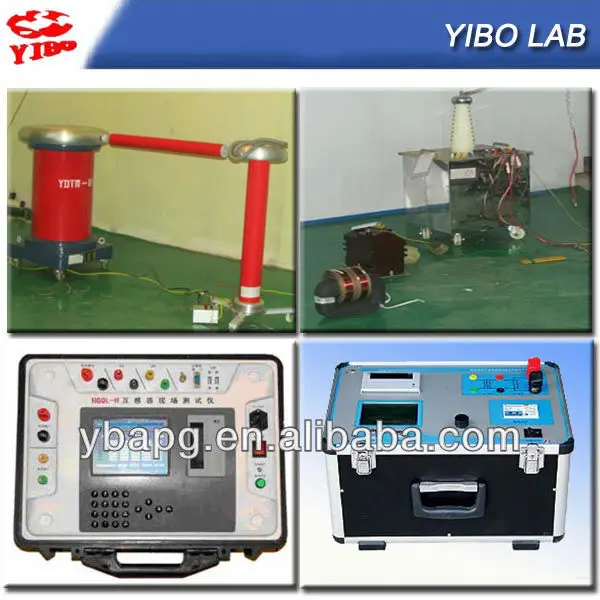

6.Lab,we have a modern test lab to test epoxy resin products for electrical, mechanical and thermal properties.



7. Engineers highly qualified and talented engineers.





5.FAQ:

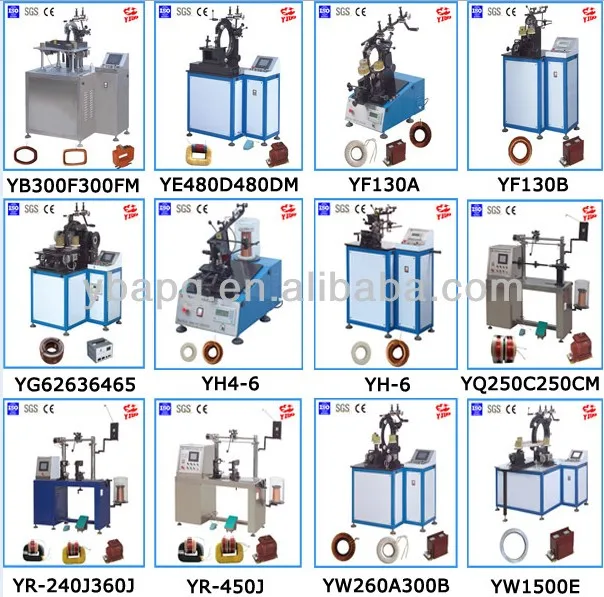

 1.Winding machine species: 11 kindds,Current transformer winding machine,Voltage transformer winding machine,rectangular winding machine,fast speed winding machine,Mini winding machine ect.



2.Warranty: 15 months.



3.Delivery time:7-15days.



4.Payment terms: T/T    L/C



5.Customized service: yes



6.Supporting service: We supply APG machine,APG molds,casting molds,Laser marking machine,foil winding machine,equipments service for electric industry.

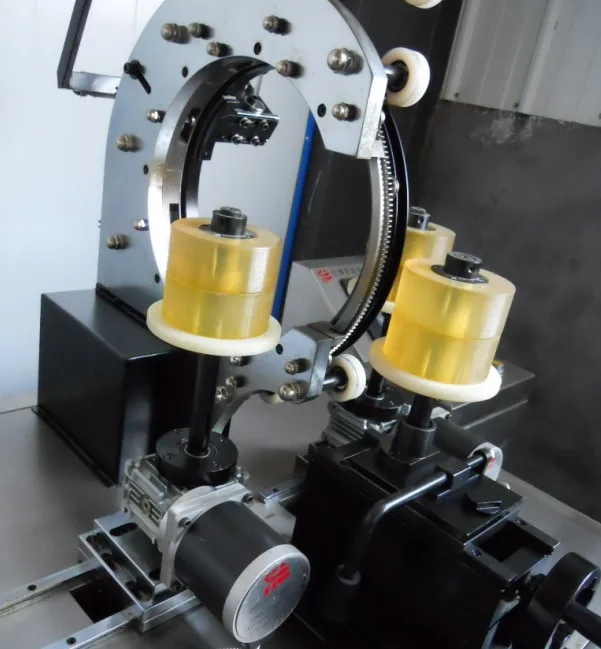

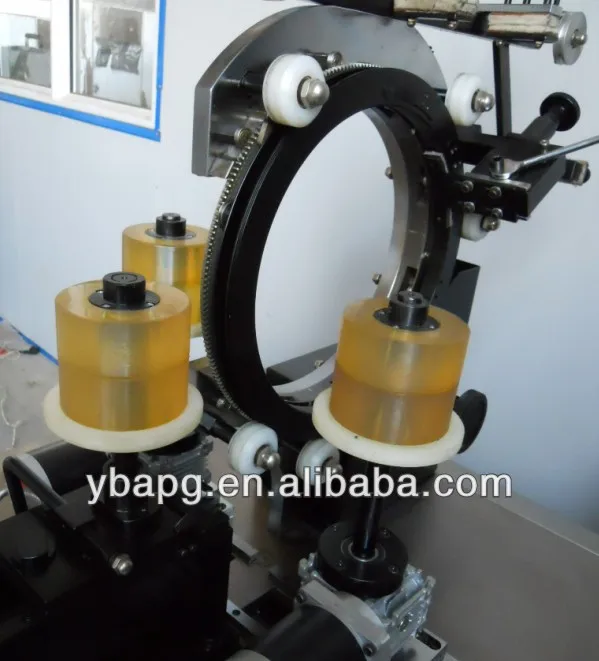

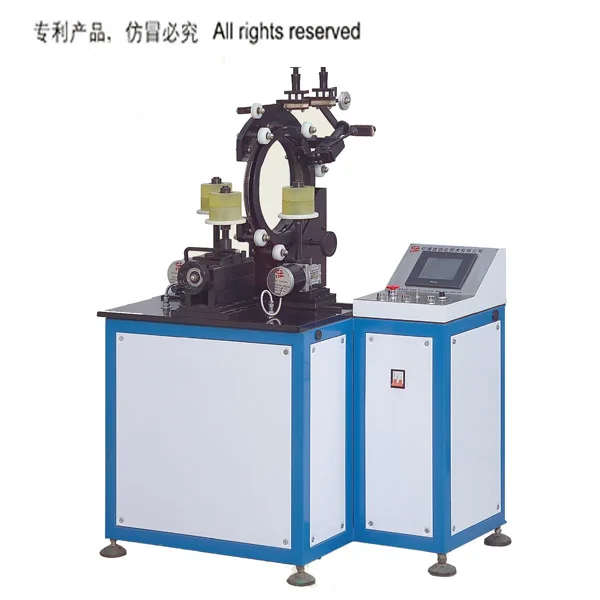

6.current transformer winding machine images:
