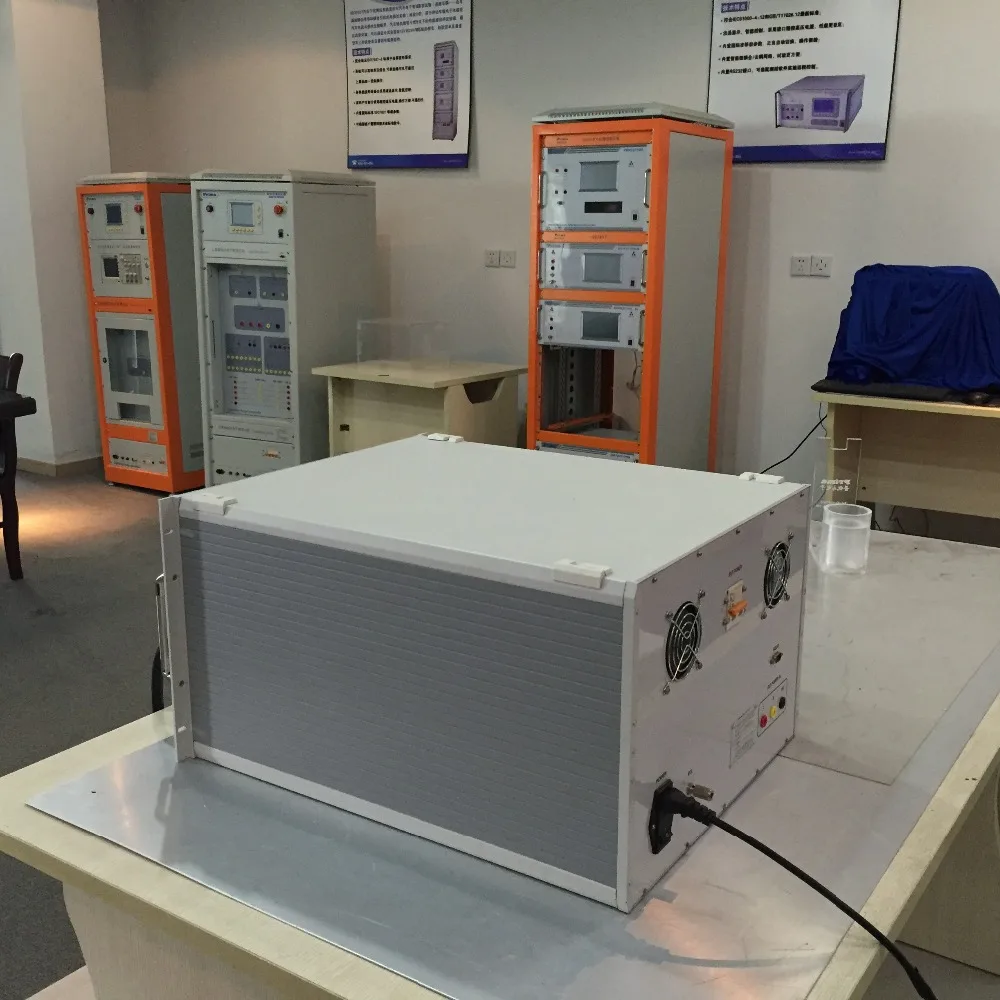

EN61000 4 4 and EN 61000 4 5 standard EMC testing equipment
- Category: Other Electrical Instruments >>>
- Supplier: Shanghai Prima Electronic Co. Ltd.
Share on (1926671949):
Product Overview
Description
Combined EMC test interference generator PRM61045A is a multi-functional EMC tester which contains EFT and Lightning Surge two functions.It complies with the latest standards EN61000-4-4 and EN61000-4-5
Product characteristic:
EFT and SURGE two functions combined into a single, more cost-effective
Built-in international standards level parameters and user models parameters,very convenient
LCD display, Intelligent control,Use the imported high-voltage power supply, Reliable performance
Built-in intelligent couping/decoupling network. Testing safely
Built-in the RS232 interface ,remote operated by the optional control software.
Technical parameters:
|
Model |
PRM61045TB |
||||
|
EFT |
Output voltage |
0.2~± 4800V Positive/Negative//Switchable |
|||
|
Pulse frequency |
1kHz~1200kHz ± 10%, adjustable |
||||
|
Resistor |
50 Ω± 20% |
||||
|
Rise time |
5ns ± 30% |
||||
|
Impulse duration |
50 Ω load |
50ns ± 30% |
|||
|
1k Ω load |
35 ns~150 ns |
||||
|
Number of burst |
1~255 |
||||
|
Burst period |
300mS ( 0.15~9.99 S adjustable,step 0.01S ) |
||||
|
EUT coupling path |
Built-iout 3 phase 5 line max 16A |
||||
|
SUG |
Open -circuit t voltage/short-circuit current |
Waveform parameters parameters of Open -circuit t voltage: 1.2/50 μ s , 0.2~ 6kV |
|||
|
Surge polarity |
Positive / Negative/Switchable |
||||
|
Phase |
Synchronism 0 °~ 360 °selectable/Asynchronism |
||||
|
Output impedance |
Complex impedance: 2 Ω |
||||
|
Coupling path |
Built-iout 3 phase 5 line max 16A |
||||
|
Surge count |
1~9999 |
||||
|
Surge interval |
10~9999s |
||||
|
Working power supply |
AC220V 50/60Hz |
||||

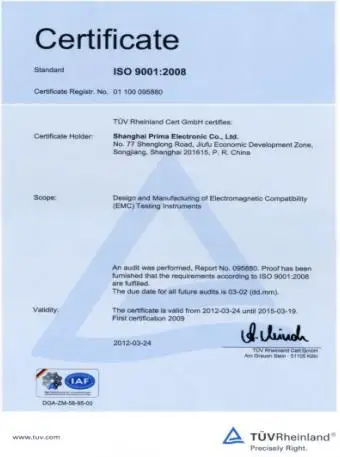

TUV certification
Customers visit our company
Manufacturing shop
On the China Electronic Exhabition
Famous customers of us in China and beyond
