Automatic led bulb machine led bulb making machine led light production line
- Category: Electronics Production Machinery >>>
- Supplier: Shenzhen Leadsmt Technology Co. Ltd.
Share on (1977499879):
Product Overview
Description
We are the manufacture for led assembly line machines , have founed over fifteen years. Our machines available for led tube, led bulb, led candles, led lamp...all kinds of led lights.
We have independ R& D department in our factory. The R&D team keep study and develop new and advanced model timely.We can send our engineer to oversea to provide the aftersales service, include install and traning in your factory. we can give you a turnkey solution.
For the led assembly line:
LED SMT PRODUCTIONL INE PROCESS:

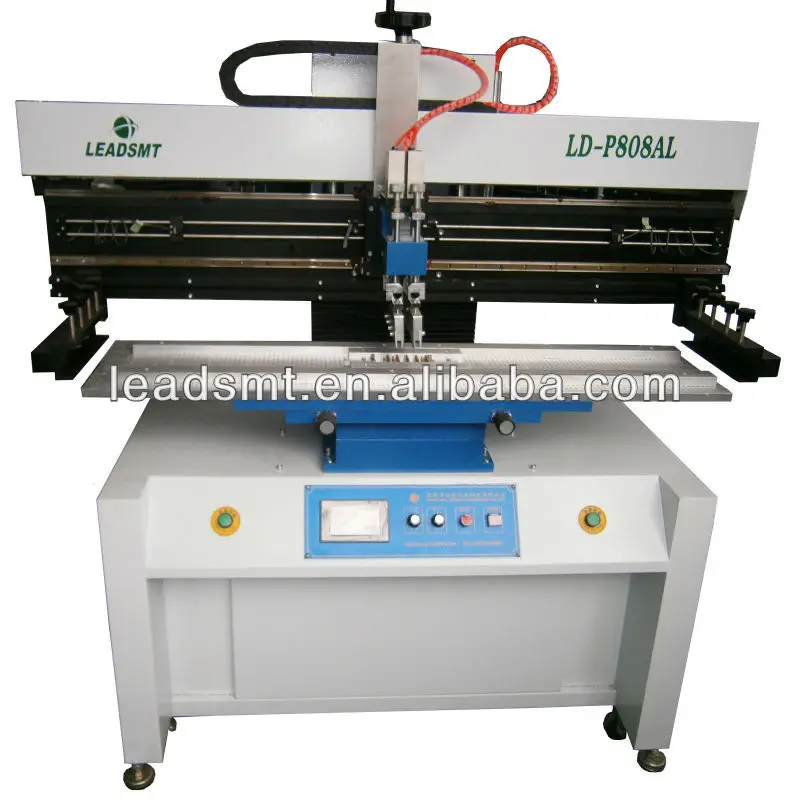

First step:Printing solder paste on PCB
[Technical Parameter]:
Max board size | 1200×300mm |
Printing table size | 1280×320mm |
Screen frame size | 440×370mm~1400×550mm |
Squeegee speed | 0-100mm/sec |
Power requirements | 220v 1P 50/60hz |
Power for operation | 100w |
Positioning system | pc outer or pin positioning |
Adjusting for table | Front/back±10mm Right/left±10mm |
Printing accuracy | ±0.02mm |
Repeating accuracy | ±0.02mm |
Air used | 4-6kg/cm2 |
Machine dimension | 1600x900x1650mm |

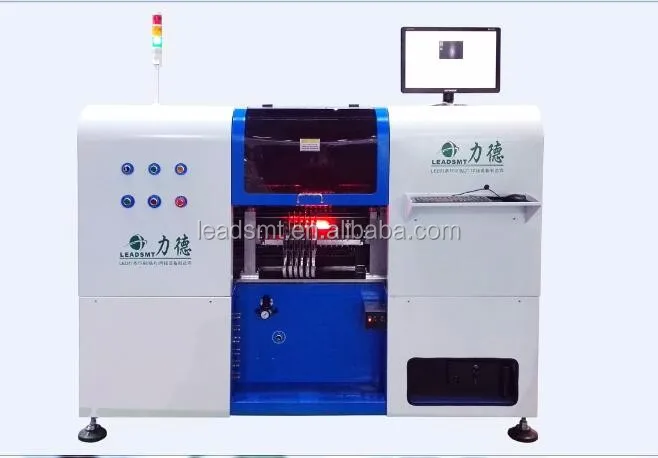

Second : Pick the led chips and place on pcb:
Model | LEAD-2208 |
Working Type | Online, Fully automatic |
Mounting Heads | 8 Pieces |
Stable practical Speed | 40000cph |
Max Speed | 58000cph |
Position Accuracy | ±0.005mm with one big cameras with 3 million pixels . |
Placement accuracy | Usually ± 0.1mm, with 8 visual cameras and visual system check option for high precision electronics PCBA .Placement accuracy up to ± 0.05mm if added . |
Max moving range(X,Y) | X axis 1220mm, Y axis 430mm |
Z axis max moving range | 10mm |
Position and programming Method | 1.Key and mouse input 2.Vision Mark Position realization 3.PCB Gaber file input |
Max Mounting PCB size | 1200mm*320mm(in One cycle) |
Mounting components type | Including and above 0402 smd components like resistors ,ics ,capacitors,all kinds of leds such as 2835,3014,3030,4040,5050,5630,5730,7070 and high powers. |
No. of Feeders | 14 Pieces feeders maximum can be 20 pieces (made by order) |
Feeder sizes available | 8mm,12mm,16mm, 24mm ,32mm |
Operation System | Windows XP . |
Pressure detective system | Negative detective system with digital display . |
![7`A399L1WPFBNB8]PGZ9W](http://sc01.alicdn.com/kf/HTB1uQAyd7yWBuNjy0Fpq6yssXXar/220237874/HTB1uQAyd7yWBuNjy0Fpq6yssXXar.jpg)

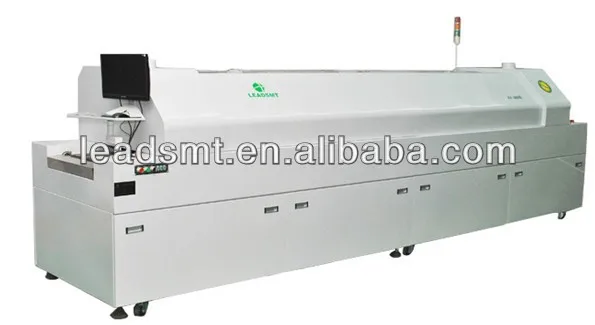

Third step:Soldering the led chips on PCB
Model | RF-8810 |
Dimensions(mm) | 4800x1100x1650 |
Weight | 1800kg |
Heating zone | up8\\bottom8 |
Heating Length | 3160 mm |
Cooling zone | 2(cooling zone length :600mm) |
Exhaust Volume | 10M3/min x2 |
Power | 3 Phase 380VAC 50/60Hz |
Start Power | 36kw |
Run Power | 7kw |
Warm-up Time | Approv: 15min |
Temperature Range | Room temperature~350 |
Temperature Control | PID+SSR |
Temperature Precision | (Top zone)±1°C (Bottom zone)±1 |
Deviation On PCB | ±2 |
Temperature keeping system | 3 |
Abnormal Alarm | Temperature abnormal |
Conveyor Width | 450mm |
Components height | PCB 40mm |
Conveyor Direction | L to R |
Conveyor Height | 900±20mm |
Conveyor Speed | 0~2000mm/min |
please contact me :
Skype:effi1022 Cell:86-15820477064
