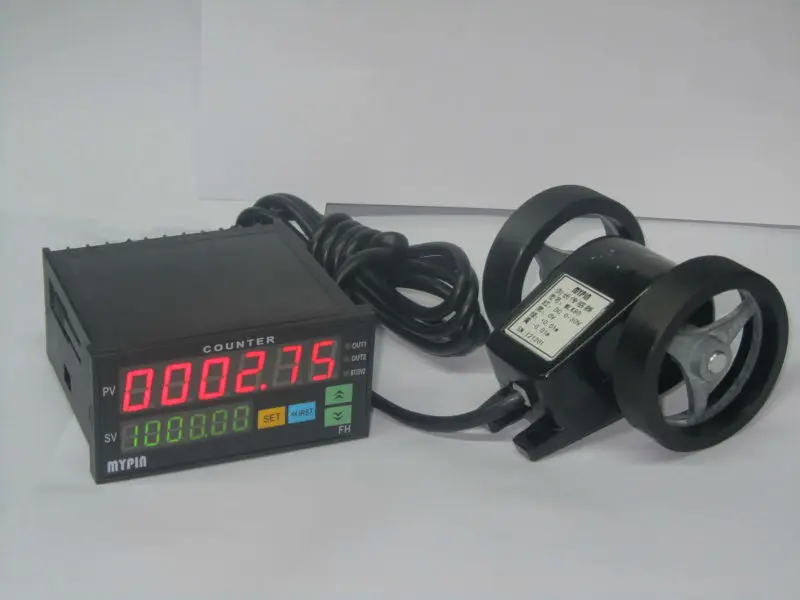

FH series 6 digit Pulse Batch Counting Meter/Counter(MYPIN)

Product Overview

Description

FH series 6 digit Pulse Batch Counting Intelligent Timer/Counter(MYPIN)











FH8 dual line 6 digit display, size 48*96*80mm

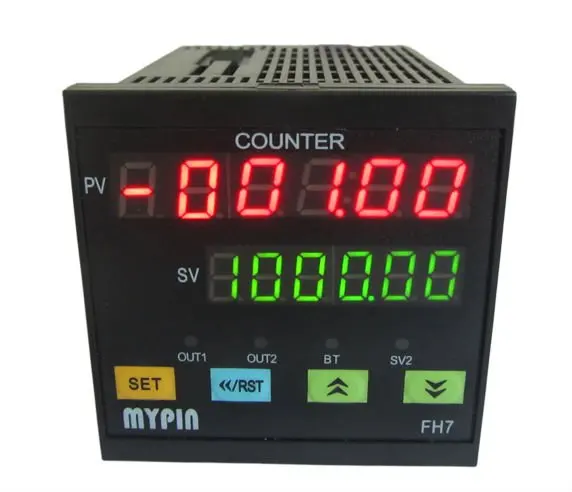

FH7 dual 6 digit display, size 72*72*80mm

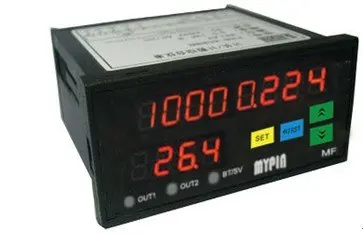

FH8 single line 8 digit display, size 48*96*80mm

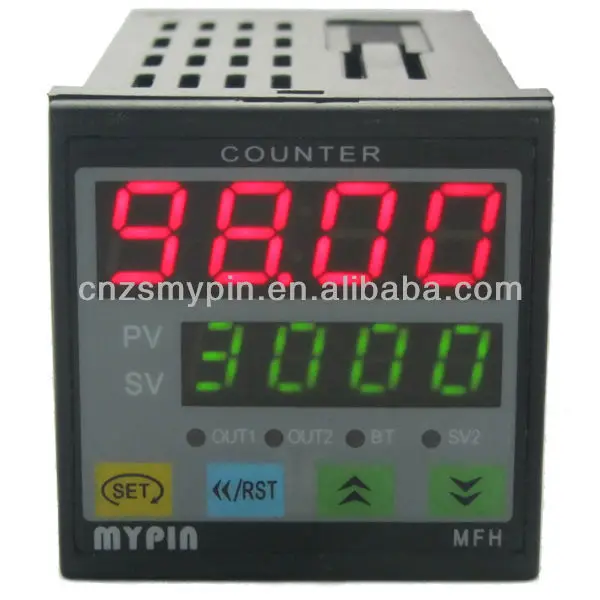

FH4 dual line 4 digit display, size 48*48*80mm





Features:



1, Widely used in Machinery/Electronic/Food/Package industry for counting, length, batch counting.

     Receive signals from various switches/encoder for  height, position, angle, etc.

     measurement. Count no. /length value presetable. When for batch.

     counting, Accumulate counte value/current batch count value & batch no. will displays at the

     same time. Several outputs settable.

2, Accuracy: 0.01%, dual line 4/6/8 digit display.  Resolution 0.0001. Photo isolation for input &

    output,Strong interference.

3, Input: 4 modes(add counting, substract counting, add & substract counting, phase

    difference input) for various waveform pulse/raster/ proximity switch/

    photoelectrical switch/contact switch/encoder (PNP/NPN), etc.

4, Output: 8 modes—reset until counting to delay time, Reset one c.ount to presetn value, keep

    count value and output & hand reset, count to output & continue counting, high alarm value

    output, low alarm value output).

    Up to 3 alarm outputs with various control modes for selection.

5, Auxiliary power: 12V/24V/30mA, All datas are keeped by FLASH EEPROM in case of power-

    failure.

6, Communication: standard RS232/RS485 interface, MODBUS RTU protocol.

    realize remote control by direct connection with PC/PLC/other equipment.

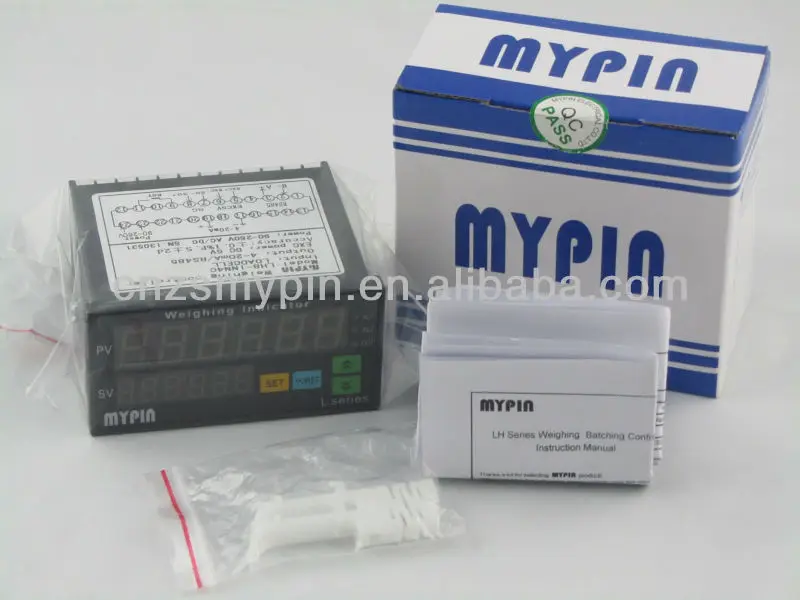

1.The complement packing contains 1 meter, 1 manual and 1 pair of brackets.

2.Items are usually shipped within 3 to 15 business days after payment has been received, which according to the quantities.

3.Shipment is by Sea, Freight or Courier(DHL/FEDEX/TNT/UPS/EMS/CHINA POST MAIL) as per clients request.











• We provide 18 months warranty for all Mypin products.
• OEM / ODM service available to meet up to client's requirements.
• Any questions, please mail or call us any time.
