Product Overview
Description
Product Name:semi automatic tin can production line machine make tin cans
Suzhou First Machinery provide a complete range of tin can making machines and components-including slitters,transfer system,welding machines,seam protection systems,body formers and endmaking systems.
The follow is 20liter semi auto paint tin can production line with productivity of 15cans/min
Suzhou First Machinery provide a complete range of tin can making machines and components-including slitters,transfer system,welding machines,seam protection systems,body formers and endmaking systems.
The follow is 20liter semi auto paint tin can production line with productivity of 15cans/min
Product Paramenters

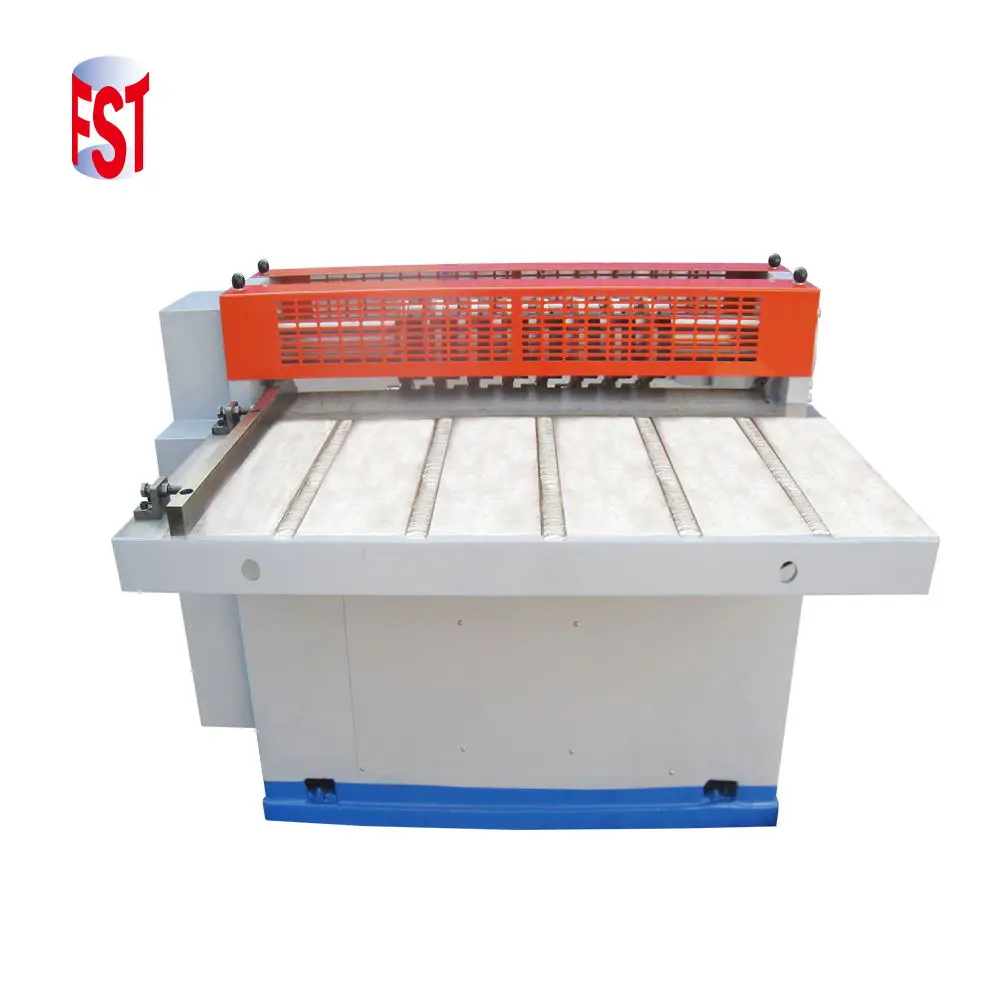

Slitting Machine is use to cut the printed tinplate base material (large square metal sheets) into body blanks of required size,it's the first stage in the production line.
Name | Slitting Machine |
Model | GTIB-25 |
Max Thickness | 0.5mm |
Max Width | 1300mm |
Power | 1.8kw |
Net Weight | 1500kg |
Dimension | 1800x1600x11050mm |

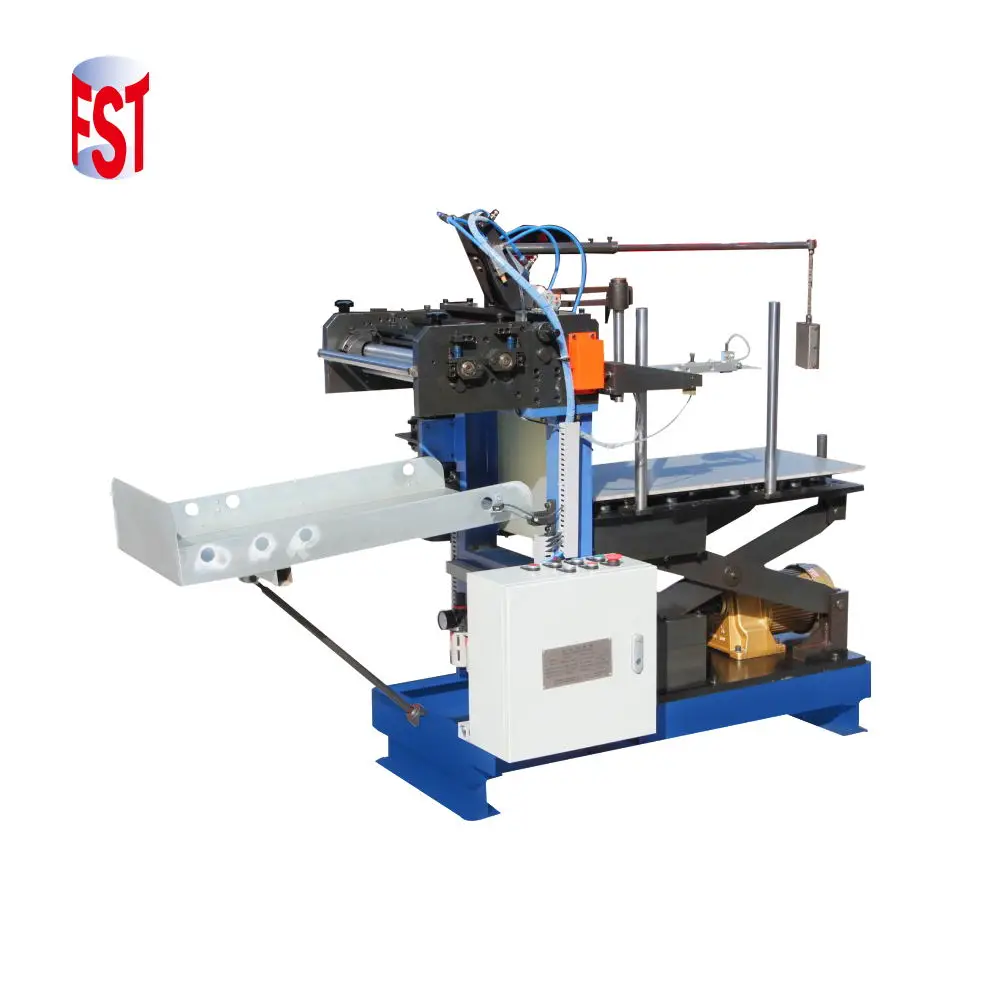

Automatic bodyforming is use to make body blank into cylinder shape.
Name | Automatic Roller |
Model | CY400-AT |
Productivity | 20~30cans/min |
Diameter Range | Φ75~Φ300mm |
Height Range | ≤430mm |
Thickness | 0.2~0.42mm |
Net Weight | 450kg |
Dimension | 2000x900x1500mm |

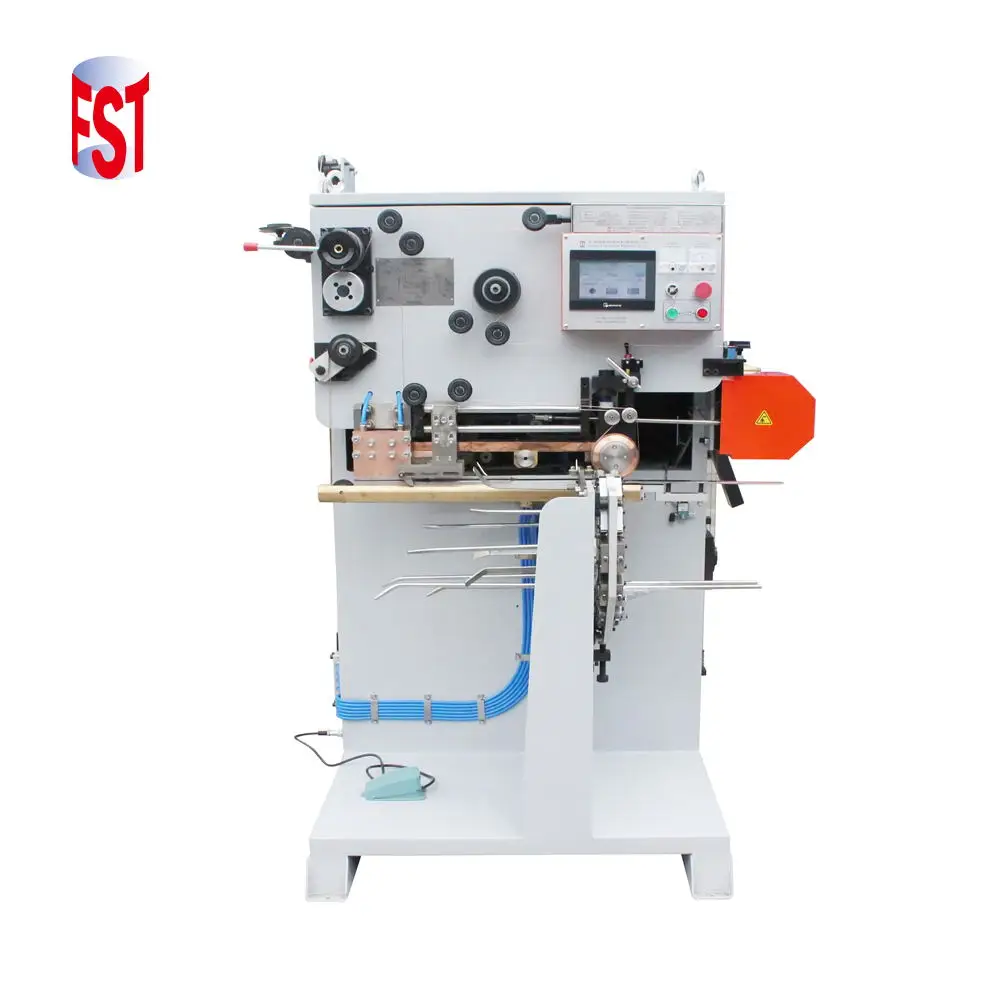

Canbody Welding Machine
Canbody welding machine is use to welding the canbody after cylinder shape
Name | Can Welding Machine |
Model | FB2000-A |
Input Power | 3N380V50HZ/15KVA |
Welding Speed | ≤12m/min |
Productivity | 15~50cans/min |
Diameter Range | Φ65~Φ290mm |
Height Range | 70~400mm (500mm) |
Welding Thickness | 0.18~0.4mm |
Overlap | 0.6~1mm |
Net Weight | 1350kg |
Dimension | 1350x1450x2000mm |

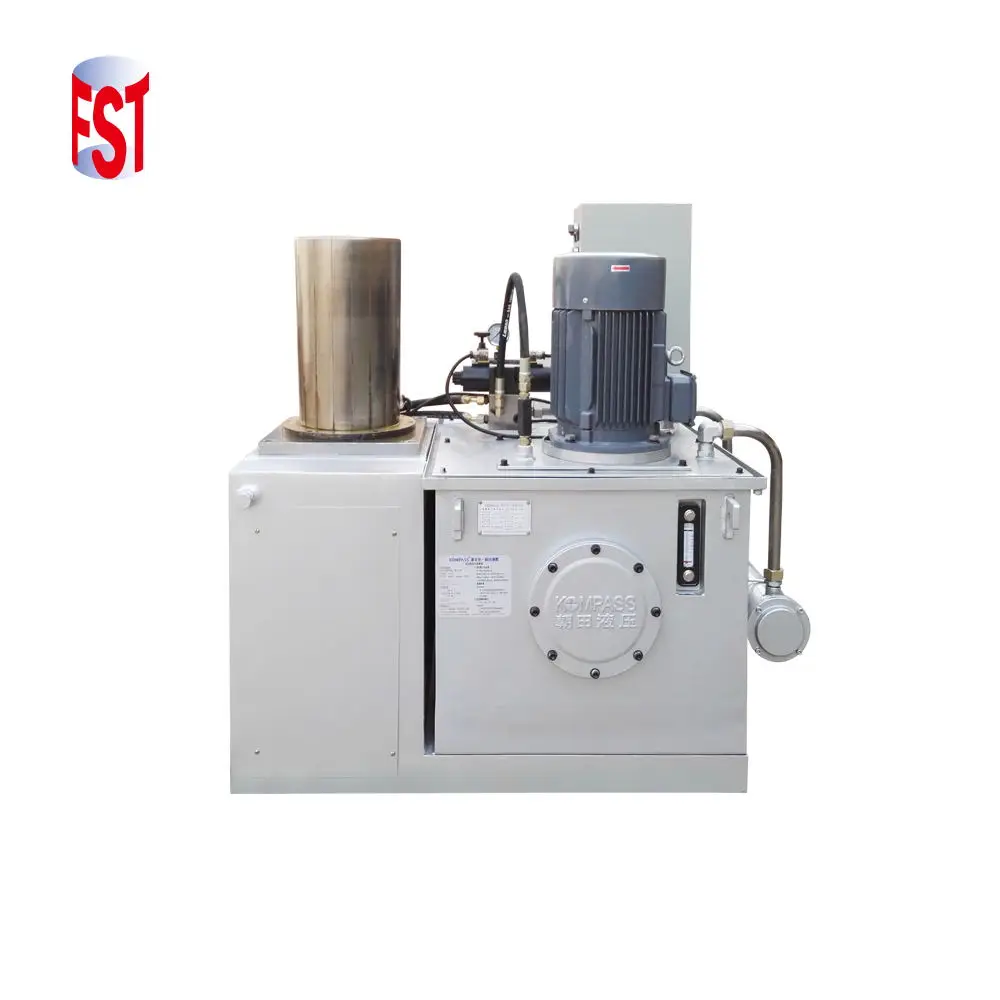

Hydraulic expander machine is given the canbody into conical shape
Name | Hydraulic Expander |
Model | 3TA20 |
Diameter Range | Φ210~Φ290mm |
Height Range | 270~290mm |
Capacity | 10~15cans/min |
Thickness | 0.2~0.4mm |
Power | 7.5kw |
Net Weight | 1000kg |
Dimension | 1300x780x1150mm |

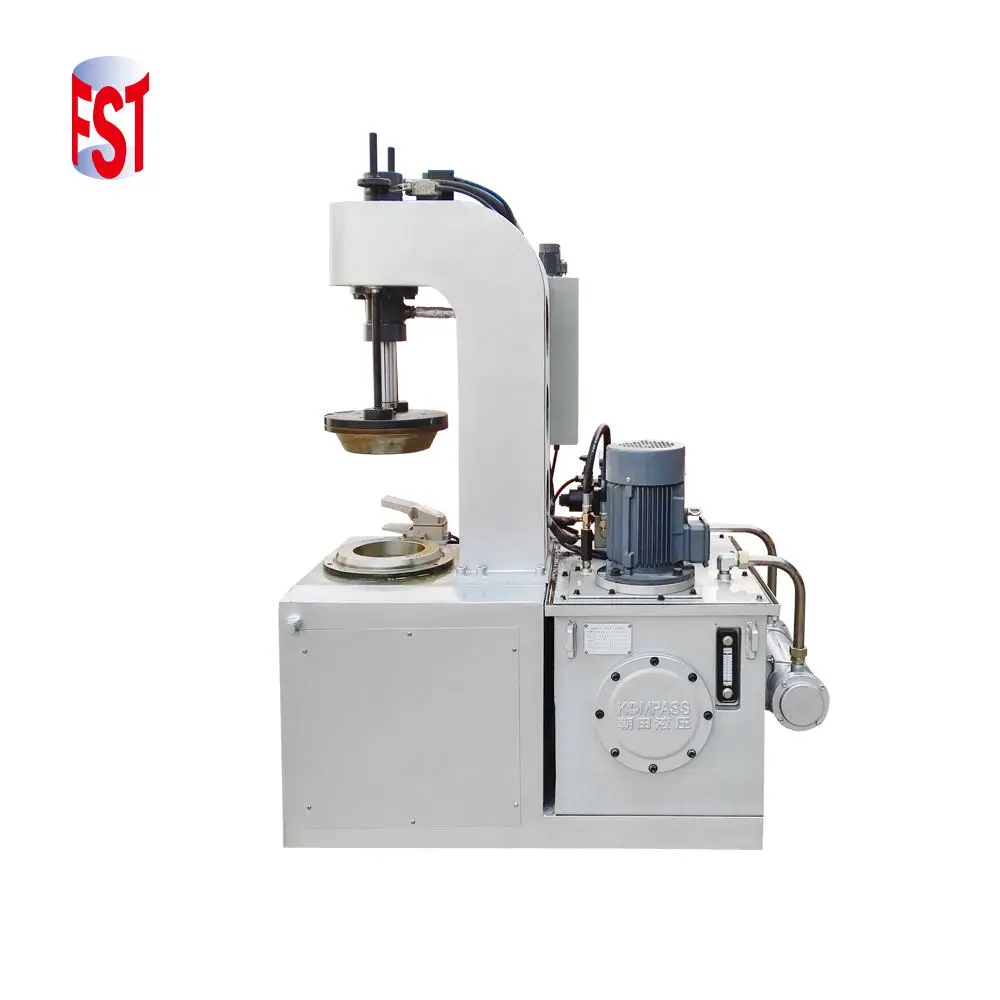

Hydraulic per-curling & flanging machine is do flanging of conical shape pail.
Name | Hydraulic Per-curling & Flanging Machine |
Model | 3TB20 |
Diameter Range | Φ210~Φ290mm |
Height Range | 270~400mm |
Capacity | 10~15cans/min |
Thickness | 0.2~0.4mm |
Power | 7.5kw |
Net Weight | 1000kg |
Dimension | 1300x700x1750mm |

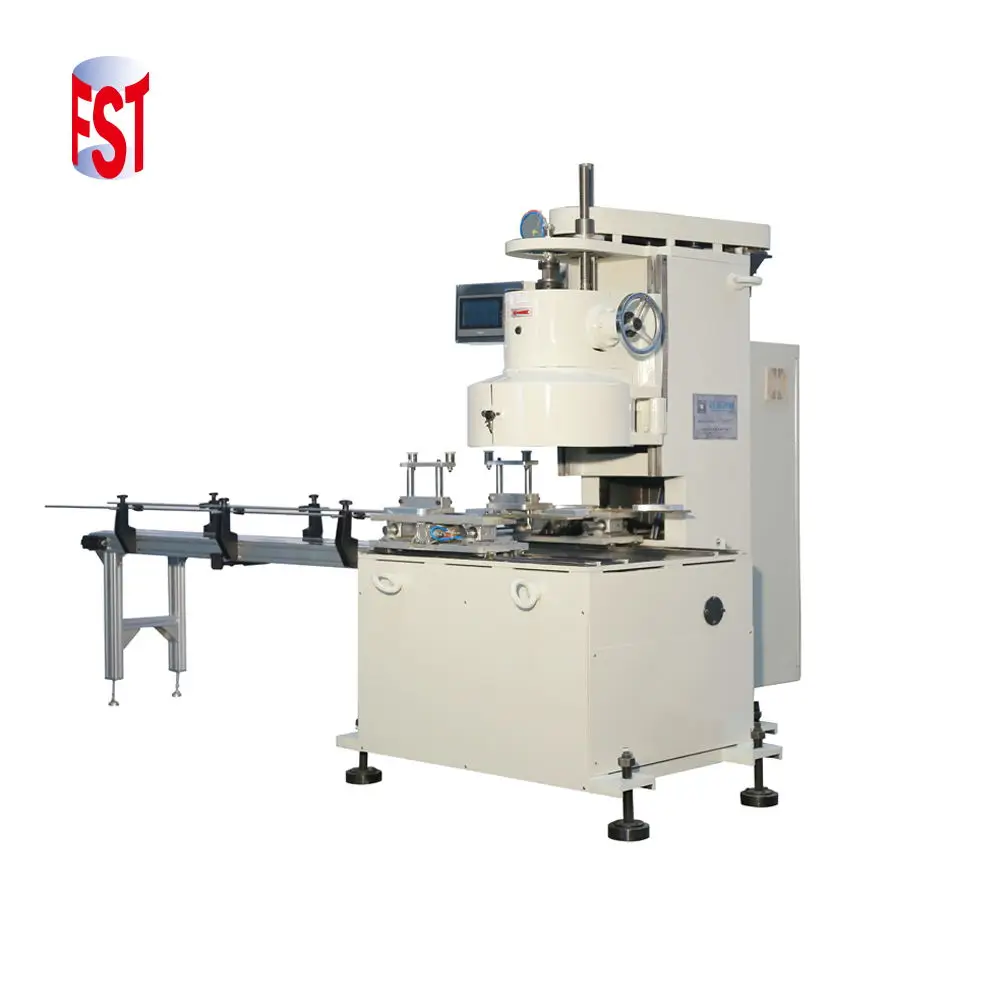

Automatic Tin Can Sealing Machine
Automatic tin can sealing machine is use to sealing bottom on canbody
Name | Automatic Sealing Machine |
Model | GT4B-26 |
Diameter Range | 210~290mm |
Height Range | 100~380mm |
Capacity | 10~20cans/min |
Thickness | 0.2~0.4mm |
Air Pressure | 0.3~0.5Mpa |
Power | 2.2kw |
Net Weight | 1300kg |
Dimension | 1800x850x1800mm |

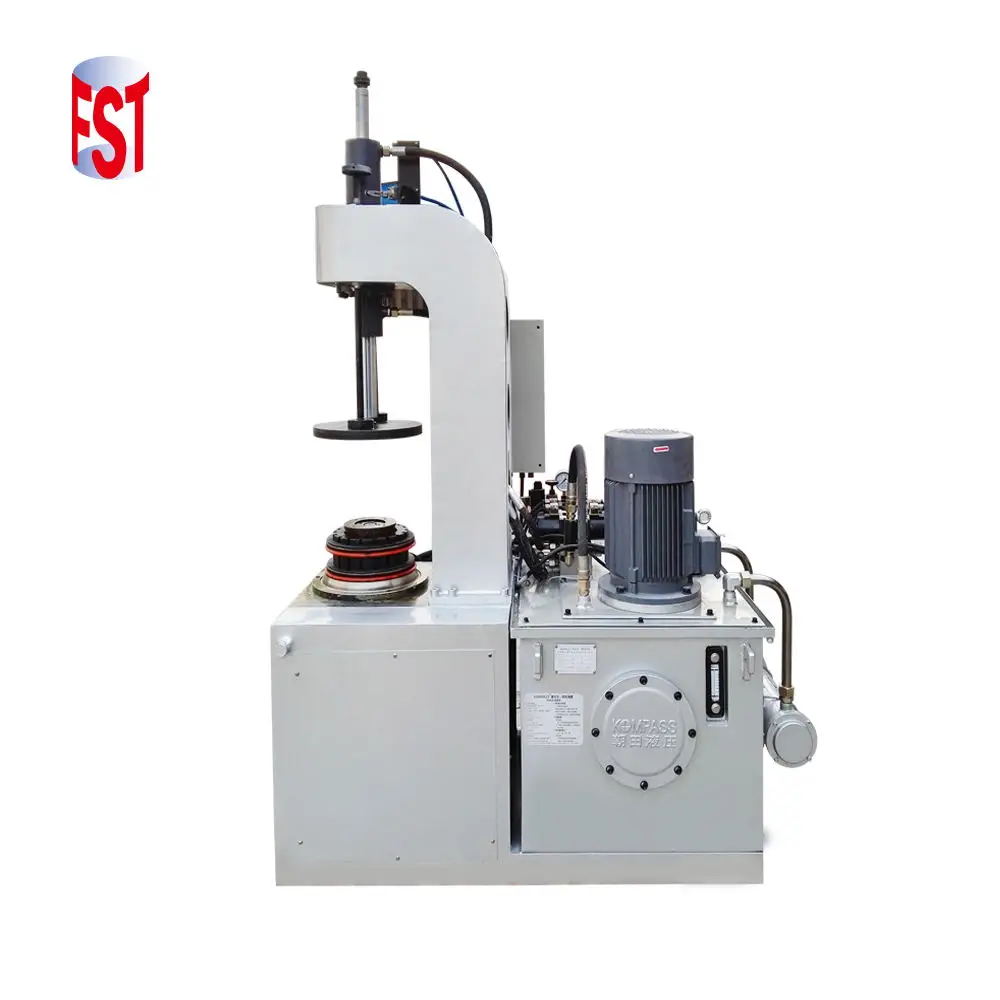

Hydraulic flanging & beading machine is use to do beading on canbody
Name | Hydraulic Flangng & Beading Machine |
Model | 3TC20 |
Diameter Range | Φ210~Φ290mm |
Height Range | 270~290mm |
Capacity | 10~15cans/min |
Thickness | 0.2~0.4mm |
Power | 7.5kw |
Net Weight | 1000kg |
Dimension | 1470x940x1980mm |

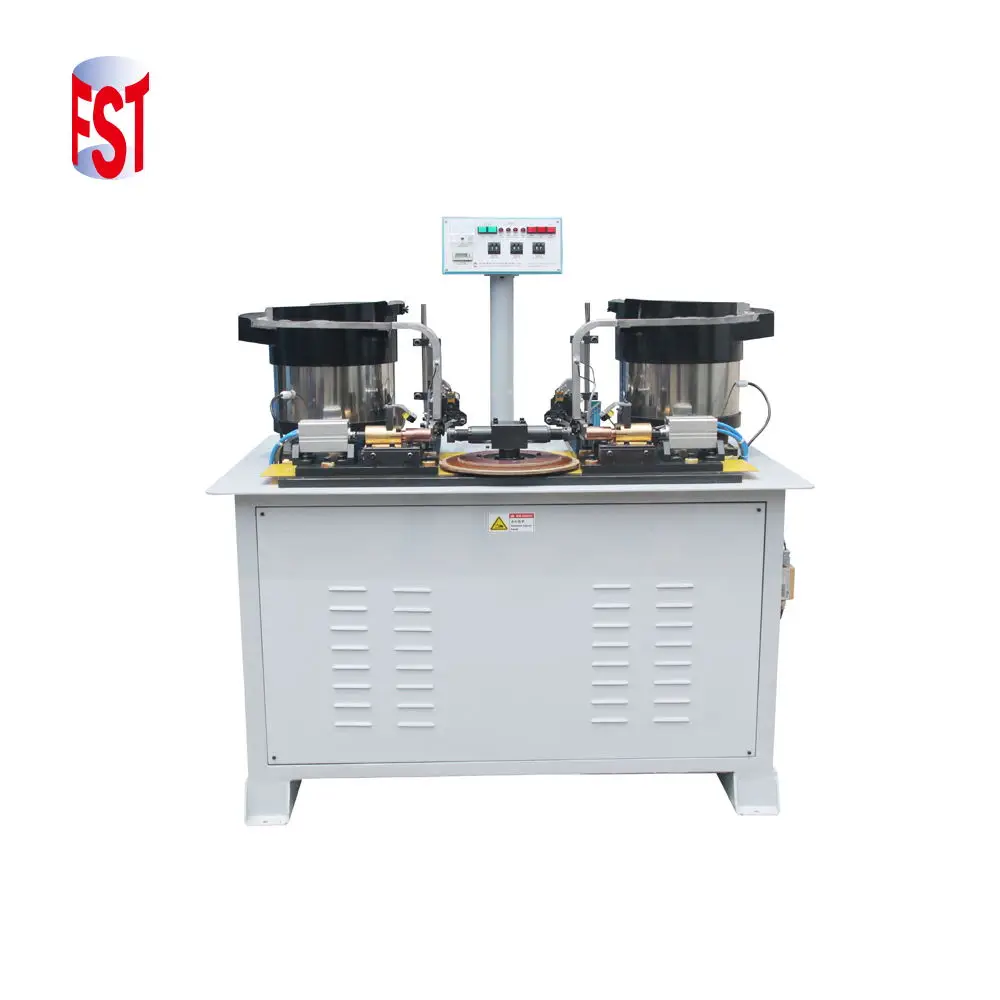

Automatic Earlug Welding Machine is use to welding earlug on canbody
Name | Earlug Welding Machine |
Model | DNZ60B |
Input Power | 3N380V/50HZ 60KVA |
Productivity | 15~20cans/min |
Diameter Range | Φ150~Φ300mm |
Air Compressor | 900L/min 0.6Mpa |
Net Weight | 500kg |
Dimension | 1350x1000x1550mm |
Our Advantages
♦ MITSUBISHI or PANASONIC PLC and variable-frequency speed governor from Japan.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF & NSK bearings from Sweden or Japan.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON & SIEMENS control thyristors from Germany.
♦ OMRON Sensor and photoelectric switch form Japan.
♦ SMC Waterway detected flow switch from Japan.
♦ SKF & NSK bearings from Sweden or Japan.
♦ SCHNEIDER electrical appliance components from France.
♦ LG air switch,contactor and circuit breaker from South Korea.
♦ SEMIKRON & SIEMENS control thyristors from Germany.
Exhibition
2015 Cannex in Guangzhou~2017 Metpack in Germany~2018 Cannex in Guangzhou
Company Profile
Suzhou First Packing Machinery Co.,Ltd.was founded in 1997,It's a professional company which
specialize in designing and manufacturing tin can making equipment,the products are widely used in petroleum,chemical,paint,coating,ventilation duct and etc.
specialize in designing and manufacturing tin can making equipment,the products are widely used in petroleum,chemical,paint,coating,ventilation duct and etc.
