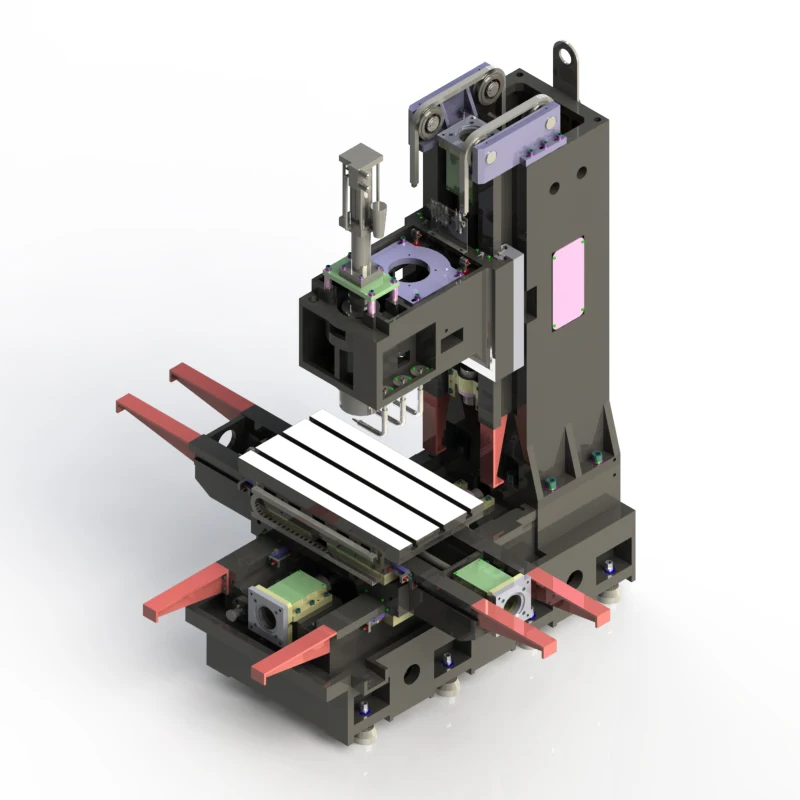

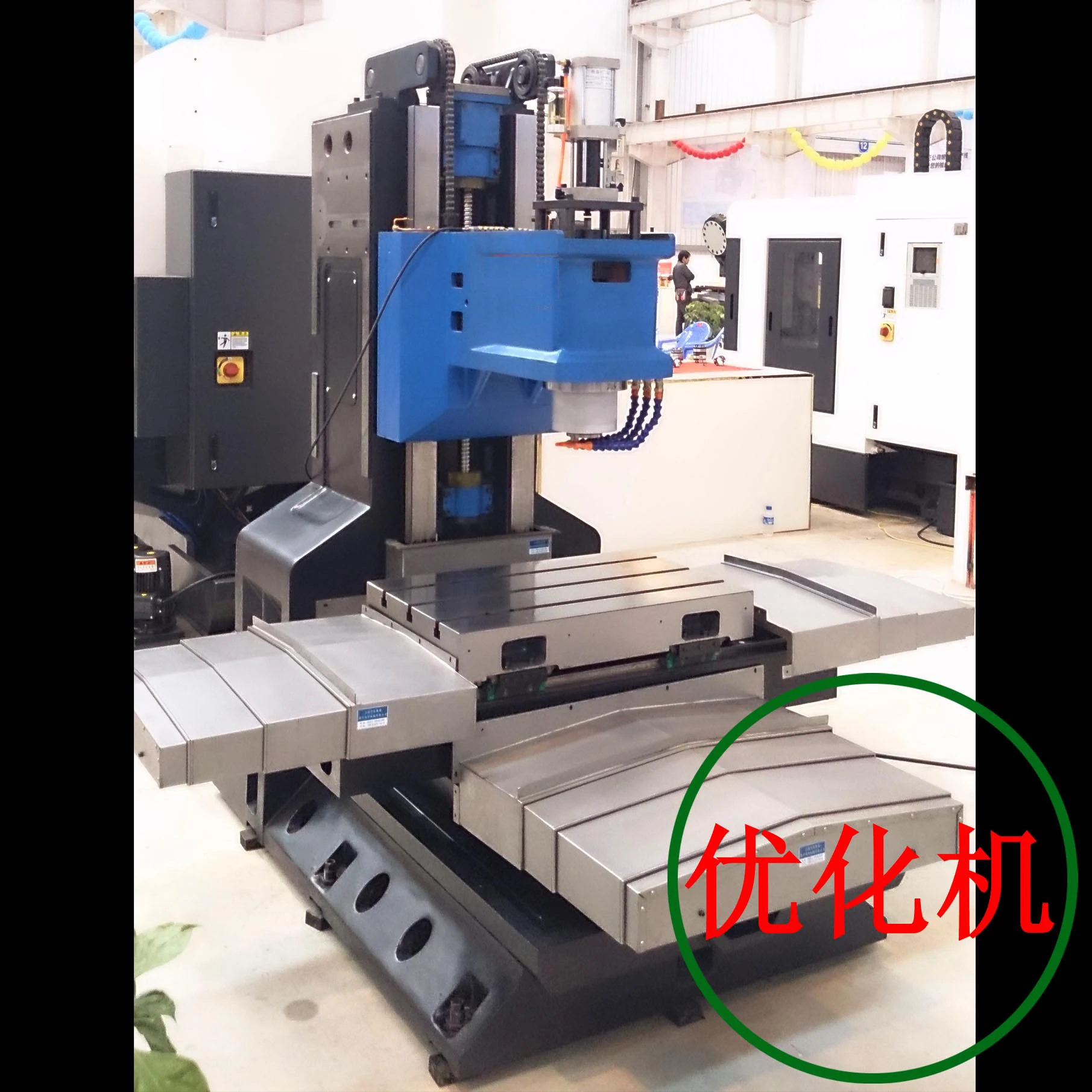

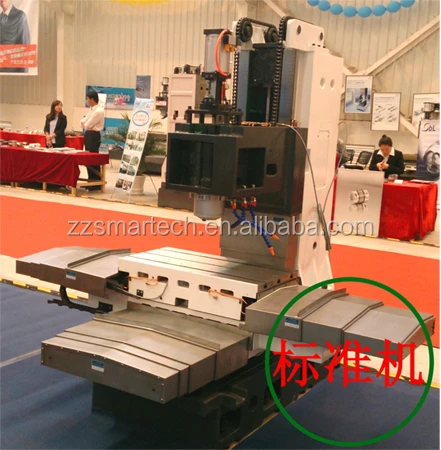

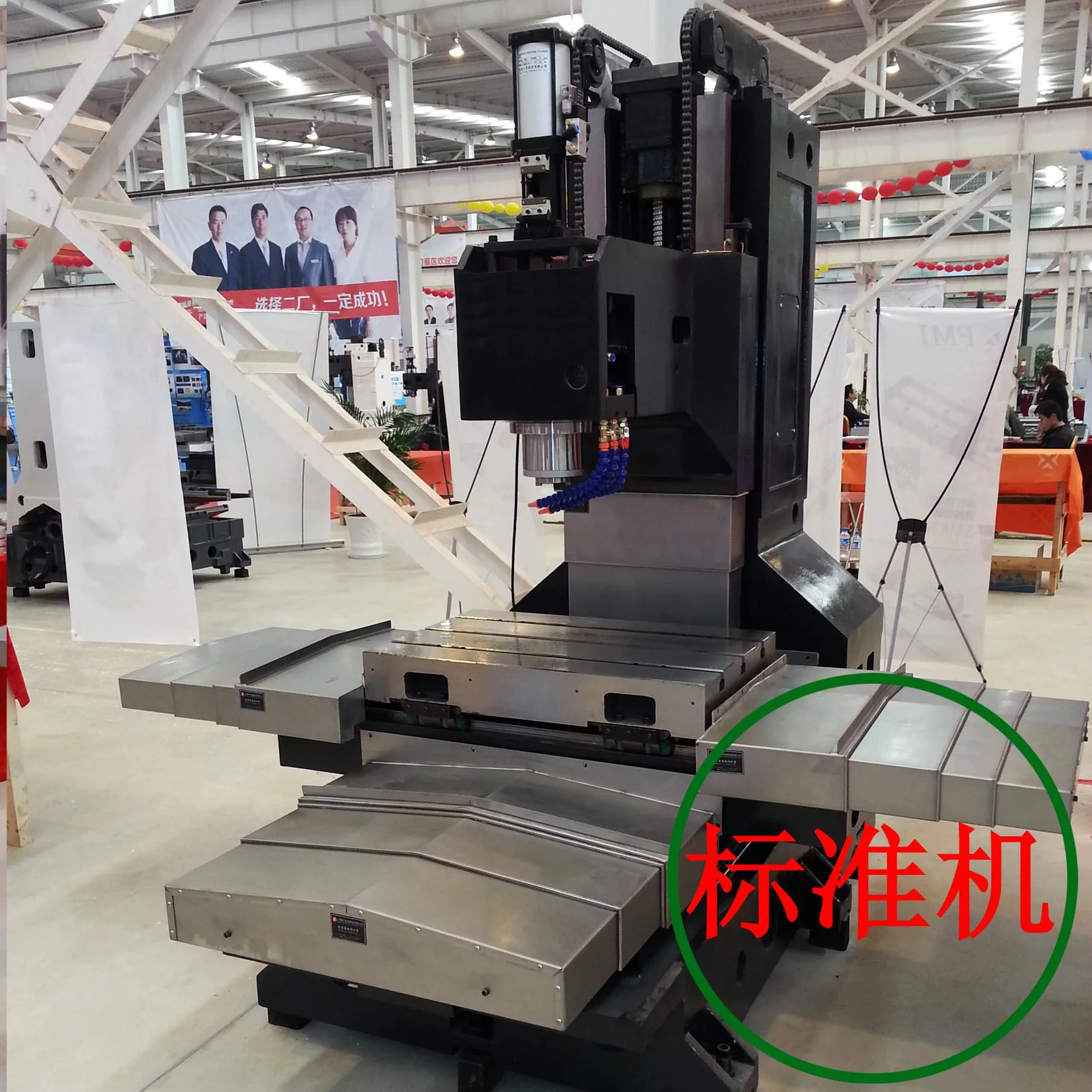

VMC 650 Vertical Machining Center CNC Milling Machine Frame

Product Overview

Description

SMARTECH CNC VMC FRAME



• MACHINE FEATURES

1     Resin mould high-class casting ;

2     Top class imported ball screws sets and bearing ;

3     Imported spindle & tool clamping system ;

4     Imported drive connectors ;

5     Stainless steel telescopic protection on X/Y/Z axis ;

6     Central lubrication system ;

7     Coolant system ;

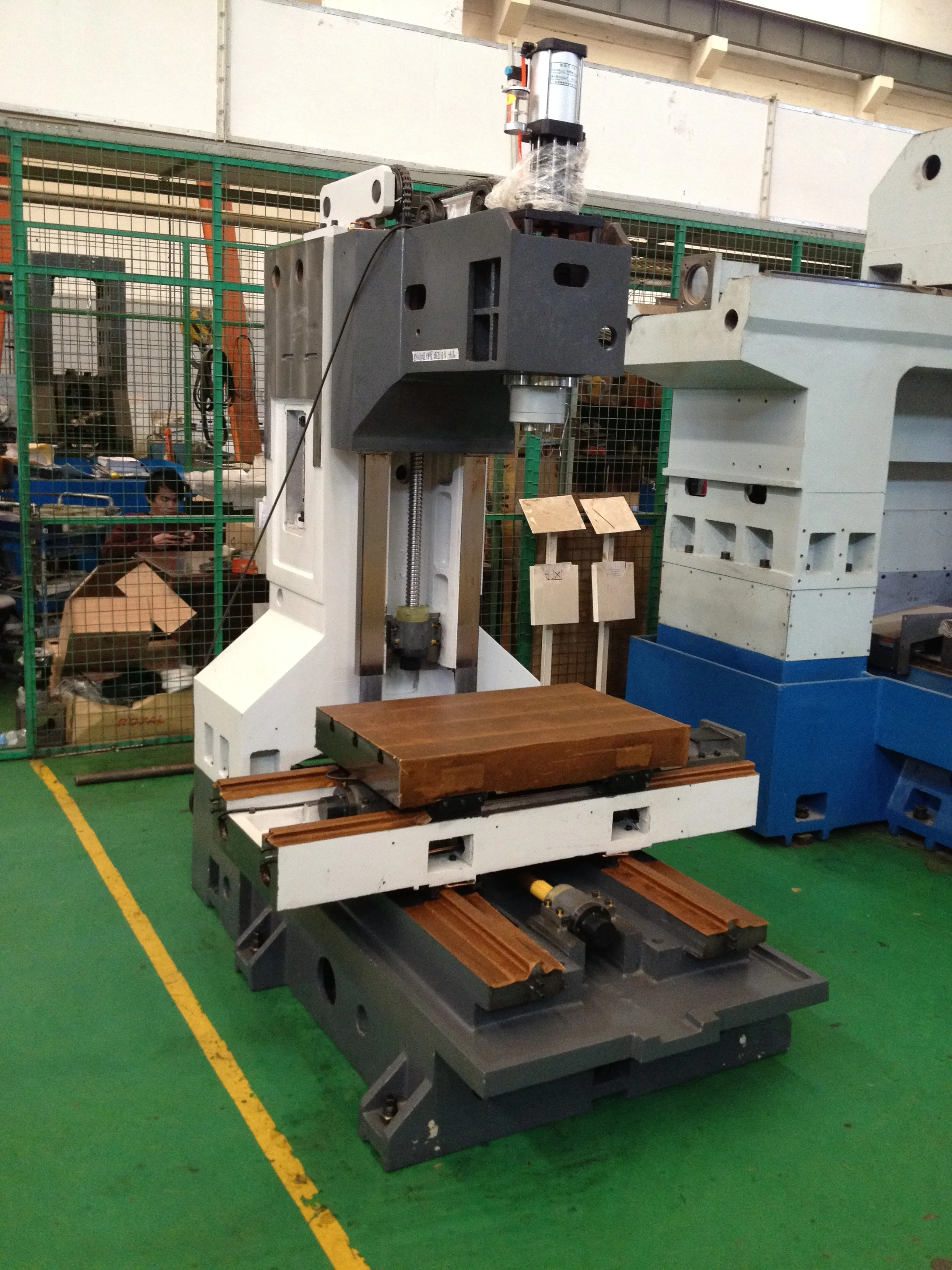

8     Top class imported linear slide ways ;

9     All Y axis drive motor backward located ;



• OPTIONAL:

1     Spindle speed optional choices: 10000rpm, 12000rpm, 15000rpm ;

2     Direct drive structure for main motor with spindle ;

3     Central oil coolant for the spindle ;

4     Coolant through spindle ;

5     ATC: drum type, arm type or chain type ;

6     Outside guarding: standard or special made according to clients design ;

7     Chip conveyor

8     CNC pre-installed for clients: whole full ready package delivery according to clients design





ITEMS		SPECIFICATION
l Table Size (mm)		420 x 800
l Travel (mm)	X	650
	Y	400
	Z	480
l Spindle to Column Slideway (mm)		480
l Spindle Nose to Table Surface (mm)		80-560
l T-Slot(No-size/distance) (mm)		3-18/135
l Spindle Taper/outside dia (mm)		BT50/155
l Spindle Speed (rpm)		8000 rpm
l X,Y axis Ball Screw Spec.		3206
l Z axis Ball Screw Spec.		3206
l X,Y & Z Motor Connection		Direct drive
l Max X/Y/Z Rapid Feed rate  mm/min		12000
l Max X/Y/Z cutting Feed rate  mm/min		6000
l Main motors		11Kw
l Drive motors recommended X/Y/Z		8/10/10Nm
l Positioning accuracy  mm		0.005 / 300
l Repeating Positioning accuracy  mm		±0.005 / 300
l Table Work Load		600 Kg
I Floor space (L x W x H) mm		2100 x 1950 x 2200
l Net Weight		3000kg































































VMC 650



Vertical Machining Center





CNC Milling Machine
