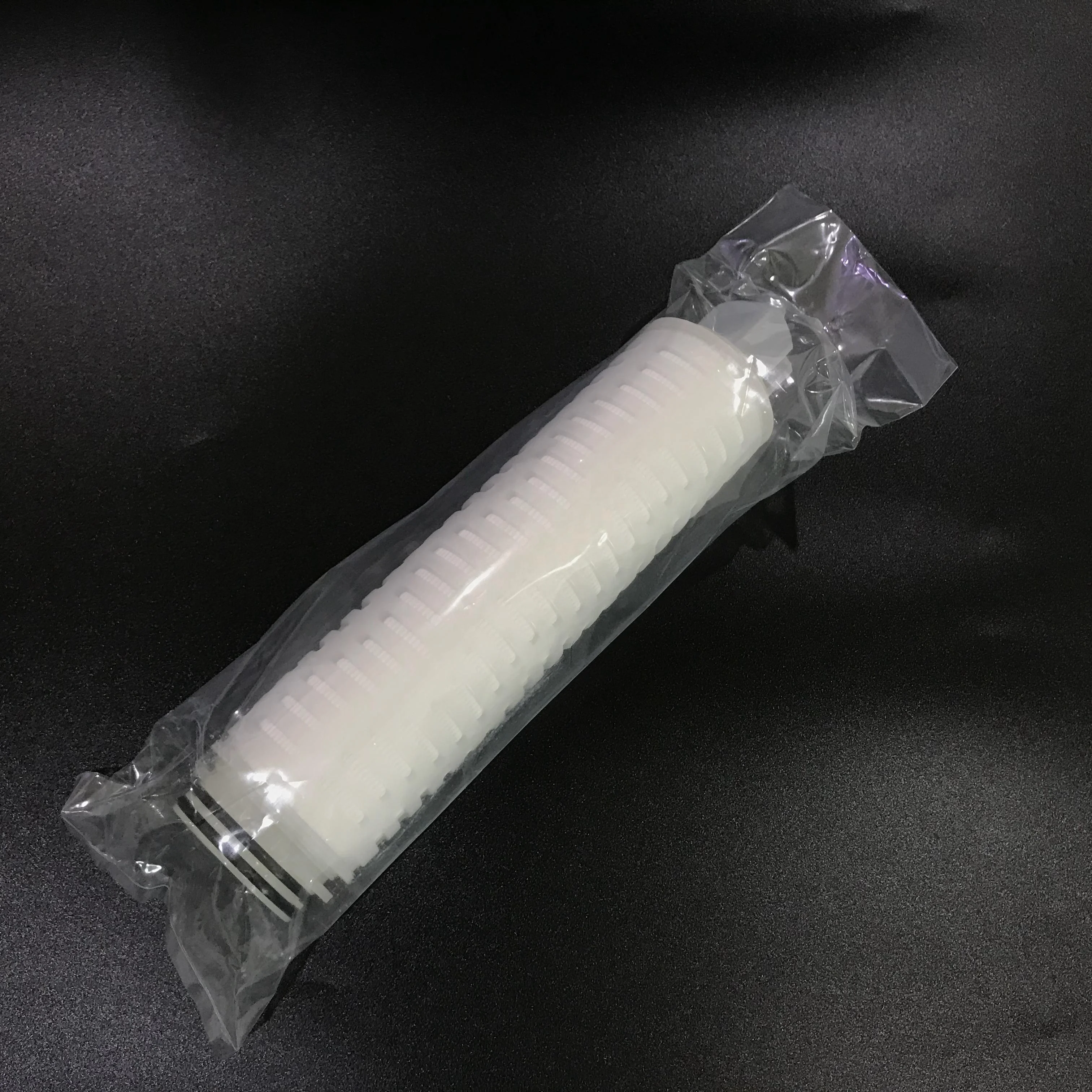

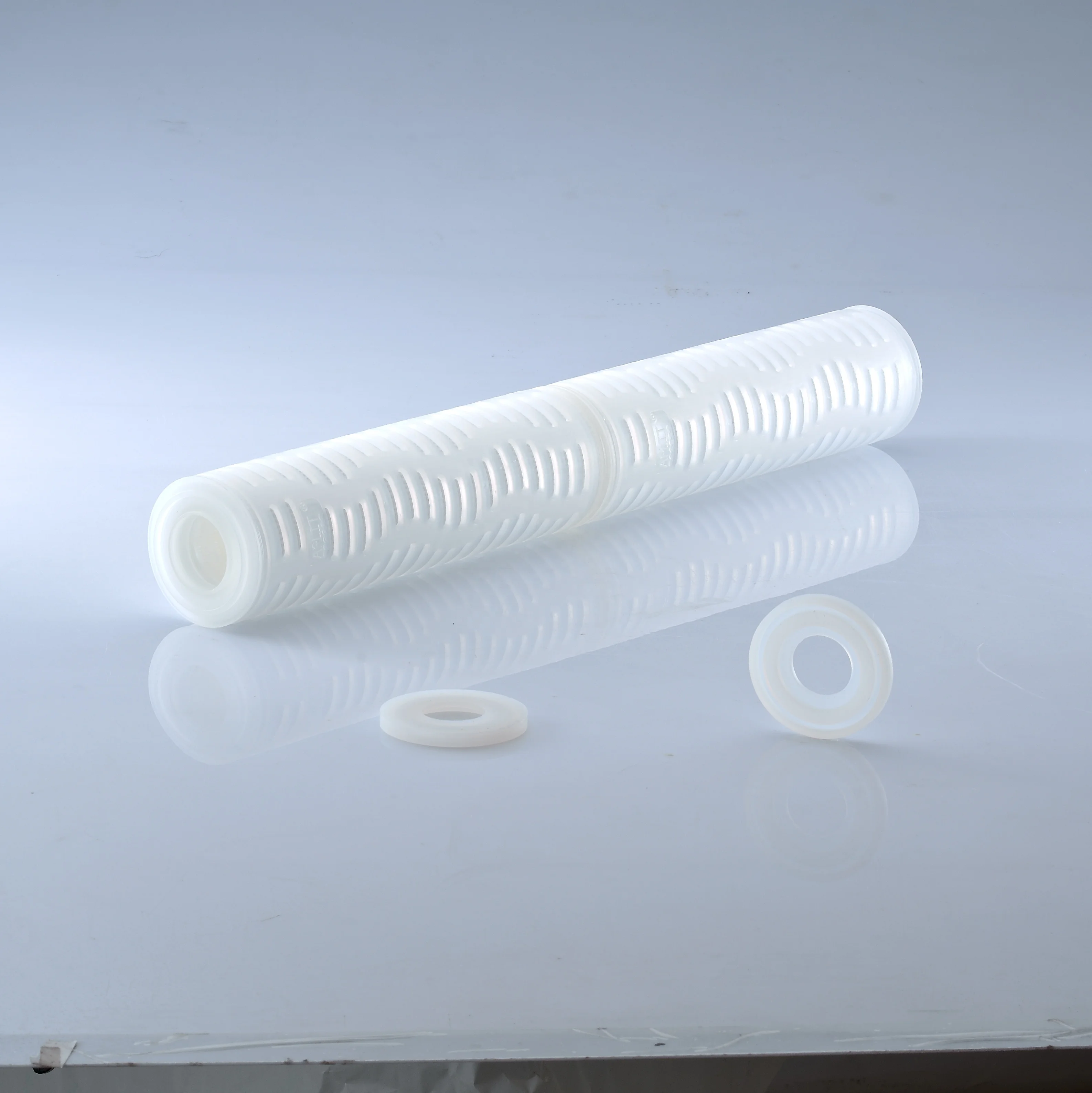

10 inches 10 Micron 69 mm Cartridge polypropylene membrane filter for beer/wines/milk/water filtration
ARLIT Pleated Membrane Filter Cartridges have been designed to comply with all FDA requirements for the food industry. These cartridges have been rinsed with high purity water to ensure that manufacturing debris will not to contaminate your product. This washing also ensures that extractables that may affect the taste of the product or other characteristics such as foaming or brightness are removed. ARLIT Cartridges have 95% retention efficiency at the rated pore size and are designed to give maximum throughput because of our unique graded density construction.
Product Description
Introductions
PP filter cartridge is constructed of micro pore polypropylene membrane media.
The material of cage, core and end cap are polypropylene.
Adaptors are welded with cartridges without using glue.
Specifications
Material
Filter media
PP fibre membrane
Support layer
polypropylene PP
Filter Core/cage
polypropylene PP
Gasket
NBR/Silicone/EPDM/Viton
O-ring
Silicone
Specifications
Length (inch)
10", 20", 30", 40"
Micron rating (um)
0.1, 0.2, 0.45, 0.65, 1, 3, 5, 10, 20, 30, 60μm
Outer Diameter (OD)
69 mm
Inner Diameter (ID)
34 mm
End cap
DOE, SOE, 222, 226, fins (decided by client)
Configuration
Airtight method
thermal bonding technique
Effective filtration area
0.4-0.7 M2/10"
Max. working temperature
80°C, 0.28MPa (2.8bar, 40.61psi)
Max. positive pressure
25°C, 0.42Mpa (4.2bar, 60.91psi)
Max. back pressure
25°C, 0.28Mpa (2.8bar, 40.61psi)
Sterilizing temperature
121°C 30min
Applications
Medical industry: filtration for medical liquid, cell debris, biologicals.
Chemistry industry: filtration for organic solvent, chemical reagent, electroplate liquid, ink.
Food industry: drinking water, mineral water, beverage, beer, wine.
Electronic industry: pre-filtration on water system both for counter infiltration, deionized water.
Gas filtration: compressed air, nitrogen, carbon dioxide.
