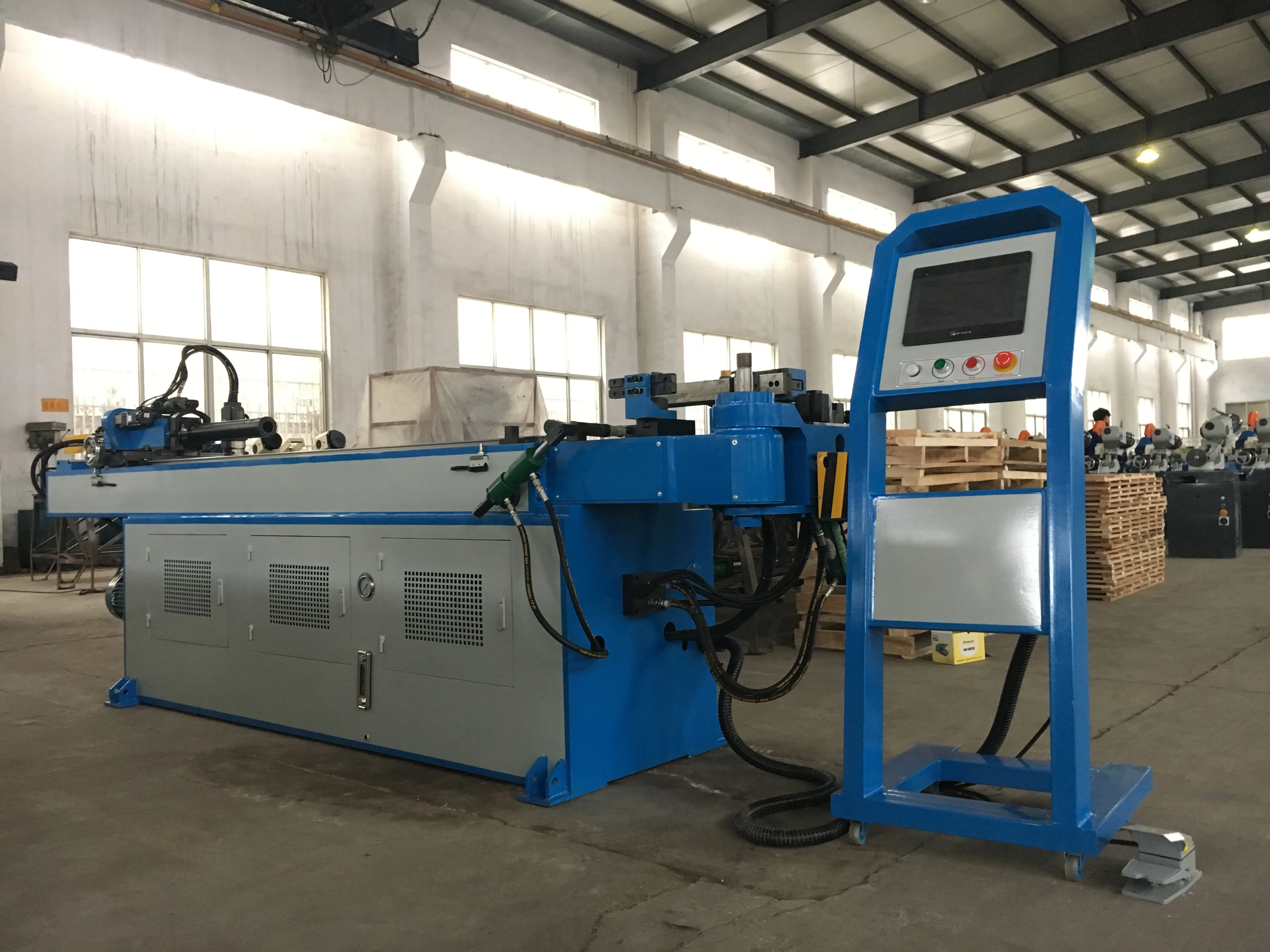

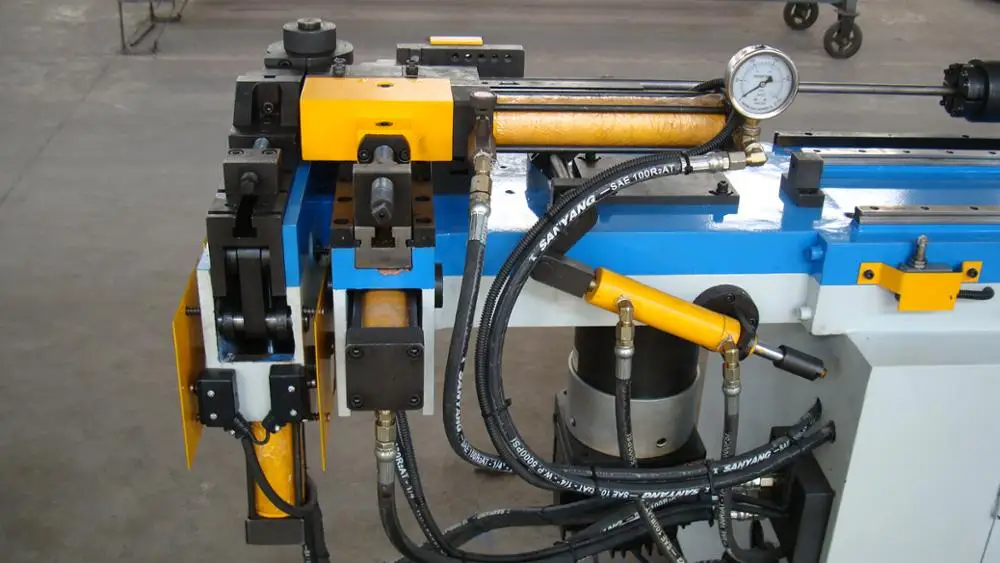

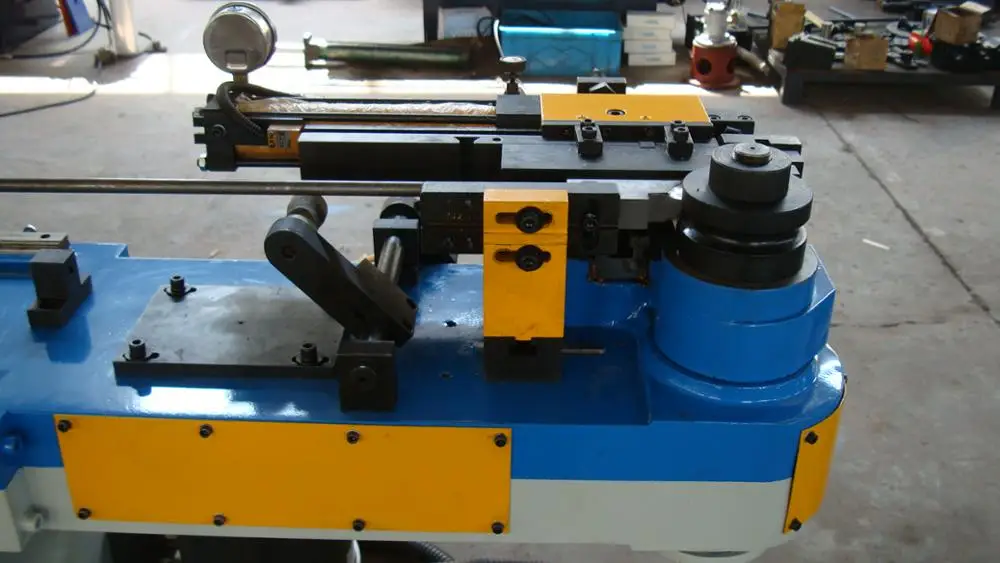

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-18CNC-3A-1S

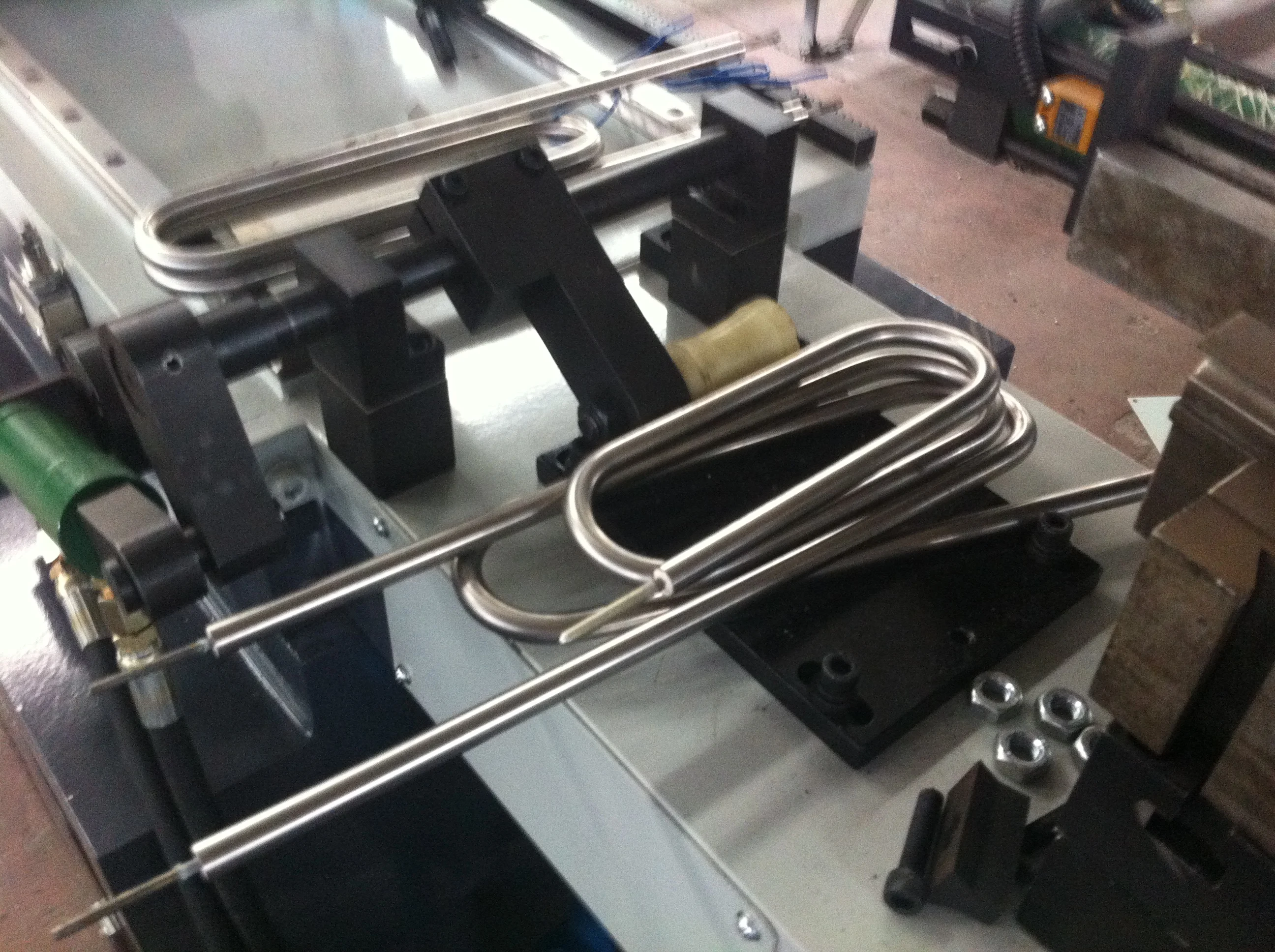

Tube bending machine:GM-18CNC automatic CNC pipe for the use of advanced industrial control and touch-sensitive computer interface, which integrates color, you can easily produce the required precision bending parts, because it provides automatic bend your machine with the most reliable operating functions, will you introduce modern high efficiency of the factory advanced integrity of the pipe technology, we will be the best quality machinery, precision, speed, durability, security and overall service to meet your needs. 1. Construction Machine Body by welding, mechanical parts assembly, import hydraulic system, electronic control of imports of fabric to complete. 2 .Design Principle European plane bend light machine reliability, with Asian features similar combination of machinery. Menu operation, the bending angle settings, corner of feed are servo control; Bend, clamping, pulling, for mold, feeding trays, plate for the hydraulic control; 3 . Major performance Using industrial touch screen, in English mode menu is simple, with high precision, fast, multifunctional and high degree of automation.
Name
unit
18CNC(2-R)
Bending capacity
mm
18*2
Max bending radius
mm
80
Max. bending angle
°
190°
Max. distance between 2 R
mm
30
Through effective distance
mm
1600
Bending precision
°
±0.1
Bending speed
deg/sec
240
Feeding precision
mm
±0.1
Feeding speed
mm/sec
2000
Turning pipe precision
°
±0.1
Turning pipe speed
deg/sec
280
Oil pump motor power
KW
2.2
General motor power
KW
4.0
Max. pressure
Kgf/cm2
35
3000*700*1300
Length*width*height
mm
weight
T
1.2

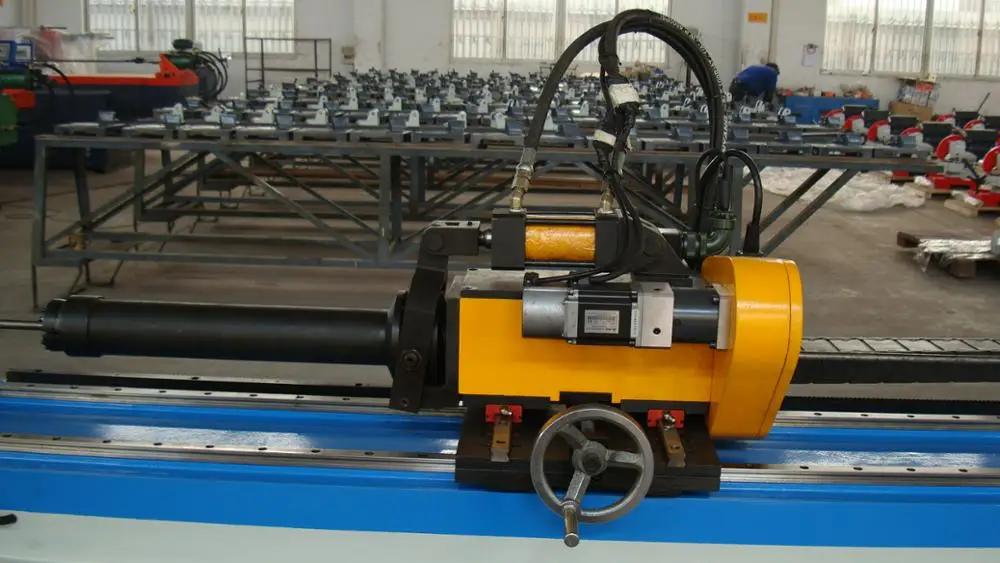

4. Configuration
A) As a welding pieces of body, parts of body and die components are used CNC machining center processing completed to ensure the accuracy of machine parts.
B) linear guide way, made in Taiwan ABBA Hydraulic system, have adopted a combination of import items Fuzhou, Taiwan's sole hydraulic motor-source Hydraulic Pump, made in Japan Hydraulic Elements, made in USA BEST Oil way board, made in Taiwan Cylinder, made in Taiwan (oil seal and seal are in Germany or the United
States) Double-layer laminated steel tubing used legitimately imported Taiwan Datong
