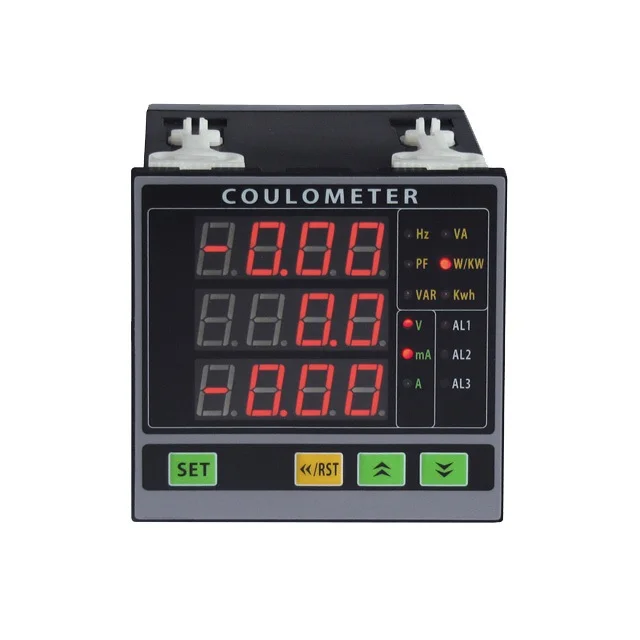

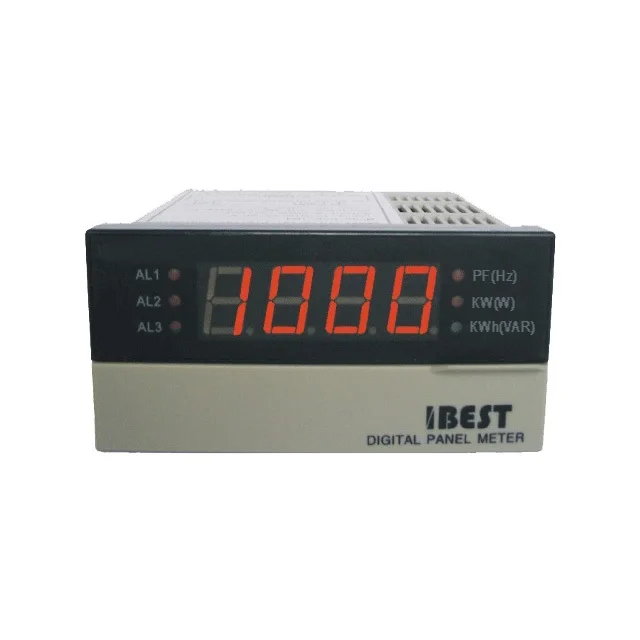

DW8 Digital Single Phase Multi Function Power Factor KWH Meter Controller/High And Low Alarm Output AC220V (IBEST )
DW8 Digital Single Phase Multi-Function Power Factor KWH Meter Controller/High And Low Alarm Output AC220V (IBEST )
DW8 Digital Single Phase Multi-Function Power Factor KWH Meter Controller/High And Low Alarm Output AC220V (IBEST )
DW8 Digital Single Phase Multi-Function Power Factor KWH Meter Controller/High And Low Alarm Output AC220V (IBEST )
DW8 Digital Single Phase Multi-Function Power Factor KWH Meter Controller/High And Low Alarm Output AC220V (IBEST )

DW8 Digital Single Phase Multi Function Power Factor KWH Meter Controller/High And Low Alarm Output AC220V (IBEST )

Share on (457645205):


Price:$28.00 - $32.00

Quantity:


Product Overview

Description


IBEST DW8 Single Phase Digital Power Coulo Meter

Multi-function / High & Low Alarm Output



1. Features of DW8 single phase coulo meter :
-     Single phase Multi-function coulo-meter.
-     Measuring object: voltage, current, power, power consumption, power factor, frequency, active energy, reactive energy.
-     Current and voltage ratios set freely.
-     Up to 3 alarm relays, contact capacity: AC 250V/3A or DC 30V/3A.
-     With or without analog 4~20mA output.
-     With or without RS485 communiation interface, modubus RTU protocol.
-     Power supply: AC 90~260V 50/60HZ, power consumption<5VA.
-     Applications: applied in electrical power systems for auto control, e. g.: single/three phase current/voltage/power consumption...etc for displaying and control.



2. Ordering Code:

 DW name.jpg


Model and TypeAnalog outputAlarm outputCommunicationInputDimensionBuy
DW8-R Without 1 alarm Without AV/AA/DA/AA input 48H×96W×100Lmm
DW8-RR Without 2 alarm Without AV/AA/DA/AA input 48H×96W×100Lmm
DW8-RRR Without 3 alarm WithoutAV/AA/DA/AA input 48H×96W×100Lmm
DW8-RRR4 Without 3 alarm RS485 AV/AA/DA/AA input 48H×96W×100Lmm
DW8-IR 4~20mA (0~20mA, 0~10V) 1 alarm WithoutAV/AA/DA/AA input 48H×96W×100Lmm
DW8-IRR 4~20mA (0~20mA, 0~10V) 2 alarm WithoutAV/AA/DA/AA input 48H×96W×100Lmm
DW8-IRR4 4~20mA (0~20mA, 0~10V) 2 alarm RS485AV/AA/DA/AA input 48H×96W×100Lmm

3. Technical Specifications:
Property projectSpecific parameter
Power supplyAC 90~260V 50/60Hz
Measuring objectvoltage,current, power, power consumption,powerfactor,frequency,active energy
Dimension48H×96W×100Lmm
Direct input rangeVoltage:0~600V; Current: 0~5A, 0~10A
TransformerPT/CT can be set freely
Measuring frequency0~2.5KHz
AccuracyPower/Power factor/Voltage:±0.5%F.S;Current: ±0.5%F.S;frequency:0~400Hz±Hz
Alarm output3 alarm output configurable by user
Sample speedabout 2 times/s
CommunicationRS485 modbus RTU protocol
Insulation strengthAC 1500V / 1min (between terminal points and plastic case)
Withstand voltage100 M ohm (DC 500V,between terminal points and plastic case)
Ambient temperature0~50 C 35~85% RH
Weight450g, G.W

 DW SPEC.png



4. Dimensions & Electrical Wiring Connections:

DW9 SIZE WIRING.png
