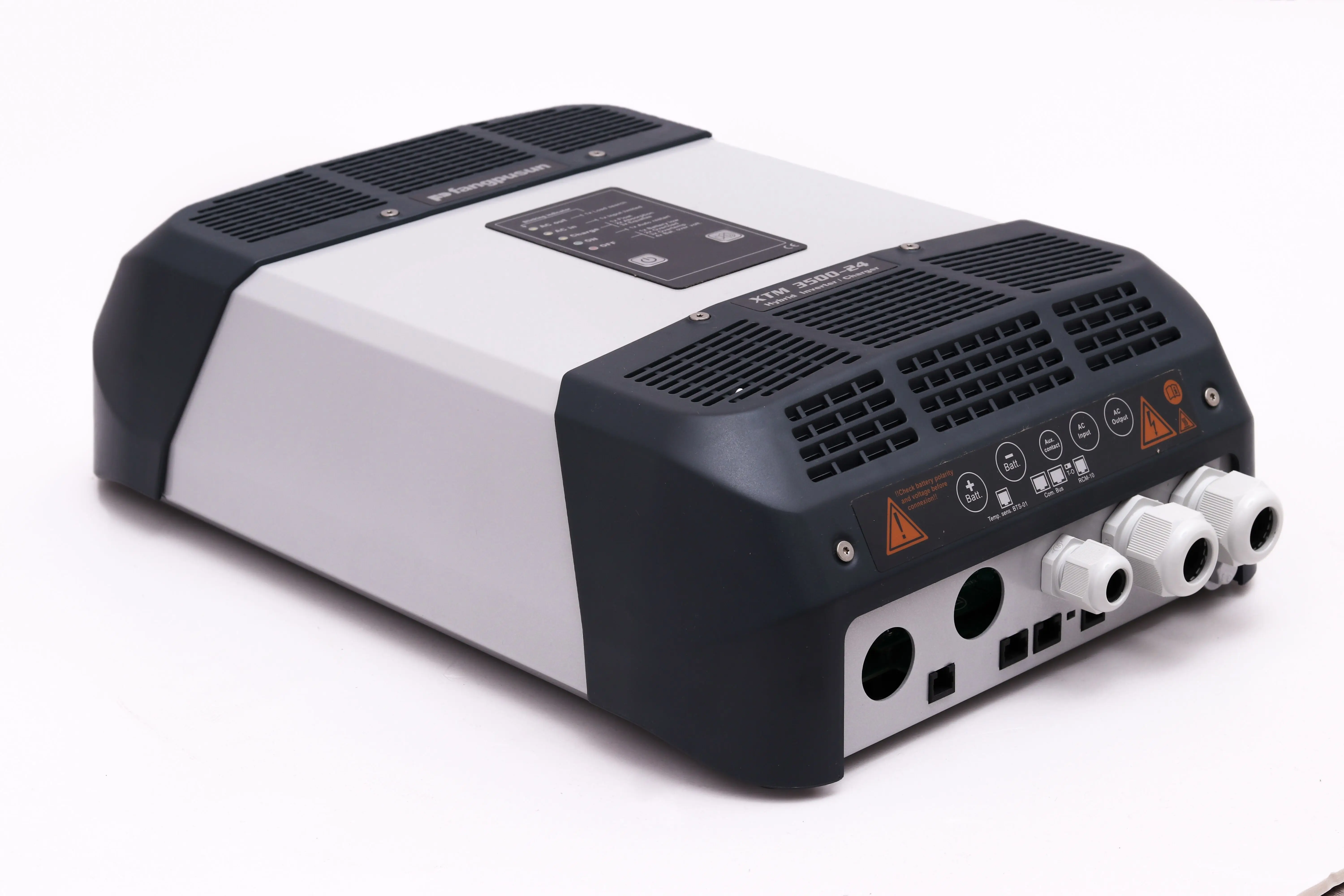

Fangpusun XTM Power Inverter Off Grid Pure Sine Wave
- Category: Solar Energy Products >>>
- Supplier: Wenzhou Xihe Electric Co. Ltd.
Share on (50046529674):
Product Overview
Description
Product Details
Fangpusun XTM Power Inverter Off Grid Pure Sine Wave
Fangpusun
XTM1500-12 , XTM2000-12 , XTM2400-24 , XTM3500-24 , XTM2600-48 , XTM4000-48
The basic functions of the combined inverters Fangpusun Xtender are the inverter, the battery charger, the switching function and the support of external sources of alternating current. These functions can be combined and controlled fully automatically. The inverters offer outstanding user-friendliness and very good exploitation of the energy available.
All the settings of the Fangpusun Xtender can be remote controlled. When a software with new functions is available, it can be loaded into the system, so the Fangpusun Xtender always stays up to date. Several Fangpusun Xtender can be connected in parallel or to form a three-phase system. That means that up to nine Fangpusun Xtender can work together.
Product features
> True sine wave voltage
> Excellent overload capabilities
> Optimal battery protection
> Adjustable integrated battery charger
> Multistage programmable battery charger with PFC
> Automatic load detection> Standby load detection adjustable over a wide range, starting from a low value
> Parallel connectable
> Best reliability
> Can be used as a back-up system or uninterruptible power supply (UPS)
> Multifunction contact
> Adjustable power sharing
> Reliable and noiseless with any kind of load
> Support of sources of alternating current (Smart Boost)
> Automatic support for peak loads (Power Shaving)> Ultra-fast transfer relay
> High efficiency
> Control by digital signal processor (DSP)

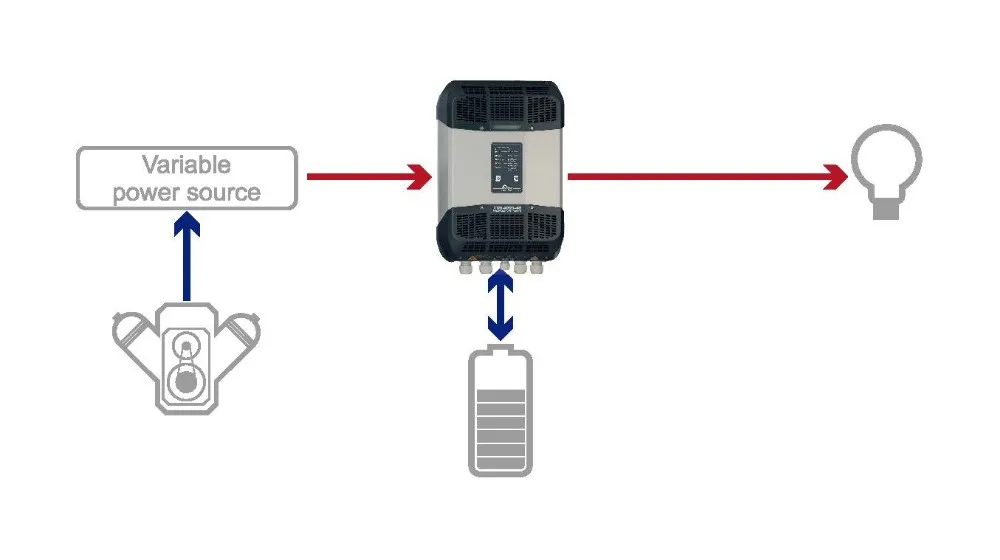

The source being a variable power alternator, the Smart-boost will supply the power difference in order that the power delivered is always the same

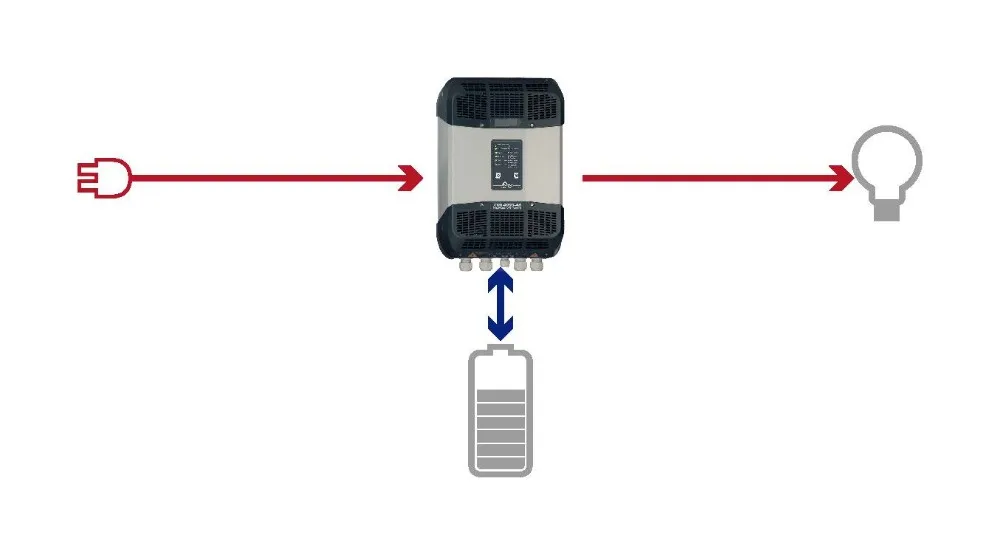

The inverter/charger charges the battery from the grid or from a genset, and powers any kind of electrical appliance. It converts the battery DC voltage to AC voltage. The models equipped with the Smart-Boost system enable the addition of the source's power to that of the inverter.
The built-in Smart-Boost function makes it possible to add power from the battery whenever the AC source is not sufficient to power the loads in the system. Inverter power range, from 0.5kVA to 72kVA, single and three-phase.
Electronic protection functions
•\tDeep discharge protection
•\tBattery overvoltage shutdown
•\tShort circuit protection
•\tOvertemperature and overload protection
•\tReverse polarity protection by internal fuse (except Fangpusun Xtender XTH 3000)
•\tAcoustic alarm at deep discharge or overheating

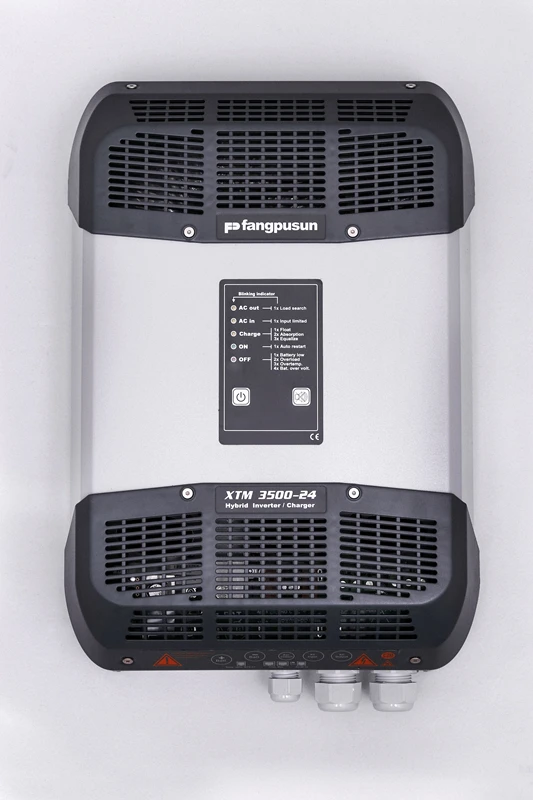

Displays
•\t5 LEDs show operating states
Solar Phase Charger Inverter Ac Split
SPLIT PHASE SETUP
* Requires minimum 2 units of XTM Inverter in Paraller
* 2 parallel kits will need to be installed (RC-003)
* L1 + N = 120V
* L1 + L2 = 240V
Product Parameters
Model | XTM 1500-12 | XTM 2000-12 | XTM 2400-24 | XTM 3500-24 | XTM 2600-48 | XTM 4000-48 | ||||||||
Characterisation of the operating performance | ||||||||||||||
Nominal battery voltage | 12V | 12V | 24V | 24V | 48V | 48V | ||||||||
Input voltage range | 9.5-17VDC | 9.5-17VDC | 19-34VDC | 19-34VDC | 36-68VDC | 36-68VDC | ||||||||
Continuous Power | 1500VA | 2000VA | 2000VA | 3000VA | 2000VA | 3500VA | ||||||||
Power 30 min. | 1500VA | 2000VA | 2400VA | 3500VA | 2600VA | 4000VA | ||||||||
Power 5 Sec. | 3400VA | 4800VA | 6000VA | 9000VA | 6500VA | 10500VA | ||||||||
Max.efficiency | 93% | 93% | 94% | 94% | 96% | 96% | ||||||||
Own consumption stand by | 1.4W | 1.4W | 1.6W | 1.6W | 2.0W | 2.1W | ||||||||
Own consumption stand by | 8.0W | 10W | 9W | 12W | 10W | 14W | ||||||||
Acoustic level without ventilation | 40 dB | |||||||||||||
Acoustic level with ventilation | 45 dB | |||||||||||||
Maximum load | Up to short-circuit | |||||||||||||
Maximum asymmetric load | Up to Pcont. | |||||||||||||
Load detection (stand-by) | 2 to 25 W | |||||||||||||
Cos φ | 0.1-1 | |||||||||||||
Output voltage | Pure sine wave 230Vac (±2%) / 120Vac (1) | |||||||||||||
Output frequency | 45Hz-60Hz(1) ± 0.05% (crystal controlled) | |||||||||||||
Harmonic distortion | <2% | |||||||||||||
Overload and short-circuit protection | Automatic disconnection with 3 time restart attempt | |||||||||||||
Overheat protection | Warning before shut-off - with automatic restart | |||||||||||||
Battery charger | ||||||||||||||
Charge Characteristic | 6 steps : Bulk-Absorption-Floating-Equalization-reduced floating-periodic absorption Number of steps,thresholds,end current and times completely adjustable with the RCC-02/03 | |||||||||||||
Temperature compensation | With BTS-01 or BSP 500/1200 | |||||||||||||
Maximum charging current | 70A | 100A | 55A | 90A | 30A | 50A | ||||||||
Input voltage range | 150 to 265Vac / 50 to 140Vac (1) | |||||||||||||
Input frequency | 45 to 65Hz | |||||||||||||
Input current max . (transfer relay) / Output current max . | 50Aac / 56Aac | |||||||||||||
Transfer time | < 15ms | |||||||||||||
Protection index | IP 20 | |||||||||||||
Operating temperature range | -20 to 55℃ | |||||||||||||
Ventilation | Forced from 55℃ | |||||||||||||
Warranty | 2 Years | |||||||||||||
