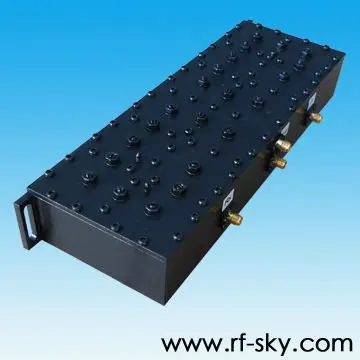

High Quality 1920 2170MHz high frequency WCDMA uhf rf Duplexer
- Category: Wireless & RF Modules >>>
- Supplier: Xiangyu Communication Technology Co. Ltd.
Share on (518776547):
Product Overview
Description
Product Description
| Model.:DX-1920-2170-100-01 | ||
| Item | Technical | |
| RX | TX | |
| Frequency | 1920~1980MHz | 2110~2170MHz |
| Insertion Loss | ≤0.8dB | |
| Ripple | ≤0.5dB | |
| Rejection | 2045≥45dB | 2045≥45dB |
| 2110~2170MHz≥90dB | 1920~1980MHz≥90dB | |
| Isolation | ≥90dB | |
| Coupling | 25±2dB | |
| Return loss | ≥20dB | |
| Power | ≤100W(CW) | |
| Temperature | -20°C~+60°C | |
| Connector Type | SMA-KF,50Ω | |

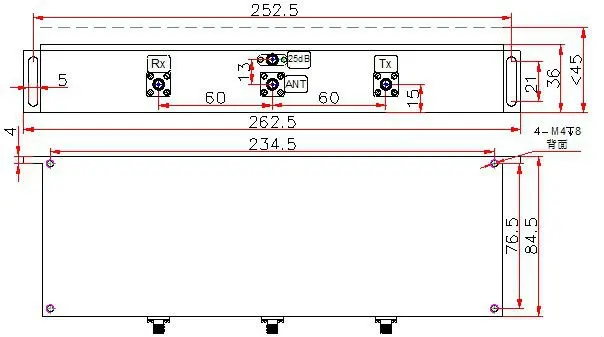

| Size | 262.5*84.5*45mm(L*W*H) | |
| Color | Black | |
