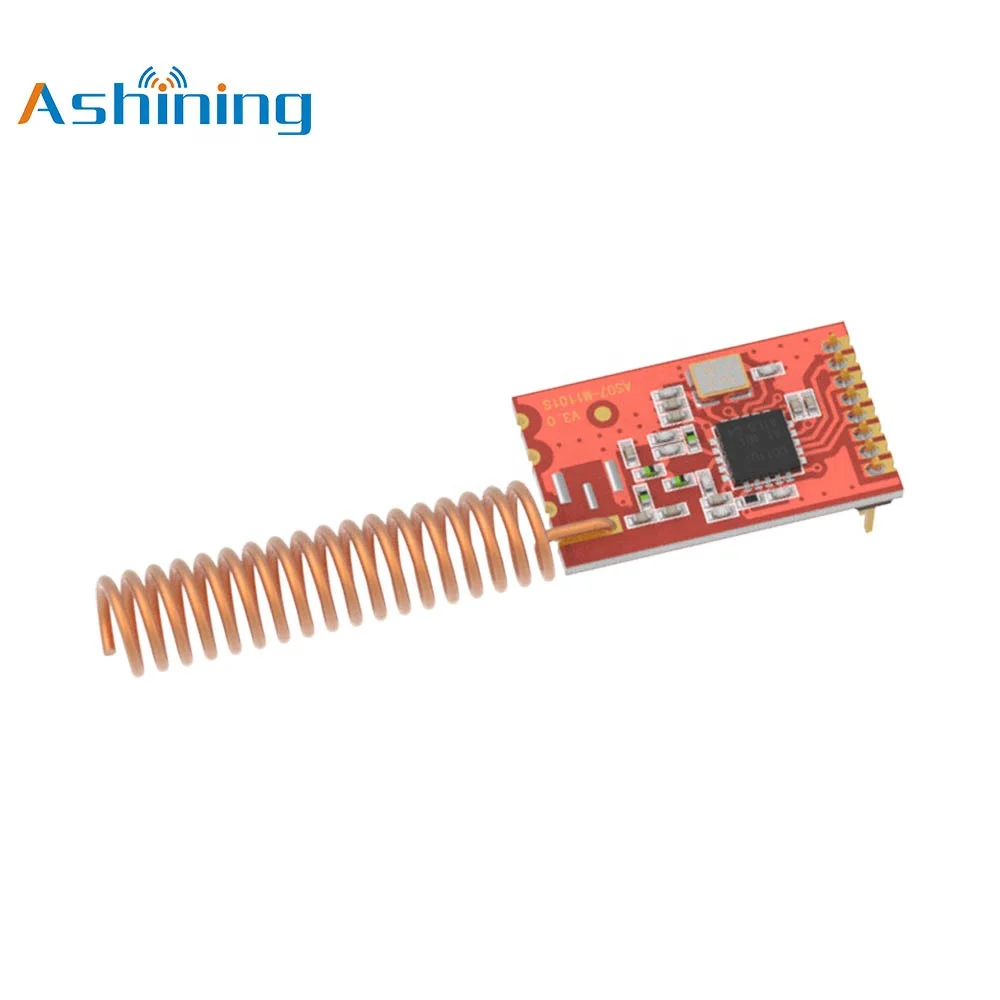

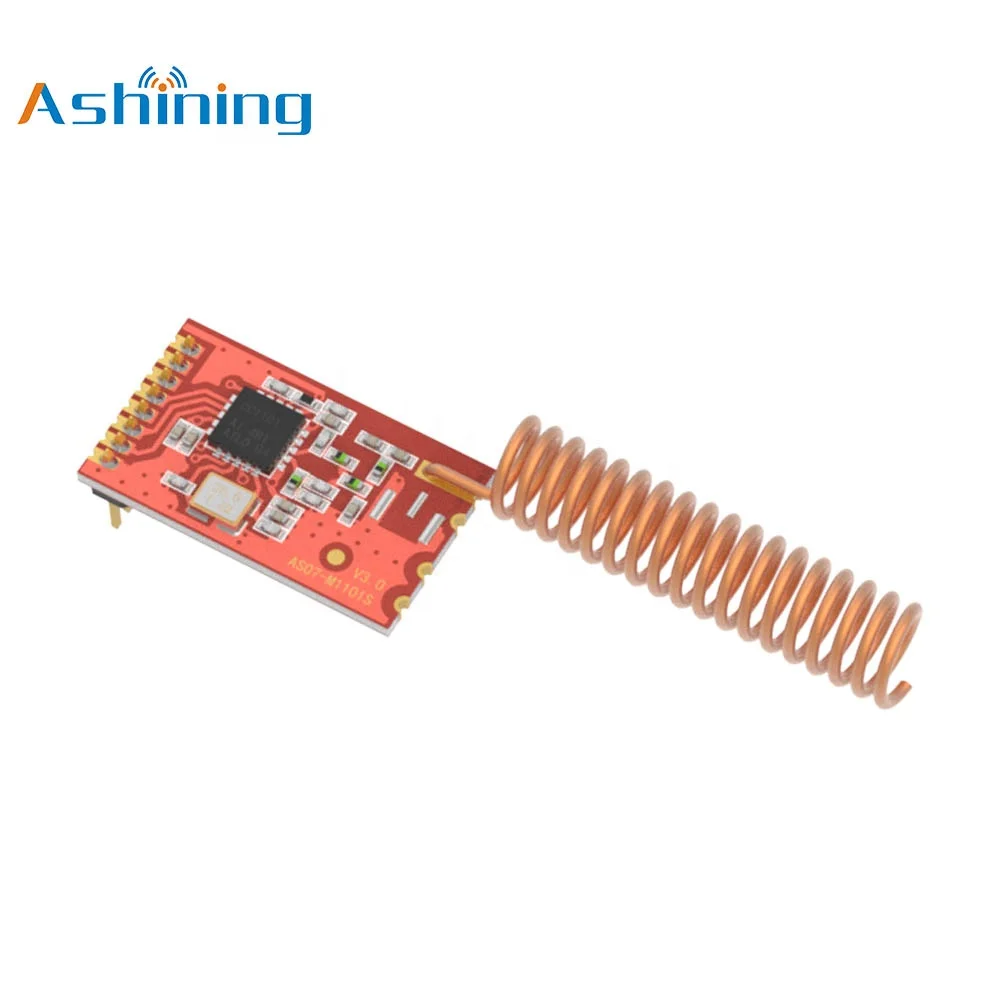

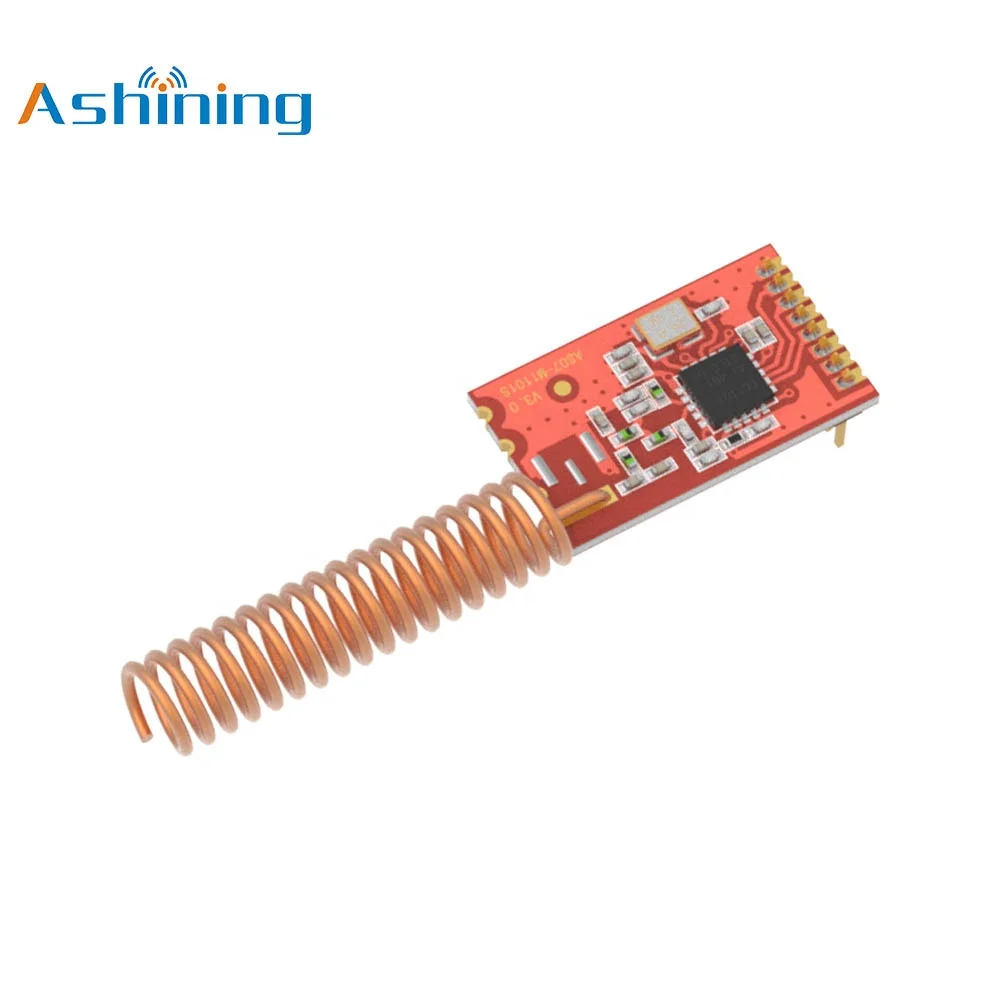

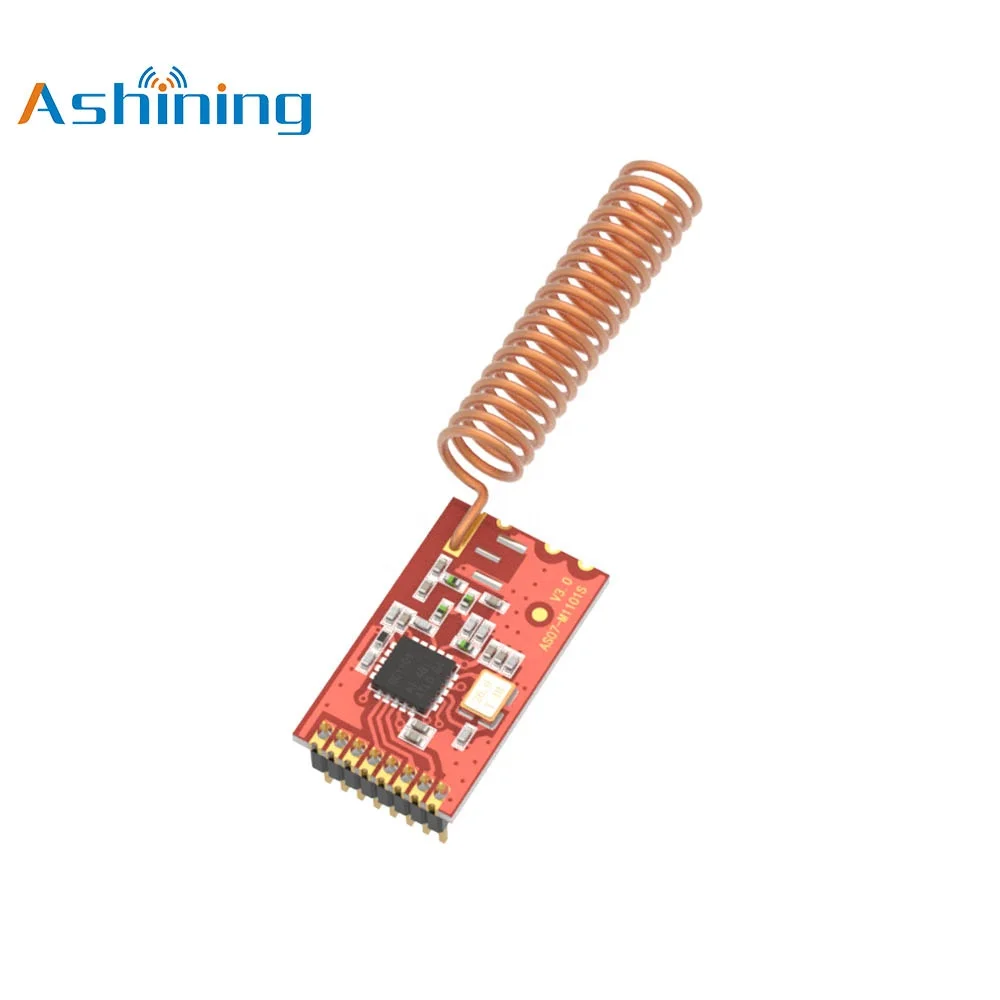

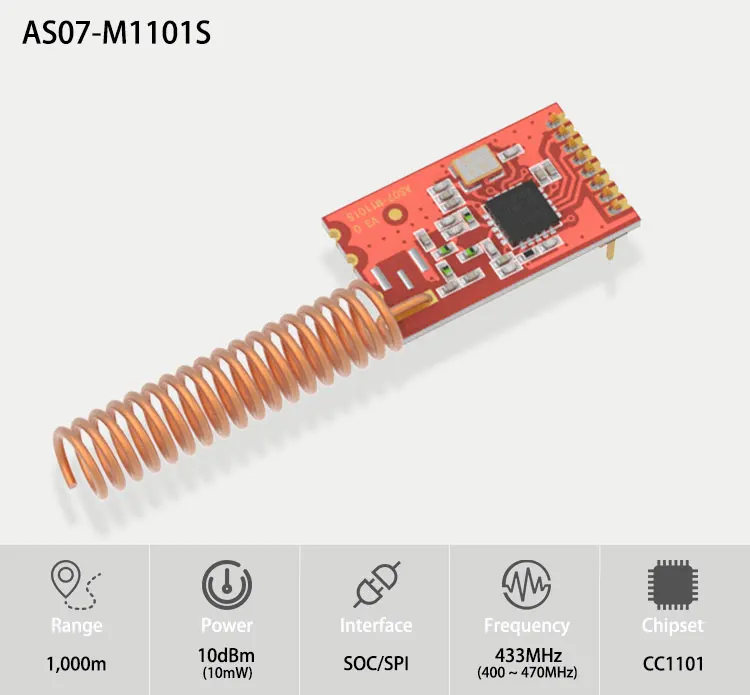

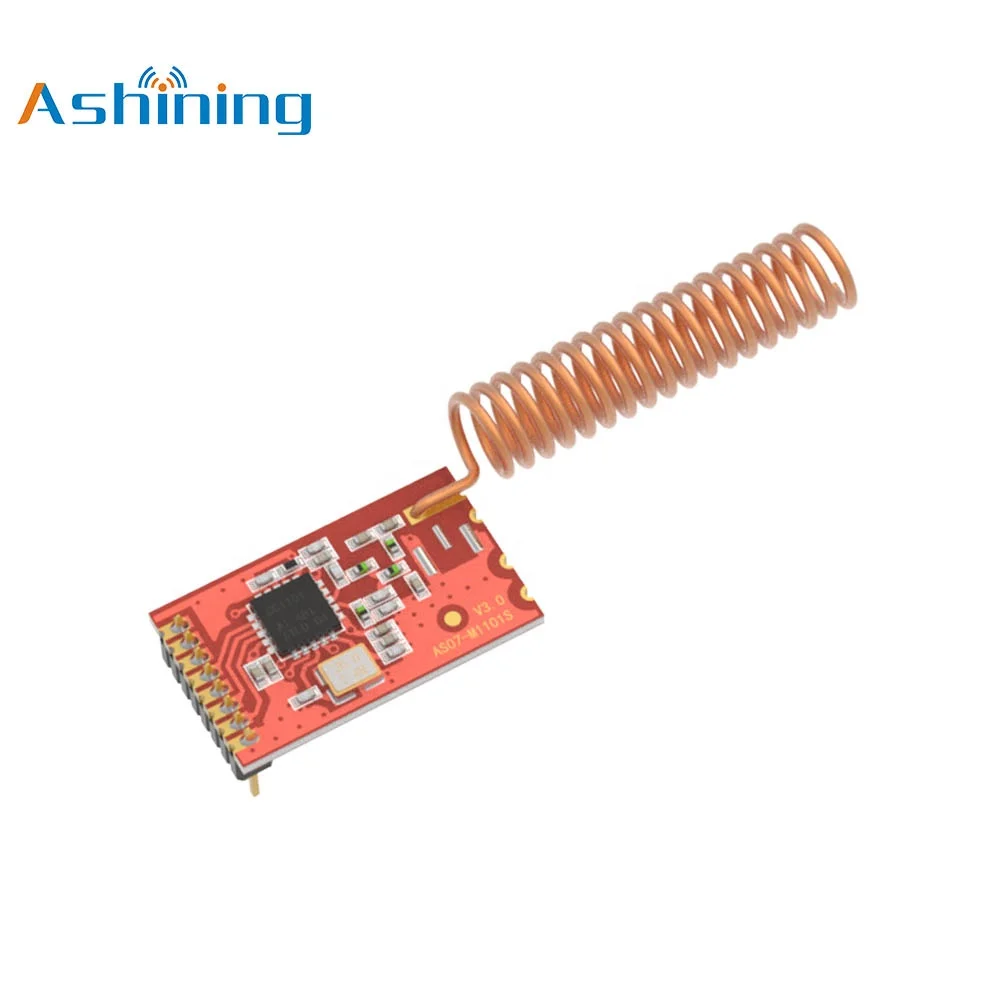

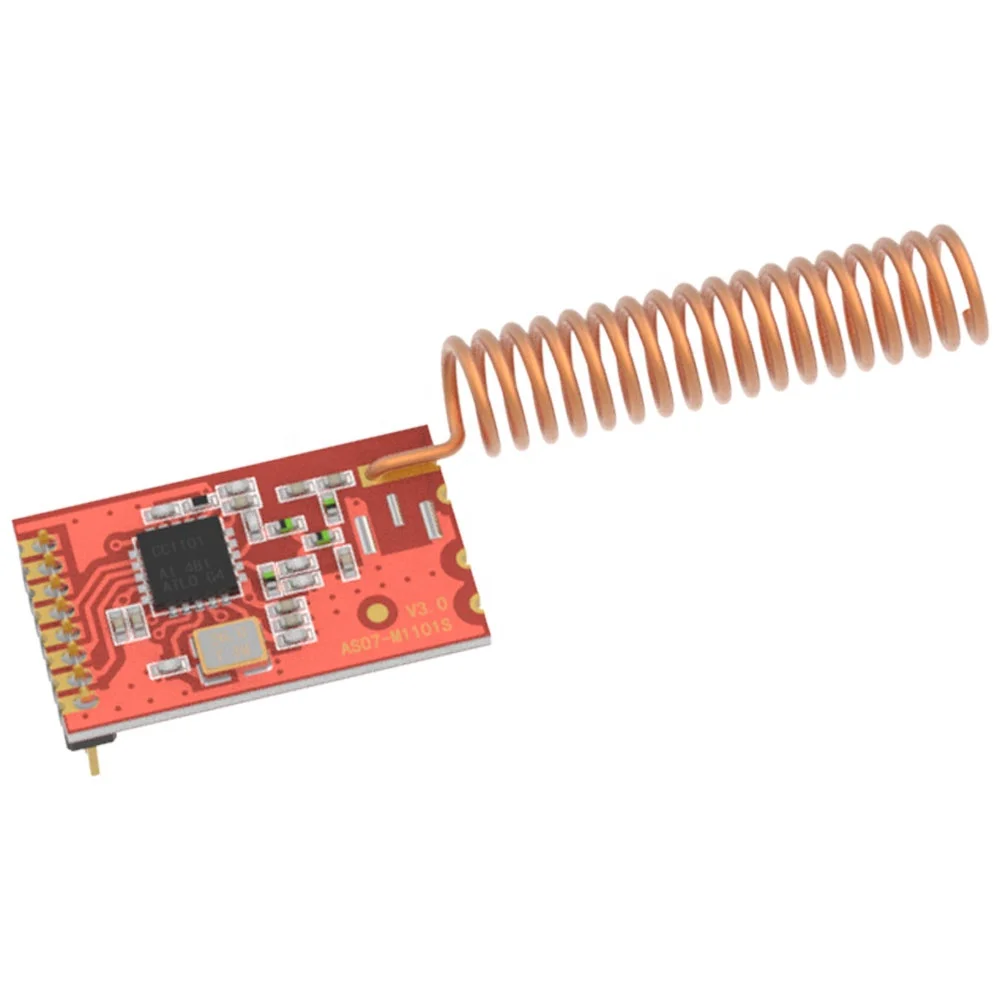

433 Mhz CC1101 Transmitter Receiver Long Range RF Module
AS07-M1101S is a 10mW industrial wireless data transceiver with strong diffraction and penetration and high stability, operates at 433MHz. The module uses original CC1101 from American TI and comes with FEC, interleaving code and strong anti-interference. It features enough power, good spectral properties, small harmonic wave, small cross-talk, ultra-volume, high precision crystal vibration is adopted and inductance. Some of the devices meet the military-grade standard.
Specification
NO.
Parameter name
Parameter value
Abstract
1
RF chip
CC1101
TI
2
Dimension
20.8 X 12.2mm
Excluding antenna
3
Net weight
0.8g
Excluding antenna
4
Operating frequency
400M~470MHz
Adjustable by software, 433M ± 10MHz is recommended
5
Production craft
Lead-free environmental protection process
6
Interface mode
1 X 8 X 1.27
SMD
7
Supply Voltage
1.8~3.6V
Note: if it is higher than 3.6V, the module will be permanently damaged
8
Communication Level
0.7VCC~3.6v
VCC refers to the module supply voltage
9
Measured distance
1000m
Clear and open, maximum power, height 1.5m, 1k air speed
10
Transmission power
Maximum 10dBm
About 10mW
11
Air rate
0.6K~500Kbps
It is adjustable by software, it is recommended to use low-speed as far as possible
12
Turn of Current
0.5uA
In power-down mode
13
Transmitting current
29mA@10dBm
About 10mW
14
Receiving current
16mA
In the receiving state
15
Communication Interface
SPI
The maximum rate is up to 10Mbps
16
Transmitting length
Single packet 1 to 64 bytes
17
Receiving length
Single packet 1 to 64 bytes
18
RSSI support
Support
See chip manual for details
19
Antenna Interface
Spring antenna / External antenna
50Ω impedance
20
Operation temperature
-40 ~ +85℃
Industrial grade
21
Operation Humidity
10% - 90%
Relative humidity, no condensation
22
Storage temperature
-40 ~ +125℃
Industrial grade
23
Receiving sensitivity
-116dBm @0.6kbs
See chip manual for detail
