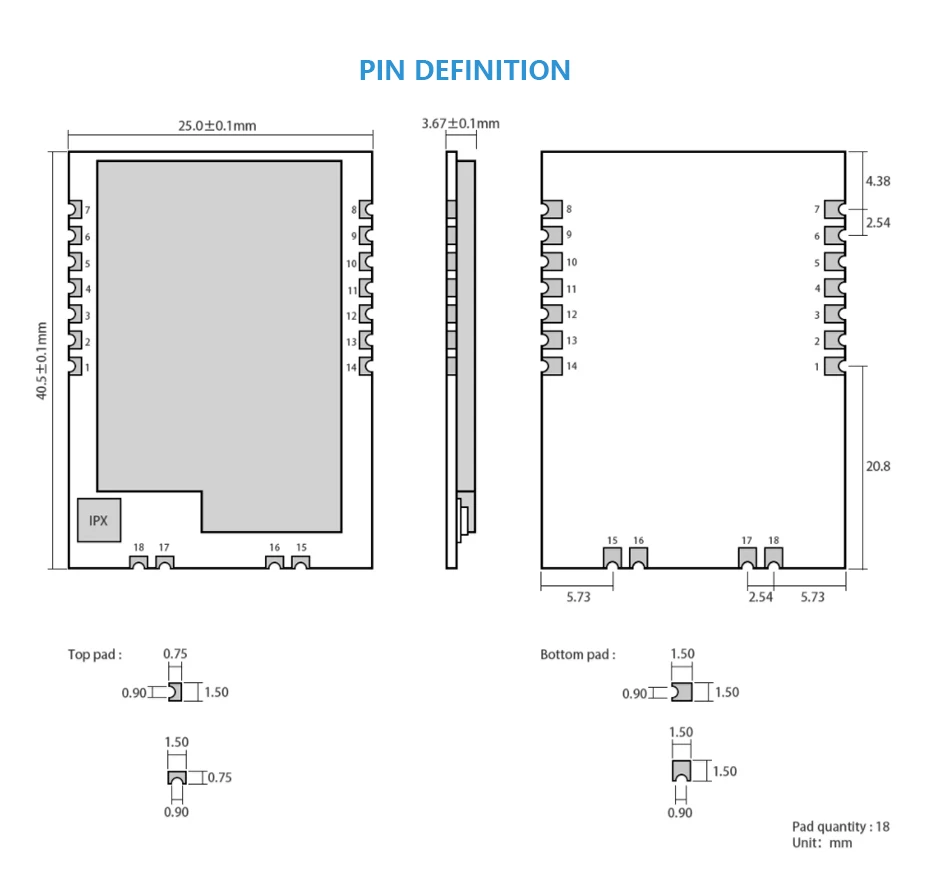

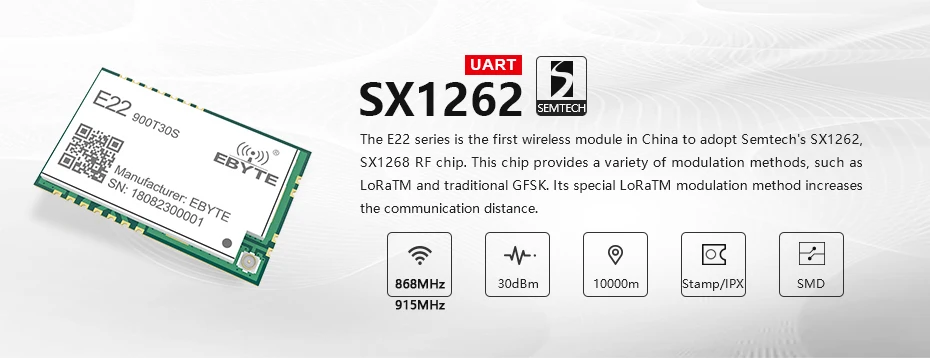

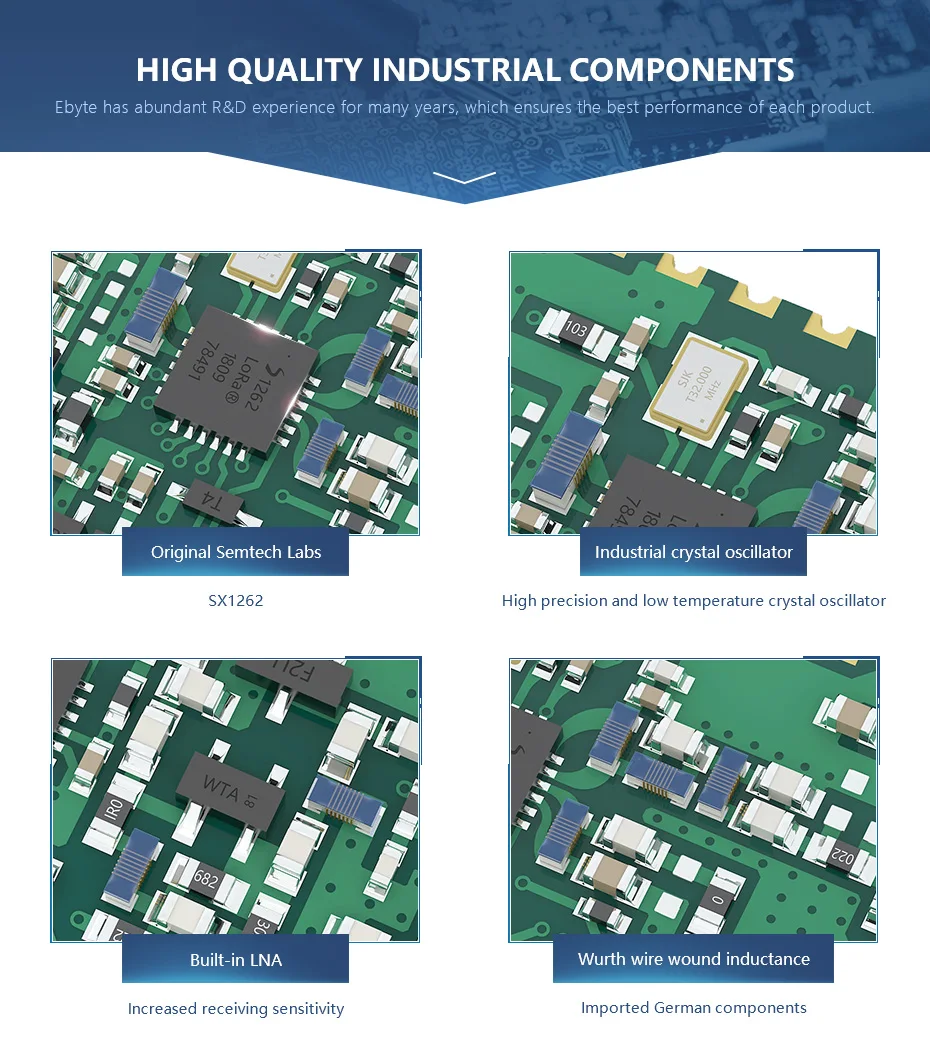

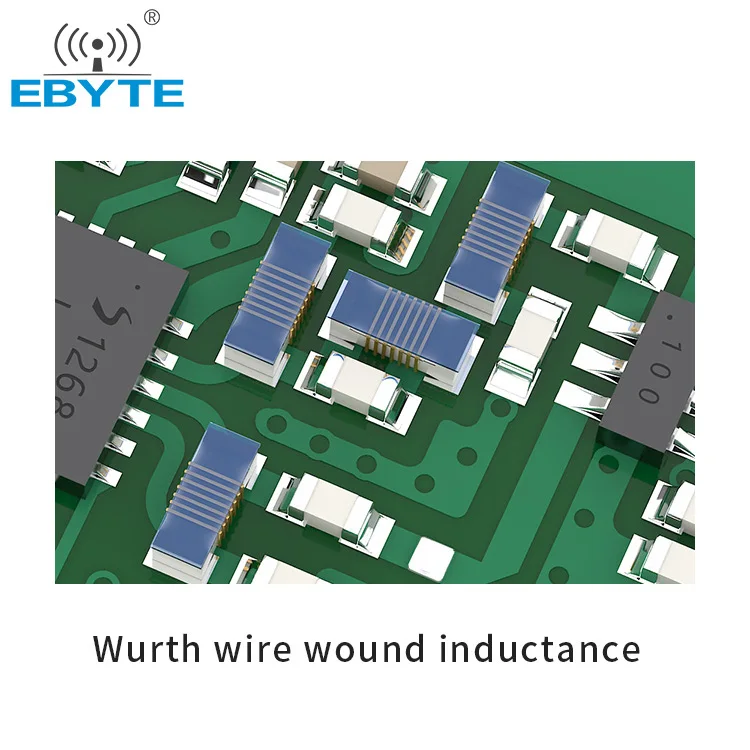

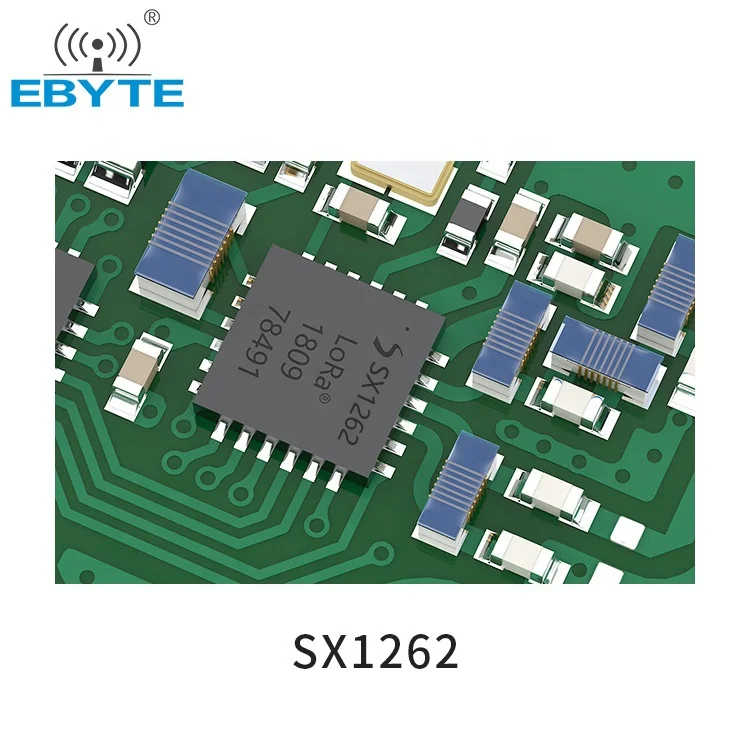

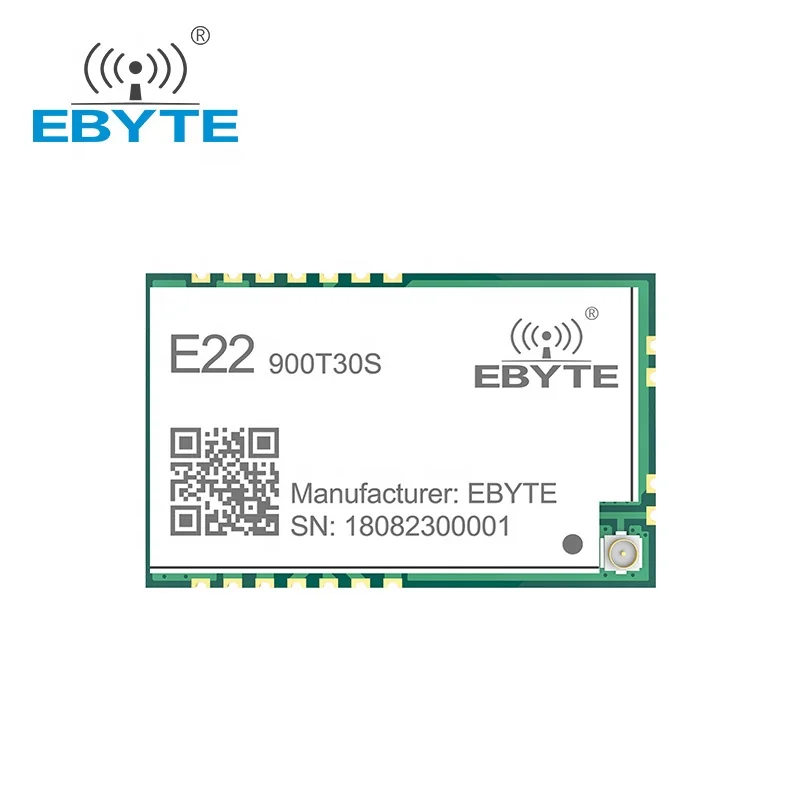

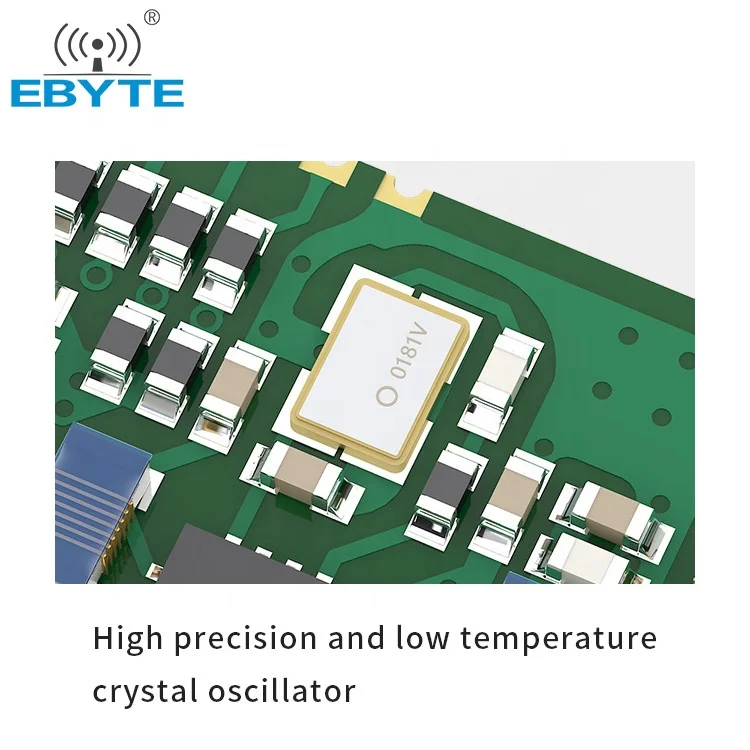

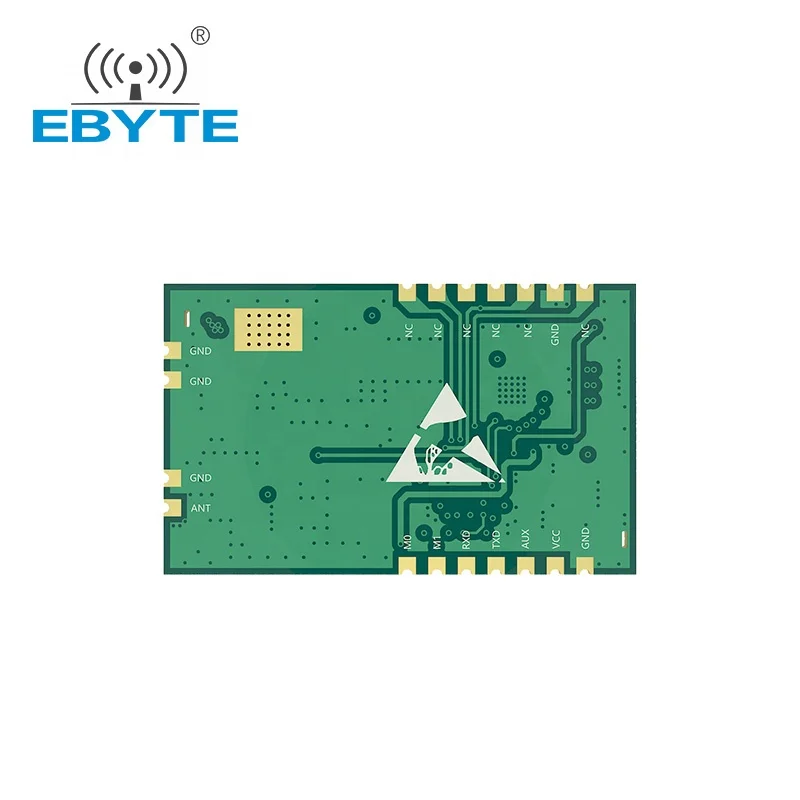

Work with M1 to decide 4 working modes of module (not suspended, if not used, grounding).
6
M1
Input
(weak pull-up)
Work with M0 to decide 4 working modes of module (not suspended, if not used, grounding).
7
RXD
Input
TTL UART inputs, connects to external (MCU, PC) TXD output pin. Can be configured as
open-drain or pull-up input.
8
TXD
Output
TTL UART outputs, connects to external RXD (MCU, PC) input pin. Can be configured as
open-drain or push-pull output.
9
AUX
Output
To indicate module's working status & wakes up the external MCU. During the procedure
of self-check initialization, the pin outputs low level. Can be configured as push-pull output
(suspending is allowed).
10
VCC
-
Power supply 2.3V-5.5V DC
11
GND
-
Ground
12
NC
-
-
13
GND
-
Ground
14
NC
-
-
15
NC
-
-
16
NC
-
-
17
NC
-
-
18
NC
-
-
19
GND
-
Ground
20
GND
-
Ground
21
ANT
-
Antenna
22
GND
-
Ground

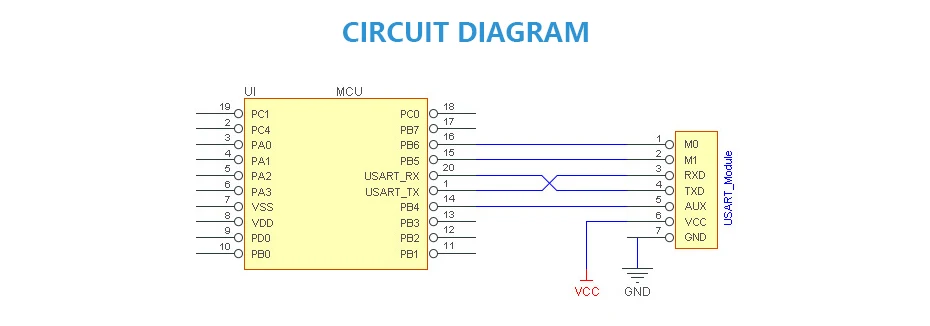

Manual support
About Us
Chengdu Ebyte Electronic Technology Co., Ltd. was established in 2012, located in Cheng du,Sichuan Province.
We specialize in the development and research of IoT solutions.(such as LORA, BLUETOOTH,WIFI,ZIGBEE etc modules iot solutions).
We have our own factory and have rich export experience.
We are confident to offer qualified products at reasonable price.
Recommend for you
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to your requirements.
Q3.Whether the product can be customized logo? A3.For bulk orders, we support custom logo.
Q4: What about the delivery time?
A4: For regular order it takes about 3-6 days for production, for mass order or customized order it may need 15-30 days.
Q5: What is your delivery terms and payment terms?
A5: We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you. 100% in advance for sample order, 50% deposit and 50% balance for mass order.
Q6: After service and warranty?
A6: We provide 1 year warranty, if you have any problems in the use of products, please contact to your sales person.
Q7. How can we know the product quality?
A7: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.
Q8. How can we get samples from you ?
A8.Samples are available. Normally we take 2 days to arrange samples. If we have no business record with you before, we need to charge boot samples cost and post courier freight.
Q9.Can your module be connected with Arduino board? Can you provide Sample code?
A9: We don’t know the model of your Arduino, so we don’t sure if our module can be connected with it. Please be sure of the power supply when you connect your Arduino board with our module, 3.3V is ok. But for 5V, you need to add 4-10k pull-up resistor for the TXD&AUX pin. Sorry we don’t have the sample code to offer.
Q10.Can your module be connected with Raspberry Pi?
A10: Yes, our module can be connected with Raspberry Pi.
