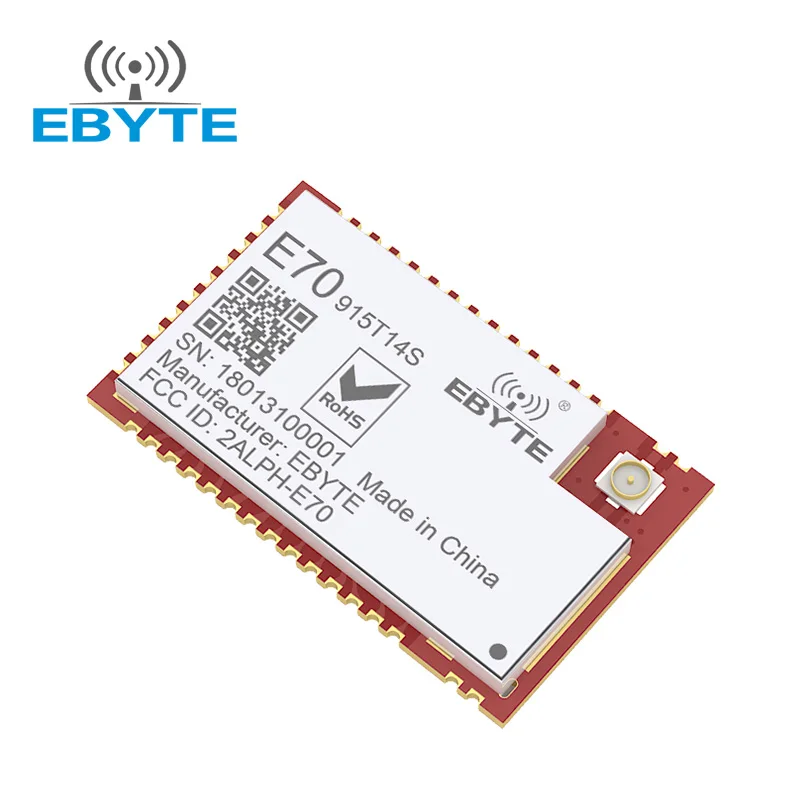

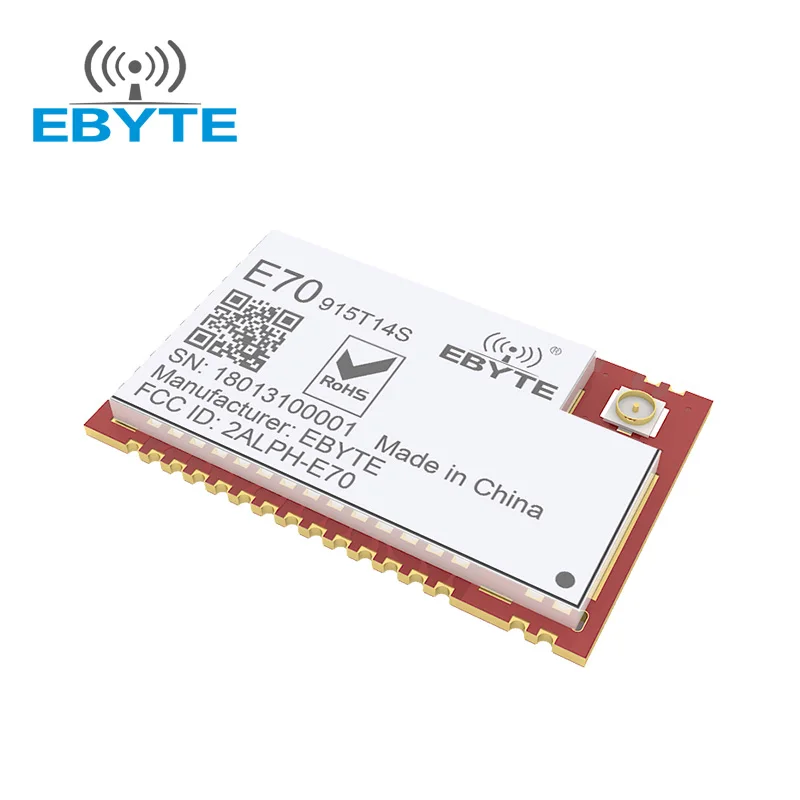

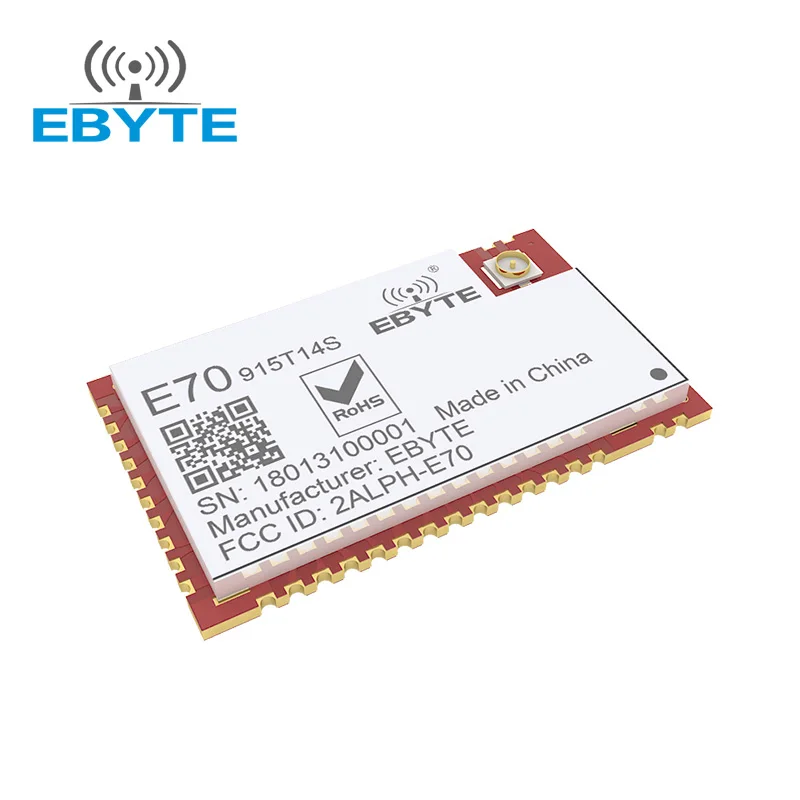

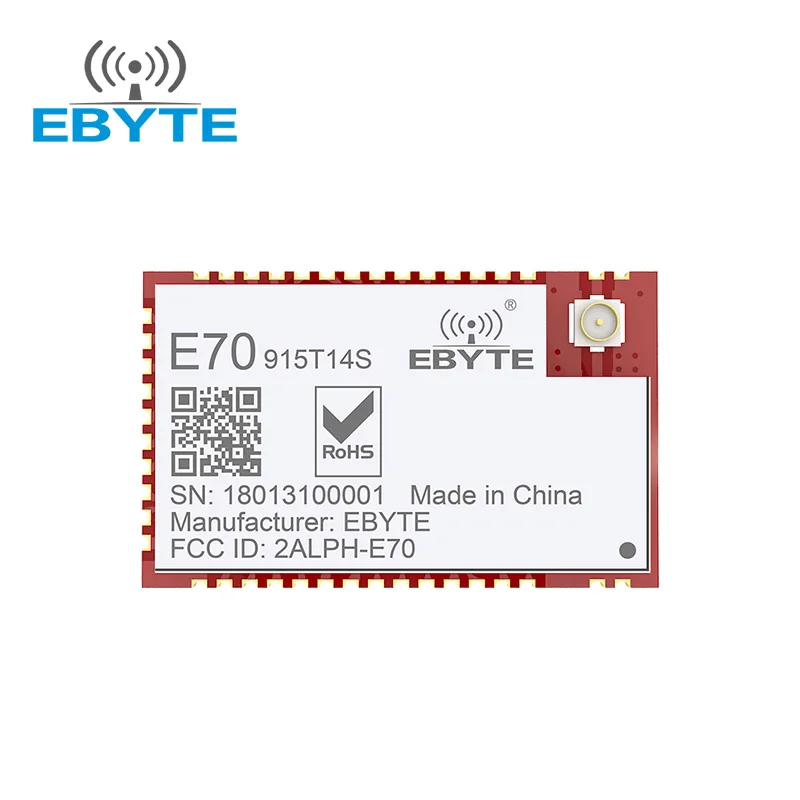

Ebyte RoHS 915MHz iot rf module E70 915T14S lora iot 915 mhz CC1310 SMD Wireless transceiver integrated circuit module

    Brand

    Ebyte

    Size

    16mm*26mm

    Model

    E70-915T14S

    Interface

    SoC

    Power

    14dBm

    Distance

    1500m

    RF connector

    IPX/stamp hole

    Frequency

    915MHz

E70-915T14S is wireless UART transceiver module based on the original CC1310 of TI, operating at 431~446.5MHz (Default: 433MHz), TTL level and 3.3V IO port. The module has the function of data encryption & compression. The data of the module transmitted over the air features randomness.

   Electrical parameters

   Default: 915MHz, channel:32

   Note: the voltage higher than 3.8V is forbidden

   Communication level

   Maximum 3.8V

  Recommended difference between supply voltage is less    than 0.3V to lower power consumption

  -

   M1=1, M0=1 ( Mode 3 )

   The proposed power supply current is not less than 100mA

   Receiving current

   8mA

   Mode 0,Mode 1

   Sensitivity has nothing to do with baud rate or timing
