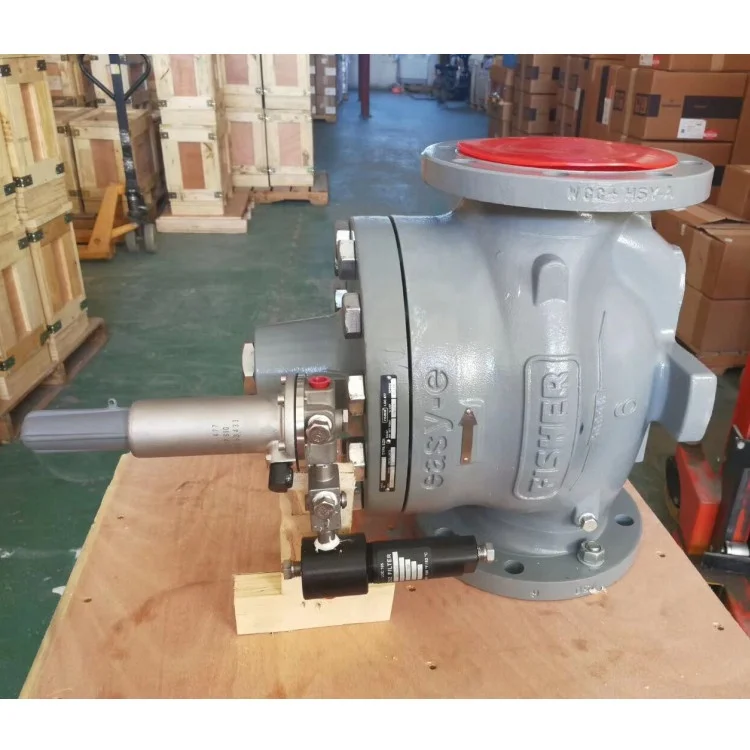

Flange Class300 End Connection Type EZR Model Pressure Reducing Gas Regulator
Flange Class300 End Connection Type EZR Model Pressure Reducing Gas Regulator
Flange Class300 End Connection Type EZR Model Pressure Reducing Gas Regulator

Flange Class300 End Connection Type EZR Model Pressure Reducing Gas Regulator

Share on (525646124):


Price:$4,380.00 - $4,600.00

Quantity:


Product Overview

Description



Product Description


EZR nodel pressure reducing regulator is pilot-operated pressure regulator from Fisher Regulator.
EZR model is designed to give accurate, smooth, quiet operation, tight shutoff, and long life, even in dirty service. EZR Series can be installed in various applications such as natural gas transmission/distribution systems, industrial and commercial facilities. The Type EZROSX is available with a slam-shut device which provides overpressure protection and/or under pressure protection by completely shutting off the flow of gas to the downstream system.
Type EZR (Boot Style): Pilot-operated pressure reducing regulator for low to high outlet pressure.
Type EZROSX: Type EZR with slam-shut device for overpressure (OPSO) or overpressure and underpressure (OPSO/UPSO) protection.
Main Valve Pressure Ratings
Maximum Operating Inlet Pressure: 1050 psig / 72,4 bar
Maximum Operating Differential Pressure: 800 psid / 55,2 bar d
Maximum Emergency Inlet and Differential Pressure: 1050 psi / 72,4 bar
Outlet Pressure Ranges
6-inches w.c. to 1000 psig / 15 mbar to 69,0 bar
Pressure Registration
External
Temperature Capabilities
-20° to 260°F / -29° to 127°C
Approximate Weights
Cast ironNPS 2 x 1 to 6 / DN 50 x 25 to 150: 50 to 225 Pounds / 23 to 102 kg
depending on body size and end connection style

WCC Steel:
NPS 1 to 8 / DN 25 to 200: 22 to 1590 Pounds / 10 to 721 kg depending on body size and end connection style
Construction with Integral Slam shut:
NPS 1 to 6 / DN 25 to 150, flanges end connection only: 44 to 537 Pounds
/ 20 to 244 kg depending on body size and flanged end connection style




Specification


item
value
Warranty
1Year
Customized support
OEM
Place of Origin
Mexico
Brand Name
fisher
Model Number
EZR
Product name
Cl300 Flange EZR Pressure Reducing Gas Regulator
End Connection Styles
Flange CL300 RF
Max Inlet Pressure
103Bar
Flow rate
215000m³/h
Outlet pressure
0.34-24.1bar
Material
WCC


Company Profile




Suzhou Ephood Automation Equipment Co.,Ltd was founded in1994 .We specialize in foreign trade business of All kinds of Industrial Valves , Natural Gas Regulator,and some other famous brand products' procurement. We established our valves business in August 2005 under the name Suzhou Leading Flow Control Equipment Co.,Ltd. We built a good cooperation relationship and become the sales agent with SUFA Technology Industry Co.,Ltd,CNNC.

Ephood's partners adopt the international standards, such as API/DIN/BS/EN/GB/JISfor Valves designing and manufacturing. These partners have acquired API 6D and CE certifications as well as ISO9001:2000 quality management system certification. Main valve products are Gate valve ,Globe valve, Check valve, Throttle valve, Ballvalve, Butterfly valve, Strainer, Control valve,Special Material Valves. The valves are widely used in Water supply and drainage, Power generation, Petroleum, Chemical industry, Town gas heat supply, Metallurgy, Medical Industry. Our products enjoy good reputation in both domestic and overseas markets.

Our professionals will manage every facet of your project, so you can focus on growing your business.
Best from us to create quality!


FAQ


1. who are we?
We are based in Jiangsu, China, start from 2010,sell to Mid East(15.00%),Africa(12.00%),Domestic Market(9.00%),South America(9.00%),Southeast Asia(9.00%),Southern Europe(9.00%),Western Europe(8.00%),North America(6.00%),Eastern Europe(6.00%),Central America(5.00%),Eastern Asia(4.00%),South Asia(4.00%),Oceania(2.00%),Northern Europe(2.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pressure Gas regulator,SUFA Valve,Control Valve,Pressure Transmitter,Fisher HSR/627/67CFR

4. why should you buy from us not from other suppliers?
Specialization in supply of the Industrial Valves ,Control Valves and Pressure Gas Regulators , Pressure Transmitters. Especially in supply of Fisher pressure regulator ,model HSR ,67CFR,627,R622.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Japanese
