Baby Diaper Machine(baby diaper production line)(diaper equipment)
- Category: Paper Product Making Machinery >>>
- Supplier: Jubao Technical Machine Co. Ltd.
Share on (558980403):
Product Overview
Description

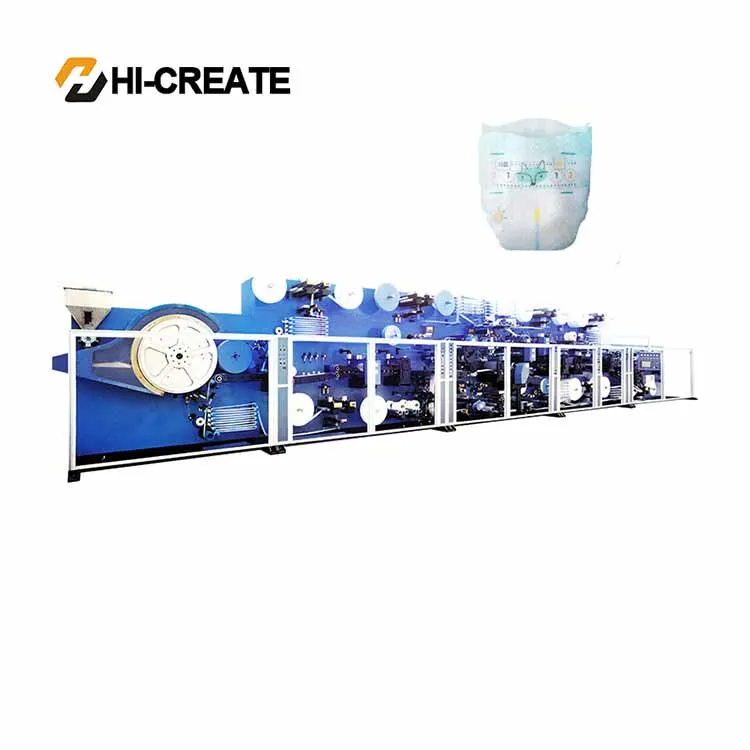

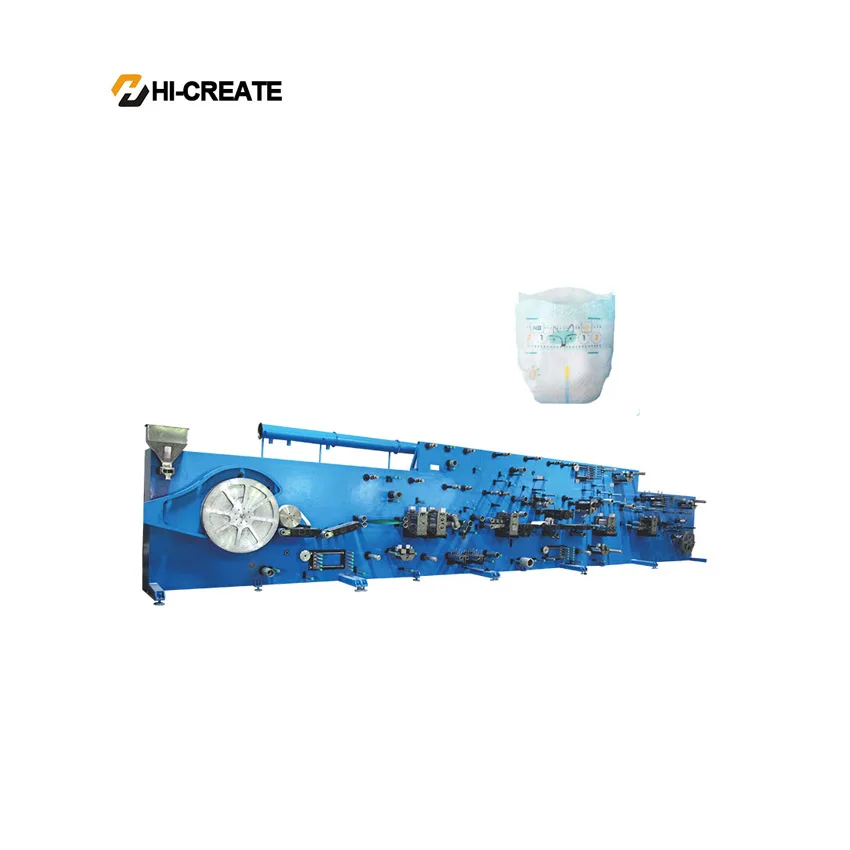

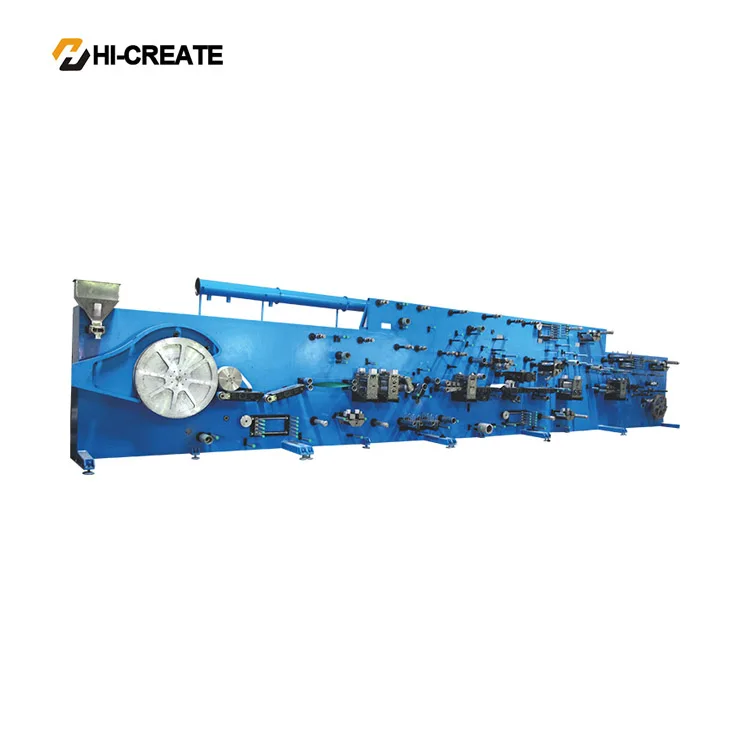

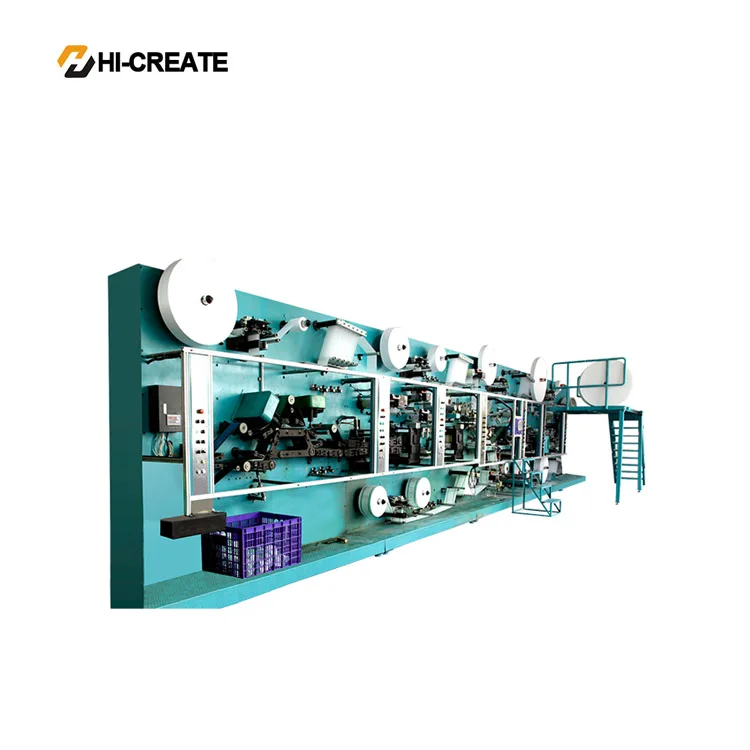

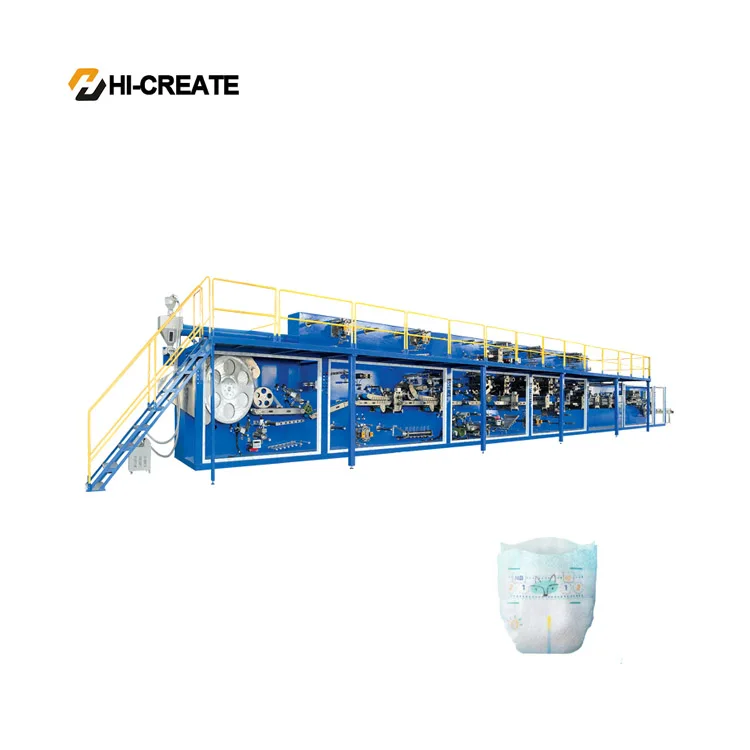

Baby Diaper making Machine
Technic features:
|
Model |
HC-DP-FS 450 |
HC-DP-FS 550 |
|
|
Designed Speed |
200 m/min |
240 m/min |
|
|
Production Speed |
450 pcs/min(Size S) |
550 pcs/min(Size S) |
|
|
Percent of Pass |
97%(calculate in 7.5hours, the ratio of qualified products and total output) |
||
|
Efficiency |
≥85%(calculate in 7.5hours, the ratio of actual output and theoretical output) |
||
|
Capacity |
260KW (includes Hot Melt Adhesive Injecting) |
280KW (includes Hot Melt Adhesive Injecting) |
|
|
Practical Capacity |
200KW (includes Hot Melt Adhesive Injecting) |
200KW (includes Hot Melt Adhesive Injecting) |
|
|
Power Supply |
3 phase 4 line 380V/50Hz (earth wire) |
3 phase 4 line 380V/50Hz (earth wire) |
|
|
Electric Wire |
3×120mm2+1×50mm2+1×25mm2 |
3×120mm2+1×50mm2+1×25mm2 |
|
|
Min. Air Pressure |
8kg/cm2 |
8kg/cm2 |
|
|
Air Compressor |
>0.6Mpa, 1.8m3/min, 22kw (For reference) |
>0.6Mpa, 1.8m3/min, 22kw (For reference) |
|
|
Noise |
<85dB(A) |
<85dB(A) |
|
|
Machine Color |
Blue (according to requirement) |
Blue (according to requirement) |
|
|
Sizes of Products |
XL,L,M,S |
XXL,XL,L,M,S |
|
|
Length of Products(mm) |
540(XL),500(L),450(M),390(S) (alterable) |
580(XXL),540(XL),500(L),450(M),390(S) (alterable) |
|
|
Total Weight |
70 ton |
70 ton |
|
|
Dimension(L×W×H) |
30×8×3.5 m |
32×8×3.5 m |
|
|
Operation Room (L×W×H) |
34×12×4 m |
38×12×4 m |
|
|
Packing Measurements |
4×40HQ+1×20GP |
4×40HQ+1×20GP |
|
* Inverter drive, PLC control with touch screen
* Raw materials tension control and auto splicing
* Quality control system with reject for defective products
* Pulp unwinding stand
* Cell mill with single in-feeding pulp
* Single drum forming for constant core formation
* SAP applicator
* Tissue wrapping device
* Core embossing unit
* Core cutting unit
* ADL splitting device
* Elastic ribbon unwinding unit
* Back sheet & NW lamination device
* Elastic waistband applicator
* Frontal tape applicator
* Side tape applicator
* Leg cuff applicator
* Anatomic (R) cutting unit
* Longitudinal folding device
* Final cross cutting unit
* Tri-folding device
* Reject gate
* Bag type dust collection system
* Safety door
Services Terms:
1. We provide to arrange customer’s factory, complete line and material purchasing or guiding
2. Follow-up service of product: we will notice you since the product leaves the factory.
3. After complete of engining: we help our customers train fountain equipment operator for free.
4.Error treatment: the customer service department will take action immediately when they receive any call and provide professional repairer to help you solve your problems as soon as possible.
5. After-sales service: Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support.
About Us:
Established in 2006, Hi-Create machine co.ltd specializes in the design and manufacture of paper machine products.
With an ce,sgs:certified manufacturing factory which covers about 15000 square meters, we employ about 20 high quality talents and about 115 experienced workers Who make about 80 sets of paper machine products monthly. Moreover,2 to 3 new models will be released by our 8 experienced engineers.
Our company was the first to produce and export portable paper machine to Southeast Asia and have used our experience to extend our business to include North America, Europe, South America and Australia, Africa, Southeast Asia/Mideast.
Company Information
 |
 |
 |
 |
 |
 |
FAQ
1. Q: How about the quality?
A:We guarantee them for 1 year generally, but our customer used our machines for many years without problem.
2. Q: How long is your guarantee?
A: One year(Calculated from the equipment arrives at the customer’s side.).
If there is any problem within guarantee period (excluding cased by human's wrong action), we will send you spare parts for free.After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happen.
3. Q: How should I order? What payment method do you accept?
A: Choose the products what you like, and send inquiry to us for more details (or you can call us, chat with us by online chat software such as TradeManager,Skype; Mobile chat software such as Whatsapp,Line,Viber,Wechat,etc.). After confirming all details and signing the contract, you can pay prepayment, then we produce machines after receiving prepayment. We deliver these machines by ship according to our agreement. We send the documents to you after shipment. We accept payment by T/T generally, and also accept L/C
4.Q: How can I get to your company?
A:We are located in Quanzhou City, China.
You can get a flight to xiamen International Airport.We will go to airport to pick you up. It takes around one hour from airport to our office. You may also come to our city by High Speed Railway train, we will go to train station to pick you up.
5.Q: Lead time?
Within 5-10 days after receive payment
6.Q: Packing?
PE film packing or fiber wooden boxes, suitable for International transportation
If you want to know more information about our products welcome to contact us in any time, And welcome to our factory!
