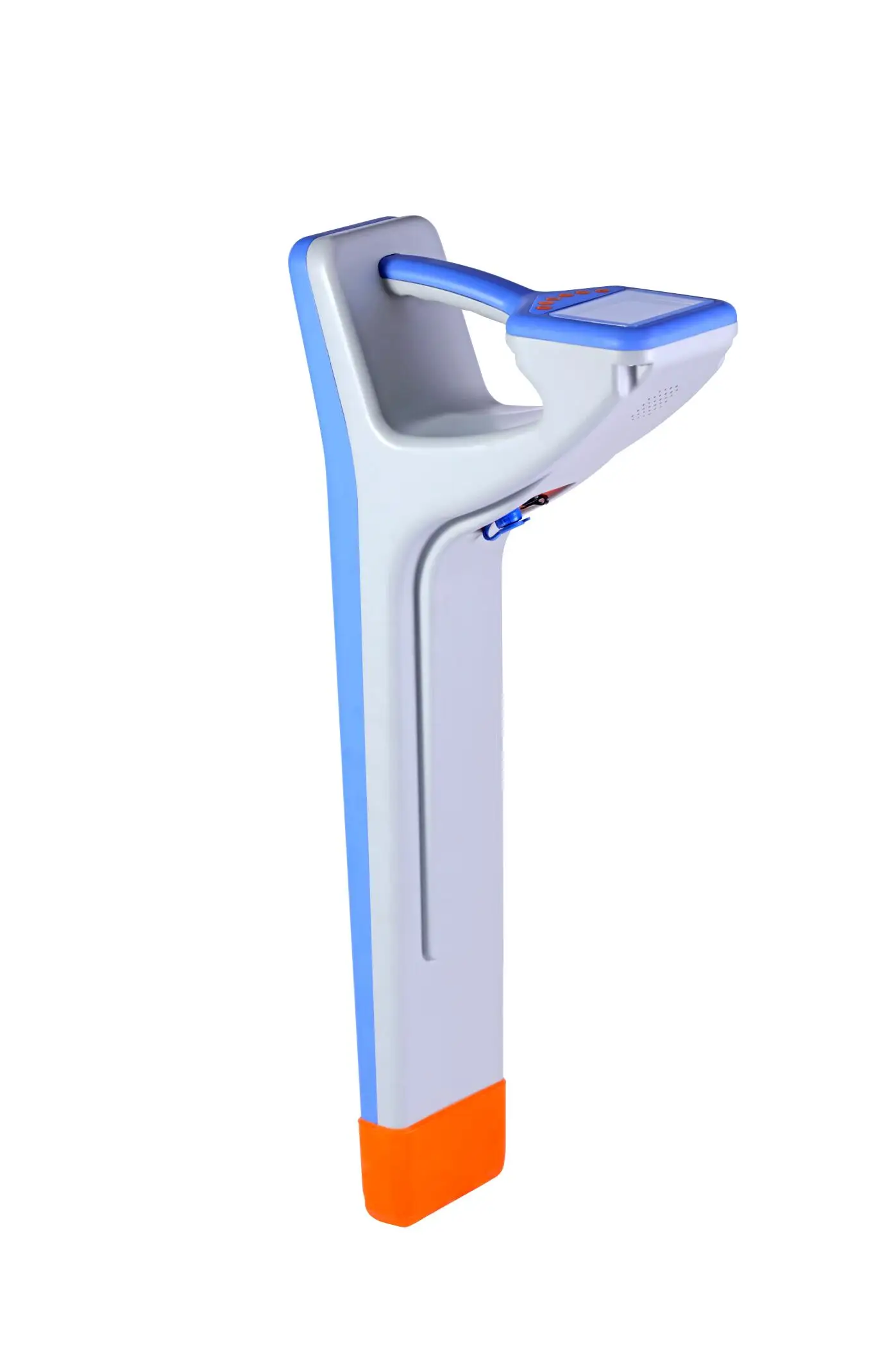

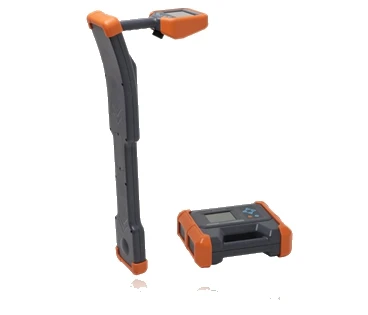

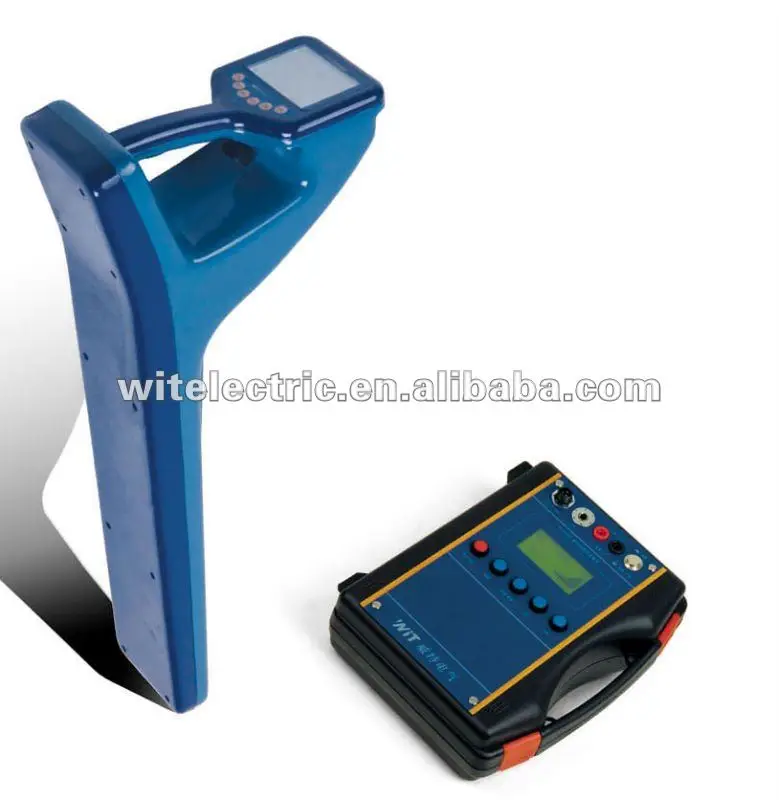

Pipe Locator, Underground metallic pipe locating,Route tracing

Receiver clamp

 Run cable signal coupling

Transmitter clamp

 Cable identification

Mini senior

 Cable identification in complex condition

Frame support

 Pinpoint pipe insulation broken fault

Used to locate the trace and depth of all kinds metallic

pipe,on/off power cable identification

Right/wrong indication: patented clamp detecting to show result

Easy grounding fault locating

Automatic depth and current detection

Historical curve record,show the changes directly

Excellent anti-interference ability

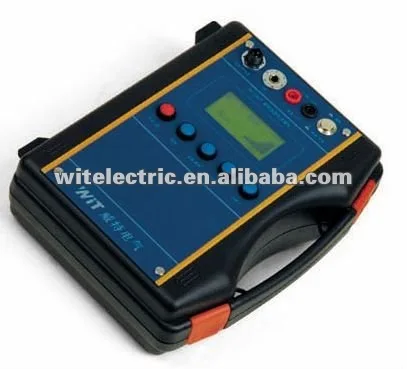

High power output.Max 10w,four grades,easy operate

Automatic impedance matching and protection

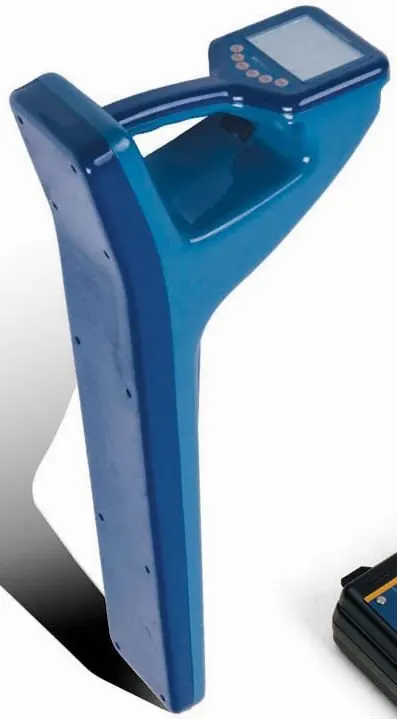

Ø Receiver

Signal input mode

 Built-in clamp input,Internal receiving loop,1k Mini Sensor,8k Mini Sensor,A Frame

Receive frequency

Active frequencies:500Hz, 1kHz, 8kHz, 33kHz,

Passive frequencies:power frequency,radio frequency

Clamp intelligent frequency discrimination:500Hz.1kHz compound frequency

Clamp current measurement frequencies:500Hz, 1kHz, 8kHz

Sensor frequencies: 1kHz, 8kHz

Grounding fault locate frequencies: 8kHz compound frequency

Pipe detection mode

Intelligent Peak Method (Wide): Suitable for active detection.

Peak Method: Suitable for passive detection.

Narrow Method.

Null Method.

Cable Identification mode

Clamp intelligent identification

Mini sensor identificationClamp current measurement

HMI

320x240 dots LCD

Internal battery

Lithium cell battery, 14.8V,7Ah

Batter charger

Input AC100~240V,50/60Hz

Output DC 8.4V,2A/3A

Dime.

700mm*270mm*120mm

Weight

3.5kgs

Working environment

Temp. -10 °C~40 °C

Humidity:5-90%RH

Elevation <4500m
