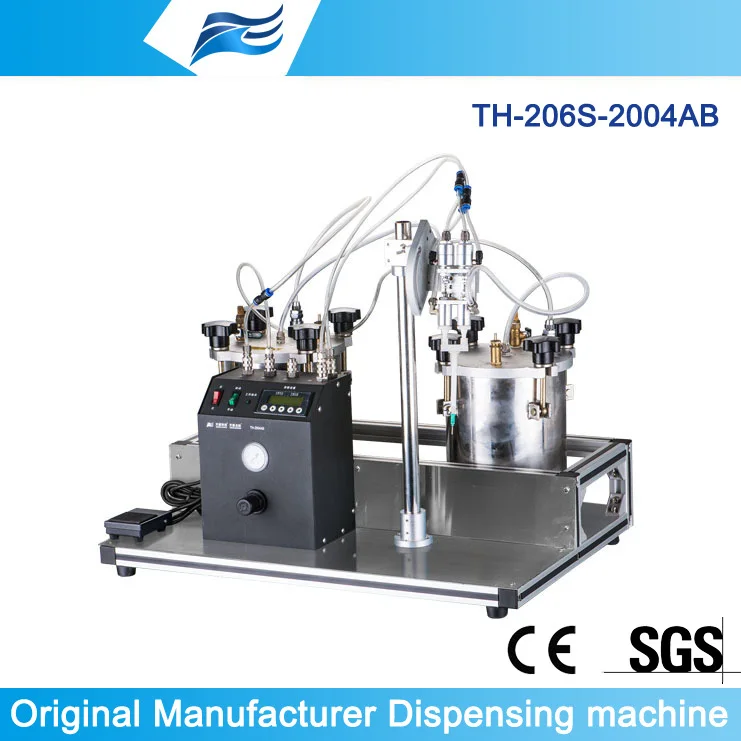

glue epoxy resin hardener mixing/metering dispensing machine

Product Overview

Description



Model:TH-2004AB1

glue epoxy resin hardener two component  mixing/metering dispensing machine





 metering&mixing dispensing  equipment for a two part epoxy for lower viscosities adhesives, polyurethane, resins and epoxies precision to handle the metering&mixing dispensing of the component parts.



Adapt to a variety of two-component  AB glue 1:1-1:3
*widely used in the relay, energy saving lamps, LED, capacitor, etc. dispensing, potting operations







 Sales Points/Focus

1. Have a big capacity cartridge, make the time of importing materials minimum, and reduce waste.

2. Adopted with the TH-700J pneumatic double-liquid valve can interrupt the flow quickly without dripping.

3. Static mixer is used which can mix liquid evenly. It can be cleaned conveniently.

4. The auto-cycling function can reduce labor intensity and increase the production.

5. Digital circuit timing controlling technology was used, and the dispensing time can be set through the digital dial.

6.The pedal /ring/inductive switches can be chosen.

7.Complete with an accessory dispensing kit.



Models

T&H-2004abD ispenser 110V-CE

T&H-2004ab Dispenser 220V-CE



Complete with an accessory dispensing kit



NO	Name	QTY
1	Frame	1pcs
2	Controller TH-2004AB	1pcs
3	Valve 700J	1pcs
4	Tank TH-100Y If TH-2004AB1 only have 2pcs tank	2pcs
5	Air tube with tank 6X4mm If TH-2004AB1 only have 2pcs Air tube	2pcs
6	Air tube with controller 8X5mm	1pcs
7	Air tube with valve 6X4mm	2pcs
8	Glue tube 8X6mm If TH-2004AB1 only have 2pcs glue tube	2pcs
9	Tee	1pcs
10	STATIC MIXER	1pcs
11	Dispensing tip	10pcs
12	220V power cable	1pcs
13	Foot  pedal	1pcs









Quality guarantee

We provide 1years warranty of product and shipment with one set fitting to you





PackingInformation
