4 20mA 0 5V 0 10V Submersible Water Level Pressure Transmitter Transducer Sensor
- Category: Level Measuring Tools >>>
- Supplier: Hunan Firstrate Sensor Co. Ltd.
Share on (60072647076):
Product Overview
Description

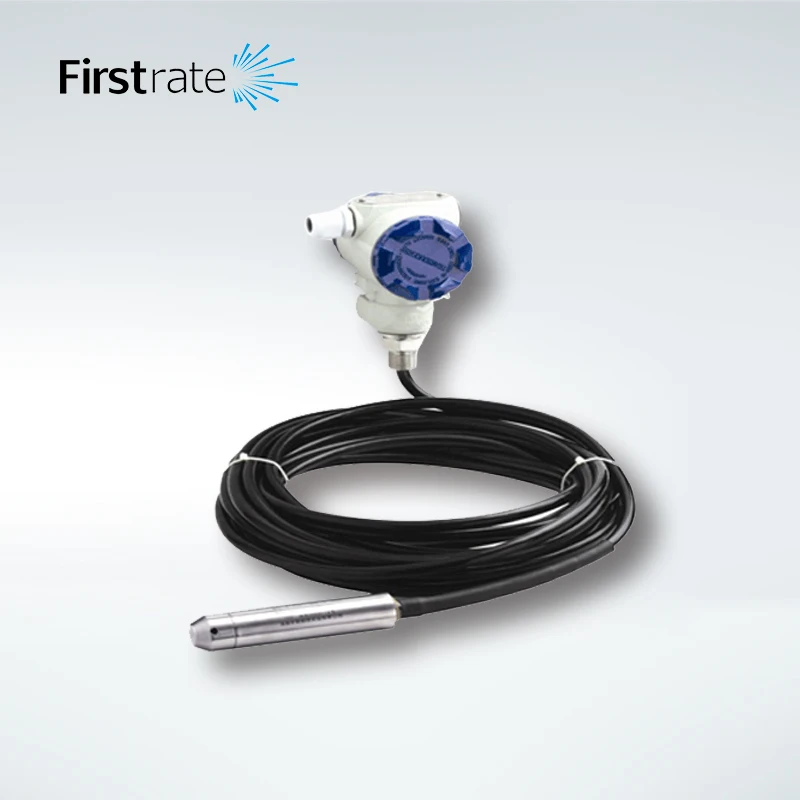

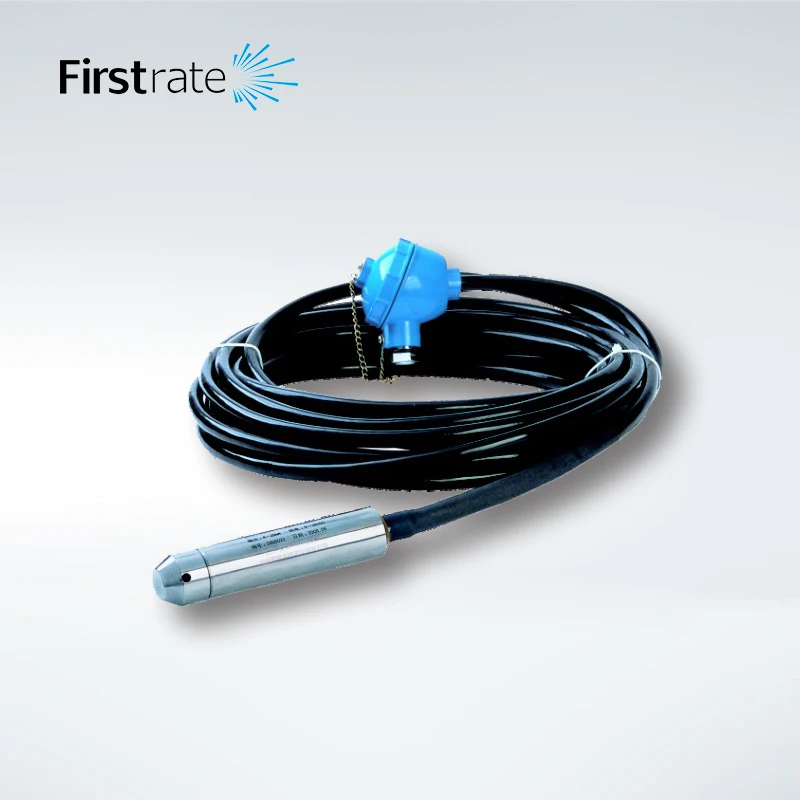

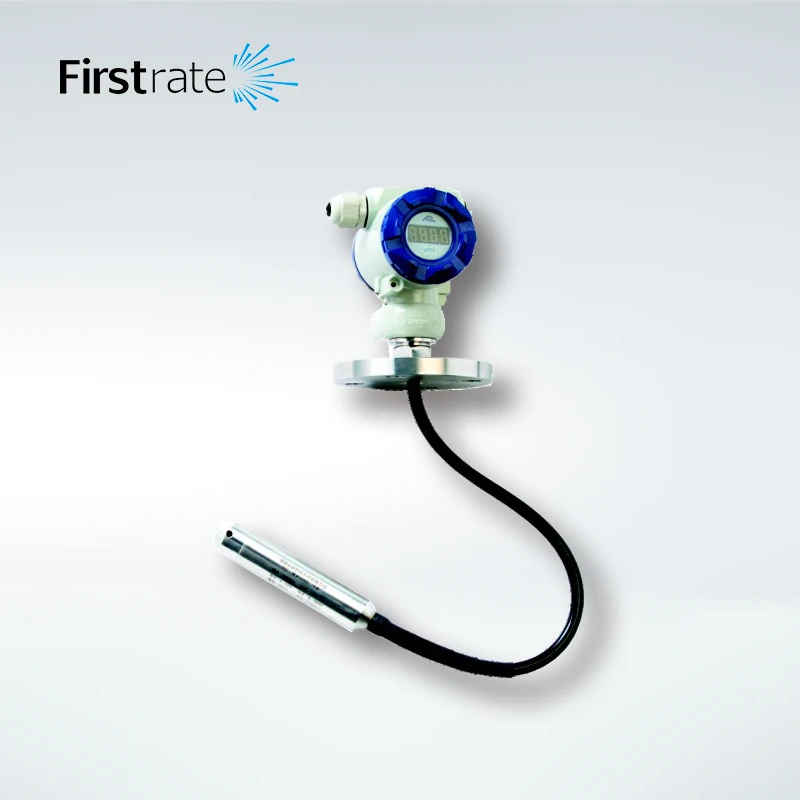

4-20mA 0-5V 0-10V Submersible Water Level Pressure Transmitter Transducer Sensor
Product Description
| Product Introduction | |
| 4-20mA 0-5V 0-10V Submersible Water Level Pressure Transmitter Transducer Sensor is designed for diving level measurement. The sensitive element is the MEMS diffused silicon core. The whole product uses 316L stainless steel, can be applied to any measurement of liquid level compatible with 316L. With excellent welding technology and perfect assembly process, it is featured with Moisture-proof, anti-sweat, free of leakage troubles, IP68. | |
| Product Features | |
| ♦ Moisture-proof, anti-sweat, free of leakage troubles, IP68 ♦ Excellent resistance against impact, overload, shock and erosion ♦ Efficient lightning protection, strong anti RFI&EMI protection ♦ Advanced digital temperature compensation and wide working temperature scope ♦ High sensibility, high accuracy, high frequency response and longterm stability | |
| Applicable Scope | |
| ♦ Liquid-level testing and control in industrial process ♦ Testing and control in Hydraulic and hydropower engineering ♦ Building Automation System and constant pressure water supply system ♦ Urban water supply and wastewater treatment ♦ Liquid-level testing and control in other automation systems  | |
| Standard Range | |
| Pressure Type: gauge pressure and sealed pressure | |
| Pressure Range(mH2O):0.5 1 2.5 5 10 20 50 100 200 300 400 500 600 | |
| Technical Index | |
| Signal Output | 4~20mA 0~5VDC 0~10VDC RS485 Modbuss |
| Signal Line Specification | 2wire 3wire 3wire |
| Supply Voltage | 9~30VDC 9~30VDC 15~30VDC |
| Accuracy | ±0.3%FS ±0.5%FS ±1%FS |
| Zero Drift | ±0.02%FS/°C |
| Thermal Sensitivity Shift | ±0.02%FS/°C |
| Longterm Stability (1 Year) | ±0.1%FS |
| Frequency Response (-3dB) | 3.2kHz |
| Compensated Temperature | -20~+85°C |
| Medium Temperature | -10~+85°C |
| Storage Temperature | -40~+125°C |
| Overload Pressure | 200% FS |
| Medium Compatibility | Various media compatible with the 316L stainless steel |
| Environmental Protection | IP68 |
More Hot Products
Company Information
About Hunan Firstrate Sensor Co.,ltd
Hunan Firstrate Sensor Co.,ltd is a high-tech joint venture specialized in researching, manufacturing, and sales of sensors and transmitters. Our products include Pressure sensors and Transmitters, Temperature sensors and transmitters, Liquid-level sensors and Transmitters, Wind Speed & Direction sensor, and Intelligent Control Instruments. They are widely used in the field of aviation & aerospace, national defense & military project, engineering machinery, railway & urban railway system, automotive electronics system, HVAC, air compressor, textile, petrochemical, coal mines and other industrial automation control. FST700-101 4-20mA 0-5V 0-10V Submersible Water Level Pressure Transmitter Transducer Sensor
More About Firstrate Company
Firstrate is committed to the research & development of international leading Microfused technology, adopts the Microfused Silicon Strain Gauge production technique ,CAN ( Controller Area Network) technology and wide temperature digital compensation data system. MEMS sensors have been recognized and highly praised by scientists and engineers from industrial automation. At present, our company has declared 12 national invention patents, 30 plus utility-model patents. And have got the certificates of CMC, CE, Safety & Flame-proof certification and ROHS. FST700-101 4-20mA 0-5V 0-10V Submersible Water Level Pressure Transmitter Transducer Sensor
Our Certifications
Buying Guides
Ordering Process:
In order to recommend you the most suitable sensor , please show us following necessary info according to your practical situation.
- what is your medium: gas, water or other ... ?
- working temperature: -20~+85 °C ?
- tesing range:
- output: 4-20mA , 0-5V or ....?
- screw: G1/4, 1/4NPT, R1/4, M20*1.5.....?
- electrical connection: DIN43650, Packard, Direct lead ..... ?
- Whether need cable ?
- quantity: ?
- price items: CIF or Exw or FOB ?
- Your complete company name,address, post code,contact person, tele, fax etc.
