Low Noise Wood Crusher with High Capacity
Introduction
Wood crusher, also known as wood chipper, is specialized equipment for wood logs processing industry. As there is a large demand on wood sawdust for making wood pellets, biomass briquette and charcoal, wood crusher is becoming a hot potato either in private wood chip business or in fiber board plants.

Characteristics
This type of sawdust machine made by us is energy saving type and easy to operate. It is designed and developed according to industrial requirements. It belongs to wood crushing and pulverizing machine. It is finely processed, high efficiency and environmental protection type. It is optional for electricity

Spotlight
1. For some large wood logs and square logs, chipping is necessary before crushing.Wood crusher integrates the chipping and crushing process thus saving much labor and energy.
2. To ensure safe processing, the machine adopts self feeding method and avoids any possible damage when metal piece is mistakenly put into the chamber.
3. Other merits like low energy consumption, large capacity, and easy maintenance all make it a nice investment.
Technical Parameter
Type | Parameter | Output (Kg/h) | Power (Kw) | Dimension (mm) | Weight (t) |
500 | Cutter diameter:450mm; Blade quantity:4pieces Blade length:100mm; Discharge port diamete:180×200mm | 300 | 7.5 | 1500×900×1160
| 0.4 |
600 | Cutter diameter:600mm; Blade quantity:6pieces Blade length:150mm; Discharge port diamete:200×200mm | 600 | 11 | 1800×1175×1260
| 0.6 |
700 | Cutter diameter:650mm; Blade quantity:6pieces Blade length:200mm; Discharge port diamete:200×250mm | 800 | 15 | 2000×1300×1390
| 1 |
800 | Cutter diameter:750mm; Blade quantity:6pieces Blade length:230mm; Discharge port diamete:250×300mm | 1500 | 22 | 2200×1400×1500
| 2 |
900 | Cutter diameter:850mm; Blade quantity:4-6pieces Blade length:260mm; Discharge port diamete:300×400mm | 3000 | 37 | 2400×1500×1600
| 2.8 |
1000 | Cutter diameter:950mm; Blade quantity:4-6pieces; Blade length:300mm; Discharge port diamete:400×500mm | 4000 | 45 | 2600×1800×1700
| 3.2 |

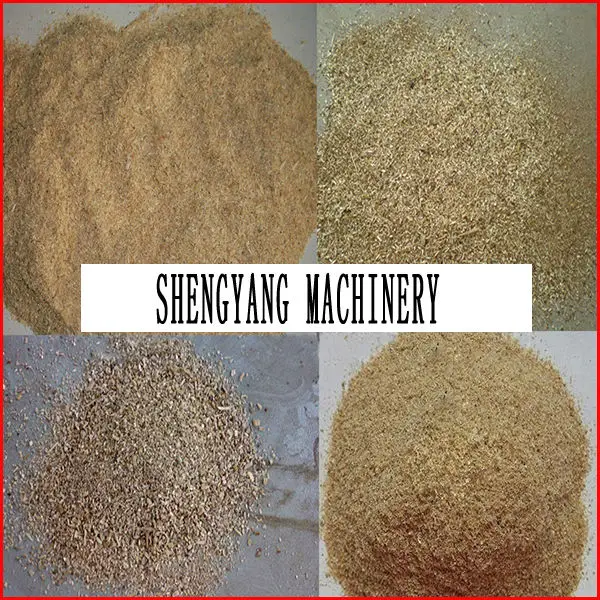

Final product show


Certification

we will do our best for the packaging and shipping according to our customers' requirements.

Pre-sale services:
1> Provide the free consultation of the equipment
2> Provide the standard device and the flow chart
3> According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.
4> Welcome to visit our factory
Services during the sales:
1> Inspect the machine before leaving the factory.
2> Oversea install and debug the equipment.
3> Train the first-line operator.
After sale services:
1> 24 hours online service
2> Provide the VIDEO with Install and debug the equipment
3> Provide technical exchanging
Linyi Lanshan Shengyang Wood-based Panel Machinery Factory
Linyi Lanshan Shengyang Wood-based Panel Machinery Factory,founded in 1996,is a professional manufacturer which developed and manufactured all kinds of man-made machinery and equipments.Our main products are Fully automatic particle board production line,Melamine laminate hot press machine,Short cycle lamination hot press machine and variety of new high-end hot press machine,cold press,dryer,Planking machine,Saw machine...etc. full set wood-based panel production machinery and equipments.
After more than twenty years’ continuous innovation and development, Shengyang Machinery has become an outstanding enterprise along with strong power, advanced technology and excellent quality. Products are sold nationwide, exported to Asia, Europe, Africa and Oceania...etc. more than 20 countries and regions, also supported and praised by clients and friends all over the world.
Shengyang machinery first passed ISO9001-2000 international quality certification system in the same industry, and also has repeatedly been rated as "municipal contract and trustworthy enterprise", "scientific and technological innovation Star Enterprise" and other honorary titles.
We “Shengyang Men” always adhere to “succeed through quality, walk on the path of development of superior quality and high efficience” as business philosophy, “to have a foothold in China and head for the world” as development goal, “honesty first in business, being man before on business” as Shengyang Spirit. We will carry on serve you with the more excellent products’ quality, more stringent management system and much better service system, and hand in hand, and share success with you.
Trust us! Once cooperative, long-term friends!
All we “Shengyang Men” welcome your visit!
