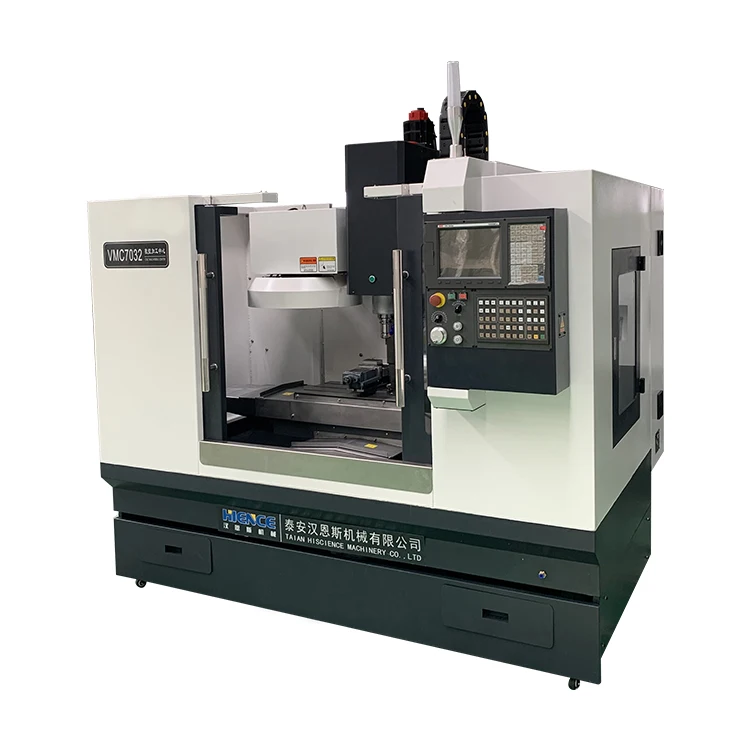

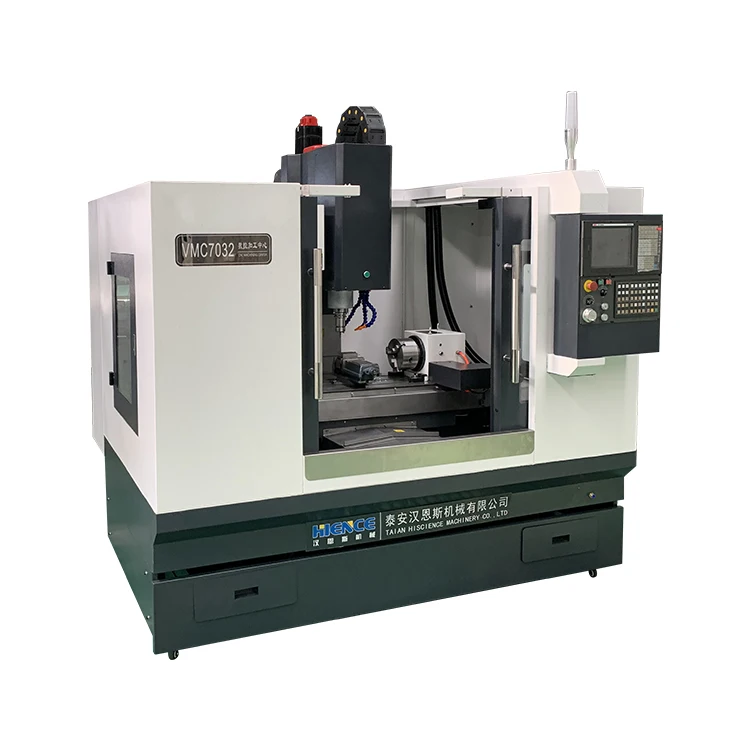

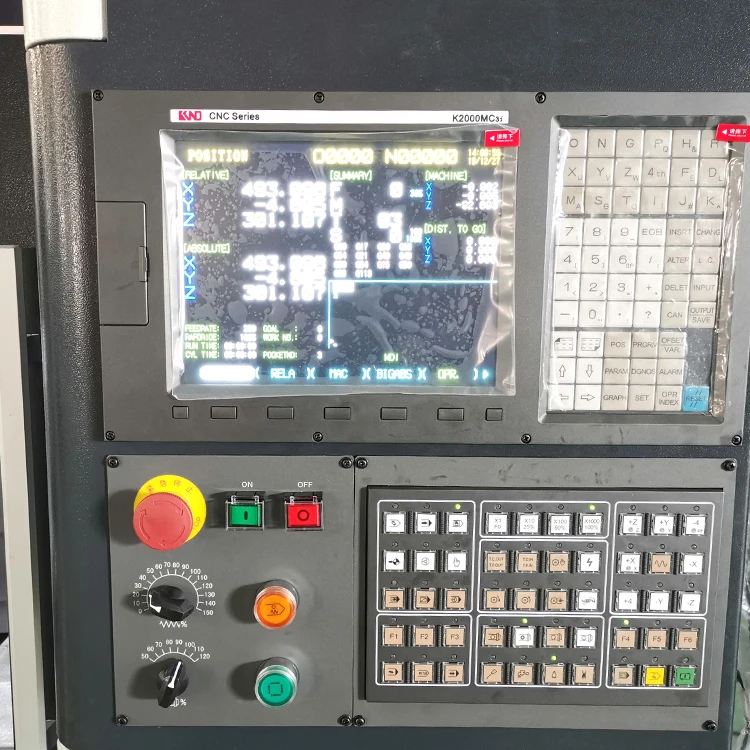

VMC 7032 3 axis cnc вертикальный обрабатывающий центр с ЧПУ в Китае (стандарты CE, ISO
- Category: Machine Centre >>>
- Supplier: Taian Hiscience Machinery Co. Ltd.
Share on (60115878124):
Product Overview
Description
Items | Details | Unit | VMC7032 |
Table | Size | mm | 800×320 |
Travel of X/Y/Z axis | mm | 610/320/400 | |
Max. table load | kg | 400 | |
T-slot | Size | mm | 3-14 |
Center distance | mm | 100 | |

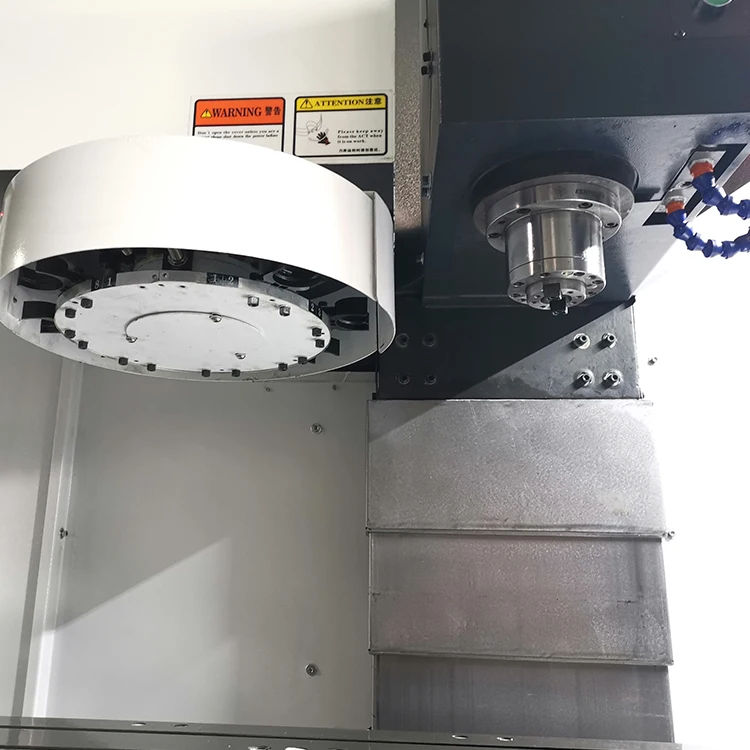

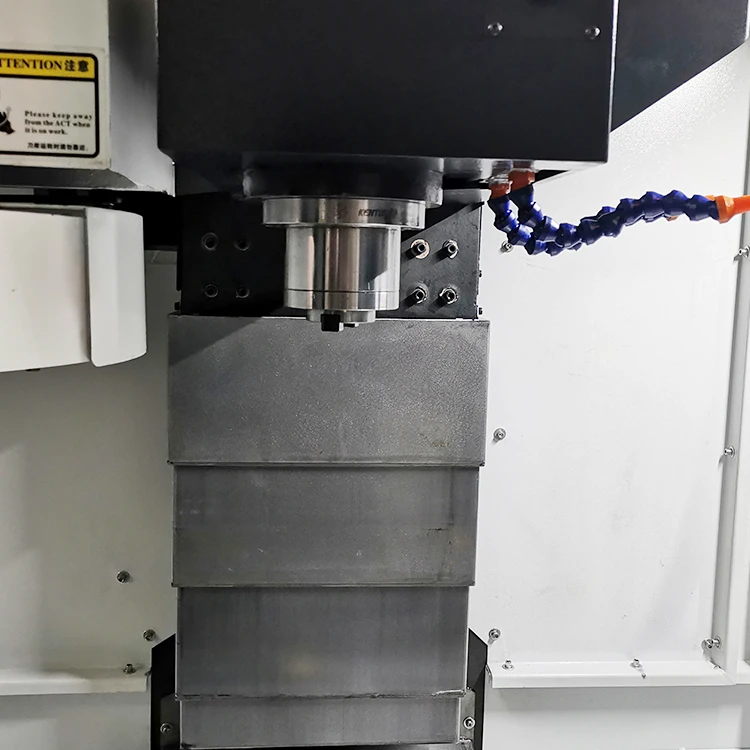

Spindle | Spindle taper |
| BT40 |
Spindle to column | mm | 370 | |
Distance of spindle head to table | mm | 150-650 | |
Max speed | rpm | 80-8000 | |
Motor power | KW | 5.5 | |
Accuracy | Positioning accuracy | mm | 0.015 |
Repeatability | mm | 0.008 | |
Tool | Tool storage capacity | Pcs | 16 |
Tool changing time | s | 2.5/5 | |
Max. tool diameter | mm | 78/90 | |
Max. tool length | mm | 300 | |
Parameters | Rapid feed | mm/min | 18 |
Feeding speed | mm/min | 0-10 | |
Weight | Kg | 3100 | |
Dimension | mm | 2270*1640*2230 | |
Power |
| 3 phase 380V |
