Литьевая машина для литья под давлением алюминия
- Category: Metal & Metallurgy Machinery >>>
- Supplier: Jiangmen Zhenli Machinery Co. Ltd.
Share on (60271058611):
Product Overview
Description

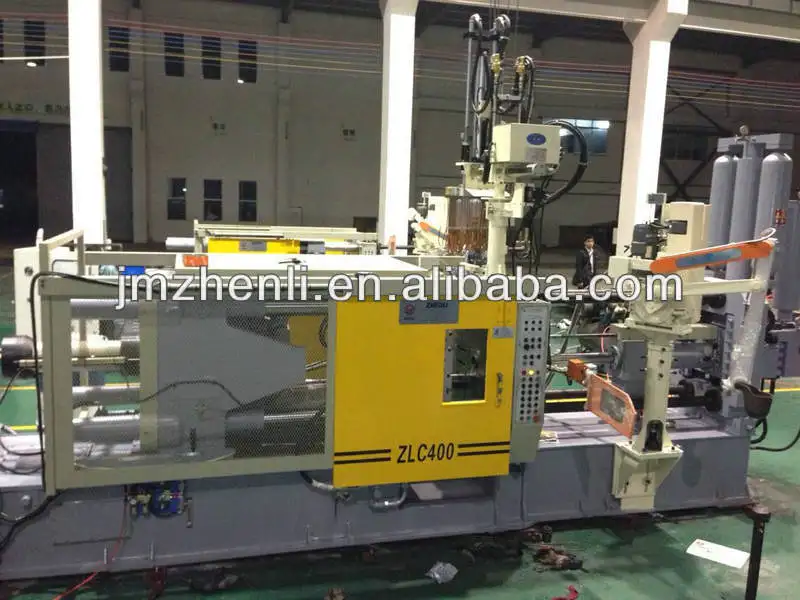

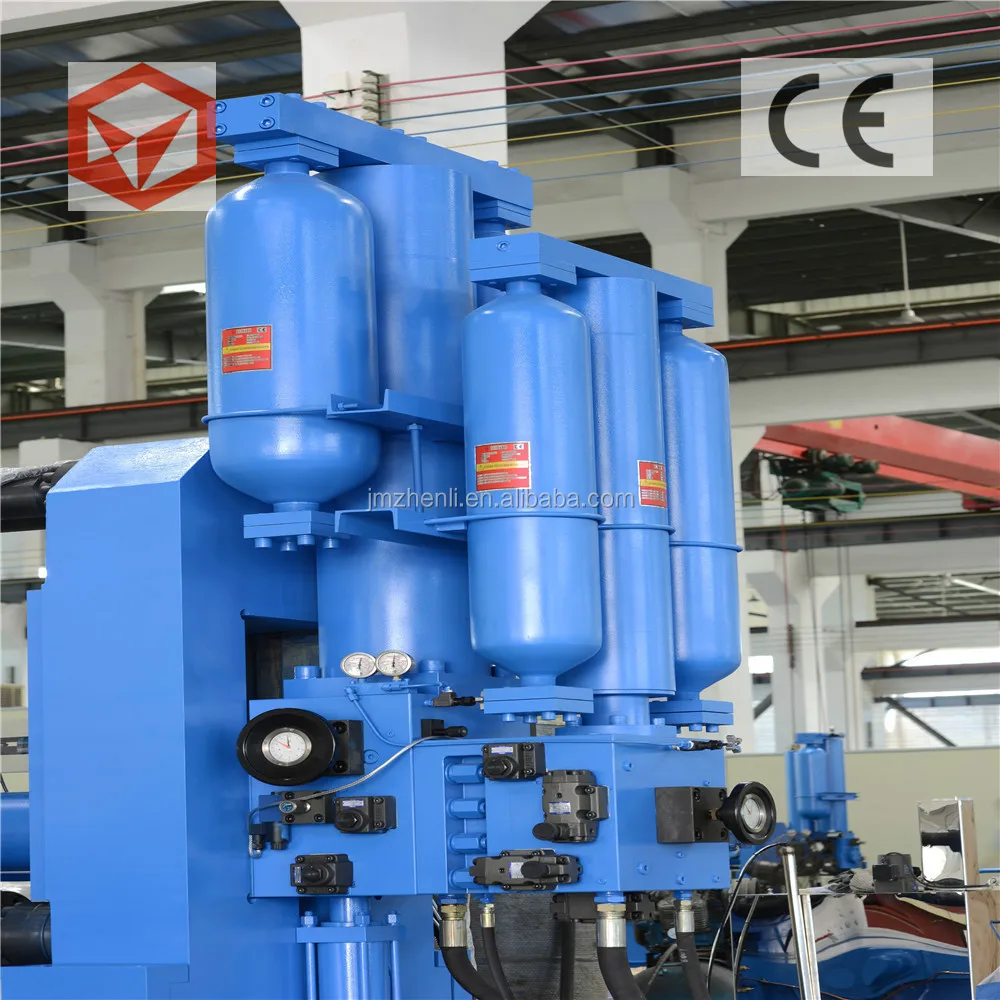

The die casting machine structure adopts 3-pull rod or C- shaped bracket plus hydraulic elevator device and satisfies requirements for moulds .

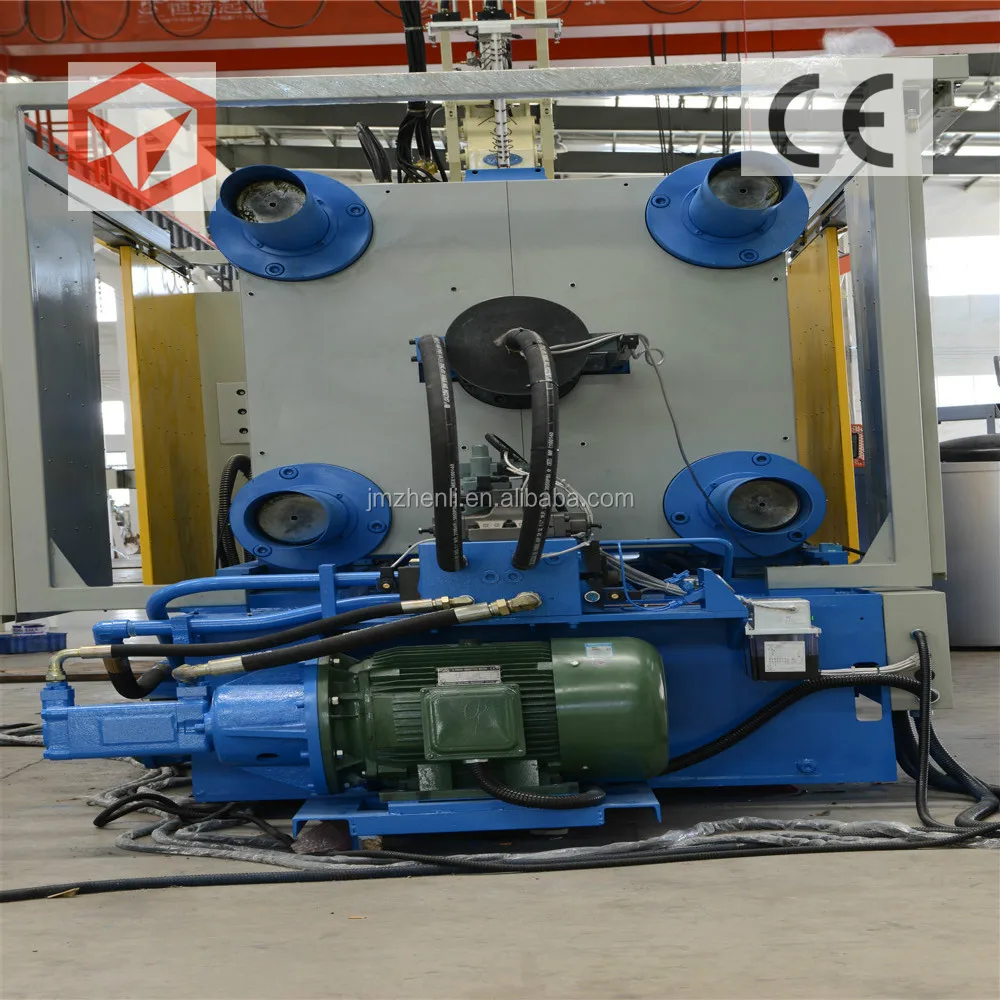

Adopts high and low pressure twin pump with high performance and low noise,saves energy consumption and improves production efficiency .
Adopts automatic concentrated lubrication system ,directly sets lubrication for times of machine operation and improves service life of the machine and decrease repair .
Appliances control:
1.Adopts precise artificial intelligent computer control,can control and supervise the data
and status of every movement,which is convenient for operation and maintenace .
2.The large screen LCD monitor can realize conversion between Chinese and English.
3.Its powerful memory can store 100 sets of moulding data ,such as the time,times,speed,pressure,traveling distance,mould thickness,options,etc .
4.Has self-check and alarm functions to failures of computer hardware,and display function of mechanical failures,which is convenient for mechanical failure removal .
5.Mould closing adopts high precision E-ruler positioning test,which can control the precise distance to 0.1mm.
ITEMS | UNIT | ZLC-450T |
Locking Force | kN | 4500 |
Die Open Stroke | mm | 550 |
Ejector Force | kN | 190 |
Ejector Stroke | mm | 125 |
Die Height(Min.-Max.) | mm | 300-800 |
Die Platen Size(HXV) | mm | 1000×1120 |
Space Between Tie Bars | mm | 650×650 |
Shot Position | mm | -125,-185 |
Shot Strock | mm | 520 |
Casting Force(intensify) | kN | 410 |
Plunger Diameter | mm | 60,70,80 |
Injection Weight | kg | 2.8,3.7,4.8 |
Casting Pressure | MPa | 145,106,81 |
Casting Area | cm² | 275,375,490 |
Casting Area Max | cm² | 1125 |
Chamber Flange Diameter | mm | 101.6 |
Chamber Flange Protrusion | mm | 12 |
Plunger Penetration | mm | 200 |

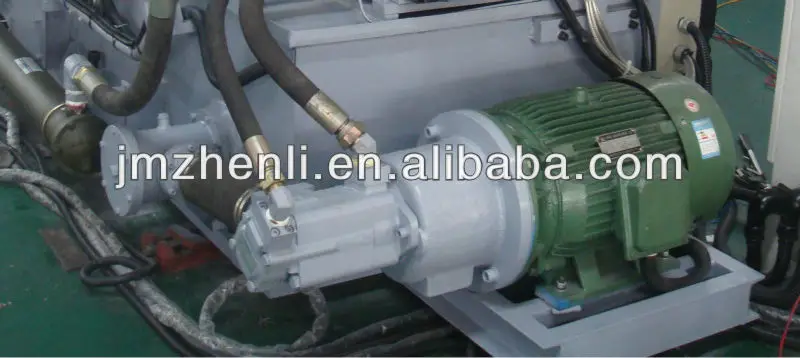

Main Pump Driving Motor | kW | 22/45 |
Working Pressure | MPa | 14 |
Oil Tank Capacity | L | 850 |
Machine Dimensions (L×W×H) | mm | 7300×1900×2800 |
Referential Machuine Weight For Uplifting | T | 18.2 |

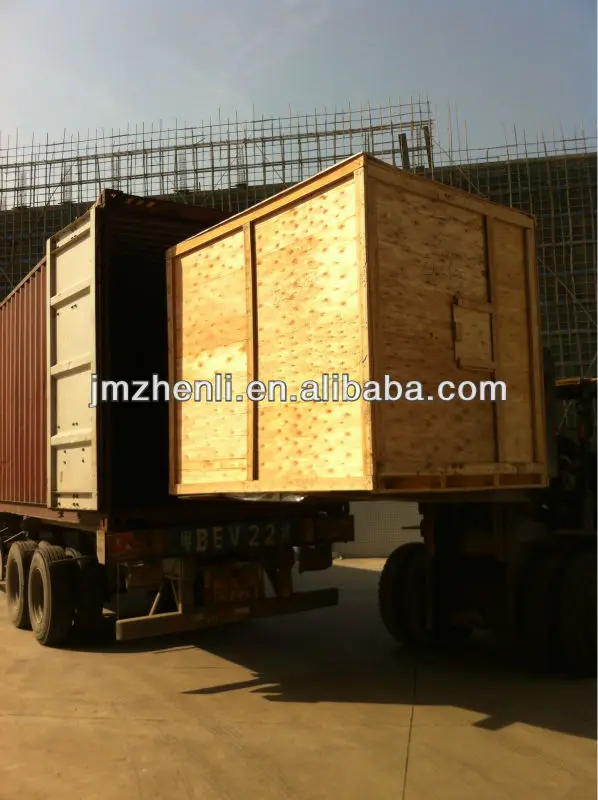

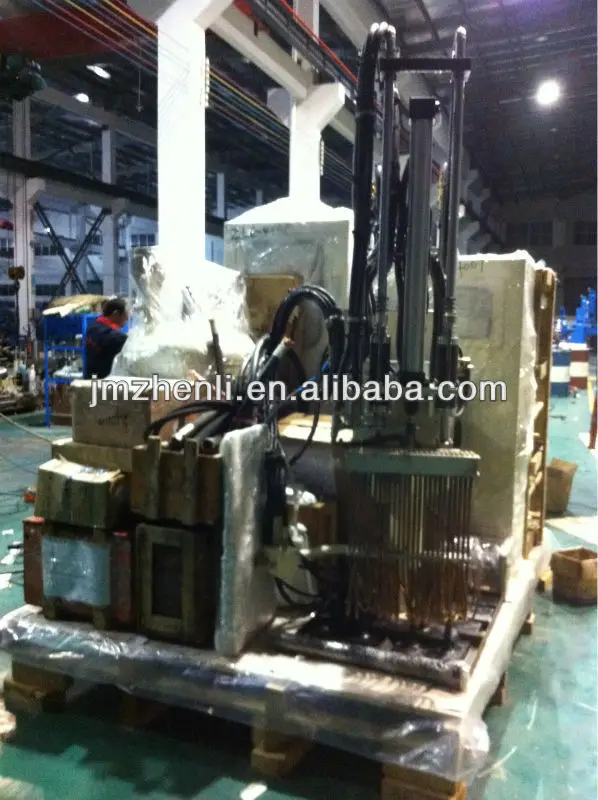

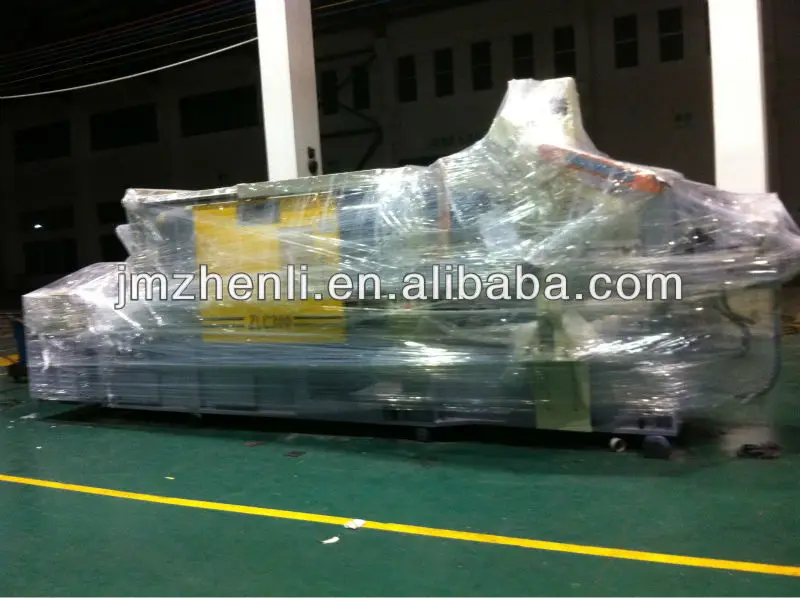

Packaging & Shipping
Our Services
when machine arrival destination port,we will appoint one technician go to your factory ,debugging and commissioning the machine for you ,and training your worker for free .
warranty:
The seller is to provide the buyer with one year warranty for Die casting machine, but except for easily - damaged parts. If the machine is found damaged within one year because of low quality parts, the seller will send the new parts to the buyer for free of charge .
Company Information
Established in 2002 and with more than ten years of development,Zhongshan Zhenli Machinery CO.,LTD has owned two production bases of 20000 square meters in total,which are located in xiaolan town of zhongshan City where is famous as "capital of China's hardware products" and jiangmen City---the advanced manufacturering industry demonstration park respectively.Zhenli is a high-tech company specializing in the R&D,production,sales and services. The main products of the company include "ZL"hot chamber die casting machines,"ZLC"cold chamber die casting machines and the peripheral devices.
Adhering to the business philosophy of "keep improving and cast performance" and the spirit of "Exploration,innovation,pioneering and integrity", zhenli is dedicated to the development of precision computerized cold/hot chamber die casting machines which are widely applied in sectors of toys,home supplies,building hardware,industrial parts,telecommunication,auto parts and electronics and satisfy the technical requirements for production of castings.
Based on our technical strength,professional equipment and R&D and design teams as well as advanced technologies ,we are able to manufacture series of cold/hot chamber die casting machines with stable performance,smooth system operation,fast injection speed and short pessutization time,with our advanced technologies,reliable product quality,excellent presales and aftersales services.Zhenli machines have won reliance from customers both at home and abroad and Zhenli has become a best-selling brand in the market,Zhenli machines have been sold to more than 30 provinces in China and 30 countries and regions including Europe,South America,Southeast Asia and Middle East, and Zhenli has become one of the biggest die casting machine exporters.
